500 Series Custom insert - DHL755BUC
This product is discontinued and has been replaced by the model below.
500 Series Custom insert
Model: DHL755BUC
This product is discontinued and has been replaced by the model below.
500 Series Custom insert
Model: DHL755BUC
Color : Stainless Steel
Replaced By
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Specifications
Specifications
Construction type
| Color | Stainless Steel |
| Grease Filter Material | Washable Aluminum |
| Grease filter type | Multilayer cassette |
| Installation Type | Built-in |
| Motor location | Integrated motor in hood body |
| Number of motors | 2 |
| Venting | Ducted |
| Typology | Built-in/Built-under |
Connectivity
| Home Connect™ | no |
| Cooktop-Based Hood Control | no |
Connection
| Watts | 270 W |
| Frequency | 60 Hz |
| Total power of the lamps | 40 W |
| Total output power of the motors | 200 W |
| Volts | 120 V |
Comfort and Convenience
| Delay Shut Off Modes | no |
| Boost Speed | no |
| Remote Control | no |
| ADA Compliant (When Installed to ADA requirements) | no |
| Clean Filter Reminders | No |

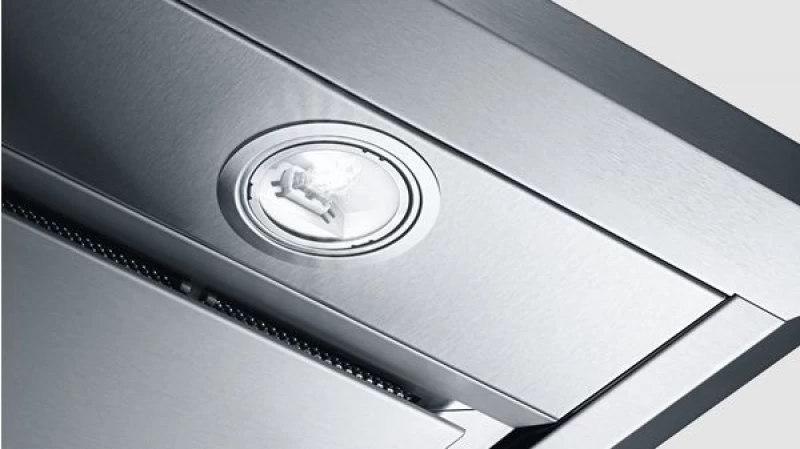

Light
| Light Type | Halogen |
| Number of Lights | 2 |
| Total Luminance | 360 lm |
| Color Temperature | Warm (<= 3.000 K) |
| Heat Lamps | no |
Dimensions & Weight
| Width | 28.69 in. |
| Height | 6.25 in. |
| Length | 15 in. |
| Weight | - |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 33.69 in. |
| Shipping Height | 11.25 in. |
| Shipping Length | 20 in. |
| Shipping Weight | - |
| Total of Shipping Weight | - |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 1.56 ft³ |
| Dimensional Weight | 19.35 lbs. |
| Total of Cubes | 1.56 ft³ |
| Total of Dimensional Weight | 19.35 lbs. |
