Monogram® 30" Stainless Telescopic Downdraft - ZVB30STSS
Monogram® 30" Stainless Telescopic Downdraft
Model: ZVB30STSS
Monogram® 30" Stainless Telescopic Downdraft
Model: ZVB30STSS
Color : Stainless Steel
Key Features
Telescopic downdraft
370 CFM performance
Remote-mounted control
Variable-speed blower with electronic controls
Removable grease filters
Optional remote blower capabilities
Stainless steel vent body
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
Telescopic downdraft
Raises to 8-1/2" over cooktop surface when you cook, then retracts when not in use
370 CFM performance
Helps keep your kitchen free of fumes and excess heat
Remote-mounted control
Provides design flexibility
Variable-speed blower with electronic controls
Complements most Monogram cooktops
Removable grease filters
Trap airborne grease particles
Optional remote blower capabilities
Stainless steel vent body
Offers a smooth and polished appearance
Certifications
California Prop 65
Specifications
Warranty
| Parts | 1 Year |
| Labor | 1 Year |

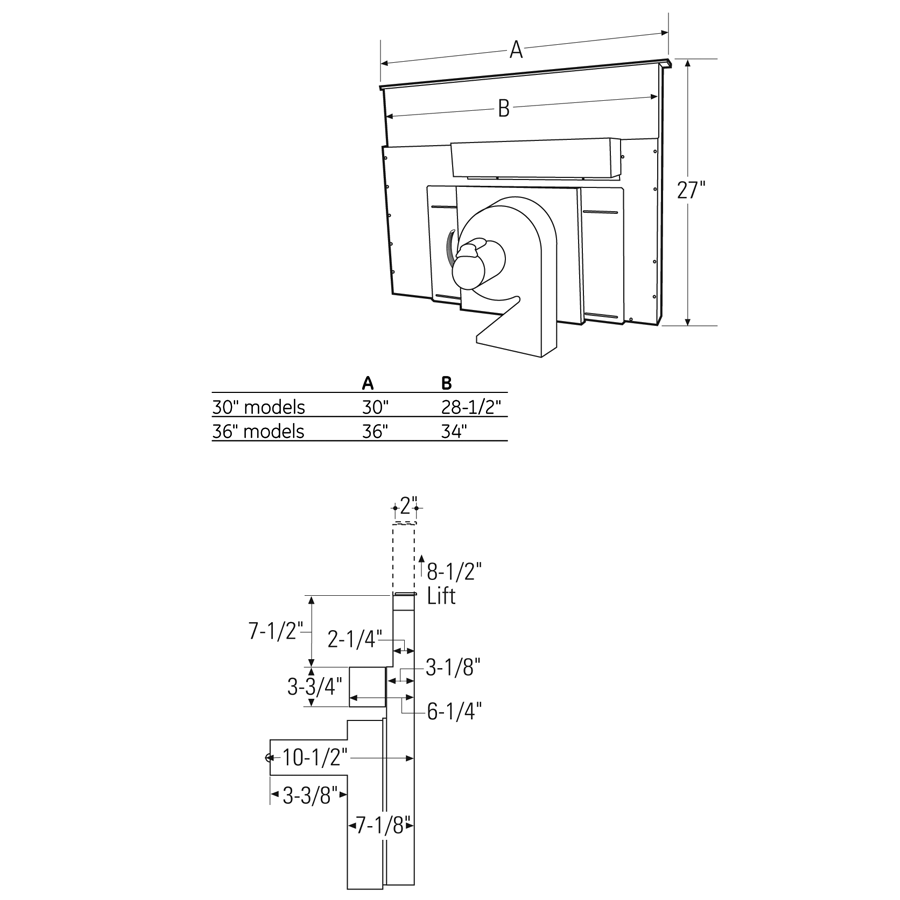

WEIGHTS & DIMENSIONS
| Net Weight | 54 lb |
| Overall Depth | 2.25 in |
| Overall Height | 27 in |
| Overall Width | 30 in |
| Cabinet Width | 30 in |
| Approximate Shipping Weight | 69 lb |
| Telescoping Height | 8.5 in |
FEATURES
| Fan Speed Control | 4-Speed |
| Max CFM | 370 |
| Optional Blower Mount Capabilities | Yes |
| Working Speed CFM/Sones | 140/2.5 |
| CFM/ Sones Rating | 370/9.0 |
| Exhaust Options | 3-1/4" x 10" Rectangular Duct |
| Control Type | Remote Control |
| Removable Grease Filter(s) | Mesh |
WARRANTY
| Labor Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
| Parts Warranty | Limited 1-year entire appliance |
ACCESSORIES
| Duct Extension | 100 ft. |
| Remote Blower Kit (Optional) | JXRB67 (Indoor) |
POWER / RATINGS
| Amp Rating at 120V | 4.0 |
APPEARANCE
| Color Appearance | Stainless Steel |
Dimensions & Weight
| Width | 30 in. |
| Height | 27 in. |
| Length | 2.25 in. |
| Weight | 54 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 35 in. |
| Shipping Height | 32 in. |
| Shipping Length | 7.25 in. |
| Shipping Weight | 94 lbs. |
| Total of Shipping Weight | 94 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 1.05 ft³ |
| Dimensional Weight | 13.11 lbs. |
| Total of Cubes | 1.05 ft³ |
| Total of Dimensional Weight | 13.11 lbs. |
