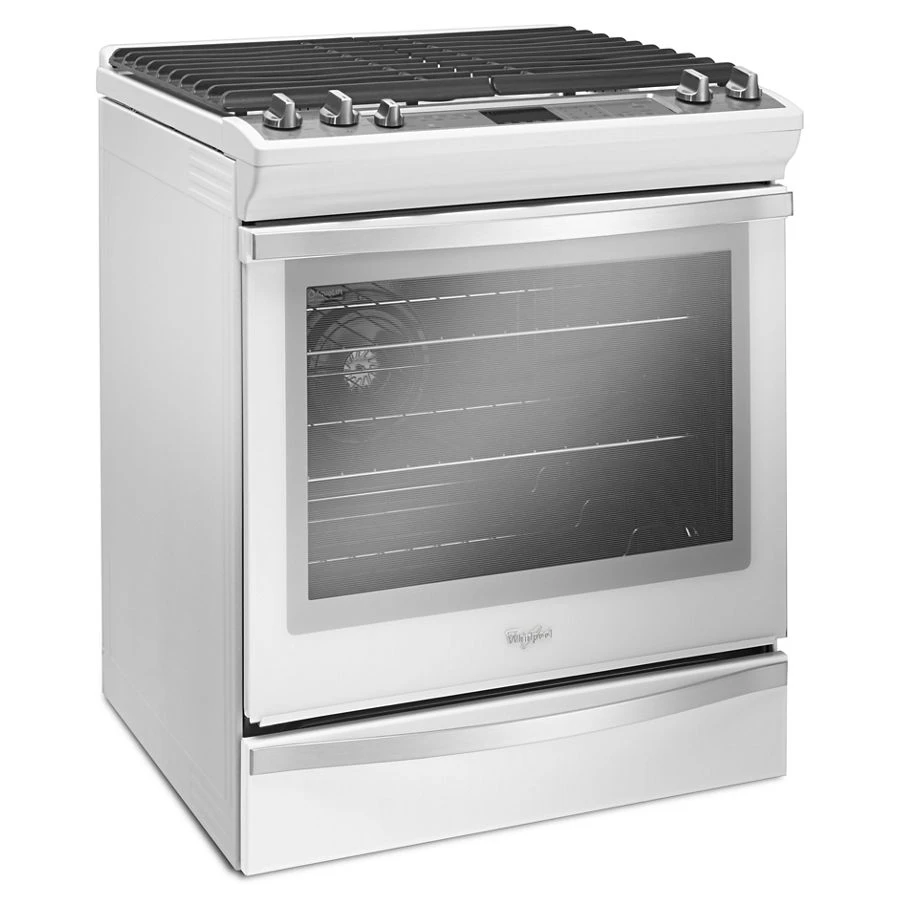

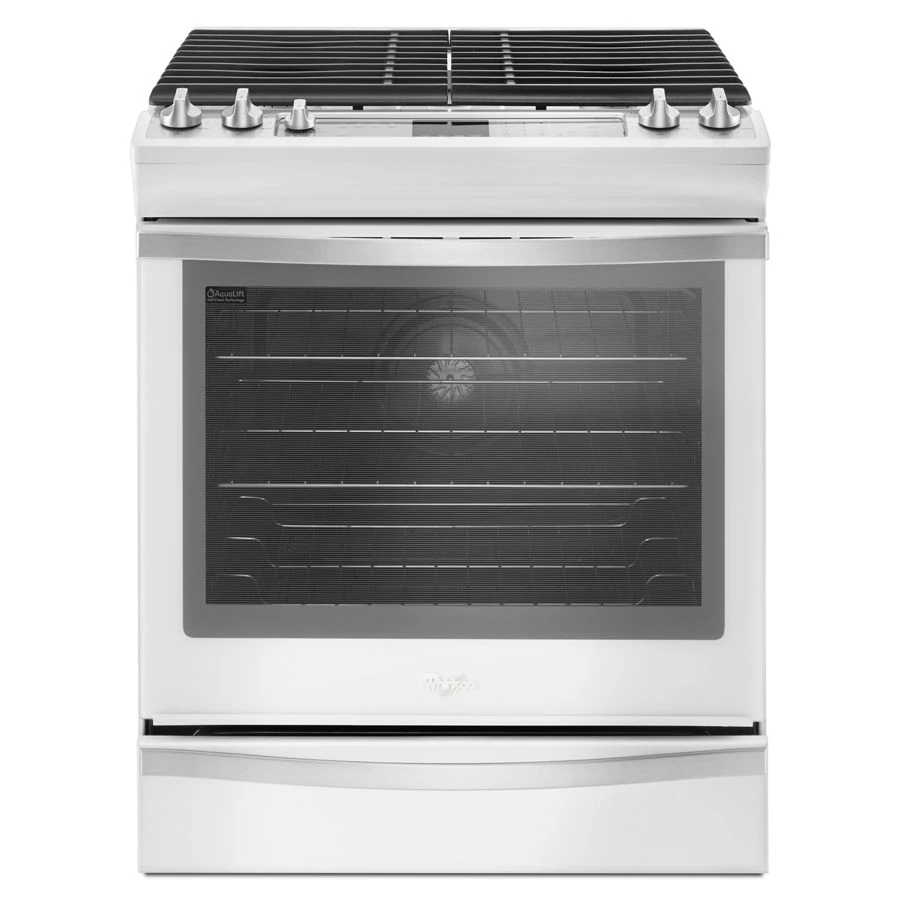

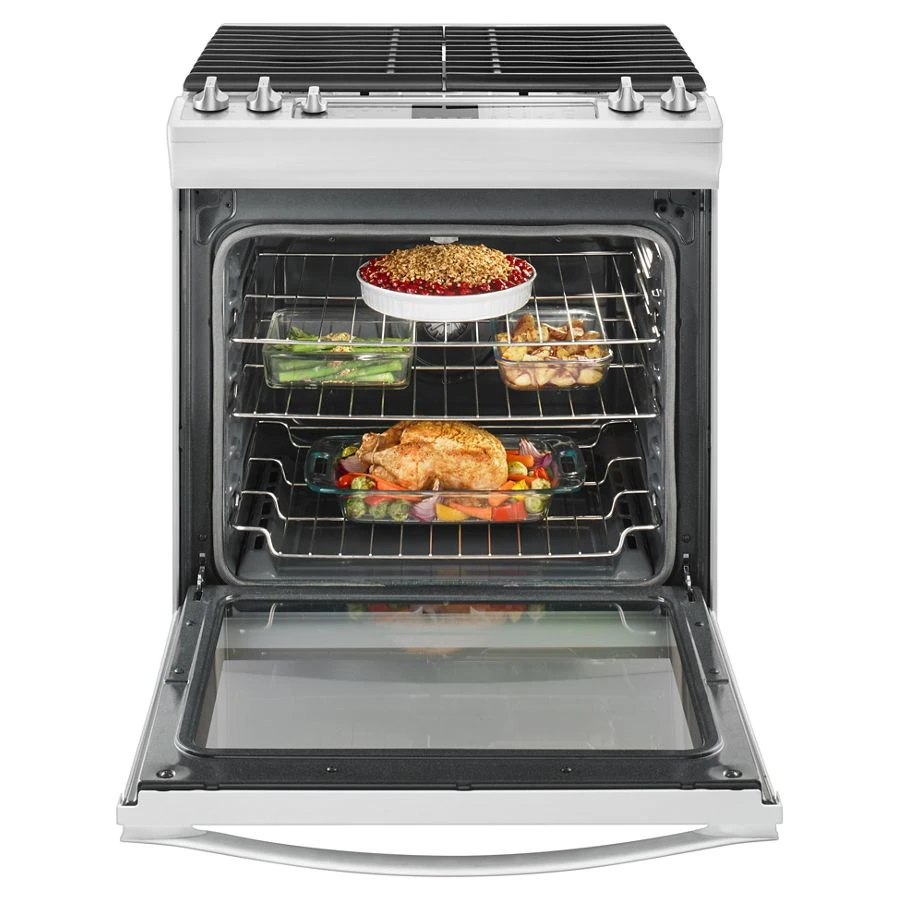

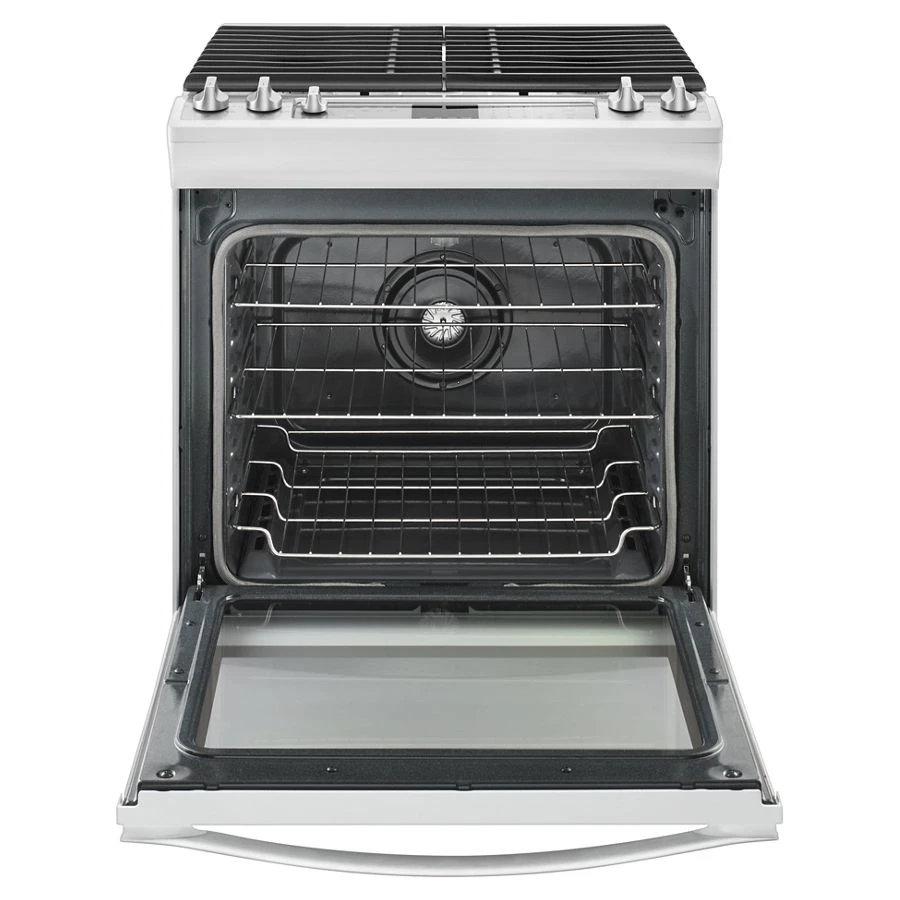

5.8 Cu. Ft. Slide-In Gas Range with EZ-2-Lift™ Hinged Grates
Model: WEG745H0FH
+1more
Specifications
Specifications
Certifications
| ADA Compliant | ADA Height and Operation Compliant |
| Prop 65 | Standard |
| UL | Yes |
Exterior Details
| Door Type | Metal & Glass |
| Handle Color | Stainless Steel |
| Handle Material | Metal |
| Knob Color | Color Coordinated/Black on Stainless |
| Knob Type | Weighted |
| Oven Control Location | Front |
| Oven Control Type | Electronic Touch |
| Oven Window Size | Extra Large |
Element/Burner Details
| Center Front Element-Burner Type | Sealed Burner |
| Center Rear Element-Burner Power | 8,000 BTU |
| Cooktop Element Style | Gas Burner |
| Left Front Element-Burner Power | 17,000 BTU |
| Left Front Element-Burner Type | Sealed Burner |
| Left Rear Element-Burner Power | 5,000 BTU |
| Left Rear Element-Burner Type | Sealed Burner |
| Number of Cooking Element-Burners | 5 |
| Number of Grates | 2 |
| Right Front Element-Burner Power | 15,000 BTU |
| Right Front Element-Burner Type | Sealed Burner |
| Right Rear Element-Burner Power | 9,200 BTU |
| Right Rear Element-Burner Type | Sealed Burner |
Cooktop Details
| Auto Re-ignition | No |
| Cooktop Control Location | Front |
| Cooktop Control Type | Knobs |
| Cooktop Surface Color | White |
| Cooktop Surface Material | Porcelain Coated Steel |
| Heating Element On Indicator Light | No |
| Hot Surface Indicator Light | No |
| Ignition Type | Electronic |
Oven Cavity Details
| Automatic Convection Conversion Temperature Adjust | Yes |
| Bake Element Power | 18,000 BTU |
| Broiler Element Power | 13,000 BTU |
| Broiler Location | Top of Oven |
| Convection Element Type | Fan |
| Convection Functions | Bake, Broil, Roast |
| Hidden Bake Element | Yes |
| Interior Color | Grey |
| Number of Oven Lights | 1 |
| Number of Oven Racks | 3 |
| Number of Rack Guides | 7 |
| Oven Cleaning Type | AquaLift® Steam Clean |
| Oven Cooking System | Convection |
| Oven Light Type | Incandescent |
| Oven Rack Type | 2 Standard and 1 Max Capacity |
Details
| Fuel Type | Gas |
| Oven Configuration | Single Oven |
| Oven Selections | Control Lock, Convect Modes, Cook Time Indicator, Delay Start, Frozen Bake, Keep Warm Setting, Rapid Preheat, Sabbath Mode, Settings |
| Power On Indicator Light | Yes |
| Power Outage Compatible | No |
| Range Configuration | Slide-In |
| Range Type | Slide-in |
Controls
| Display Color | Blue |
| Electronic Display Type | Digital |

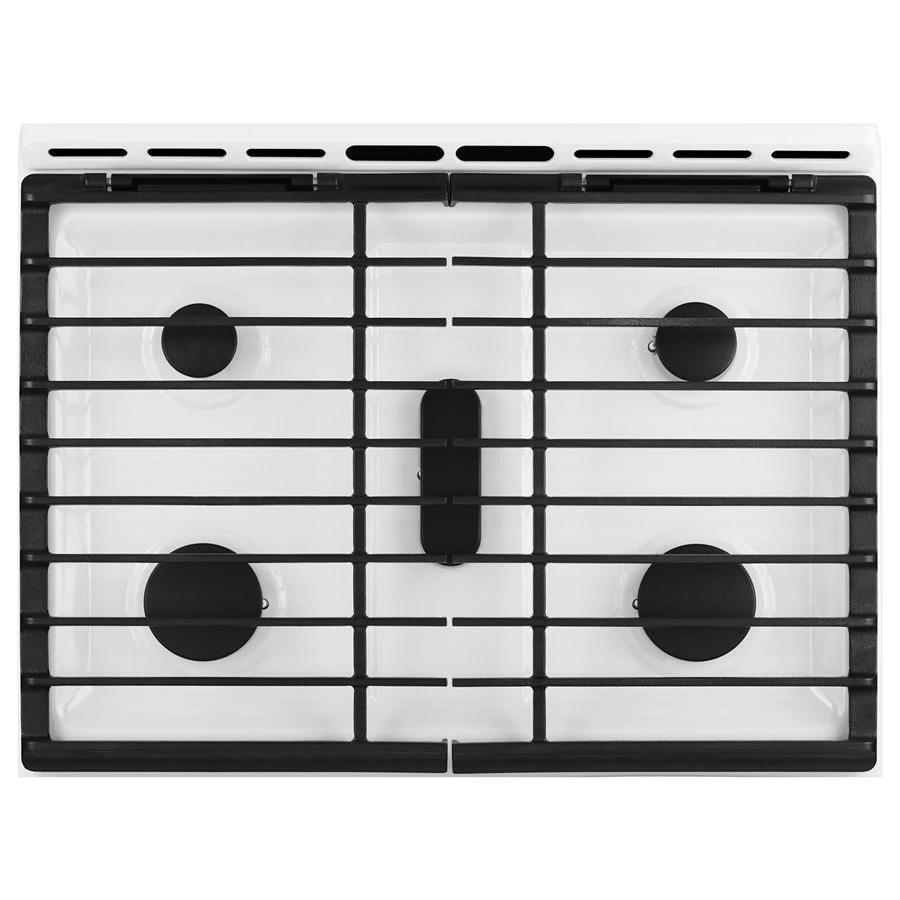

Grate Details
| Grate Details | Cast Iron Grates, Dishwasher Safe, Matte Finish, Rear Hinged Grate |
| Number of Grates | 2 |
Electrical
| Amps | 15 |
| Power Cord Included | Yes |
| Volts | 120 |
Refinements
| Features | ADA Compliant, EZ-2-Lift™ Hinged Grates, Frozen Bake™ Technology, Sabbath Mode/Star-K Certification, Self-Cleaning, True Convection, Bladed Knob, Whirlpool Handle |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 17.97 ft³ |
| Dimensional Weight | 223.42 lbs. |
| Total of Cubes | 17.97 ft³ |
| Total of Dimensional Weight | 223.42 lbs. |
Dimensions & Weight
| Width | 29.88 in. |
| Height | 36 in. |
| Length | 28.88 in. |
| Weight | 204 lbs. |
| Depth Closed Excluding Handles | 28-7/8 in |
| Depth With Door Open 90 Degree | 48-3/4 in |
| Gross Weight | 204 lbs |
| Oven Interior Depth | 20-5/8 in |
| Oven Interior Height | 22-1/8 in |
| Oven Interior Width | 24-1/8 in |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 34.88 in. |
| Shipping Height | 41 in. |
| Shipping Length | 33.88 in. |
| Shipping Weight | 244 lbs. |
| Total of Shipping Weight | 244 lbs. |
| Source | Calculation |
Other
| Capacity | 5.8 cu. ft. |
| Common Size | 30 in |
