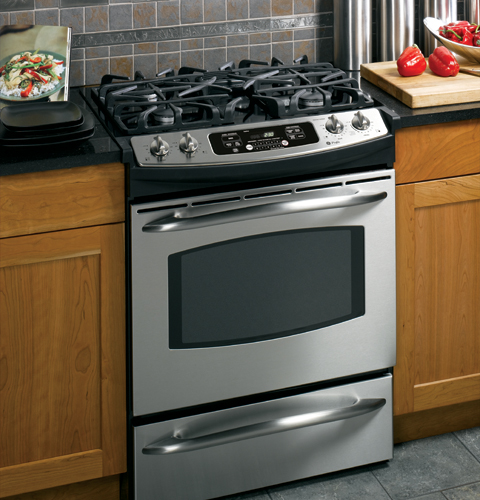

30" Slide-In Gas Range - JGS905SEKSS
30" Slide-In Gas Range
Model: JGS905SEKSS








30" Slide-In Gas Range
Model: JGS905SEKSS
Replaced By
Key Features
Self-clean oven
Precise Simmer burner
Power Boil burner
Extra-large oven capacity
Electronic oven controls
Continuous grates
Stainless sculptured handle
Frameless glass oven door
Description
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
Self-clean oven
Conveniently cleans the oven cavity without the need for scrubbing
Precise Simmer burner
Delivers a low setting of 140 degrees, ideal for delicate foods and sauces
Power Boil burner
Delivers 15,000 BTUs of forceful heat for rapid boiling
Extra-large oven capacity
Provides a large oven interior ideal for cooking more items at once
Electronic oven controls
One-touch electronic pads are easy-to-use and allow for simple oven operation
Continuous grates
Provide a flat, sturdy surface allowing easy movement of pans between burners
Stainless sculptured handle
Provides a sleek and contemporary look that coordinates with other GE Profile appliances
Frameless glass oven door
Offers an easy-to-clean and stylish design that blends seamlessly into existing cabinetry
TrueTemp system
Delivers even heat distribution and maximum oven control
Certified Sabbath mode
Prepared foods can stay warm in accordance with kosher restrictions
Sealed cooktop burners
Eliminate the space between the burners and the cooktop to help contain spills and boil over liquids, ensuring easy cleanup
Heavy-duty knobs
Add durability and brushed chrome for enhanced style and performance
Certifications
ADA Compliant
California Prop 65
Specifications

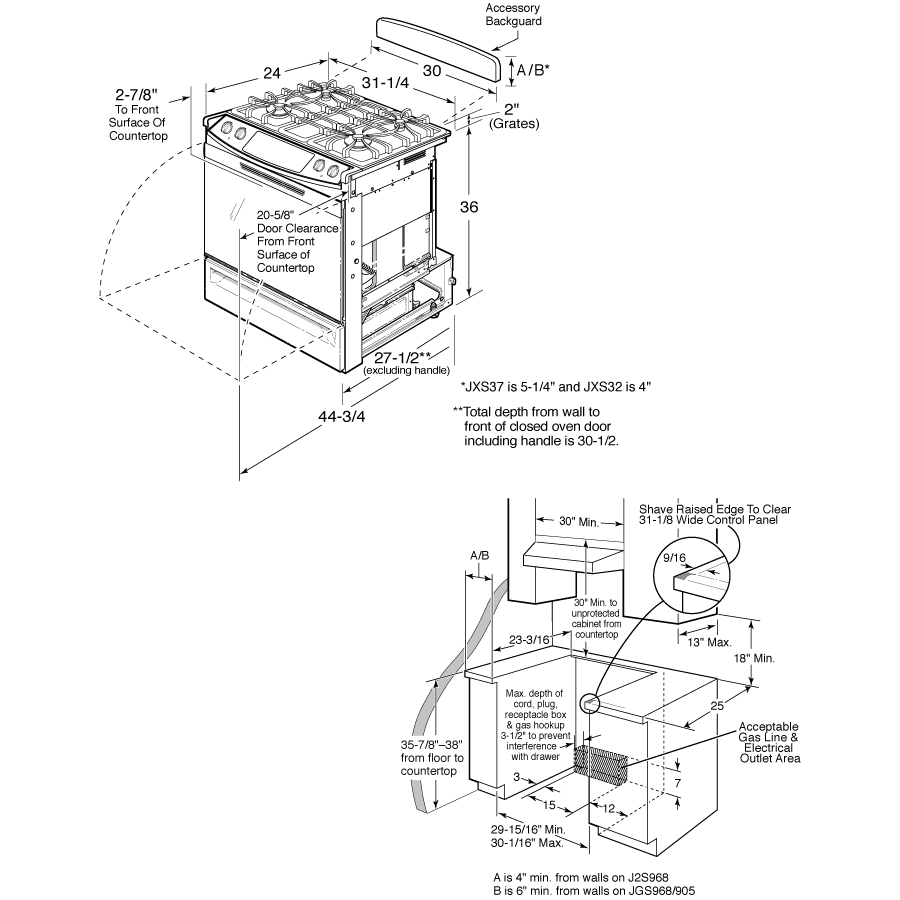

WEIGHTS & DIMENSIONS
| Cabinet Width | 30 in |
| Overall Width | 30 in |
| Overall Depth | 28 in |
| Overall Height | 38 in |
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 16-1/4 x 18-1/4 |
| Depth with Door Open 90° | 44.75 in |
| Cooktop Width | 31.25 in |
| Cabinet Opening | 30 in |
FEATURES
| Configuration | Range with Storage Drawer |
| Cleaning Time | Variable |
| Ignition System | Electronic |
| Interior Oven Light | Incandescent |
| Fuel Type | Natural Gas |
| Oven Interior | Hidden Bake |
| Oven Control Features | Temperature Display |
| Oven Rack Features | Embossed Rack Positions |
| Cooktop Burner Type | Sealed |
| Power Boil Burner | (1) 15,000 BTU/180F degree simmer |
| Temperature Management System | True Temp System |
| Oven Cleaning Type | Self-Clean |
| High Output Burner | (1) 11,000 BTU/150F degree simmer |
| All-Purpose Burners | (1) 9,100 BTU/150F degree simmer |
| Cooktop Burner Grate Material | Heavy Cast |
| Valves (Degree of Turn) | 270 |
| Cooktop Burner Grate Features | Continuous Grates |
| Cooktop Surface | Glass Ceramic |
| Dishwasher Safe Knobs | Yes |
| Oven Rack Positions (Single or Upper/Lower) | 6 |
| Leveling System | 4 Leveling Legs |
| Control Type | QuickSet V |
| Self-Clean Oven Door Lock | Automatic |
| Precise Simmer Burner | (1) 5,000 BTU/140F degree simmer |
| Control Type | Digital Temperature Display |
| Oven Control Features | Delay Bake Option (Time Bake) |
| Oven Control Features | C° or F° Programmable |
| Oven Control Features | Audible Preheat Signal |
| Oven Control Features | Auto Oven Shut-Off with Override |
| Oven Control Features | Auto Self Clean |
| Oven Control Features | Electronic Clock & Kitchen Timer |
| Oven Control Features | Electronic Clock and Timer |
| Oven Control Features | Start Pad |
| Oven Control Features | Light Self Clean Mode |
| Oven Control Features | Sabbath Mode |
| Oven Control Features | Control Lock Capability |
| Oven Control Features | In-Oven Broiling |
| Oven Rack Features | 3 Heavy-Duty Oven Racks |
APPEARANCE
| Cooktop Burner Grate Color | Matte Black |
| Oven Door Features | Big Clear View Oven Window |
| Handle | Stainless Steel Sculptured |
| Installation | Flush Appearance |
| Color Appearance | Stainless Steel |
CAPACITY
| Unit Capacity | Extra Large Oven |
ACCESSORIES
| Trim Kit - Lower | JXS56BB (Black) |
| Trim Kit - Body Side | JXS77BB (Black) |
| Optional Backguard | JXS37BB (Black) |
POWER / RATINGS
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 15.0; (1) 11.0 (1) 9.1; (1) 5.0 |
| Electrical Requirements | 120V; 60Hz; 5A |
| Top Burner BTU Rating - LP (000's BTU's) | (1) 13.0; (1) 9.1; (1) 8.0; (1) 6.0 |
Other
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 16-1/4 x 18-1/4 |
| Cabinet Opening | 30 in |
Dimensions & Weight
| Width | 31.25 in. |
| Height | 38 in. |
| Length | 28 in. |
| Weight | 223 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 36.25 in. |
| Shipping Height | 43 in. |
| Shipping Length | 33 in. |
| Shipping Weight | 263 lbs. |
| Total of Shipping Weight | 263 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 19.24 ft³ |
| Dimensional Weight | 239.21 lbs. |
| Total of Cubes | 19.24 ft³ |
| Total of Dimensional Weight | 239.21 lbs. |
