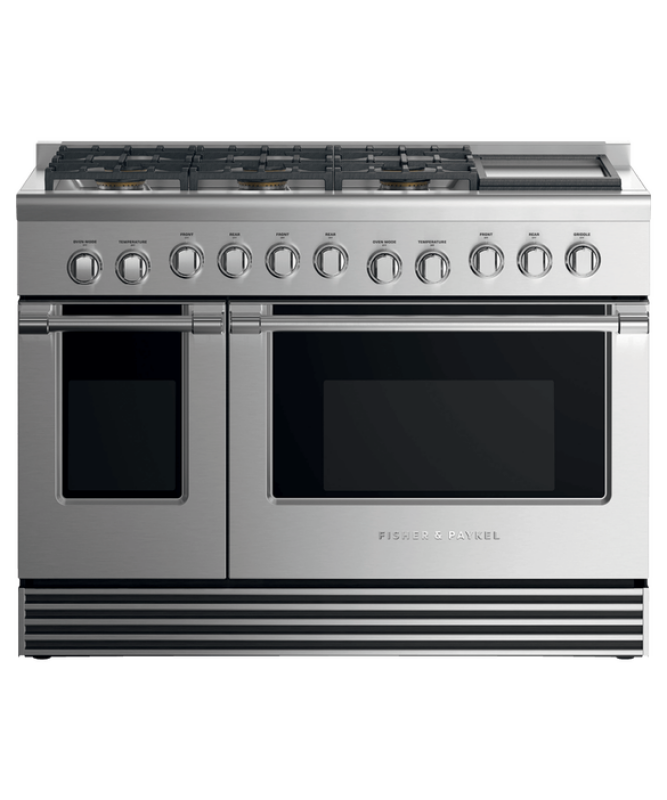

Gas Range 48", 6 Burners with Griddle - RGV2486GDNN

Fisher PaykelFisher Paykel brand logo
This product has been discontinued by the manufacture and is no longer available.

Gas Range 48", 6 Burners with Griddle

Model: RGV2486GDNN

Gas Range 48", 6 Burners with Griddle RGV2486GDNNGas Range 48", 6 Burners with Griddle RGV2486GDNN
Gas Range 48", 6 Burners with Griddle RGV2486GDNN
Gas Range 48", 6 Burners with Griddle RGV2486GDNN
rebate iconRebate Available

Color : Other

Gas Range 48", 6 Burners with Griddle RGV2486GDNN
Other

Current Rebates

Fisher And Paykel 15% And Warranty Extension Rebate
Expires: December 31, 2026

Key Features

  • Cooktop power

  • Total control

  • Easy to clean

  • Instant visibility

  • Cooking flexibility

  • Design quality

Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.

Features
Specifications

Features

Cooktop power

Total control

Easy to clean

Instant visibility

Cooking flexibility

Design quality

Specifications

Gas requirements

Fitting and pipe½ NPT, min. ⅝" Ø flex line
Supply Pressure (natural gas)6" to 9" W.C

Main oven features

Capacity total (AHAM)5.3 cu ft
Full extension telescopic racks3
Capacity usable (AHAM)3.9 cu ft
Shelf positions5

Main oven functions

Number of main oven functions3

Oven performance

Main oven - Bake power28,000 BTU
Main oven - Broil power19,000 BTU
Secondary oven - Bake power18,000 BTU

Power requirements

Supply frequency60Hz
Amperage15A
Supply voltage120V

Rangetop features

Sealed Dual Flow Burners™6
Vent trim includedFlat vent trim
Simmer on all burners140°F

Rangetop Performance

Power back centre18,500 BTU
Power back right18,500 BTU
Power back left18,500 BTU
Power front centre18,500 BTU
Max burner power23,500 BTU
Power front left23,500 BTU
Power front right18,500 BTU
Power griddle16,500 BTU
Total cooktop power132,500 BTU

Recommended back guards and ventilation

Non combustible situationBGRV2-3048 / BGRV2-1248
Combustible situationBGRV2-3048H
Minimum CFM1,200
Recommended hoodHCB48-12_N (48" Professional Range Hood, Dual Blower)

Secondary oven features

Capacity usable (AHAM)1.7 cu ft
3/4 Extension racks2
Capacity total (AHAM)2.4 cu ft
Shelf positions5

Secondary oven functions

Number of secondary oven functions2

Warranty

Parts and laborLimited 2 years
Parts2 Year
Labor2 Year

Other

Supply Pressure (natural gas)6" to 9" W.C
Fitting and pipe½ NPT, min. ⅝" Ø flex line
Capacity total (AHAM)5.3 cu ft
Capacity usable (AHAM)3.9 cu ft
Full extension telescopic racks3
Shelf positions5
Main oven - Bake power28,000 BTU
Main oven - Broil power19,000 BTU
Secondary oven - Bake power18,000 BTU
Amperage15A
Supply frequency60Hz
Supply voltage120V
Sealed Dual Flow Burners™6
Simmer on all burners140°F
Vent trim includedFlat vent trim
Max burner power23,500 BTU
Power back centre18,500 BTU
Power griddle16,500 BTU
Total cooktop power132,500 BTU
Combustible situationBGRV2-3048H
Minimum CFM1,200
Non combustible situationBGRV2-3048 / BGRV2-1248
Recommended hoodHCB48-12_N (48" Professional Range Hood, Dual Blower)
3/4 Extension racks2
Capacity total (AHAM)2.4 cu ft
Capacity usable (AHAM)1.7 cu ft
Parts and laborLimited 2 years

Dimensions & Weight

Width47 in.
Height35 in.
Length29 in.
Weight-

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width52 in.
Shipping Height40 in.
Shipping Length34 in.
Shipping Weight-
Total of Shipping Weight-
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement27.61 ft³
Dimensional Weight343.2 lbs.
Total of Cubes27.61 ft³
Total of Dimensional Weight343.2 lbs.
