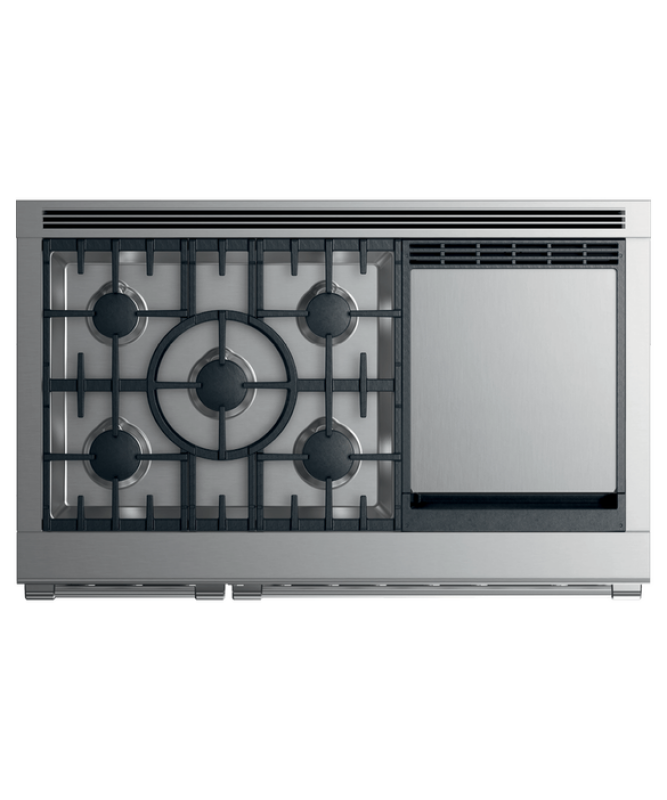

Gas Range, 48", 5 Burners with Griddle - RGV2485GDNN
Gas Range, 48", 5 Burners with Griddle
Model: RGV2485GDNN
Gas Range, 48", 5 Burners with Griddle
Model: RGV2485GDNN
Rebate AvailableColor : Other
Current Rebates
Key Features
Cooktop power
Total control
Easy to clean
Instant visibility
Cooking flexibility
Design quality
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
Cooktop power
Total control
Easy to clean
Instant visibility
Cooking flexibility
Design quality
Specifications
Gas requirements
| Fitting and pipe | ½ NPT, min. â…" Ø flex line |
Main oven features
| Capacity usable (AHAM) | 3.9cu ft |
| Capacity total (AHAM) | 5.3cu ft |
| Shelf positions | 5 |
Main oven functions
| Broil | 19000BTU |
| Bake | 28000BTU |
| Number of main oven functions | 3 |
Oven features
| Full extension telescopic sliding shelves | 3 |
Power requirements
| Supply voltage | 120 |
| Supply frequency | 60 |
Rangetop features
| Sealed Dual Flow Burners™ | 5 |
| Simmer on all burners | 140°F |
| Vent trim included | Flat vent trim |
Rangetop Performance
| Max burner power | 23500BTU |
| Power back right | 18500BTU |
| Power back left | 18500BTU |
| Power front right | 18500BTU |
| Power front left | 18500BTU |
| Total cooktop power | 121500BTU |
| Power griddle | 24000BTU |
| Power centre | 23500BTU |
Secondary oven features
| Capacity total (AHAM) | 2.4cu ft |
| Capacity usable (AHAM) | 1.7cu ft |
| Shelf positions | 5 |
Secondary oven functions
| Number of secondary oven functions | 2 |
| Bake | 18000BTU |
Warranty
| Parts | 2 Year |
| Labor | 2 Year |
Other
| Fitting and pipe | ½ NPT, min. â…" Ø flex line |
| Capacity total (AHAM) | 5.3cu ft |
| Capacity usable (AHAM) | 3.9cu ft |
| Shelf positions | 5 |
| Bake | 28000BTU |
| Broil | 19000BTU |
| Number of main oven functions | 3 |
| Supply frequency | 60 |
| Supply voltage | 120 |
| Simmer on all burners | 140°F |
| Vent trim included | Flat vent trim |
| Max burner power | 23500BTU |
| Power back left | 18500BTU |
| Power griddle | 24000BTU |
| Total cooktop power | 121500BTU |
| Capacity total (AHAM) | 2.4cu ft |
| Capacity usable (AHAM) | 1.7cu ft |
| Bake | 18000BTU |
| Number of secondary oven functions | 2 |
Dimensions & Weight
| Width | 47 in. |
| Height | 35 in. |
| Length | 29 in. |
| Weight | - |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 52 in. |
| Shipping Height | 40 in. |
| Shipping Length | 34 in. |
| Shipping Weight | - |
| Total of Shipping Weight | - |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 27.61 ft³ |
| Dimensional Weight | 343.2 lbs. |
| Total of Cubes | 27.61 ft³ |
| Total of Dimensional Weight | 343.2 lbs. |
