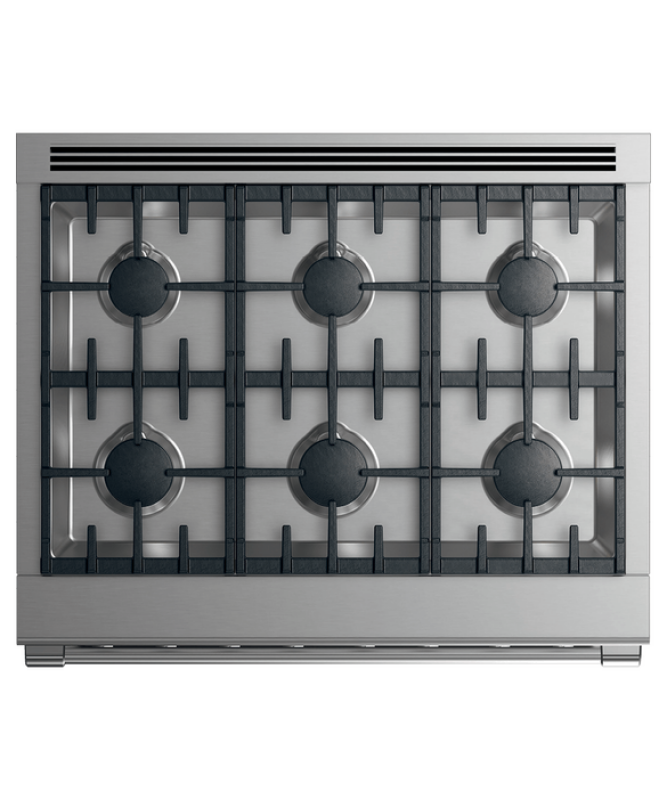

Gas Range, 36", 6 Burners - RGV2366NN
Gas Range, 36", 6 Burners
Model: RGV2366NN
Gas Range, 36", 6 Burners
Model: RGV2366NN
Rebate AvailableColor : Other
Current Rebates
Key Features
Cooktop power
Total control
Easy to clean
Instant visibility
Cooking flexibility
Design quality
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
Cooktop power
Total control
Easy to clean
Instant visibility
Cooking flexibility
Design quality
Specifications
Capacity
| Total capacity | 5.3 cu ft |
| Shelf positions | 5 |
| Usable capacity | 4 cu ft |
Gas requirements
| Supply Pressure (natural gas) | 6" to 9" W.C |
| Fitting and pipe | ½ NPT, min. â…" Ø flex line |
Oven features
| Full extension telescopic sliding shelves | 3 |
Oven functions
| Number of functions | 3 |
Power requirements
| Amperage | 15A |
| Supply frequency | 60Hz |
| Supply voltage | 120V |
Oven performance
| Bake power | 28,000 BTU |
| Broil power | 19000 BTU |
Rangetop features
| Sealed Dual Flow Burners™ | 6 |
| Simmer on all burners | 140°F |
| Vent trim included | Flat vent trim |
Rangetop Performance
| Power back right | 18,500 BTU |
| Max burner power | 23,500 BTU |
| Power back centre | 18,500 BTU |
| Power back left | 18,500 BTU |
| Power front centre | 18,500 BTU |
| Power front right | 23,500 BTU |
| Power front left | 23,500 BTU |
| Total cooktop power | 121,000 BTU |
Recommended back guards and ventilation
| Combustible situation | BGRV2-3036H |
| Non combustible situation | BGRV2-3036 / BGRV2-1236 |
| Recommended hood | HCB36-6_N (36" Professional Range Hood) / HCB36-12_N (36" Professional Range Hood, Dual Blower) |
| Minimum CFM | 600-1,200 |
Warranty
| Parts and labor | Limited 2 years |
| Parts | 2 Year |
| Labor | 2 Year |
Other
| Shelf positions | 5 |
| Total capacity | 5.3 cu ft |
| Usable capacity | 4 cu ft |
| Fitting and pipe | ½ NPT, min. â…" Ø flex line |
| Supply Pressure (natural gas) | 6" to 9" W.C |
| Full extension telescopic sliding shelves | 3 |
| Bake power | 28,000 BTU |
| Broil power | 19000 BTU |
| Amperage | 15A |
| Supply frequency | 60Hz |
| Supply voltage | 120V |
| Sealed Dual Flow Burners™ | 6 |
| Simmer on all burners | 140°F |
| Vent trim included | Flat vent trim |
| Max burner power | 23,500 BTU |
| Power back centre | 18,500 BTU |
| Total cooktop power | 121,000 BTU |
| Combustible situation | BGRV2-3036H |
| Minimum CFM | 600-1,200 |
| Non combustible situation | BGRV2-3036 / BGRV2-1236 |
| Recommended hood | HCB36-6_N (36" Professional Range Hood) / HCB36-12_N (36" Professional Range Hood, Dual Blower) |
| Parts and labor | Limited 2 years |
Dimensions & Weight
| Width | 35 in. |
| Height | 35 in. |
| Length | 29 in. |
| Weight | - |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 40 in. |
| Shipping Height | 40 in. |
| Shipping Length | 34 in. |
| Shipping Weight | - |
| Total of Shipping Weight | - |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 20.56 ft³ |
| Dimensional Weight | 255.58 lbs. |
| Total of Cubes | 20.56 ft³ |
| Total of Dimensional Weight | 255.58 lbs. |
