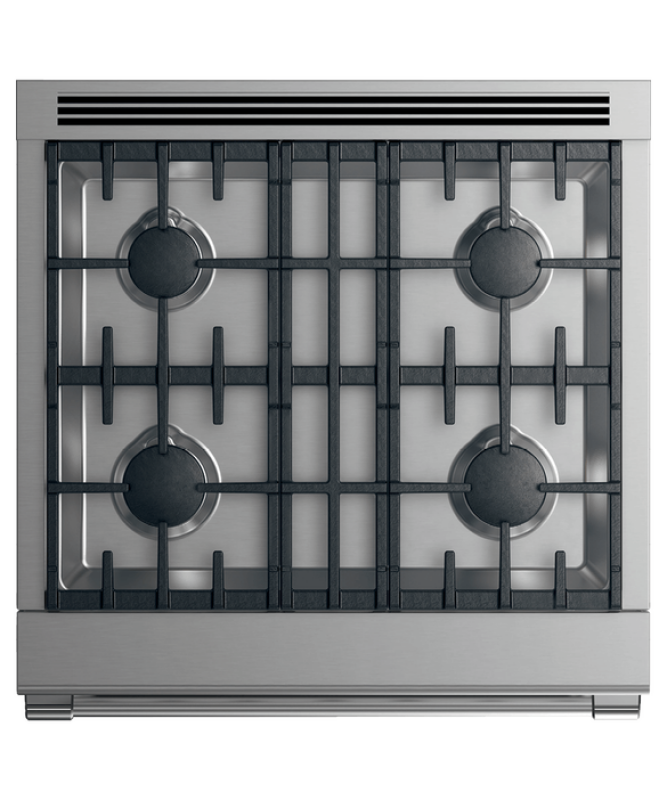

Gas Range, 30", 4 Burners - RGV2304NN
Gas Range, 30", 4 Burners
Model: RGV2304NN
Gas Range, 30", 4 Burners
Model: RGV2304NN
Rebate AvailableColor : Other
Current Rebates
Key Features
Cooktop power
Total control
Easy to clean
Instant visibility
Cooking flexibility
Design quality
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
Cooktop power
Total control
Easy to clean
Instant visibility
Cooking flexibility
Design quality
Specifications
Capacity
| Usable capacity | 3.4 cu ft |
| Shelf positions | 5 |
| Total capacity | 4.6 cu ft |
Oven features
| Full extension telescopic sliding shelves | 3 |
Gas requirements
| Fitting and pipe | ½ NPT, min. â…" Ø flex line |
| Supply Pressure (natural gas) | 6" to 9" W.C |
Power requirements
| Amperage | 15A |
| Supply voltage | 120V |
| Supply frequency | 60Hz |
Oven functions
| Number of functions | 3 |
Oven performance
| Bake power | 28,000 BTU |
| Broil power | 19,000 BTU |
Rangetop features
| Sealed Dual Flow Burners™ | 4 |
| Simmer on all burners | 140°F |
| Vent trim included | Flat vent trim |
Rangetop Performance
| Max burner power | 22,500 BTU |
| Power back centre | 18,500 BTU |
| Power front left | 22,500 BTU |
| Power front right | 18,500 BTU |
| Power back right | 18,500 BTU |
| Total cooktop power | 78,000 BTU |
Recommended back guards and ventilation
| Combustible situation | BGRV2-3030H |
| Minimum CFM | 600 |
| Non combustible situation | BGRV2-3030 / BGRV2-1230 |
| Recommended hood | HCB30-6_N (Professional Range Hood) |
Warranty
| Parts and labor | Limited 2 years |
| Parts | 2 Year |
| Labor | 2 Year |
Other
| Shelf positions | 5 |
| Total capacity | 4.6 cu ft |
| Usable capacity | 3.4 cu ft |
| Fitting and pipe | ½ NPT, min. â…" Ø flex line |
| Full extension telescopic sliding shelves | 3 |
| Supply Pressure (natural gas) | 6" to 9" W.C |
| Bake power | 28,000 BTU |
| Broil power | 19,000 BTU |
| Amperage | 15A |
| Supply frequency | 60Hz |
| Supply voltage | 120V |
| Sealed Dual Flow Burners™ | 4 |
| Simmer on all burners | 140°F |
| Vent trim included | Flat vent trim |
| Max burner power | 22,500 BTU |
| Power back centre | 18,500 BTU |
| Total cooktop power | 78,000 BTU |
| Combustible situation | BGRV2-3030H |
| Minimum CFM | 600 |
| Non combustible situation | BGRV2-3030 / BGRV2-1230 |
| Recommended hood | HCB30-6_N (Professional Range Hood) |
| Parts and labor | Limited 2 years |
Dimensions & Weight
| Width | 29 in. |
| Height | 35 in. |
| Length | 29 in. |
| Weight | - |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 34 in. |
| Shipping Height | 40 in. |
| Shipping Length | 34 in. |
| Shipping Weight | - |
| Total of Shipping Weight | - |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 17.03 ft³ |
| Dimensional Weight | 211.76 lbs. |
| Total of Cubes | 17.03 ft³ |
| Total of Dimensional Weight | 211.76 lbs. |
