30" Free-Standing Gas Range - RGBS100DMBB
30" Free-Standing Gas Range
Model: RGBS100DMBB
30" Free-Standing Gas Range
Model: RGBS100DMBB
Color : Black
Replaced By
Key Features
Standard clean oven
4.8 cu. ft. oven capacity
All purpose burners
Lift-up cooktop
Porcelain upswept cooktop
Easy clean subtop
Standard grates
Two oven racks
Description
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
Standard clean oven
Smooth surface and rounded corners make clean-up quick and easy
4.8 cu. ft. oven capacity
Enough room to cook an entire meal at once
All purpose burners
Delivers a wide range of heat output for most cooking needs
Lift-up cooktop
Access messes under the cooktop for easy cleanability

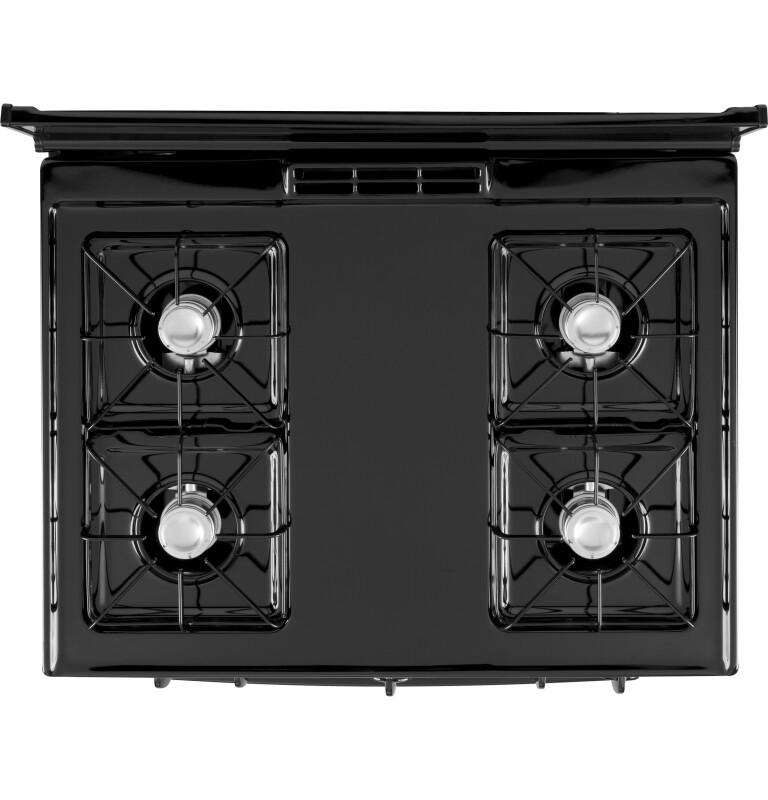

Porcelain upswept cooktop
Raised edges contain spills, while the surface is easy to wipe clean
Easy clean subtop
Porcelain enameled subtop collects spills and messes for easy cleaning
Standard grates
Hold cookware securely over burners

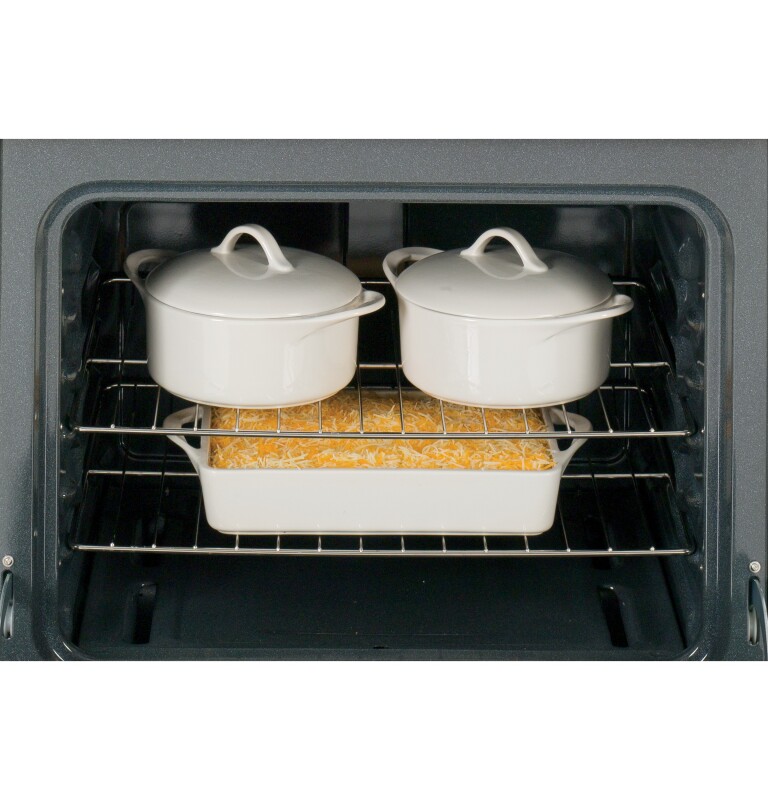

Two oven racks
Feature a durable construction to help accommodate any size or type of cookware
One-piece durable handle
Strong and long-lasting
Broiler drawer
Achieve perfectly browned results
Visor handle
Features a classic design and easy cleanability
Certifications
ADA Compliant
CSA
California Prop 65
Specifications

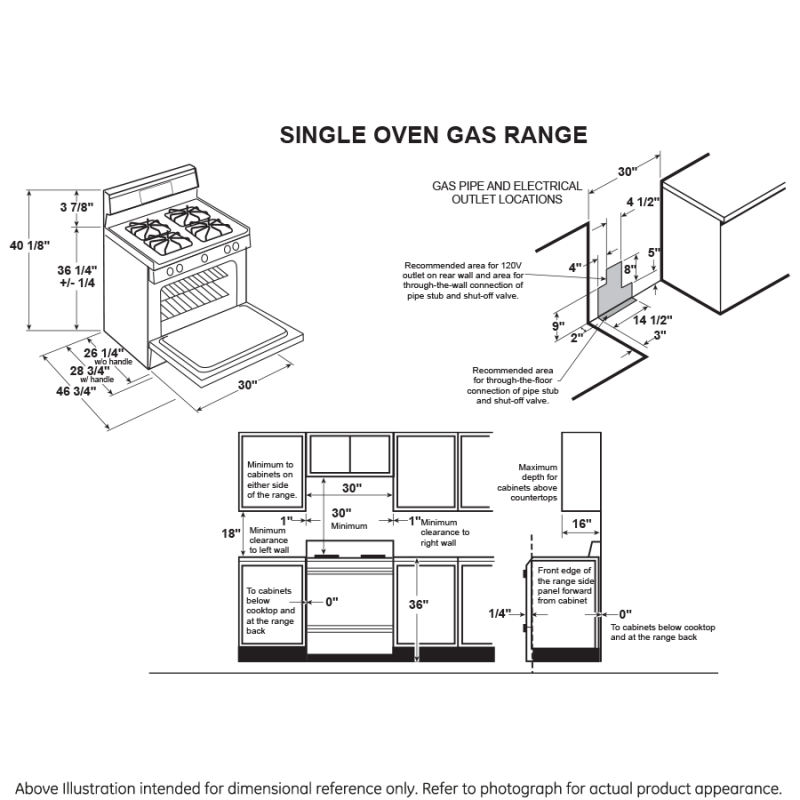

WEIGHTS & DIMENSIONS
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 18-1/2 x 19 |
| Overall Width | 30 in |
| Overall Depth | 28.75 in |
| Overall Height | 40.125 in |
| Net Weight | 150 lb |
| Depth with Door Open | 46.75 in |
| Cabinet Width | 30 in |
| Approximate Shipping Weight | 170 lb |
| Height to Cooking Surface (in.) | 36.25 +/- .25 |
FEATURES
| Configuration | Range with Broiler Drawer |
| Slide - Out Broiler Drawer | Drop Down Door |
| Porcelain-Enameled Subtop | Yes |
| Ignition System | Electronic |
| Burner - Right Rear | 9,100 BTU |
| Fuel Type | Natural Gas |
| Cooktop Burner Type | Standard |
| Oven Rack Features | 2 Flat Nickel Racks |
| Burner - Left Rear | 9,100 BTU |
| Oven Cleaning Type | Standard Clean |
| Cooktop Type | Standard Grates |
| Cooktop Burner Grate Material | Steel |
| Valves (Degree of Turn) | 140 |
| Burner - Right Front | 9,100 BTU |
| Cooktop Surface | Porcelain-Enamel |
| Burner - Left Front | 9,100 BTU |

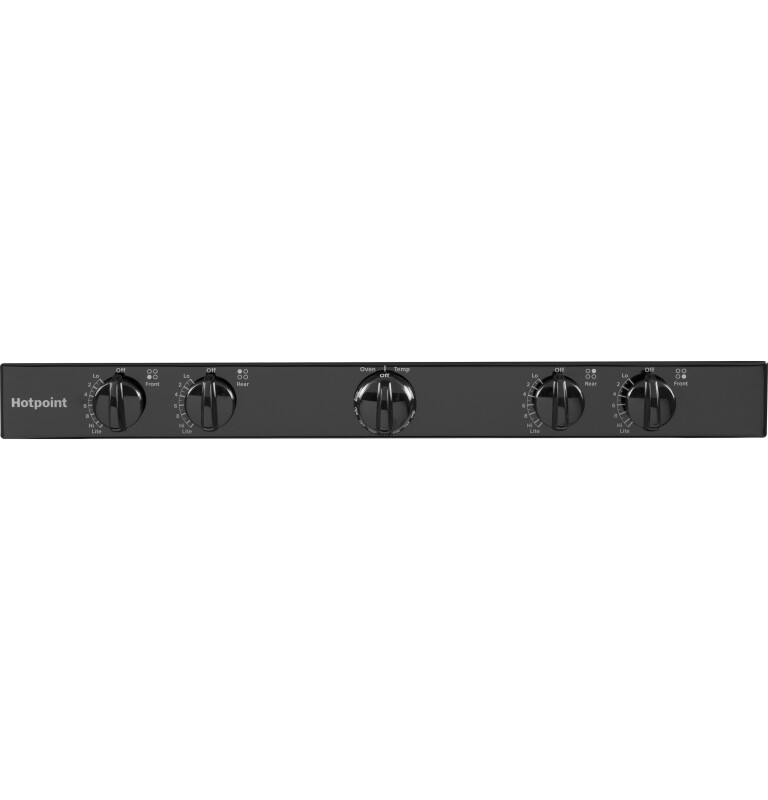

| Control Location | Front |
| Oven Rack Positions (Single or Upper/Lower) | 6 |
| Leveling System | 4 Leveling Legs |
| One-Piece Drip Pans | Optional Accessory |
| Cooking Technology | Traditional |
APPEARANCE
| Cooktop Burner Grate Color | Black Gloss |
| Handle | Color-Matched |
| Frameless Oven Door(s) | Black Porcelain-Enameled |
| Control Knobs | Black |
| Color Appearance | Black |
ACCESSORIES
| LP Conversion Kit | Included |
POWER / RATINGS
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (4) 9.1 |
| Volts/Hertz/Amps | 120V ; 60Hz ; 15A |
| Top Burner BTU Rating - LP (000's BTU's) | (4) 8.0 |
| Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 18.0 Bake / 18.0 Broiler |
| Bake/Broiler BTU Rating - LP (000's BTU's) | 16.0 Bake / 16.0 Broiler |
CAPACITY
| Total Capacity (cubic feet) | 4.8 cu ft |
Dimensions & Weight
| Width | 30 in. |
| Height | 40.13 in. |
| Length | 28.75 in. |
| Weight | 150 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 35 in. |
| Shipping Height | 45.13 in. |
| Shipping Length | 33.75 in. |
| Shipping Weight | 190 lbs. |
| Total of Shipping Weight | 190 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 20.03 ft³ |
| Dimensional Weight | 248.98 lbs. |
| Total of Cubes | 20.03 ft³ |
| Total of Dimensional Weight | 248.98 lbs. |
Warranty
| Labor (Entire Appliance) | 1 Year |
| Parts (Entire Appliance) | 1 Year |
