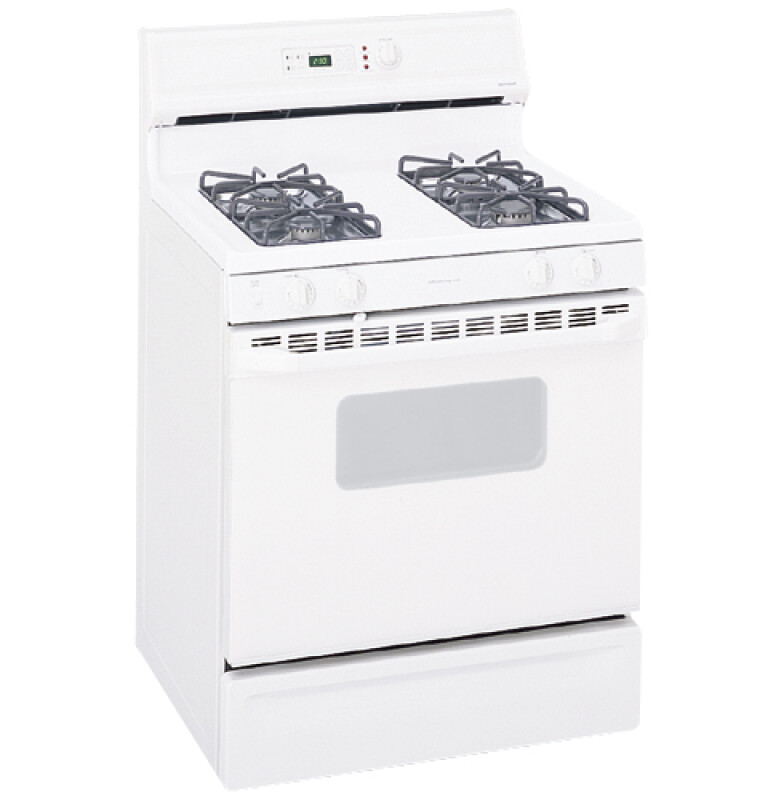

30" Free-Standing Gas Range - RGB745WEAWW
30" Free-Standing Gas Range
Model: RGB745WEAWW
30" Free-Standing Gas Range
Model: RGB745WEAWW
Color : White
Key Features
Self-clean oven
Extra-large oven capacity
Sealed cooktop burners
Performance plus burner
Simmer burner
All purpose burners
EasySet III controls
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
Self-clean oven
Conveniently cleans the oven cavity without the need for scrubbing
Extra-large oven capacity
Provides a large oven interior ideal for cooking more items at once
Sealed cooktop burners
Eliminate the space between the burners and the cooktop to help contain spills and boil over liquids, ensuring easy cleanup
Performance plus burner
Provides a maximum output of 12,000 BTUs for fast heat-up and boiling
Simmer burner
Provides low, even heat distribution for delicate foods and sauces
All purpose burners
Deliver a wide range of heat output ideal for most cooking needs
EasySet III controls
Features a smooth glass design that's easy-to-operate and easy-to-clean
Certifications
California Prop 65
Specifications
WEIGHTS & DIMENSIONS
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 17 x 19 |
| Overall Width | 30 in |
| Overall Depth | 26.25 in |
| Net Weight | 190 lb |
| Depth with Door Open 90° | 46.375 in |
| Cabinet Width | 30 in |
| Approximate Shipping Weight | 210 lb |
| Height to Cooking Surface (in.) | 36 +/- .25 |
FEATURES
| Configuration | Range with Storage Drawer |
| Cleaning Time | Variable |
| Ignition System | Electronic |
| Interior Oven Light | Yes |
| Fuel Type | Natural Gas |
| Cooktop Burner Type | Sealed |
| Oven Rack Features | Embossed Rack Positions |
| Oven Cleaning Type | Self-Clean |
| Clock and Minute Timer | EasySet III |
| All-Purpose Burners | (2) 9,500/850 BTU |
| Performance Plus Burner | (1) 12,000/2,200 BTU |
| Cooktop Burner Grate Material | Heavy Steel |
| Valves (Degree of Turn) | 270 |
| Simmer Burner | (1) 5,000/600 BTU |
| Cooktop Surface | Porcelain-Enamel |
| Oven Rack Positions (Single or Upper/Lower) | 6 |
| Leveling System | 4 Leveling Legs |
| One-Piece Drip Pans | Chrome |
| Oven Control Features | Auto Oven Shut-Off |
APPEARANCE
| Cooktop Burner Grate Color | Gray |
| Oven Door Features | Oven Window |
| Handle | Designer Style |
| Frameless Oven Door(s) | White Glass |
| Color Appearance | White on White |
CAPACITY
| Unit Capacity | Extra Large Oven |
ACCESSORIES
| LP Conversion Kit | Included |
POWER / RATINGS
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 12.0; (2) 9.5; (1) 5.0 |
| Electrical Requirements | 120V; 60Hz; 5A |
| Volts/Hertz/Amps | 120V; 60Hz; 5A |
| Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 16.0 Bake / 13.5 Broiler |
Dimensions & Weight
| Width | 30 in. |
| Height | 17 in. |
| Length | 26.25 in. |
| Weight | 190 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 35 in. |
| Shipping Height | 22 in. |
| Shipping Length | 31.25 in. |
| Shipping Weight | 230 lbs. |
| Total of Shipping Weight | 230 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 7.75 ft³ |
| Dimensional Weight | 96.31 lbs. |
| Total of Cubes | 7.75 ft³ |
| Total of Dimensional Weight | 96.31 lbs. |
Warranty
| Labor (Entire Appliance) | 1 Year |
| Parts (Entire Appliance) | 1 Year |
