30" Free-Standing Gas Range - RGB540SEPSA
30" Free-Standing Gas Range
Model: RGB540SEPSA






30" Free-Standing Gas Range
Model: RGB540SEPSA
Replaced By
Key Features
Extra-large oven capacity
Sealed cooktop burners
Performance plus burner
Simmer setting
All purpose burners
Electronic clock and timer
Multiple oven rack positions
Two oven racks
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
Extra-large oven capacity
Enough room to cook an entire meal at once
Sealed cooktop burners
Burner elements are sealed to the cooktop to keep foods and liquid contained on the cooktop, making cleaning painless
Performance plus burner
This 12,000 BTU burner element provides the high heat ideal for frying or sautéing and fast heat-up
Simmer setting
Simmer setting allows for low, even heat distribution for delicate foods and sauces
All purpose burners
All-purpose burner delivers two levels of BTU output to accommodate virtually all your cooking needs
Electronic clock and timer
Convenient clock and timer helps you coordinate meal preparation and cooking
Multiple oven rack positions
Several positions allow you to adjust the oven racks to accommodate any size cookware
Two oven racks
Includes two oven racks that are sturdy and reliable
Porcelain upswept cooktop
Raised edges and porcelain-enameled surface makes cleaning incredibly easy
Standard window
Provides a convenient viewing area to check the progress of food
Standard grates
Hold cookware securely over burners
Standard grates
Hold cookware securely over burners
Certifications
California Prop 65
Specifications

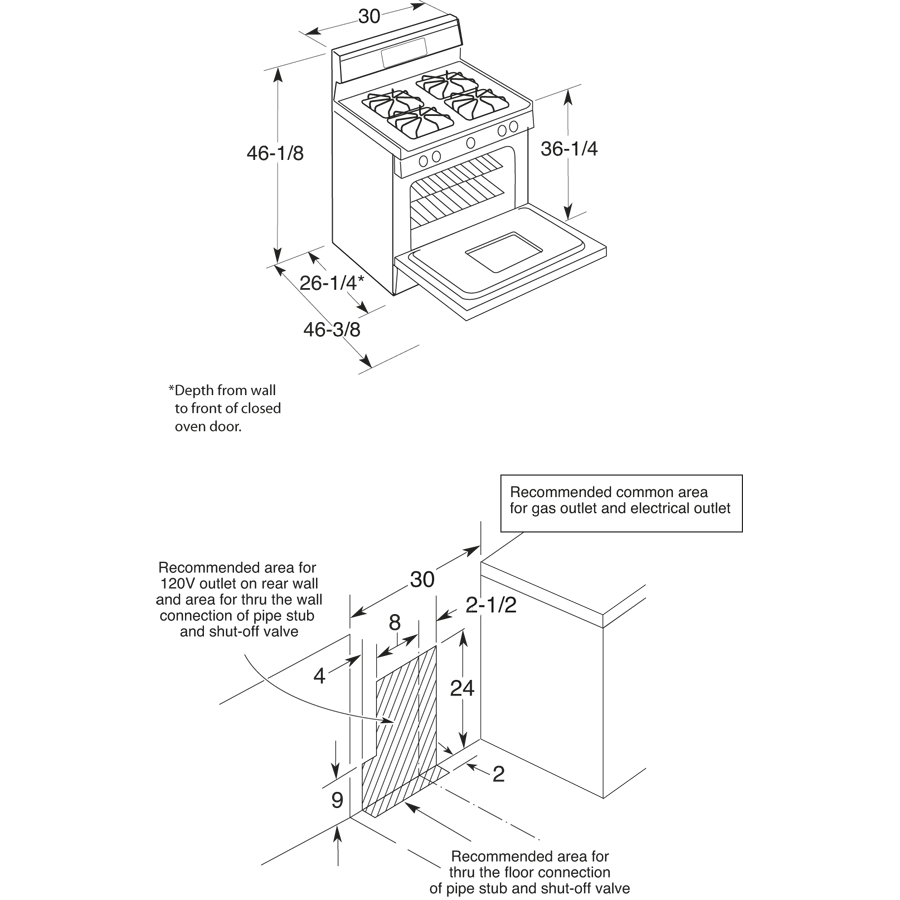

WEIGHTS & DIMENSIONS
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 18-1/2 x 19 |
| Overall Width | 30 in |
| Overall Depth | 26.25 in |
| Overall Height | 46.125 in |
| Net Weight | 150 lb |
| Cabinet Width | 30 in |
| Approximate Shipping Weight | 170 lb |
FEATURES
| Slide - Out Broiler Drawer | Yes |
| Ignition System | Electronic |
| Fuel Type | Natural Gas |
| Oven Interior | Interior Oven Light |
| Oven Control Features | Electronic Clock and Timer |
| Cooktop Burner Type | Sealed |
| Oven Rack Features | Embossed Rack Positions |
| Oven Cleaning Type | Standard Clean |
| All-Purpose Burners | (2) 9,500 BTU |
| Performance Plus Burner | (1) 12,000 BTU |
| Valves (Degree of Turn) | 270 |
| Backguard | Scratch-Resistant |
| Simmer Burner | (1) 5,000 BTU |
| Cooktop Surface | Porcelain-Enamel |
| Oven Rack Positions (Single or Upper/Lower) | 6 |
| Leveling System | 4 Leveling Legs |
| One-Piece Drip Pans | Optional Accessory |
APPEARANCE
| Cooktop Burner Grate Color | Black |
| Oven Door Features | Oven Window |
| Handle | Designer Style |
| Color Appearance | Metallic |
ACCESSORIES
| LP Conversion Kit | Included |
POWER / RATINGS
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 12.0; (2) 9.5; (1) 5.0 |
| Volts/Hertz/Amps | 120V; 60Hz; 5A |
| Top Burner BTU Rating - LP (000's BTU's) | (1) 9.5; (1) 3.5; (2) 7.0 |
| Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 18.0 |
| Bake/Broiler BTU Rating - LP (000's BTU's) | 16.5 |
CAPACITY
| Total Capacity (cubic feet) | 4.8 cu ft |
Dimensions & Weight
| Width | 30 in. |
| Height | 46.13 in. |
| Length | 26.25 in. |
| Weight | 150 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 35 in. |
| Shipping Height | 51.13 in. |
| Shipping Length | 31.25 in. |
| Shipping Weight | 190 lbs. |
| Total of Shipping Weight | 190 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 21.02 ft³ |
| Dimensional Weight | 261.32 lbs. |
| Total of Cubes | 21.02 ft³ |
| Total of Dimensional Weight | 261.32 lbs. |
Warranty
| Labor (Entire Appliance) | 1 Year |
| Parts (Entire Appliance) | 1 Year |
