30" Free-Standing Gas Range - RGB540SEHSA

This product is discontinued and has been replaced by the model below.

30" Free-Standing Gas Range

Model: RGB540SEHSA

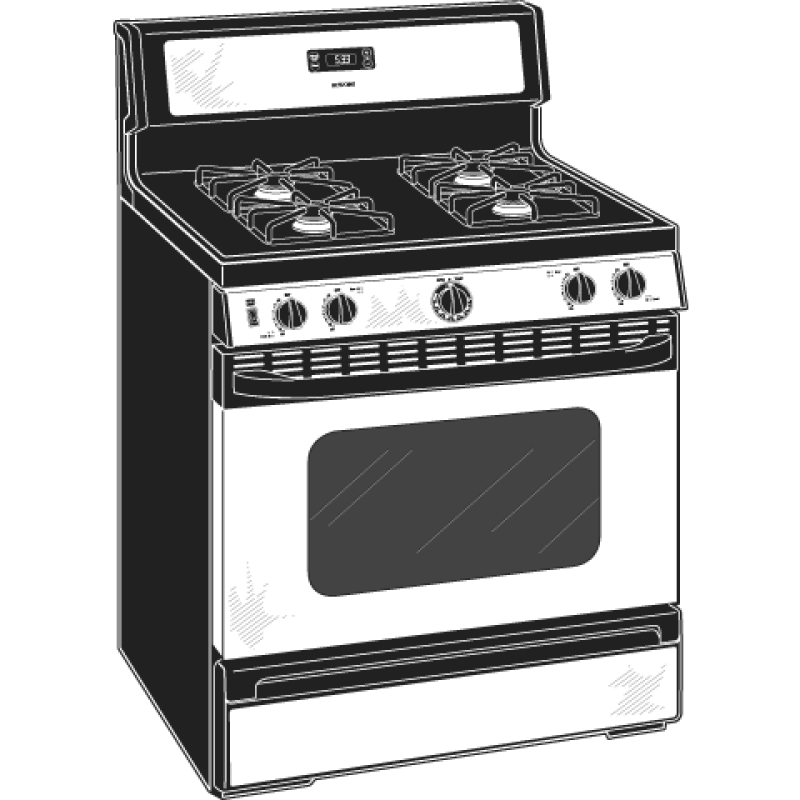

30" Free-Standing Gas Range RGB540SEHSA, product image 1 of 330" Free-Standing Gas Range RGB540SEHSA, product image 2 of 330" Free-Standing Gas Range RGB540SEHSA, product image 3 of 3
30" Free-Standing Gas Range RGB540SEHSA, thumbnail image 1 of 3
30" Free-Standing Gas Range RGB540SEHSA, thumbnail image 2 of 3
30" Free-Standing Gas Range RGB540SEHSA, thumbnail image 3 of 3

Color : Other

30" Free-Standing Gas Range RGB540SEHSA
Other

Type : Gas

Replaced By

30" Free-standing Gas Range

Model: RGBS300DMWW

Product - RGBS300DMWW

$679.00

View Product

Key Features

  • Extra-large oven capacity

  • Sealed cooktop burners

  • Performance plus burner

  • Simmer burner

  • All purpose burners

  • Electronic clock and timer

  • Six embossed rack positions

  • Two removable oven racks

Read More

Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.

Features
Specifications
Certifications

Features

Extra-large oven capacity

Provides a large oven interior ideal for cooking more items at once

Sealed cooktop burners

Eliminate the space between the burners and the cooktop to help contain spills and boil over liquids, ensuring easy cleanup

Performance plus burner

Provides a maximum output of 12,000 BTUs for fast heat-up and boiling

Simmer burner

Provides low, even heat distribution for delicate foods and sauces

All purpose burners

Deliver a wide range of heat output ideal for most cooking needs

Electronic clock and timer

Features a convenient digital clock and easy-to-use timer with an audible signal to help coordinate cooking times in the kitchen

Six embossed rack positions

Multiple rack positions increase cooking flexibility and maximize oven capacity

Two removable oven racks

Make room for up to six plates or three 9" x 13" casserole dishes

Porcelain upswept cooktop

Features raised edges to help contain spills and make clean-up easy

Standard window

Provides a convenient viewing area to check the progress of food

Standard grates

Provide a sturdy and convenient cookware surface for everyday cooking

Certifications

California Prop 65 certification

California Prop 65

Specifications

APPEARANCE

Oven Door FeaturesOven Window
Cooktop Burner Grate ColorBlack
HandleDesigner Style
Color AppearanceMetallic

CAPACITY

Unit CapacityExtra Large Oven

ACCESSORIES

LP Conversion KitIncluded

POWER / RATINGS

Top Burner BTU Rating - Nat. Gas (000's BTU's)(1) 12.0; (2) 9.5; (1) 5.0
Bake/Broiler BTU Rating - Nat. Gas (000's BTU's)18.0
Bake/Broiler BTU Rating - LP (000's BTU's)16.5
Top Burner BTU Rating - LP (000's BTU's)(1) 9.5; (1) 3.5; (2) 7.0
Volts/Hertz/Amps120V; 60Hz; 5A

FEATURES

Scratch-Resistant BackguardYes
Oven Rack Features2 Oven Racks
Oven Rack Features6 Embossed Rack Positions
Leveling System4 Leveling Legs
Slide - Out Broiler DrawerYes
Valves (Degree of Turn)270
BackguardYes
Cooktop SurfaceOne-Piece Upswept
Cooktop SurfacePorcelain-Enamel
Simmer Burner(1) 5,000/600 BTU
Oven Cleaning TypeStandard Clean
Oven Control FeaturesElectronic Clock and Timer
Ignition SystemElectronic
Performance Plus Burner(1) 12,000/1,000 BTU
Interior Oven LightYes
Fuel TypeNatural Gas (factory set)
One-Piece Drip PansOptional Accessory
All-Purpose Burners(2) 9,500/850 BTU
Cooktop Burner TypeSealed

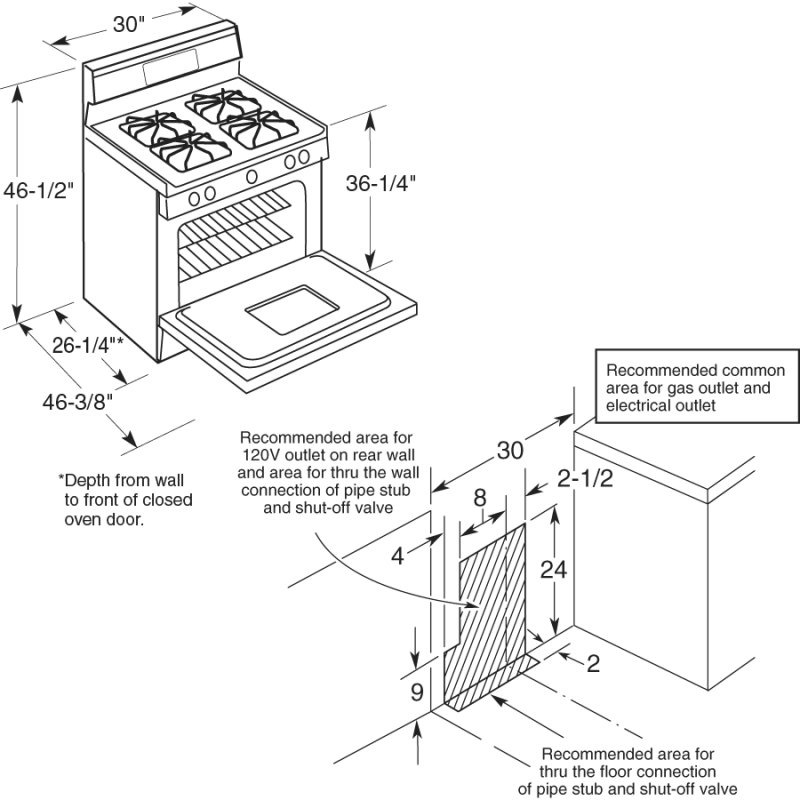

Dimensions & Weight

Width30 in.
Height46.5 in.
Length26.25 in.
Weight150 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width35 in.
Shipping Height51.5 in.
Shipping Length31.25 in.
Shipping Weight190 lbs.
Total of Shipping Weight190 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement21.19 ft³
Dimensional Weight263.44 lbs.
Total of Cubes21.19 ft³
Total of Dimensional Weight263.44 lbs.

Warranty

Labor (Entire Appliance)1 Year
Parts (Entire Appliance)1 Year
