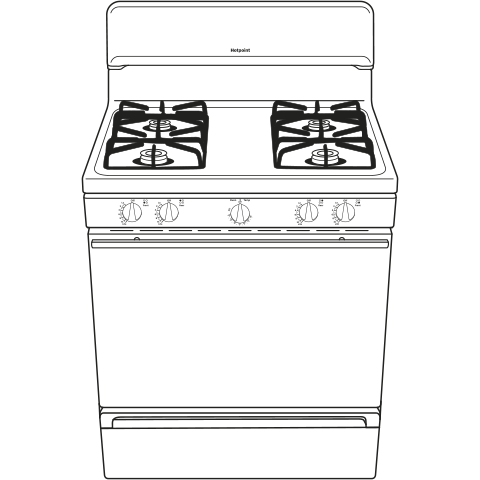

30" Free-Standing Gas Range - RGB525DEHWW
30" Free-Standing Gas Range
Model: RGB525DEHWW
30" Free-Standing Gas Range
Model: RGB525DEHWW
Color : White
Key Features
Standard clean oven
4.8 cu. ft. oven capacity
All purpose burners
Porcelain upswept cooktop
Lift-up cooktop
Easy clean subtop

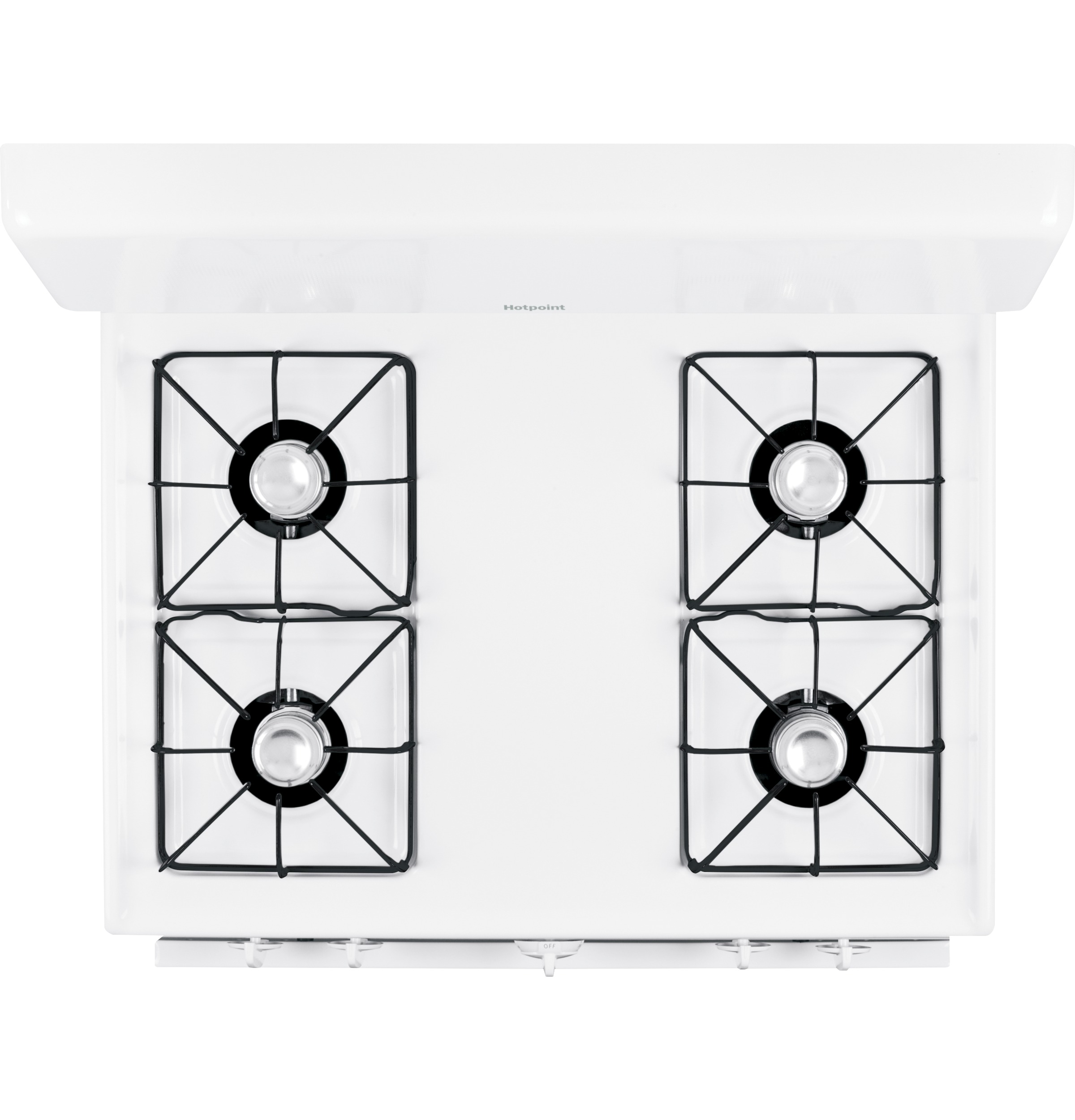

Standard grates
Two oven racks
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
Standard clean oven
Smooth surface and rounded corners make clean-up quick and easy
4.8 cu. ft. oven capacity
Enough room to cook an entire meal at once
All purpose burners
Deliver a wide range of heat output ideal for most cooking needs
Porcelain upswept cooktop
Raised edges contain spills, while the surface is easy to wipe clean

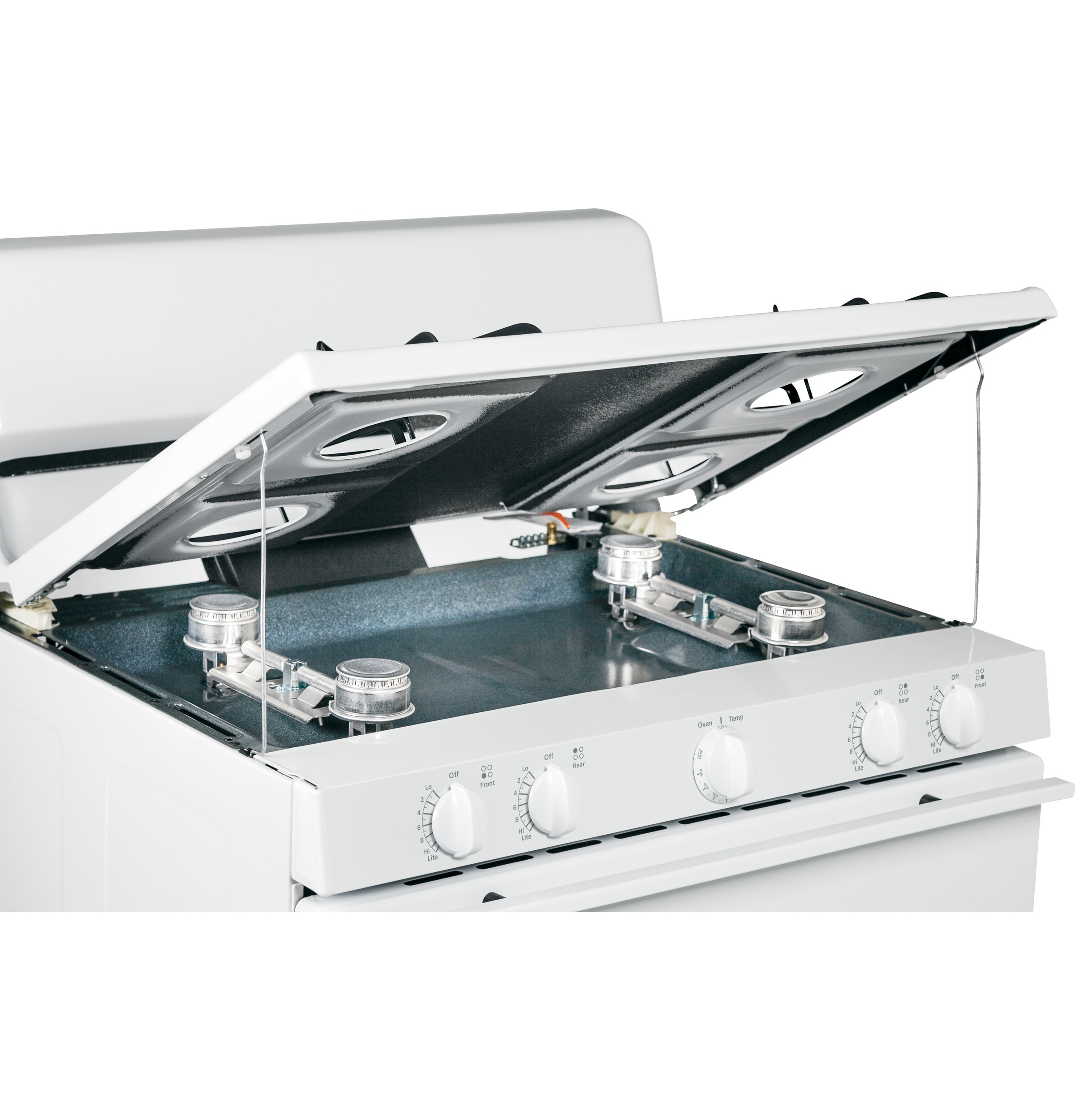

Lift-up cooktop
Access messes under the cooktop for easy cleanability
Easy clean subtop
Porcelain enameled subtop collects spills and messes for easy cleaning
Standard grates
Hold cookware securely over burners

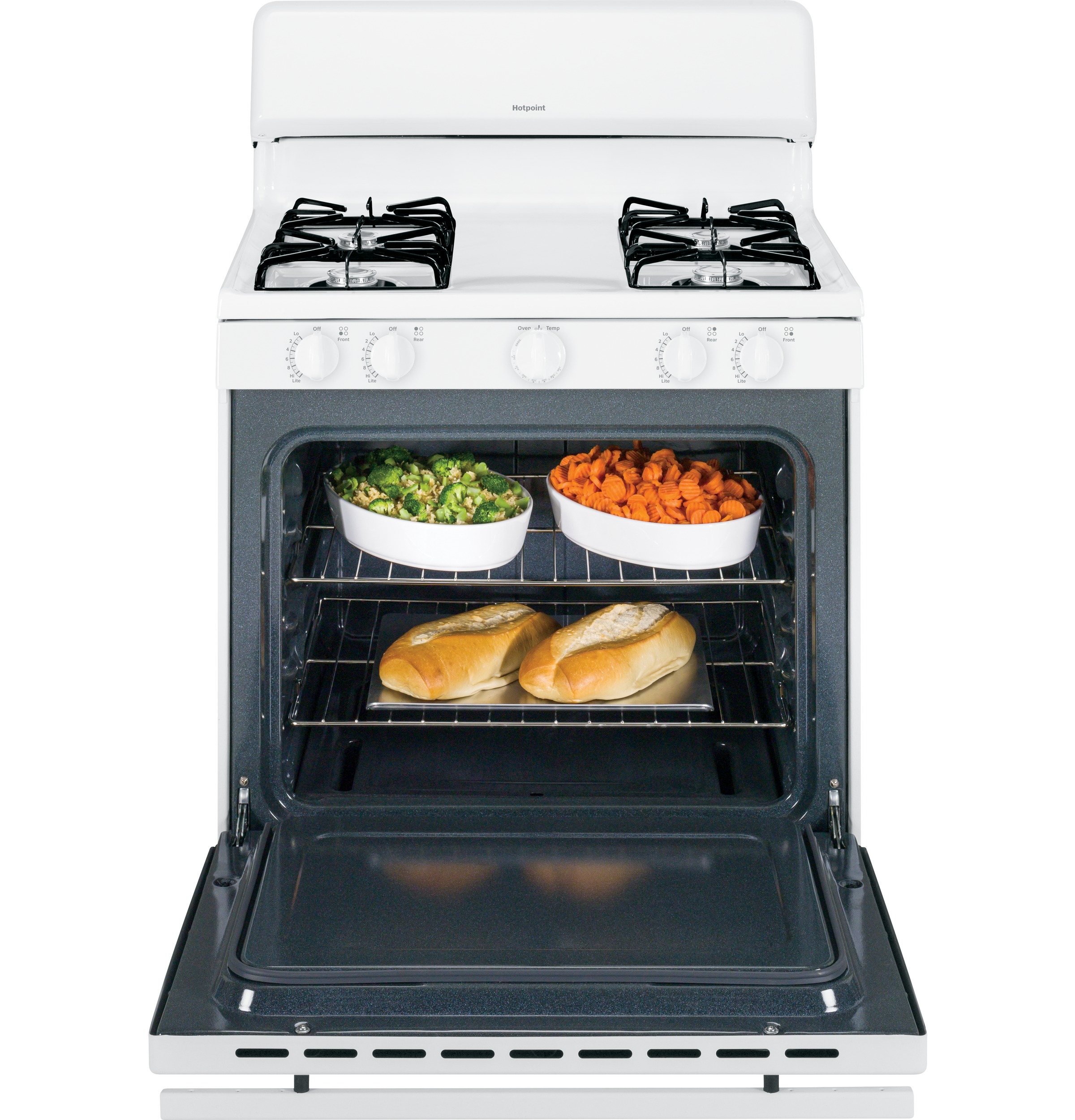

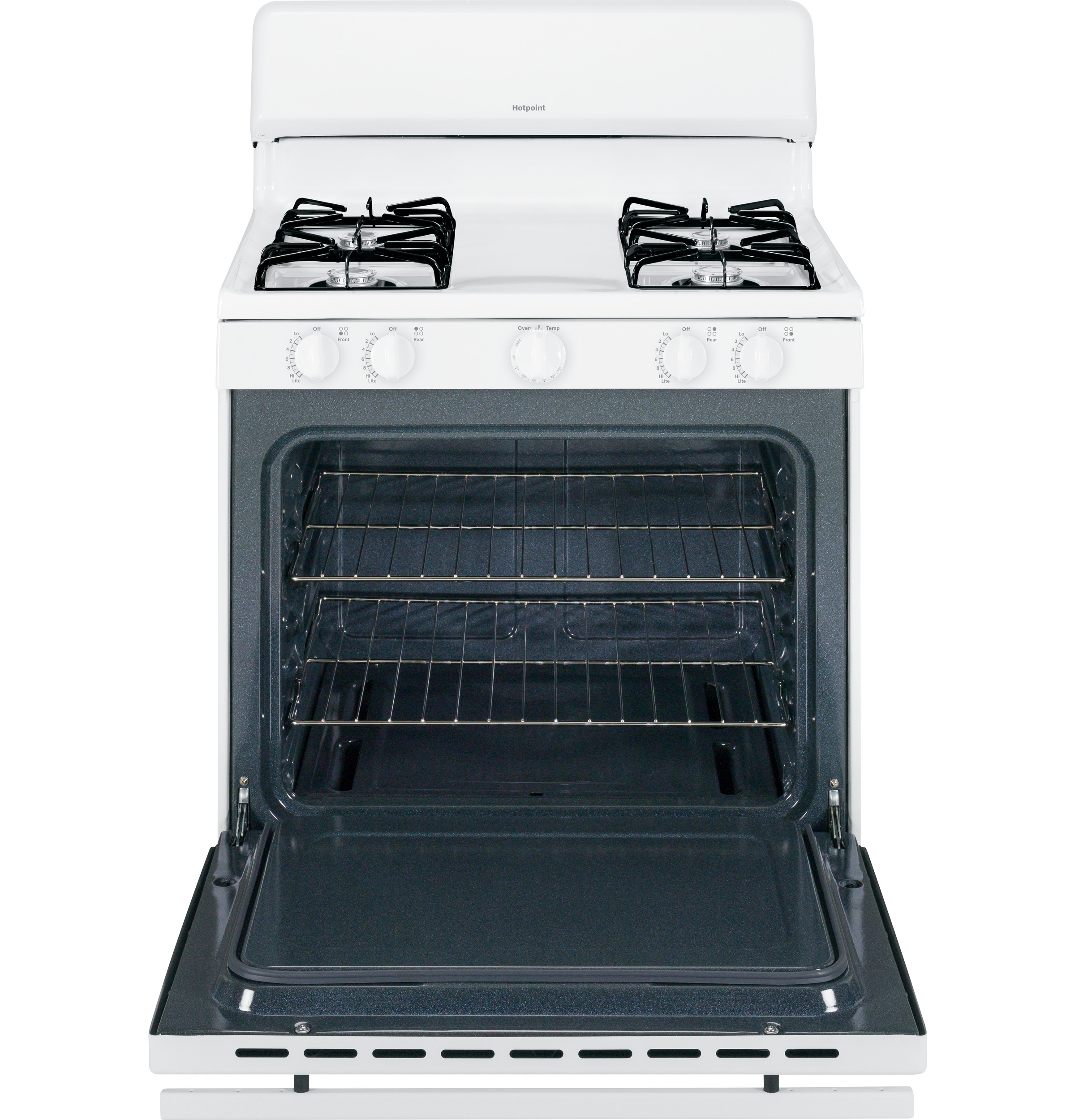

Two oven racks
Durable to securely hold any cookware
Certifications
California Prop 65
Specifications

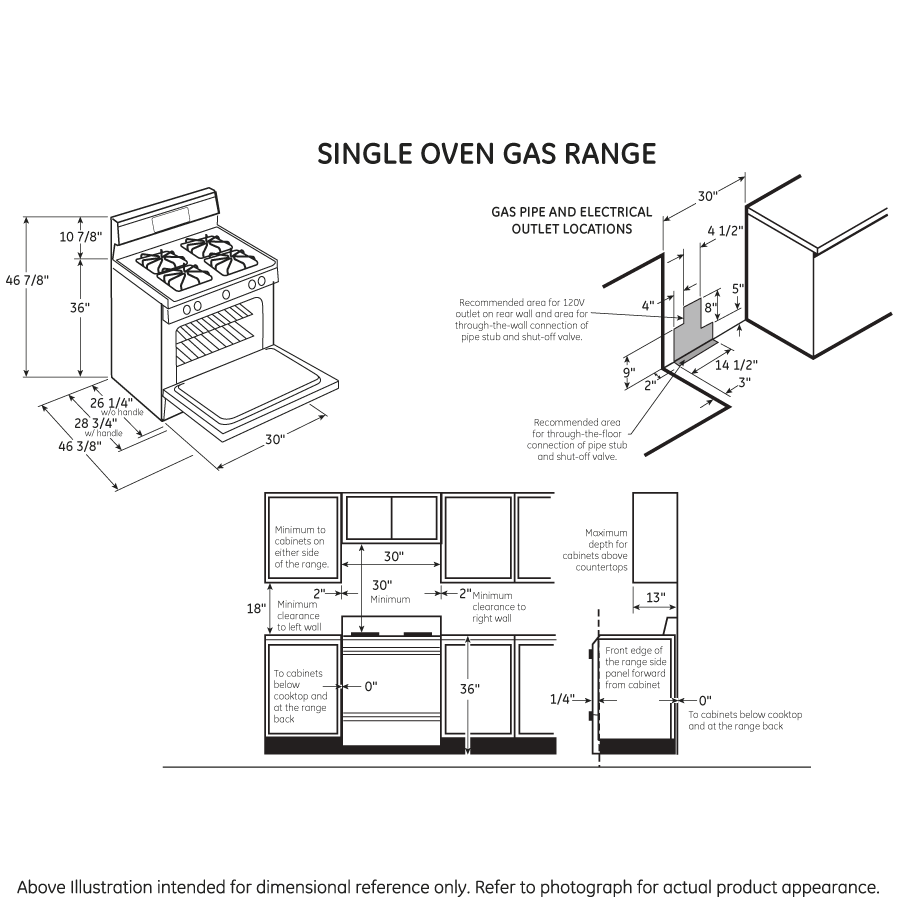

WEIGHTS & DIMENSIONS
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 18-1/2 x 19 |
| Overall Width | 30 in |
| Overall Depth | 28.75 in |
| Overall Height | 46.875 in |
| Net Weight | 150 lb |
| Height to Cooking Surface (in.) | 36 |
| Depth with Door Open | 46.375 in |
| Cabinet Width | 30 in |
| Approximate Shipping Weight | 170 lb |
FEATURES
| Configuration | Range with Broiler Drawer |
| Slide - Out Broiler Drawer | Drop Down Door |
| Porcelain-Enameled Subtop | Yes |
| Ignition System | Electronic |
| Burner - Right Rear | 9,100 BTU |
| Fuel Type | Natural Gas |
| Cooktop Burner Type | Standard |
| Oven Rack Features | 2 Flat Nickel Racks |
| Burner - Left Rear | 9,100 BTU |
| Oven Cleaning Type | Standard Clean |
| Cooktop Burner Grate Material | Steel |
| Burner - Right Front | 9,100 BTU |
| Cooktop Surface | Porcelain-Enamel |
| Burner - Left Front | 9,100 BTU |

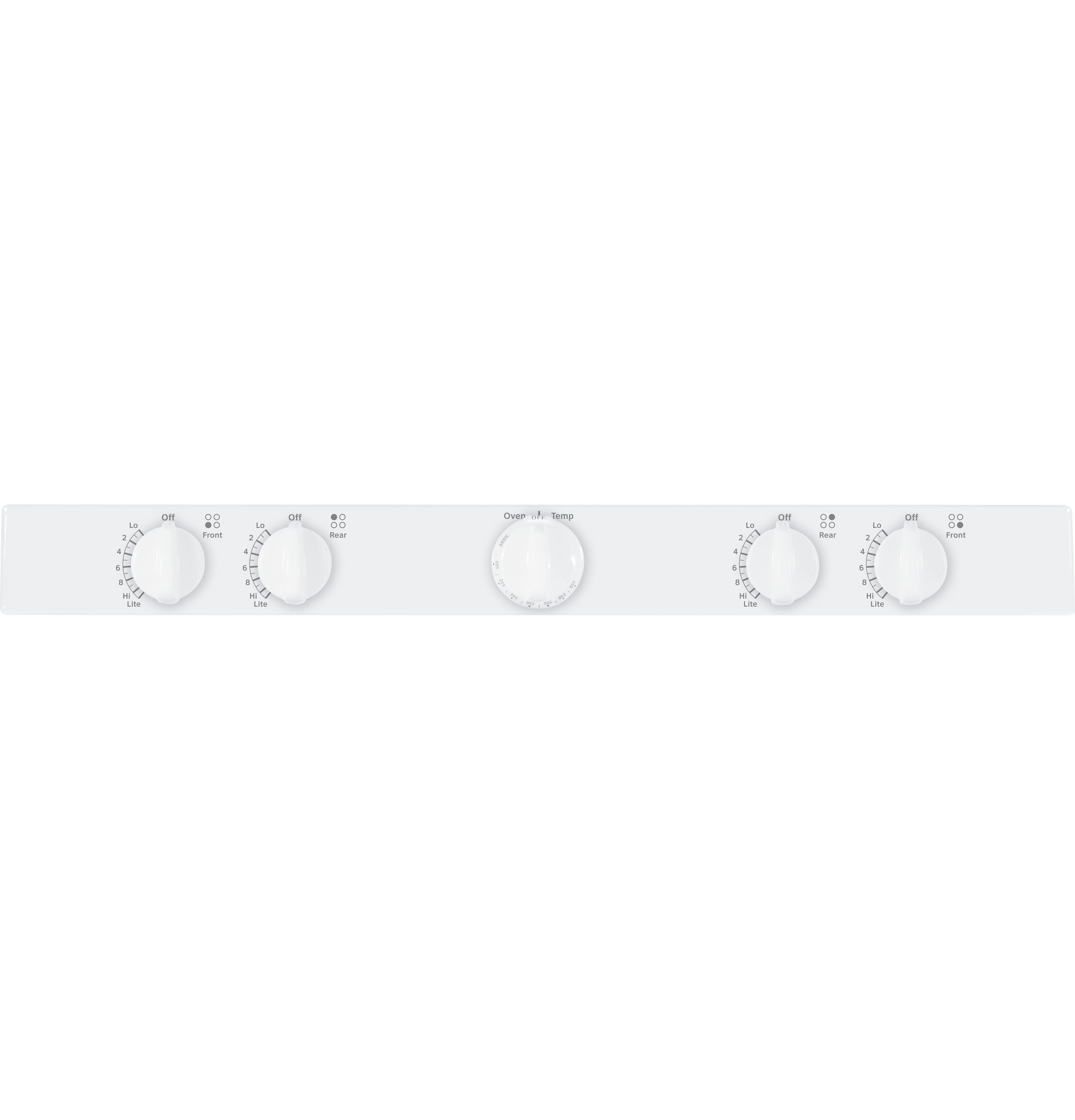

| Control Location | Front |
| Oven Rack Positions (Single or Upper/Lower) | 6 |
| Leveling System | 4 Leveling Legs |
| One-Piece Drip Pans | Optional Accessory |
| Cooking Technology | Traditional |
APPEARANCE
| Cooktop Burner Grate Color | Black Gloss |
| Handle | Visor |
| Frameless Oven Door(s) | White Porcelain-Enameled |
| Handle Color | Color-Matched |
| Color Appearance | White |
ACCESSORIES
| LP Conversion Kit | Included |
POWER / RATINGS
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (4) 9.1 |
| Volts/Hertz/Amps | 120v; 60Hz; 15A |
| Top Burner BTU Rating - LP (000's BTU's) | (4) 8.0 |
| Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 18.0 Bake / 18.0 Broiler |
| Bake/Broiler BTU Rating - LP (000's BTU's) | 16.0 Bake / 16.5 Broiler |
CAPACITY
| Total Capacity (cubic feet) | 4.8 cu ft |
Dimensions & Weight
| Width | 30 in. |
| Height | 46.88 in. |
| Length | 28.75 in. |
| Weight | 150 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 35 in. |
| Shipping Height | 51.88 in. |
| Shipping Length | 33.75 in. |
| Shipping Weight | 190 lbs. |
| Total of Shipping Weight | 190 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 23.4 ft³ |
| Dimensional Weight | 290.86 lbs. |
| Total of Cubes | 23.4 ft³ |
| Total of Dimensional Weight | 290.86 lbs. |
Warranty
| Labor (Entire Appliance) | 1 Year |
| Parts (Entire Appliance) | 1 Year |
