30" Free-Standing Gas Range - RGB525DEDWW
30" Free-Standing Gas Range
Model: RGB525DEDWW
30" Free-Standing Gas Range
Model: RGB525DEDWW
Color : White
Replaced By
Key Features
4.8 cu. ft. oven capacity
All purpose burners
Standard grates
Porcelain upswept cooktop
Lift-up cooktop
Easy clean subtop
Porcelain oven door
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
4.8 cu. ft. oven capacity
More room for cooking more dishes at once
All purpose burners
Deliver a wide range of heat output ideal for most cooking needs
Standard grates
Hold cookware securely over burners
Porcelain upswept cooktop
Raised edges contain spills, while the surface is easy to wipe clean
Lift-up cooktop
Allows easy access to clean the subtop
Easy clean subtop
Porcelain enameled that’s easy to clean and durable
Porcelain oven door
Scratch-resistant coating is easy to maintain
Certifications
California Prop 65
Specifications

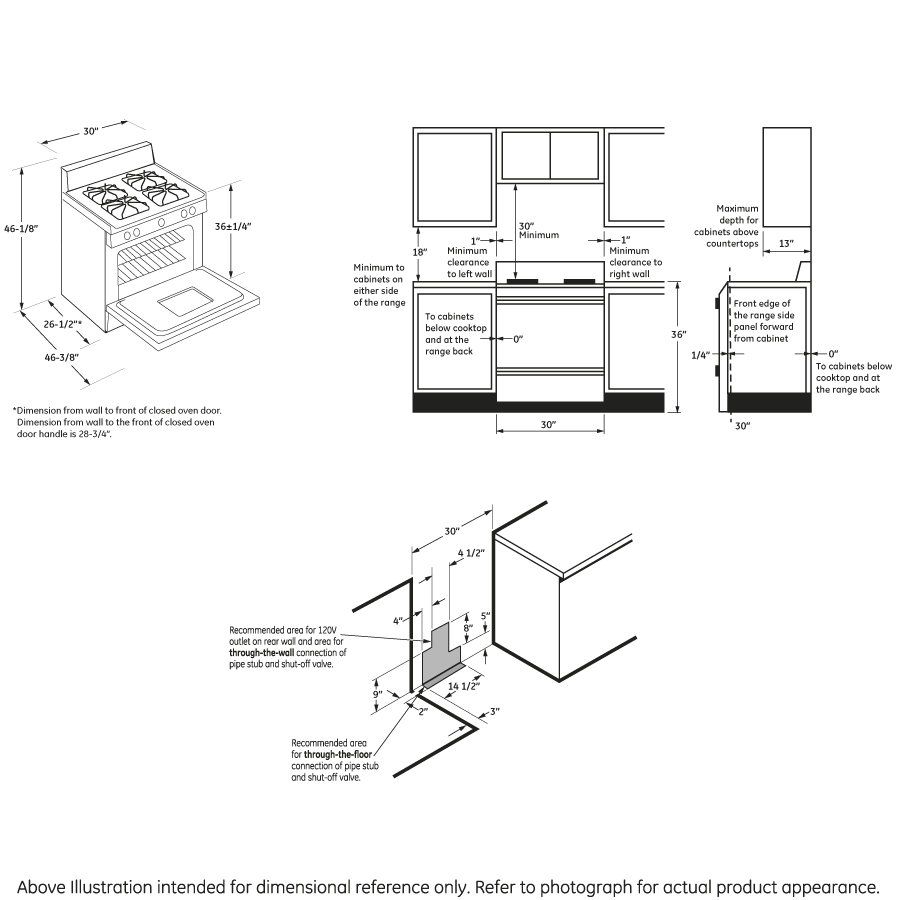

WEIGHTS & DIMENSIONS
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 18-1/2 x 19 |
| Overall Width | 30 in |
| Overall Depth | 26.5 in |
| Overall Height | 46.125 in |
| Net Weight | 145 lb |
| Depth with Door Open 90° | 46.375 in |
| Cabinet Width | 30 in |
| Approximate Shipping Weight | 165 lb |
FEATURES
| Slide - Out Broiler Drawer | Yes |
| Porcelain-Enameled Subtop | Yes |
| Ignition System | Electronic |
| Fuel Type | Natural Gas |
| Cooktop Burner Type | Standard |
| Oven Rack Features | Embossed Rack Positions |
| Oven Cleaning Type | Standard Clean |
| All-Purpose Burners | (4) 9,100 BTU |
| Valves (Degree of Turn) | 140 |
| Cooktop Surface | Porcelain-Enamel |
| Oven Rack Positions (Single or Upper/Lower) | 6 |
| Leveling System | 4 Leveling Legs |
| One-Piece Drip Pans | Optional Accessory |
APPEARANCE
| Cooktop Burner Grate Color | Black |
| Handle | Visor |
| Frameless Oven Door(s) | White Porcelain-Enameled |
| Color Appearance | White |
ACCESSORIES
| LP Conversion Kit | Included |
POWER / RATINGS
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (4) 9.1 |
| Volts/Hertz/Amps | 120V; 60Hz; 5A |
| Top Burner BTU Rating - LP (000's BTU's) | (4) 8.0 |
| Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 18.0 |
| Bake/Broiler BTU Rating - LP (000's BTU's) | 16.5 |
CAPACITY
| Total Capacity (cubic feet) | 4.8 cu ft |
Dimensions & Weight
| Width | 30 in. |
| Height | 46.13 in. |
| Length | 26.5 in. |
| Weight | 145 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 35 in. |
| Shipping Height | 51.13 in. |
| Shipping Length | 31.5 in. |
| Shipping Weight | 185 lbs. |
| Total of Shipping Weight | 185 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 21.22 ft³ |
| Dimensional Weight | 263.81 lbs. |
| Total of Cubes | 21.22 ft³ |
| Total of Dimensional Weight | 263.81 lbs. |
Warranty
| Labor (Entire Appliance) | 1 Year |
| Parts (Entire Appliance) | 1 Year |
