30" Free-Standing Gas Range - RGB508PEFWH
30" Free-Standing Gas Range
Model: RGB508PEFWH
30" Free-Standing Gas Range
Model: RGB508PEFWH
Color : White
Replaced By
Key Features
Standard clean oven
4.8 cu. ft. oven capacity
Electronic pilotless ignition
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
Standard clean oven
Smooth surface and rounded corners make clean-up quick and easy

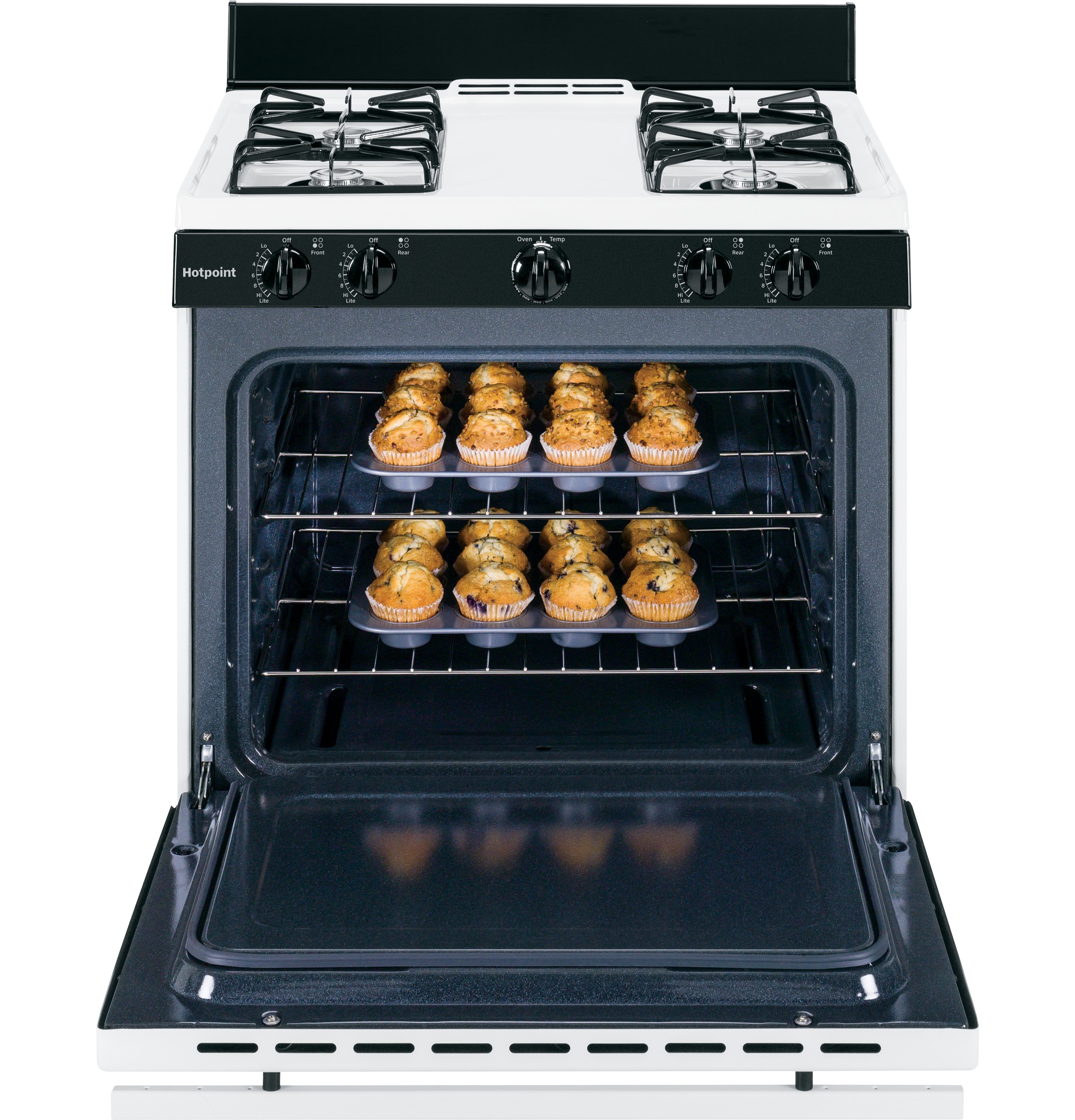

4.8 cu. ft. oven capacity
Enough room to cook an entire meal at once
Electronic pilotless ignition
Provides reliable burner ignition operation, eliminating the need for a standing pilot
Certifications
ADA Compliant
California Prop 65
Specifications

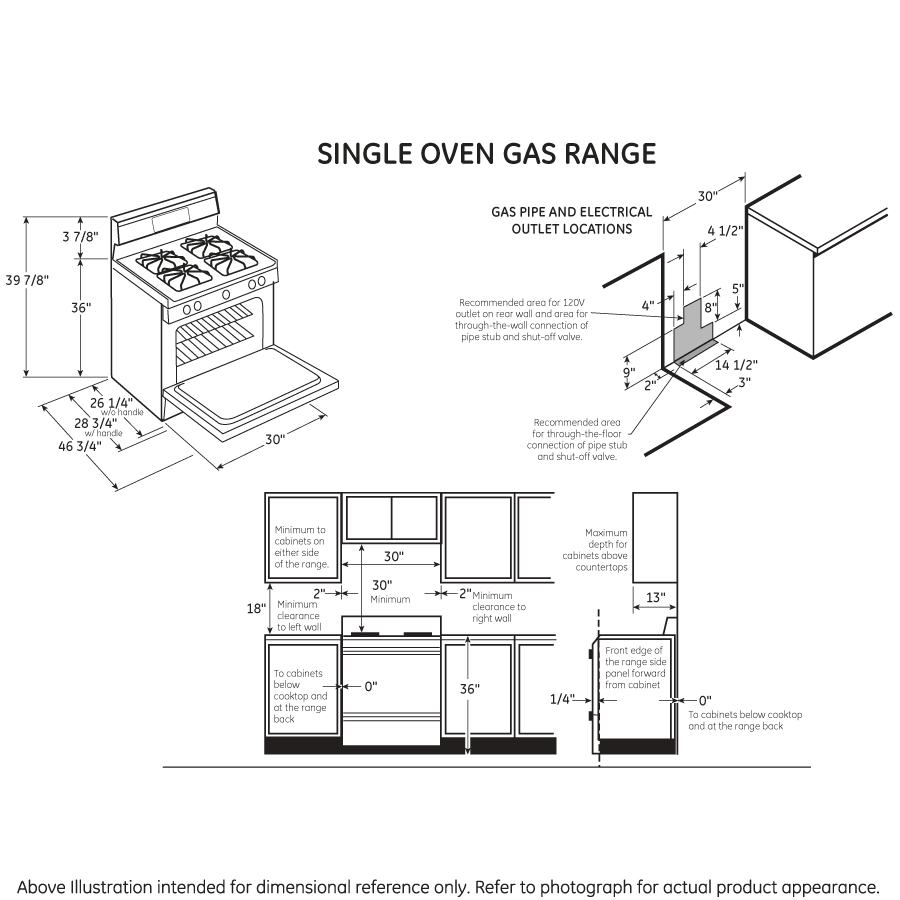

WEIGHTS & DIMENSIONS
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 18-1/2 x 19 |
| Overall Width | 30 in |
| Overall Depth | 28.75 in |
| Overall Height | 39.875 in |
| Net Weight | 140 lb |
| Height to Cooking Surface (in.) | 36 |
| Depth with Door Open | 46.75 in |
| Cabinet Width | 30 in |
| Approximate Shipping Weight | 160 lb |
FEATURES

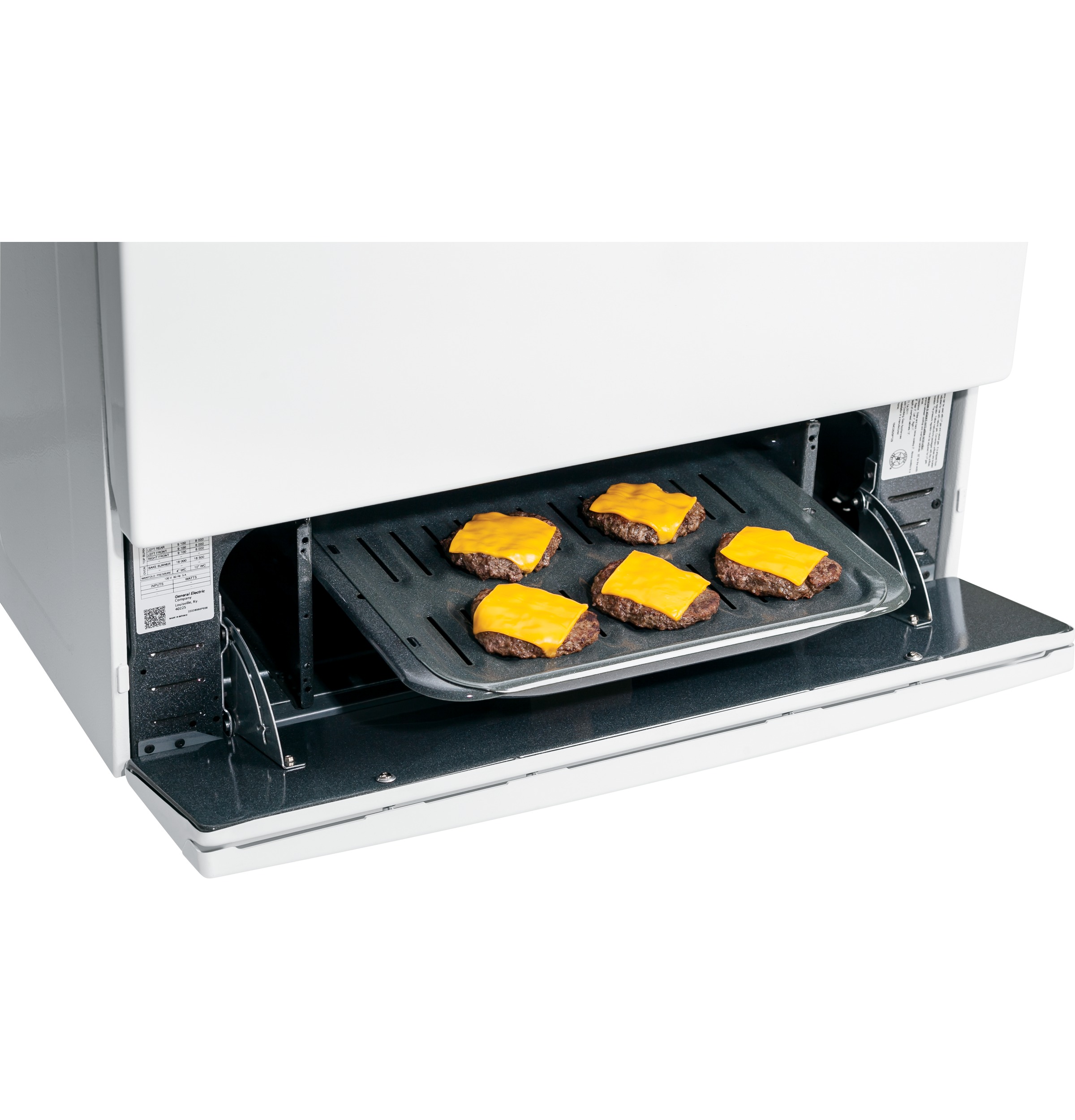

| Configuration | Range with Broiler Drawer |
| Slide - Out Broiler Drawer | Drop Down Door |
| Porcelain-Enameled Subtop | Yes |
| Ignition System | Electronic |

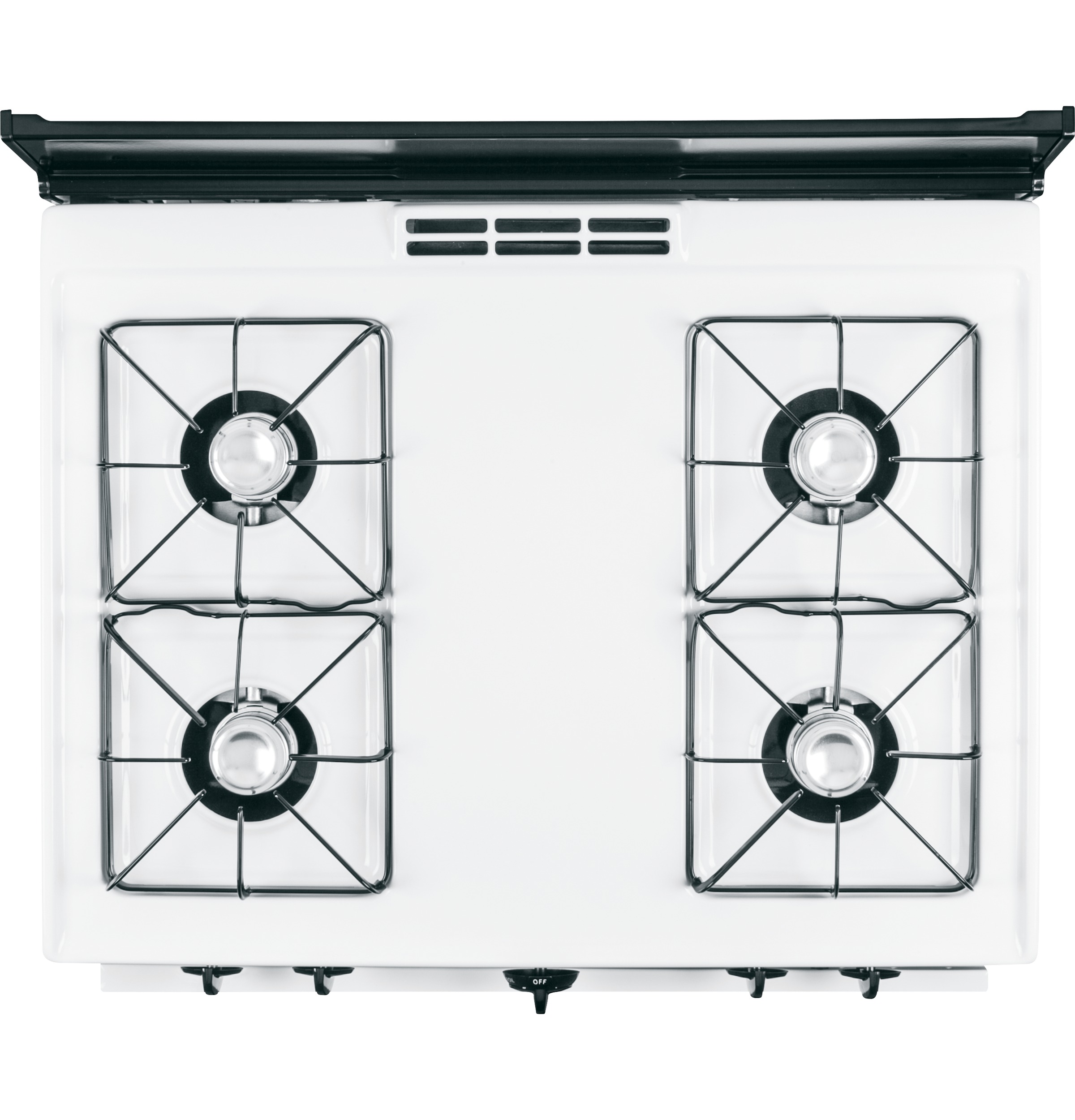

| Burner - Right Rear | 9,100 BTU |
| Fuel Type | Natural Gas |
| Cooktop Burner Type | Standard |

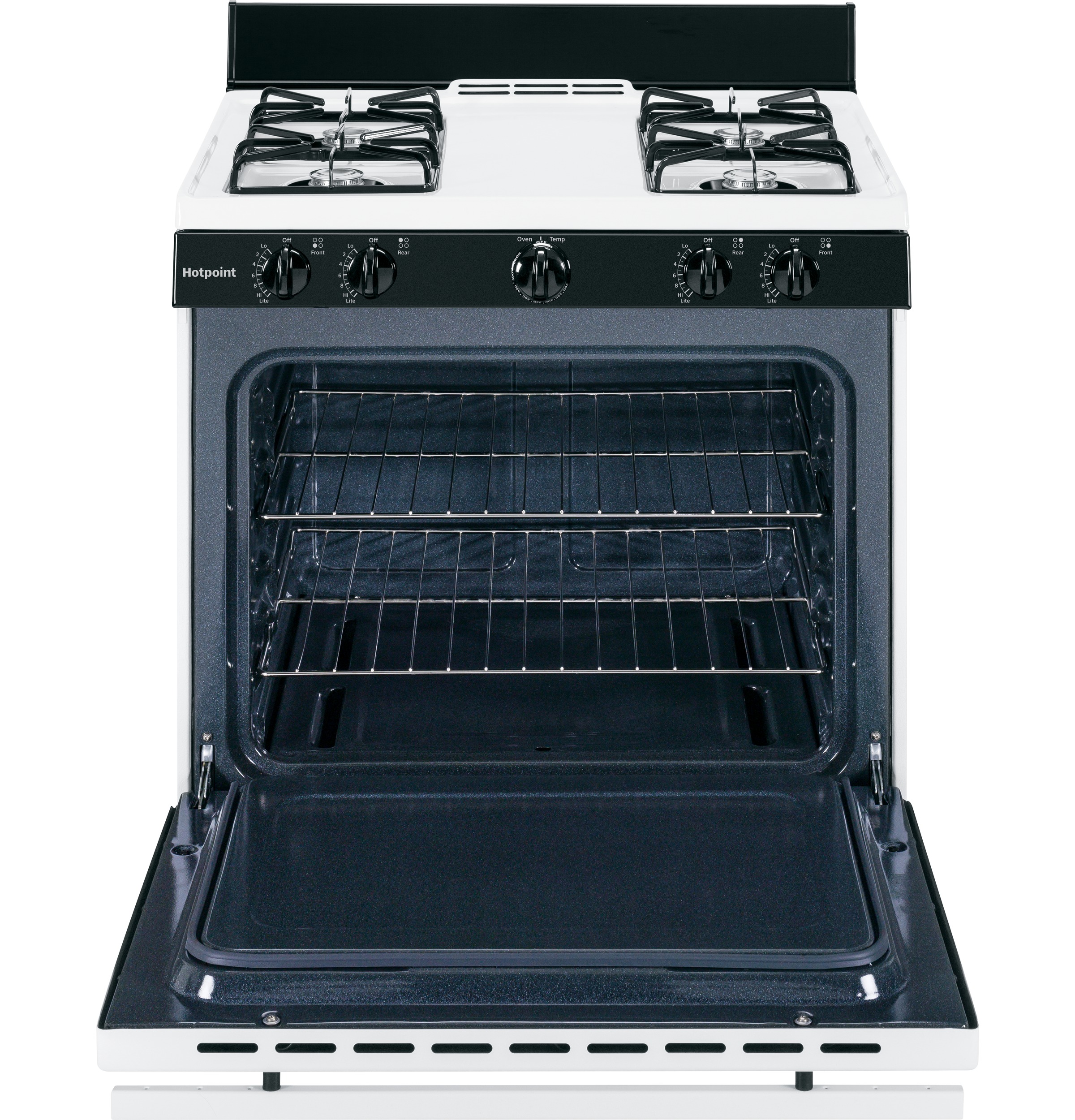

| Oven Rack Features | 2 Flat Nickel Racks |
| Burner - Left Rear | 9,100 BTU |
| Oven Cleaning Type | Standard Clean |

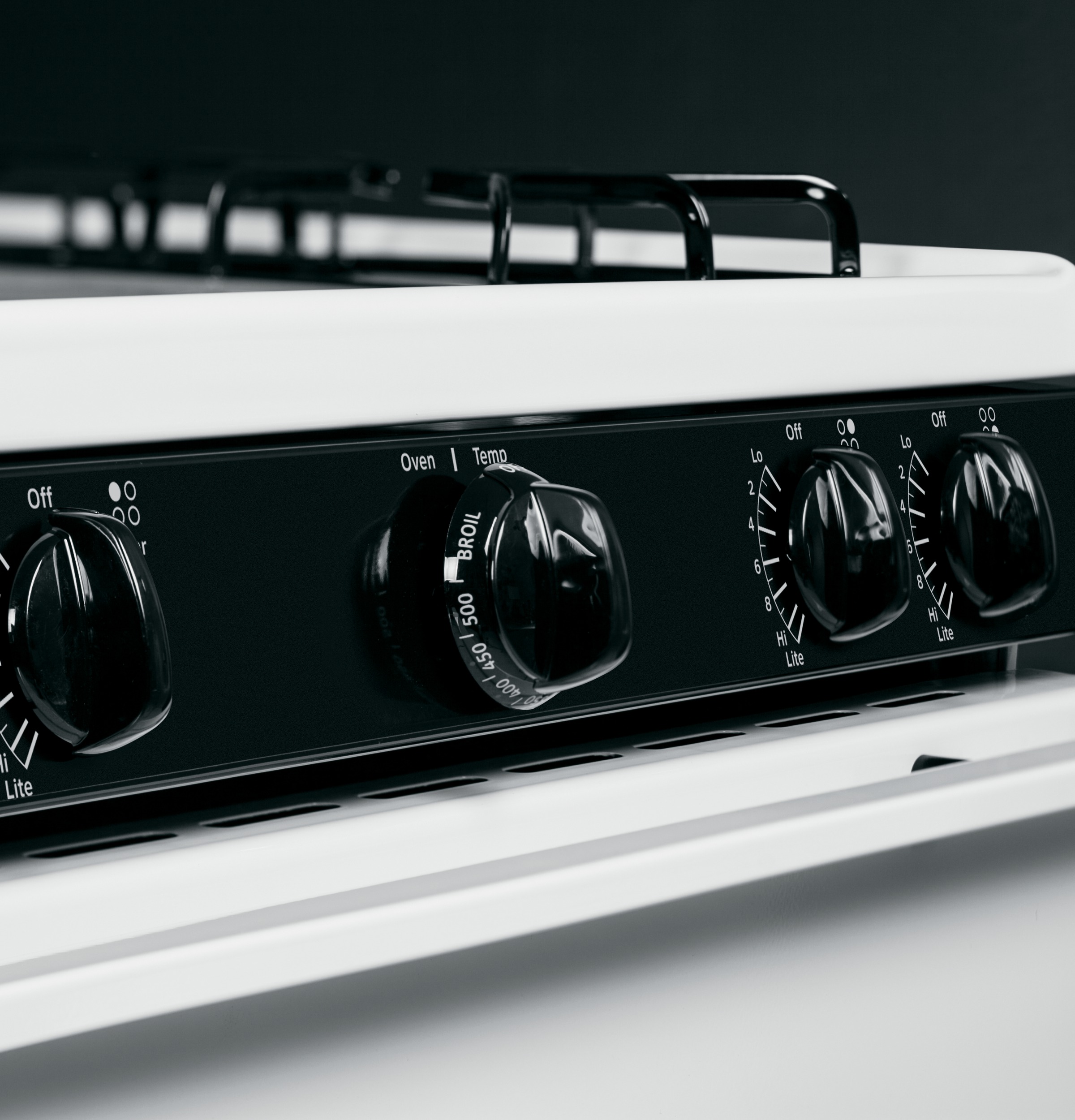

| Valves (Degree of Turn) | 140 |
| Burner - Right Front | 9,100 BTU |
| Cooktop Surface | Porcelain-Enamel |
| Burner - Left Front | 9,100 BTU |

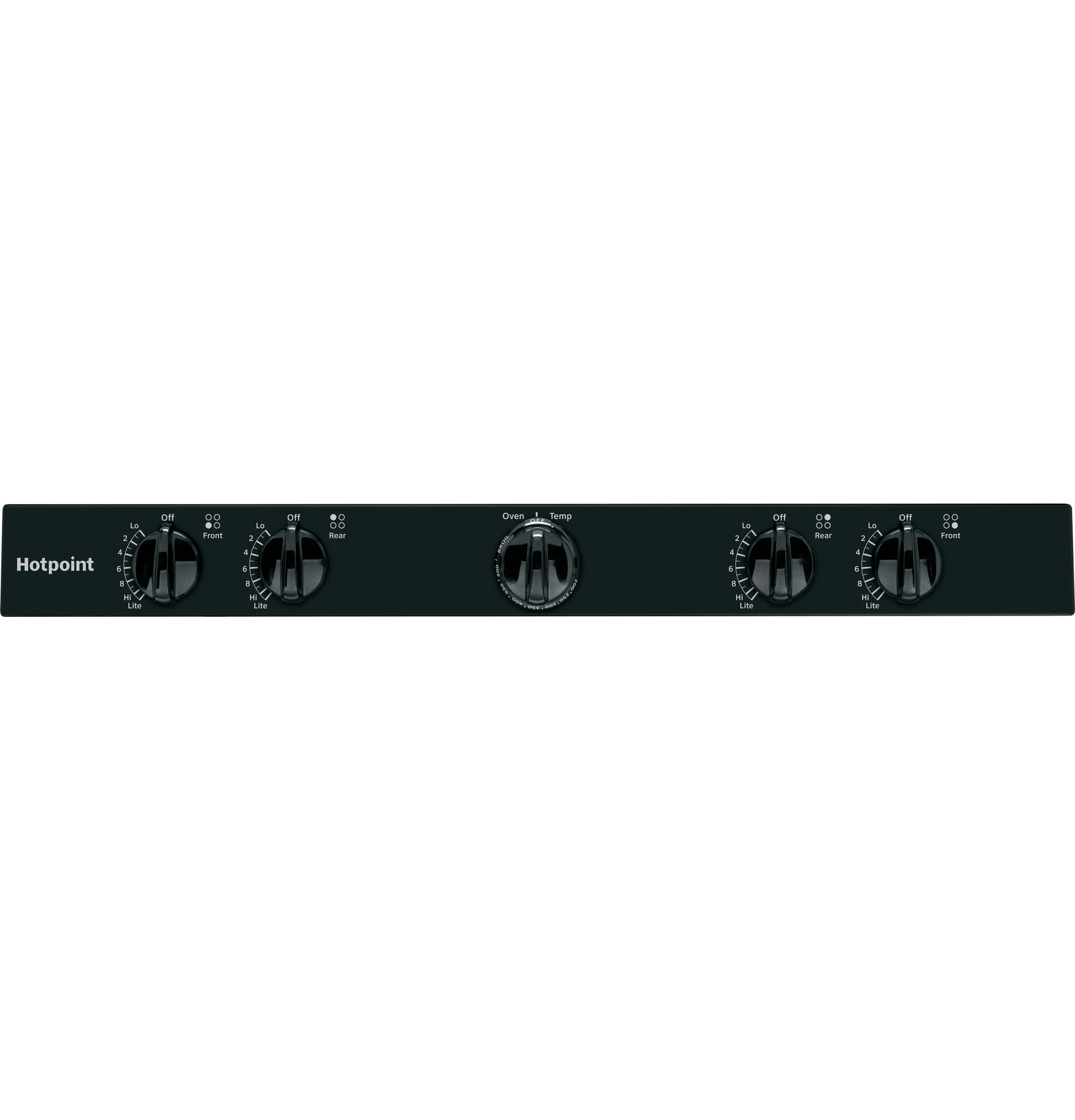

| Control Location | Front |
| Oven Rack Positions (Single or Upper/Lower) | 6 |
| Leveling System | 4 Leveling Legs |
| One-Piece Drip Pans | Optional Accessory |
| Cooking Technology | Traditional |
APPEARANCE
| Cooktop Burner Grate Color | Black Gloss |
| Handle | White |
| Frameless Oven Door(s) | White Porcelain-Enameled |
| Color Appearance | White |
ACCESSORIES
| LP Conversion Kit | Included |
POWER / RATINGS
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (4) 9.1 |
| Volts/Hertz/Amps | 120v; 60Hz; 15A |
| Top Burner BTU Rating - LP (000's BTU's) | (4) 8.0 |
| Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 18.0 Bake / 18.0 Broiler |
| Bake/Broiler BTU Rating - LP (000's BTU's) | 16.5 |
CAPACITY
| Total Capacity (cubic feet) | 4.8 cu ft |
Dimensions & Weight
| Width | 30 in. |
| Height | 39.88 in. |
| Length | 28.75 in. |
| Weight | 140 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 35 in. |
| Shipping Height | 44.88 in. |
| Shipping Length | 33.75 in. |
| Shipping Weight | 180 lbs. |
| Total of Shipping Weight | 180 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 19.9 ft³ |
| Dimensional Weight | 247.43 lbs. |
| Total of Cubes | 19.9 ft³ |
| Total of Dimensional Weight | 247.43 lbs. |
Warranty
| Labor (Entire Appliance) | 1 Year |
| Parts (Entire Appliance) | 1 Year |
