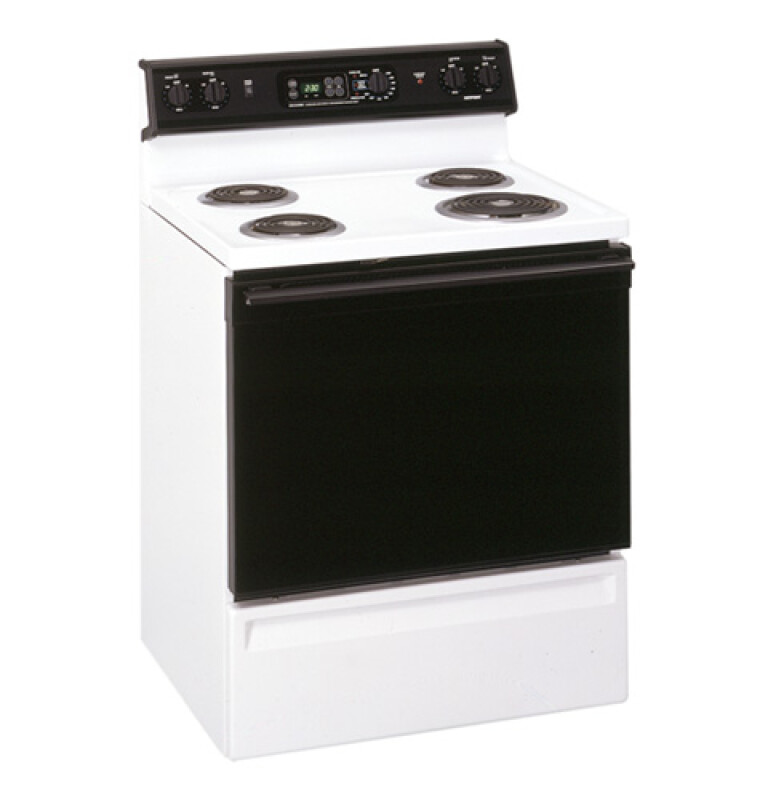

30" Free-Standing Electric Range - RB753BCWH
30" Free-Standing Electric Range
Model: RB753BCWH
30" Free-Standing Electric Range
Model: RB753BCWH
Color : White
Key Features
Self-clean oven
Super-large oven capacity
Coil heating elements
Electronic oven controls
Porcelain upswept cooktop
Frameless glass oven door
Chrome drip bowls
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
Self-clean oven
Conveniently cleans the oven cavity without the need for scrubbing
Super-large oven capacity
Provides an impressively large oven interior for cooking more dishes and large meals at one time
Coil heating elements
Provides consistent and even heat on the cooktop with a plug-in element that is removable for easy cleaning
Electronic oven controls
One-touch electronic pads are easy-to-use and allow for simple oven operation
Porcelain upswept cooktop
Features raised edges to help contain spills and make clean-up easy
Frameless glass oven door
Offers an easy-to-clean and stylish design that blends seamlessly into existing cabinetry
Chrome drip bowls
Contain spills and remove for easy cleaning
Certifications
California Prop 65
Specifications
WEIGHTS & DIMENSIONS
| Oven Interior Dimensions (W x H x D) (in.) | 23-3/4 x 19 x 18-1/2 |
| Overall Width | 29.875 in |
| Overall Depth | 28.5 in |
| Overall Height | 46.5 in |
| Net Weight | 145 lb |
| Depth Without Handle | 26.375 in |
| Depth with Door Open | 46.375 in |
| Cabinet Width | 30 in |
| Approximate Shipping Weight | 165 lb |
FEATURES
| Configuration | Range with Storage Drawer |
| Lift-Up Cooktop With Support Rods | Yes |
| Cleaning Time | Variable |
| Removable One-Piece Drip Bowls | Chrome |
| Broiler Pan and Grid | Yes |
| Storage Drawer Features | Removable Full-Width |
| Interior Oven Light | Yes |
| Cooktop Burner Type | Coil |
| Oven Rack Features | 2 Oven Racks |
| Infinite Heat Controls | Yes |
| 6" Heating Element(s) | 2 Plug-In Calrod™ |
| Oven Cleaning Type | Self-Clean |
| Style | Coil |
| Heating Element "ON" Indicator Light | Yes |
| Cooktop Surface | Porcelain-Enamel |
| Preheated Oven Light | Yes |
| Control Location | Backsplash |
| 8" Heating Element (s) | 2 Plug-In Calrod™ |
| Leveling System | Easy Level System |
| Control Type | QuickSet II |
| Cooking Technology | Traditional |
| Oven Control Features | Auto Oven Shut-Off |
POWER / RATINGS
| KW Rating at 240V | 10.2 |
| KW Rating at 208V | 7.7 |
APPEARANCE
| Oven Door Features | Black Glass Frameless Lift-off Oven Door |
| Handle | Designer Style |
| Color Appearance | White |
CAPACITY
| Unit Capacity | Super Large Oven |
| Total Capacity (cubic feet) | 5 cu ft |
Dimensions & Weight
| Width | 29.88 in. |
| Height | 46.5 in. |
| Length | 28.5 in. |
| Weight | 145 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 34.88 in. |
| Shipping Height | 51.5 in. |
| Shipping Length | 33.5 in. |
| Shipping Weight | 185 lbs. |
| Total of Shipping Weight | 185 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 22.91 ft³ |
| Dimensional Weight | 284.83 lbs. |
| Total of Cubes | 22.91 ft³ |
| Total of Dimensional Weight | 284.83 lbs. |
Warranty
| Labor (Entire Appliance) | 1 Year |
| Parts (Entire Appliance) | 1 Year |
