30" Free-Standing Electric Range - RB720DHCC
30" Free-Standing Electric Range
Model: RB720DHCC
Product Video
30" Free-Standing Electric Range
Model: RB720DHCC
Color : Bisque
Replaced By
Key Features
5.0 cu. ft. oven capacity
Coil heating elements
Electronic oven controls

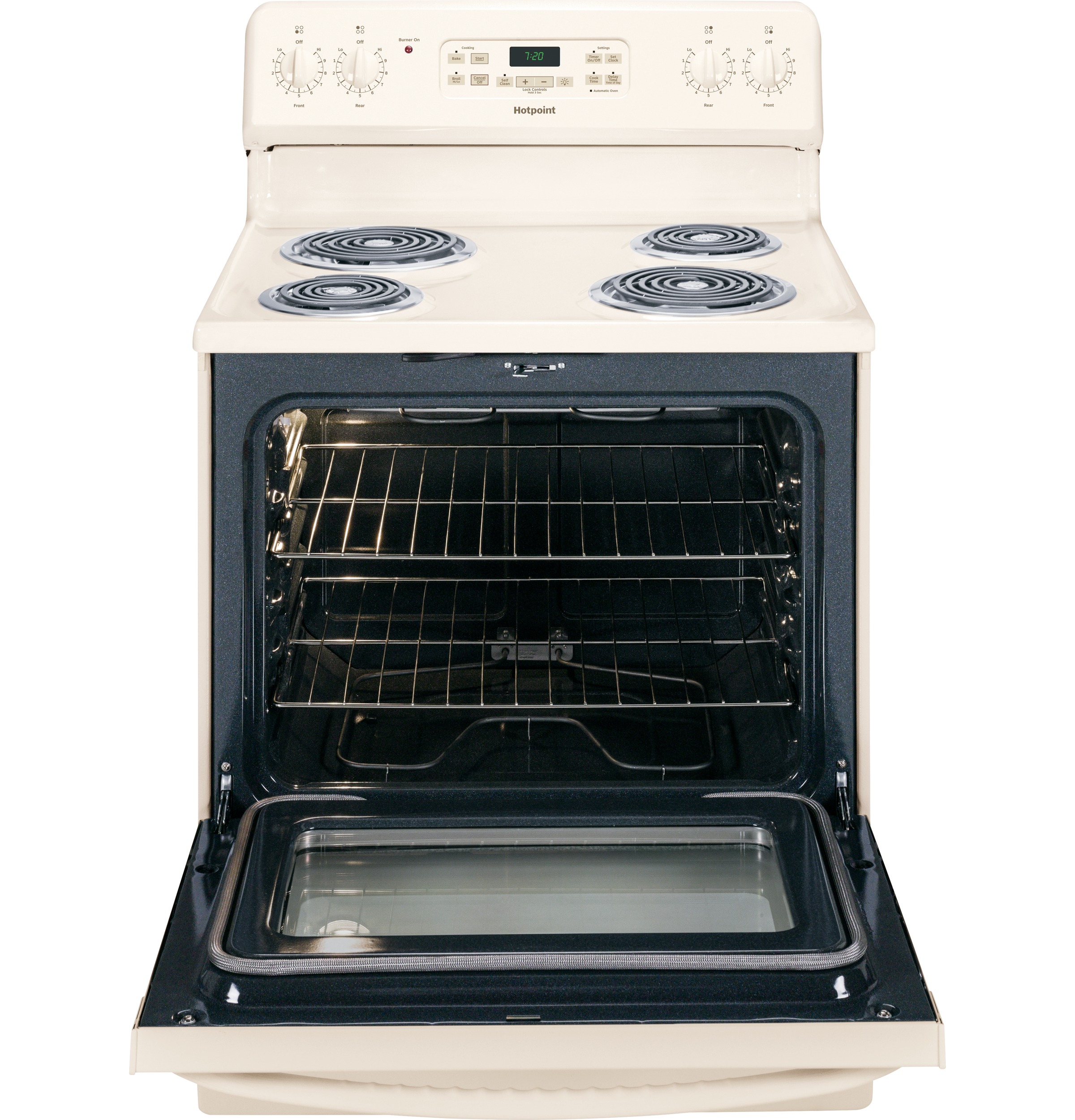

Big view window
Frameless glass oven door
Porcelain upswept cooktop
Two oven racks
Chrome drip bowls
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
5.0 cu. ft. oven capacity

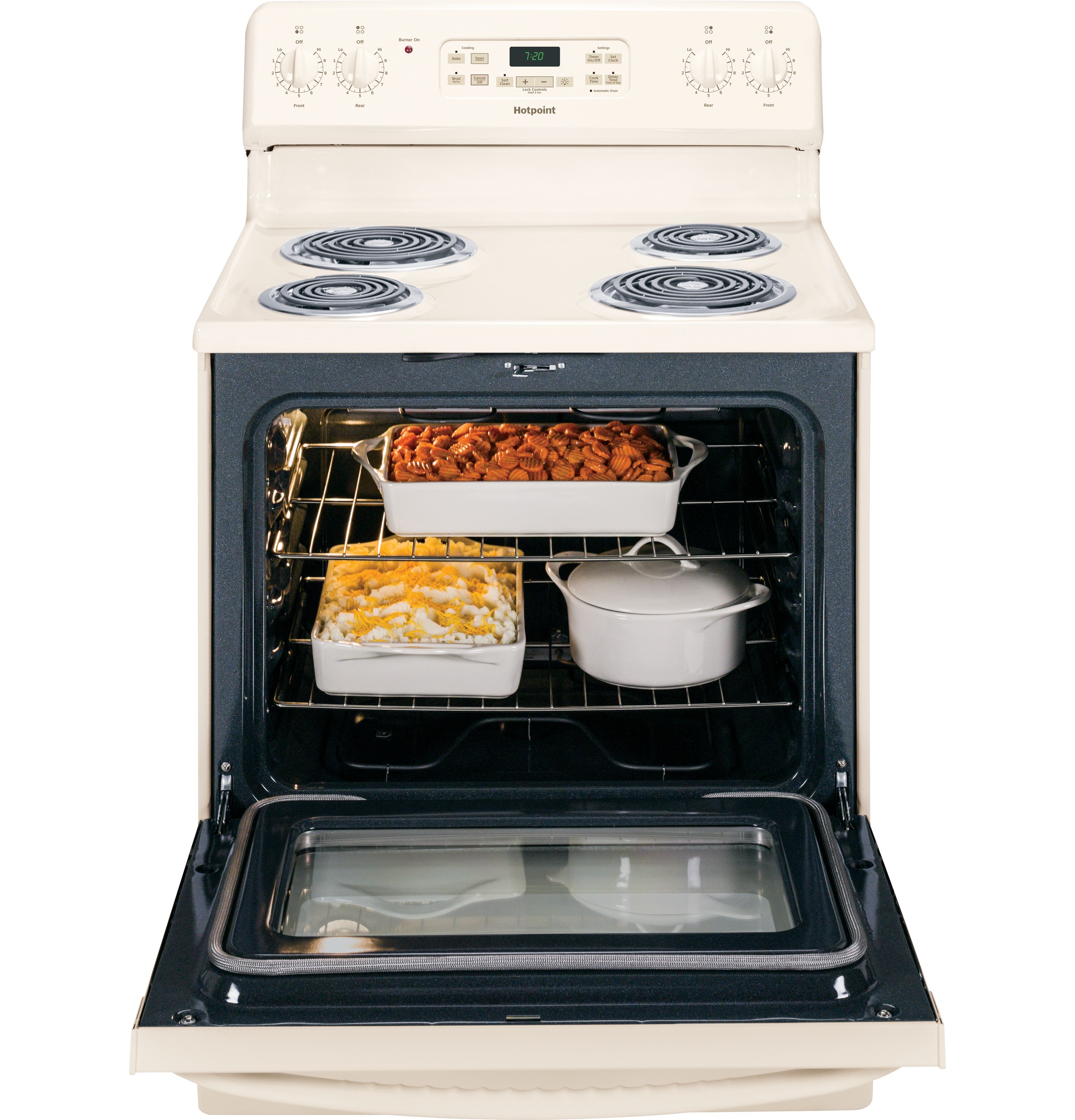

Cook more dishes at once

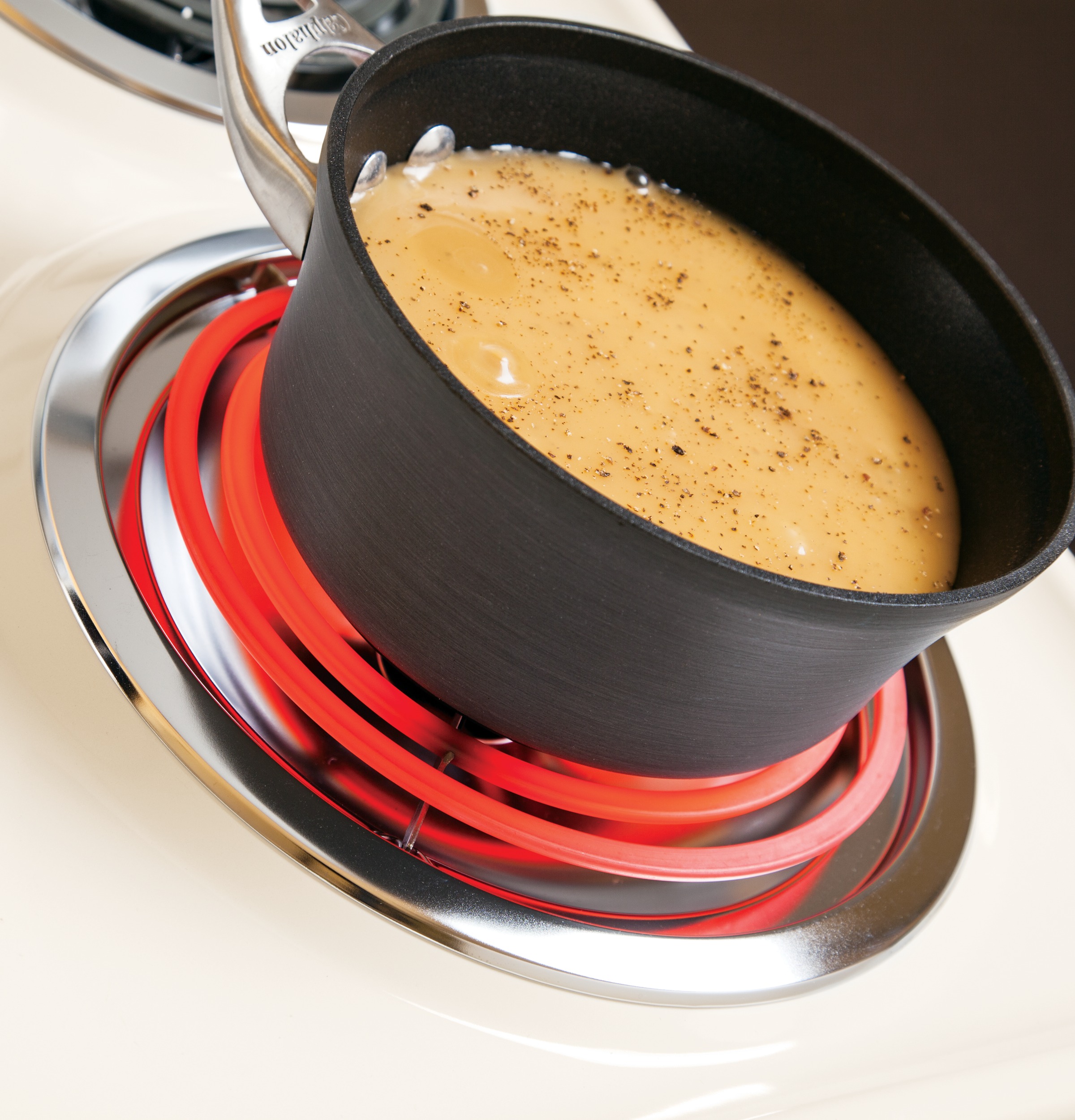

Coil heating elements
Provides consistent and even heat on the cooktop with a plug-in element that is removable for easy cleaning

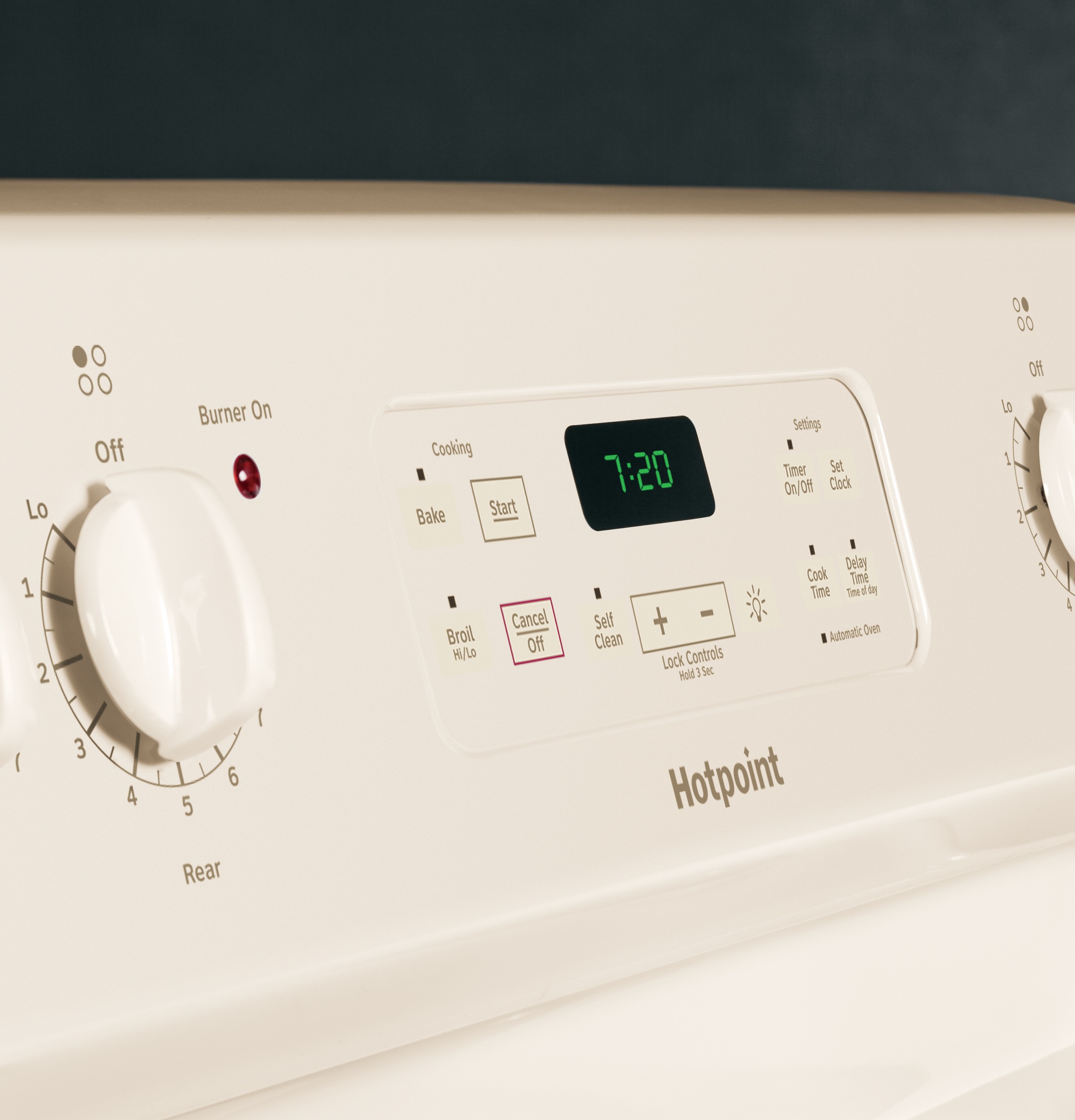

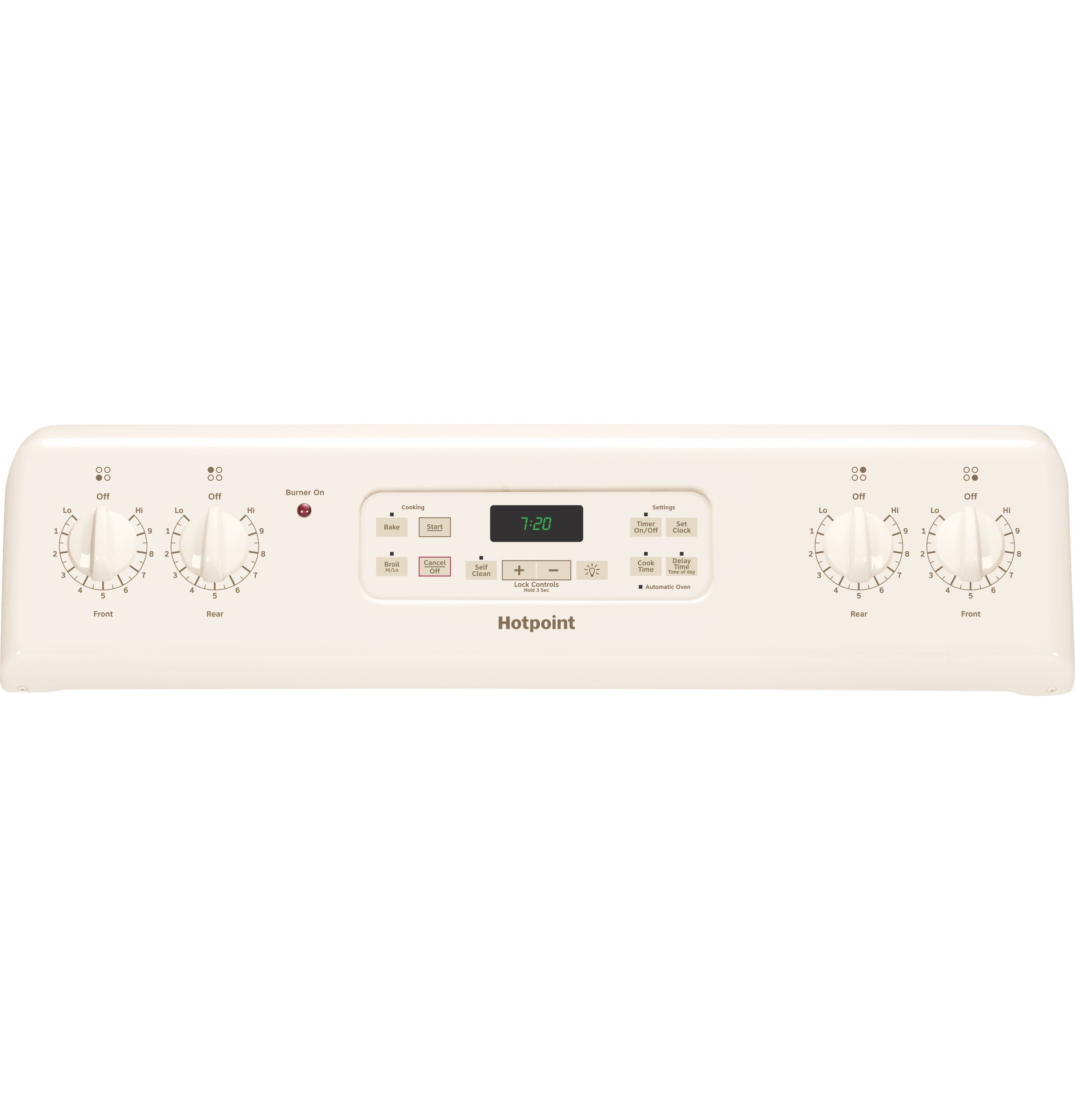

Electronic oven controls
Electronic touch pads are easy to operate
Big view window
Provides a large, convenient viewing area to check the progress of food
Frameless glass oven door
Simple, stylish and easy to clean

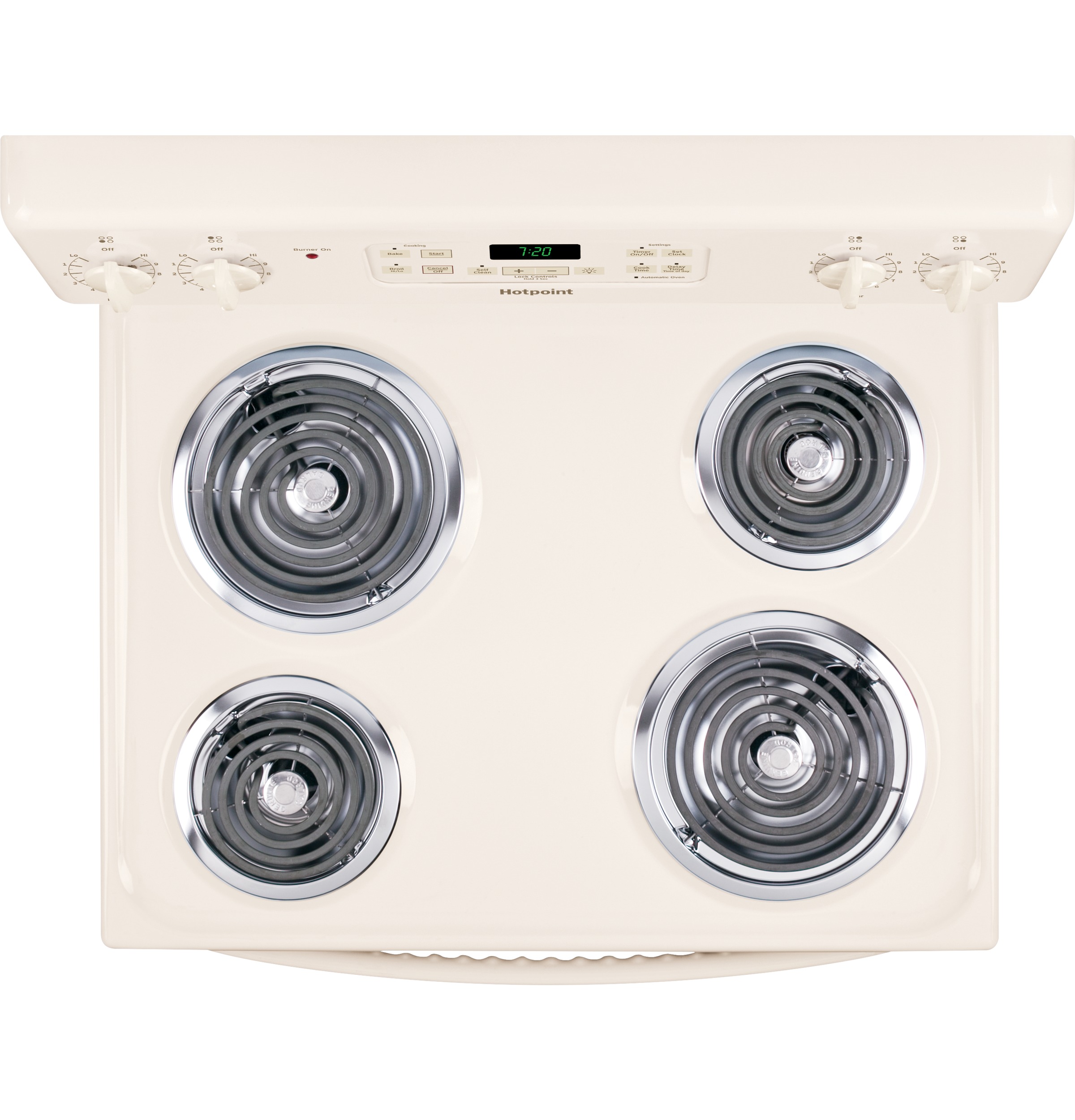

Porcelain upswept cooktop
Raised edges contain spills, while the surface is easy to wipe clean
Two oven racks
Durable to securely hold any cookware
Chrome drip bowls
Contain spills and remove for easy cleaning
Interior oven light
Illuminates the oven interior
Audible preheat signal
Know when the oven is ready
Removable full-width storage drawer
Store cookware or kitchen accessories
Self-clean oven
Cleans the oven cavity without the need for scrubbing
Certifications
California Prop 65
UL
Specifications

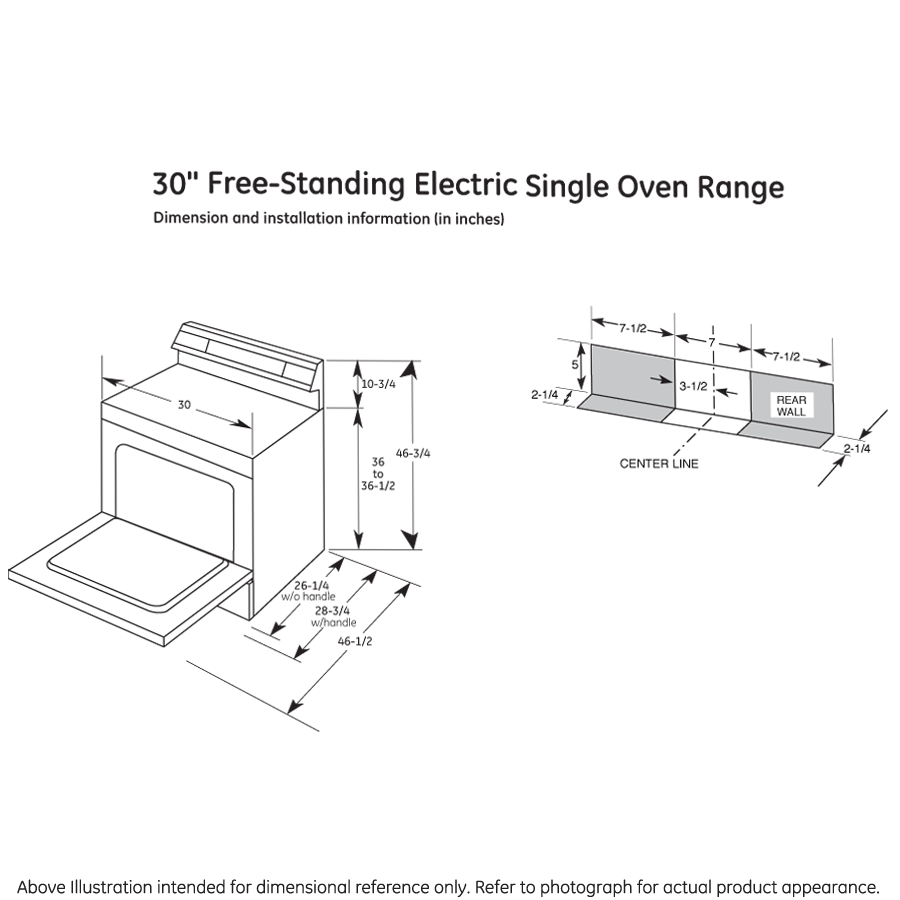

WEIGHTS & DIMENSIONS
| Oven Interior Dimensions (W x H x D) (in.) | 23-3/4 x 19 x 18-1/2 |
| Overall Width | 30 in |
| Overall Depth | 28.75 in |
| Overall Height | 46.75 in |
| Net Weight | 150 lb |
| Depth with Door Open | 46.5 in |
| Cabinet Width | 30 in |
| Approximate Shipping Weight | 170 lb |
FEATURES
| Configuration | Range with Storage Drawer |
| Element - Right Front | 8" 2600W 5-turn |
| Oven Features | 4-Pass Broil Element |
| Cleaning Time | Variable with Delay Clean Option |
| Lift-Up Cooktop With Support Rods | Yes |
| Removable One-Piece Drip Bowls | Chrome |
| Storage Drawer Features | Removable Full-Width |
| Oven Interior | Interior Oven Light |
| Cooktop Burner Type | Coil |
| Oven Rack Features | 2 Oven Racks |
| Element - Left Front | 8" 2600W 5-turn |
| Infinite Heat Controls | Yes |
| Oven Cleaning Type | Self-Clean |
| Heating Element "ON" Indicator Light | Yes |
| Element - Left Rear | 6" 1500W 4-turn |
| Element - Right Rear | 6" 1500W 4-turn |
| Cooktop Surface | Porcelain-Enamel |
| Oven Rack Positions (Single or Upper/Lower) | 6 |
| Control Type | Touchpad |
| Cooking Technology | Traditional |
| Oven Control Features | Auto Oven Shut-Off with Override |
POWER / RATINGS
| KW Rating at 240V | 11.7 |
| Bake Wattage | 2585W |
| Amp Rating at 208V | 40 |
| Broiler Wattage | 3410W |
| KW Rating at 208V | 8.8 |
| Amp Rating at 240V | 40 |
APPEARANCE
| Oven Door Features | Glass Door |
| Handle | Color-Matched |
| Color Appearance | Bisque |
CAPACITY
| Total Capacity (cubic feet) | 5 cu ft |
Dimensions & Weight
| Width | 30 in. |
| Height | 46.75 in. |
| Length | 28.75 in. |
| Weight | 150 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 35 in. |
| Shipping Height | 51.75 in. |
| Shipping Length | 33.75 in. |
| Shipping Weight | 190 lbs. |
| Total of Shipping Weight | 190 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 23.33 ft³ |
| Dimensional Weight | 290.09 lbs. |
| Total of Cubes | 23.33 ft³ |
| Total of Dimensional Weight | 290.09 lbs. |
Warranty
| Labor (Entire Appliance) | 1 Year |
| Parts (Entire Appliance) | 1 Year |
