30" Free-Standing Electric Range - RB560DHBB
30" Free-Standing Electric Range
Model: RB560DHBB
30" Free-Standing Electric Range
Model: RB560DHBB
Color : Black
Replaced By
Key Features
Standard clean oven
Ceramic glass cooktop
Ribbon heating elements
5.0 cu. ft. oven capacity
Electronic oven controls
Big view window
Two oven racks
Frameless glass oven door
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
Standard clean oven
Smooth surface and rounded corners make clean-up quick and easy

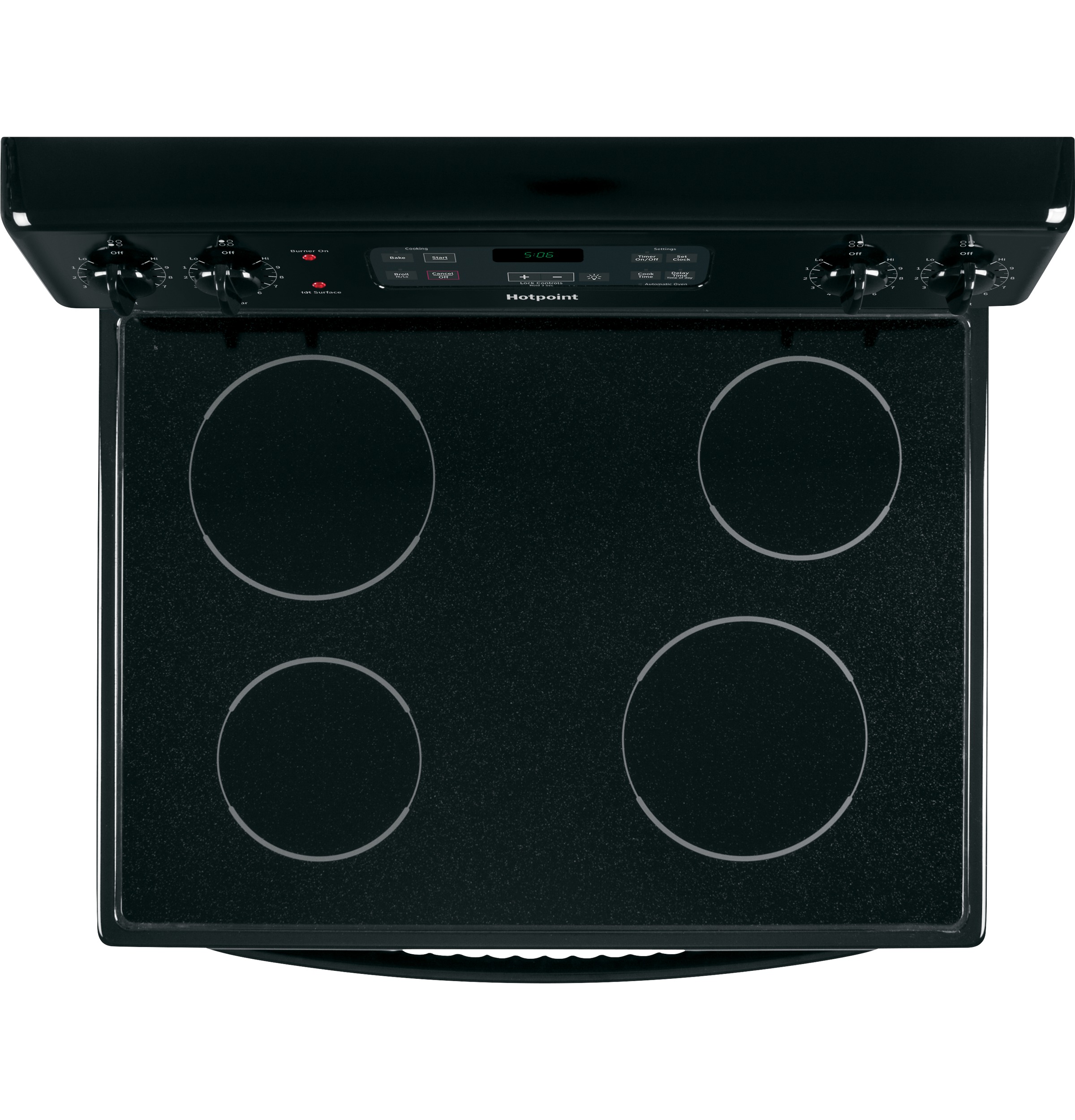

Ceramic glass cooktop
Smooth cooktop easily wipes clean
Ribbon heating elements
Consistent heat and glass surface provide fast, even heating
5.0 cu. ft. oven capacity
Cook more dishes at once

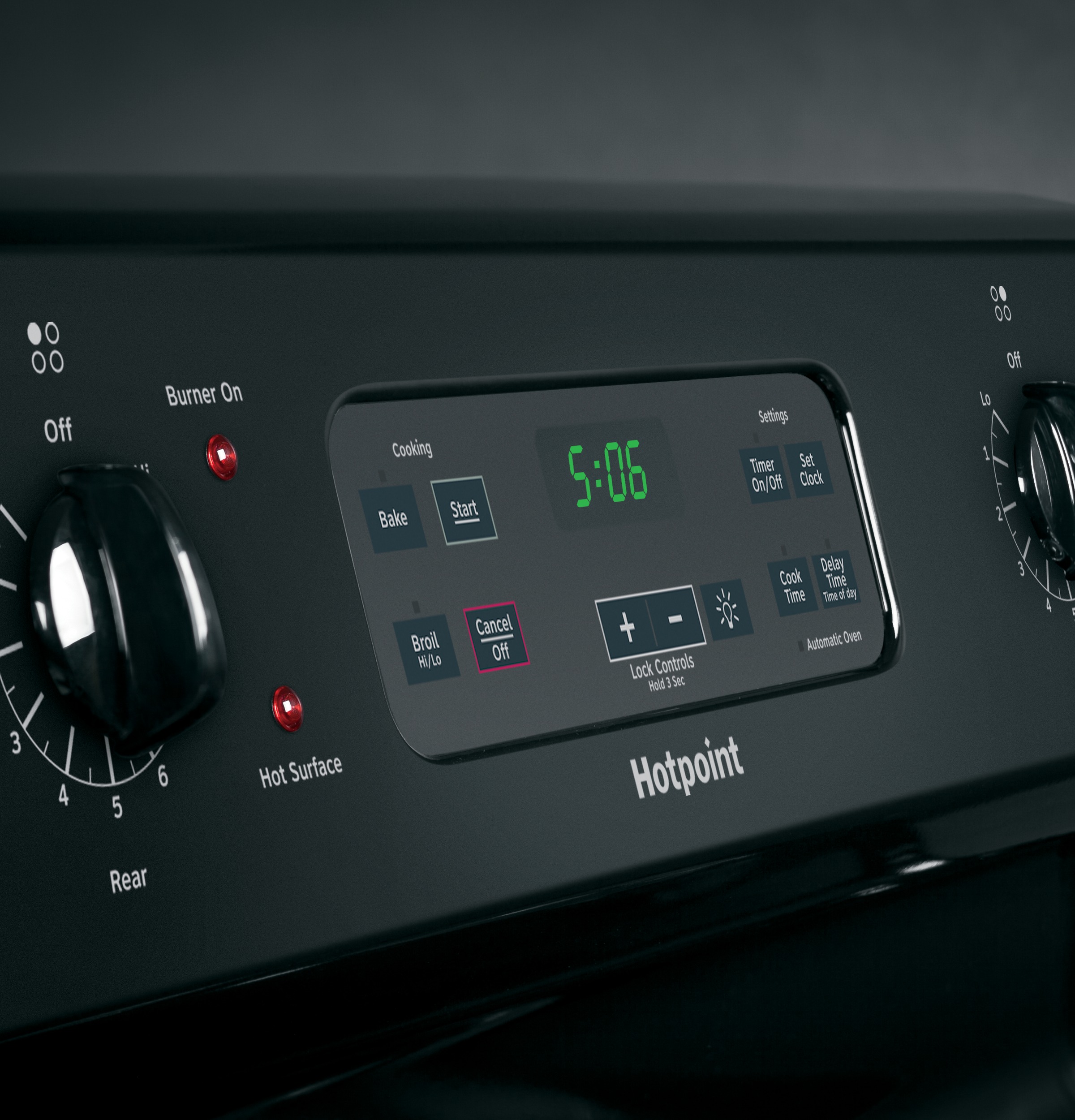

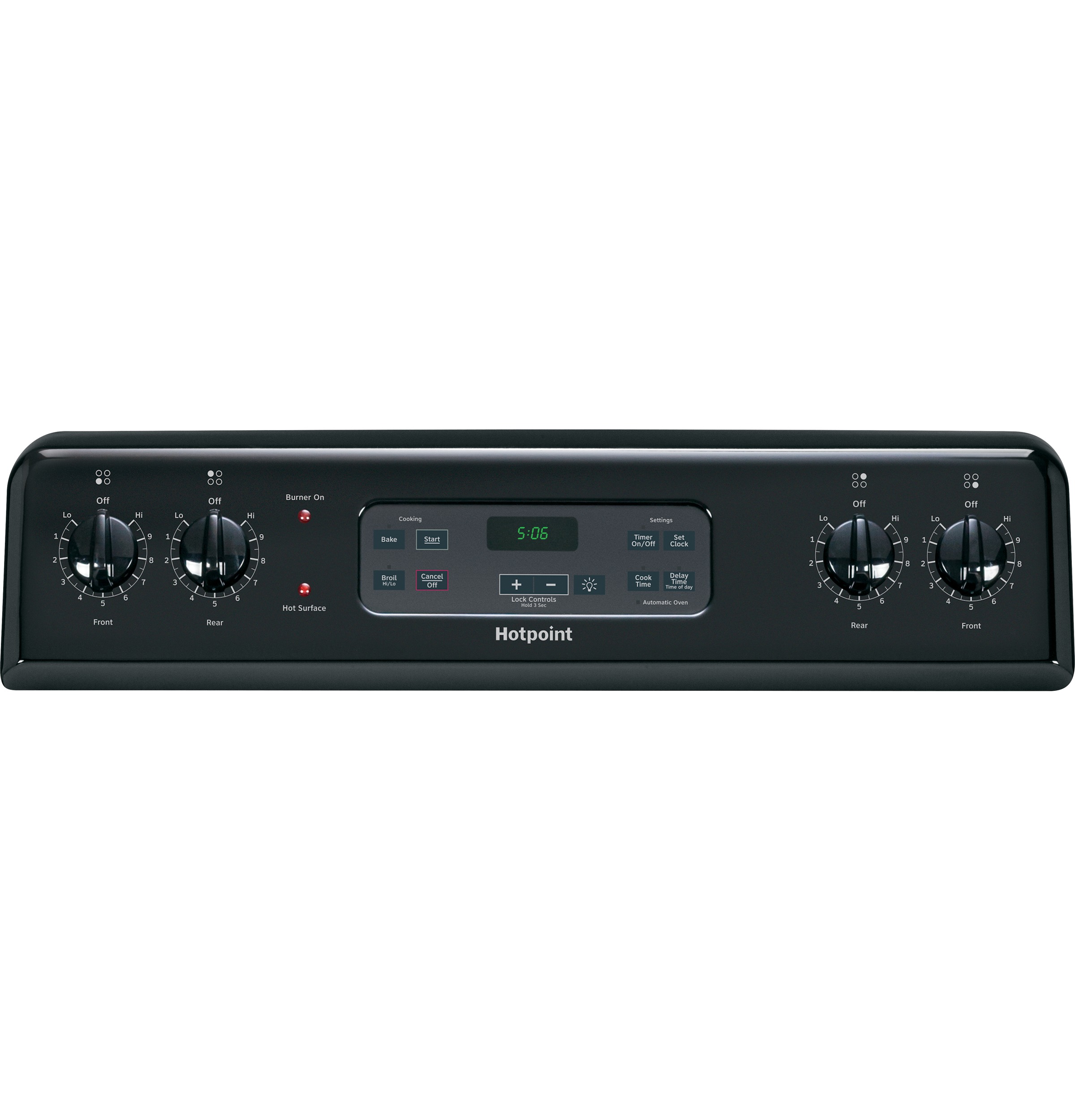

Electronic oven controls
Electronic touch pads are easy to operate
Big view window
Provides a large, convenient viewing area to check the progress of food

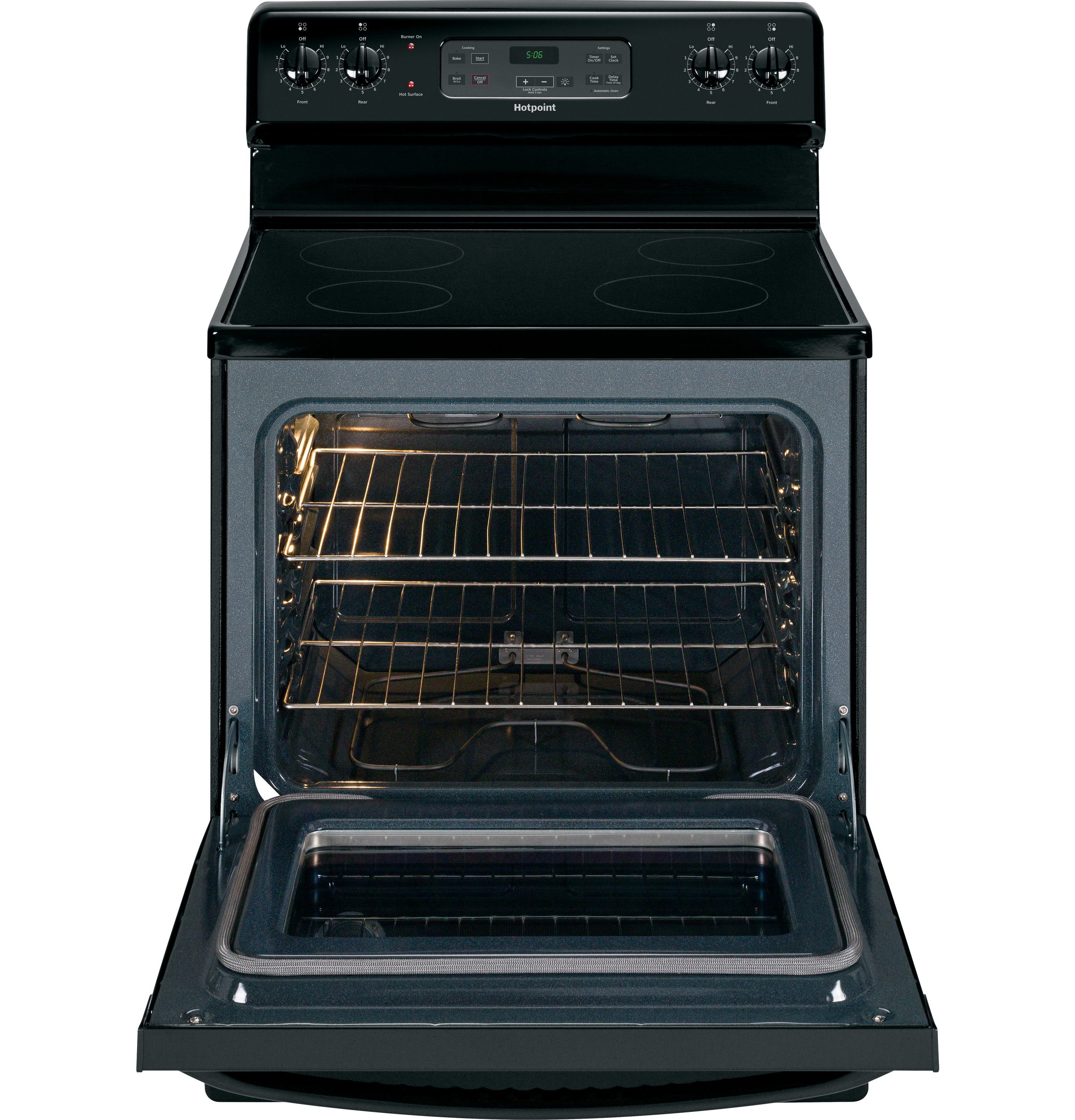

Two oven racks
Durable to securely hold any cookware
Frameless glass oven door
Simple, stylish and easy to clean
Interior oven light
Illuminates the oven interior
Audible preheat signal
Know when the oven is ready
Certifications
California Prop 65
UL
Specifications

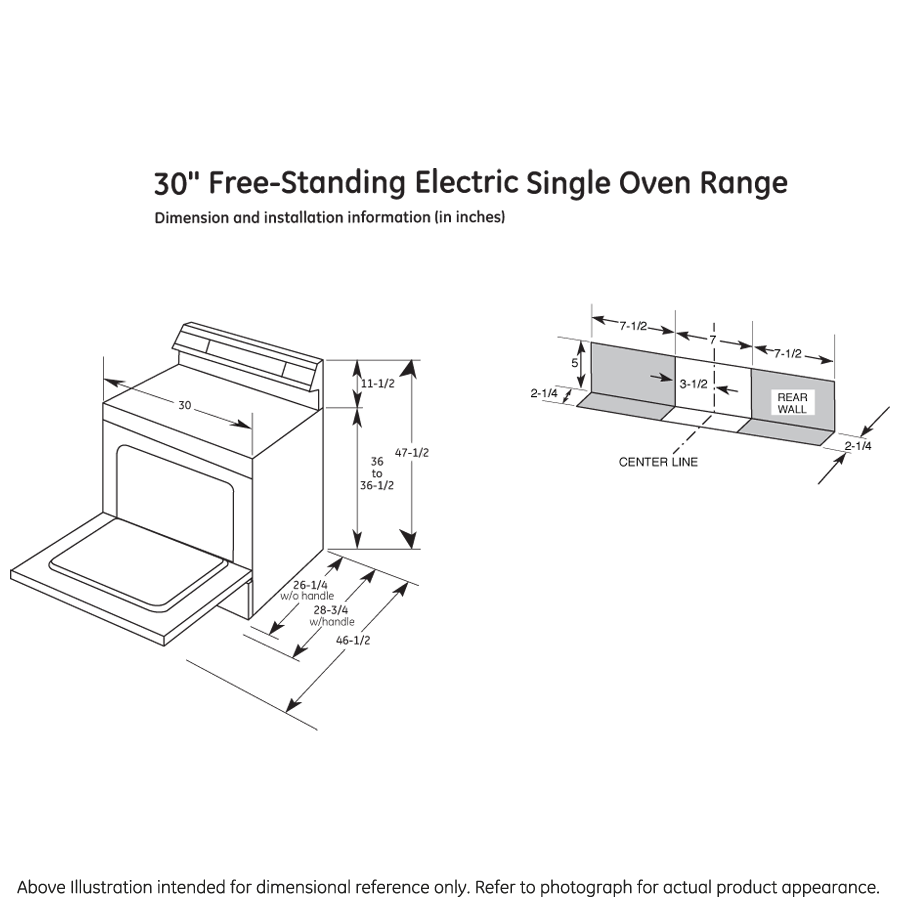

WEIGHTS & DIMENSIONS
| Oven Interior Dimensions (W x H x D) (in.) | 23-3/4 x 19 x 18-1/2 |
| Overall Width | 30 in |
| Overall Depth | 28.75 in |
| Overall Height | 47.5 in |
| Net Weight | 145 lb |
| Depth with Door Open | 46.5 in |
| Cabinet Width | 30 in |
| Approximate Shipping Weight | 165 lb |
FEATURES
| Configuration | Range with Storage Drawer |
| Element - Right Front | 8" 2000W |
| Oven Features | 4-Pass Broil Element |
| Lift-Up Cooktop With Support Rods | Yes |
| Removable One-Piece Drip Bowls | Black |
| Storage Drawer Features | Removable Full-Width |
| Oven Interior | Interior Oven Light |
| Cooktop Burner Type | Smoothtop |
| Oven Rack Features | 2 Oven Racks |
| Element - Left Front | 6" 1500W |
| Infinite Heat Controls | Yes |
| Oven Cleaning Type | Standard Clean |
| Heating Element "ON" Indicator Light | Yes |
| Element - Left Rear | 8" 2000W |
| Element - Right Rear | 6" 1500W |
| Cooktop Surface | Patterned Black on Black Glass Ceramic |
| Oven Rack Positions (Single or Upper/Lower) | 6 |
| Control Type | Touchpad |
| Cooking Technology | Traditional |
| Oven Control Features | Auto Oven Shut-Off with Override |
POWER / RATINGS
| KW Rating at 240V | 11.7 |
| Bake Wattage | 2585W |
| Amp Rating at 208V | 40 |
| Broiler Wattage | 3410W |
| KW Rating at 208V | 8.8 |
| Amp Rating at 240V | 40 |
APPEARANCE
| Oven Door Features | Glass Door |
| Handle | Color-Matched |
| Color Appearance | Black |
CAPACITY
| Total Capacity (cubic feet) | 5 cu ft |
Dimensions & Weight
| Width | 30 in. |
| Height | 47.5 in. |
| Length | 28.75 in. |
| Weight | 145 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 35 in. |
| Shipping Height | 52.5 in. |
| Shipping Length | 33.75 in. |
| Shipping Weight | 185 lbs. |
| Total of Shipping Weight | 185 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 23.71 ft³ |
| Dimensional Weight | 294.74 lbs. |
| Total of Cubes | 23.71 ft³ |
| Total of Dimensional Weight | 294.74 lbs. |
Warranty
| Labor (Entire Appliance) | 1 Year |
| Parts (Entire Appliance) | 1 Year |
