30" Free-Standing Electric Range - RB536DPWW
30" Free-Standing Electric Range
Model: RB536DPWW
30" Free-Standing Electric Range
Model: RB536DPWW
Color : White
Replaced By
Key Features
Super-large oven capacity
Coil heating elements
Electronic clock and timer
Standard window
Frameless glass oven door
Porcelain upswept cooktop
Chrome drip bowls
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
Super-large oven capacity
Provides an impressively large oven interior for cooking more dishes and large meals at one time
Coil heating elements
Provides consistent and even heat on the cooktop with a plug-in element that is removable for easy cleaning
Electronic clock and timer
Features a convenient digital clock and easy-to-use timer with an audible signal to help coordinate cooking times in the kitchen
Standard window
Provides a convenient viewing area to check the progress of food
Frameless glass oven door
Offers an easy-to-clean and stylish design that blends seamlessly into existing cabinetry
Porcelain upswept cooktop
Features raised edges to help contain spills and make clean-up easy
Chrome drip bowls
Contain spills and remove for easy cleaning
Certifications
California Prop 65
Specifications

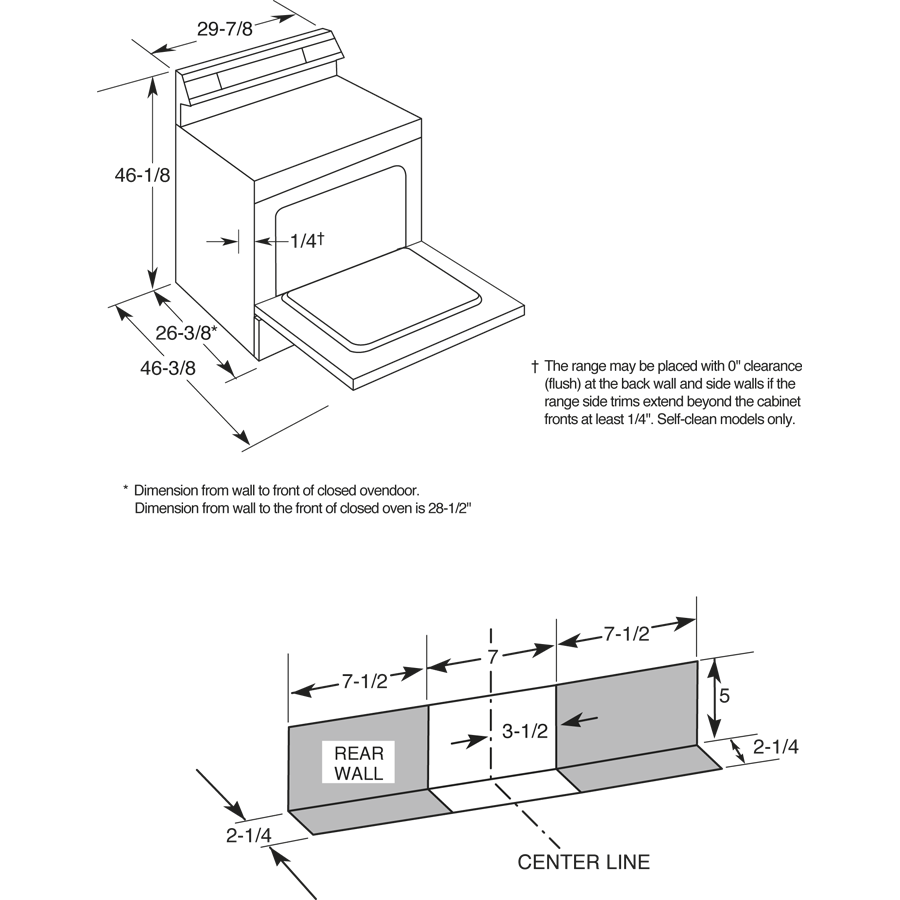

WEIGHTS & DIMENSIONS
| Oven Interior Dimensions (W x H x D) (in.) | 23-3/4 x 19 x 18-1/2 |
| Overall Width | 29.875 in |
| Overall Depth | 26.375 in |
| Overall Height | 46.125 in |
| Net Weight | 138 lb |
| Depth with Door Open | 46.375 in |
| Cabinet Width | 30 in |
| Approximate Shipping Weight | 158 lb |
FEATURES
| Configuration | Range with Storage Drawer |
| Lift-Up Cooktop With Support Rods | Yes |
| Removable One-Piece Drip Bowls | Chrome |
| Storage Drawer Features | Removable Full-Width |
| Oven Interior | Interior Oven Light |
| Oven Control Features | Oven "ON" Light |
| Cooktop Burner Type | Coil |
| Oven Rack Features | 2 Oven Racks |
| Infinite Heat Controls | Yes |
| 6" Heating Element(s) | 2 Plug-In (1,500W) |
| Oven Cleaning Type | Standard Clean |
| Heating Element "ON" Indicator Light | Yes |
| Cooktop Surface | Porcelain-Enamel |
| 8" Heating Element (s) | 2 Plug-In (2,600W) |
| Cooking Technology | Traditional |
POWER / RATINGS
| KW Rating at 240V | 12.6 |
| Amp Rating at 208V | 40 |
| KW Rating at 208V | 9.9 |
| Amp Rating at 240V | 40 |
APPEARANCE
| Oven Door Features | White Glass Frameless Lift-off Oven Door |
| Handle | Designer Style |
| Color Appearance | White |
CAPACITY
| Total Capacity (cubic feet) | 5 cu ft |
Dimensions & Weight
| Width | 29.88 in. |
| Height | 46.13 in. |
| Length | 26.38 in. |
| Weight | 138 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 34.88 in. |
| Shipping Height | 51.13 in. |
| Shipping Length | 31.38 in. |
| Shipping Weight | 178 lbs. |
| Total of Shipping Weight | 178 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 21.03 ft³ |
| Dimensional Weight | 261.47 lbs. |
| Total of Cubes | 21.03 ft³ |
| Total of Dimensional Weight | 261.47 lbs. |
Warranty
| Labor (Entire Appliance) | 1 Year |
| Parts (Entire Appliance) | 1 Year |
