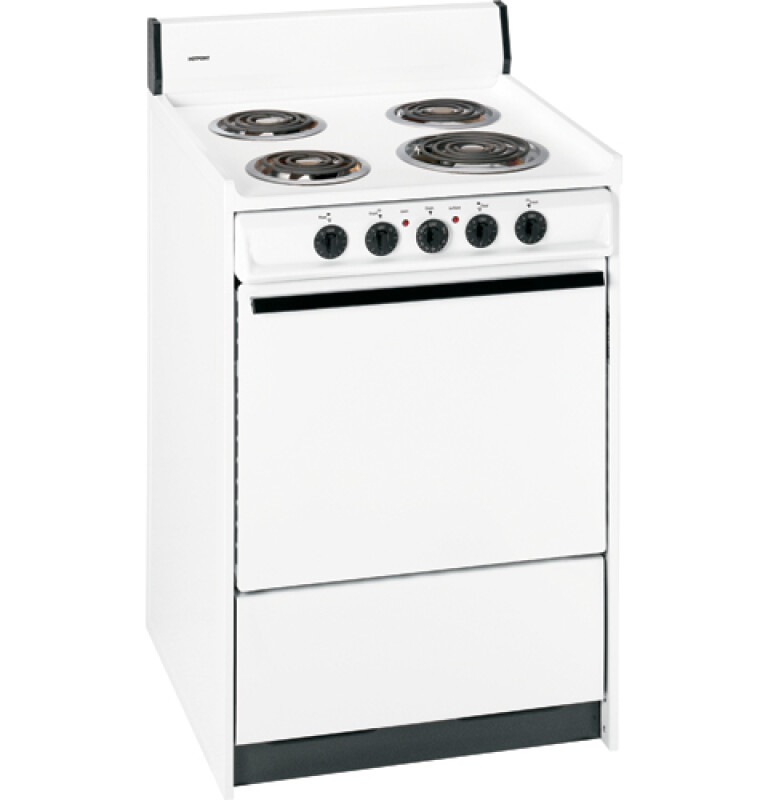

24" Compact Electric Range - RA524WWH
24" Compact Electric Range
Model: RA524WWH
24" Compact Electric Range
Model: RA524WWH
Color : White
Key Features
Compact range
Coil heating elements
Porcelain cooktop
Chrome drip bowls
Two oven racks
Broiler pan with grid
Porcelain oven door
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
Compact range
Ideal for 24" or 20" free-standing installations
Coil heating elements
Provides consistent and even heat on the cooktop with a plug-in element that is removable for easy cleaning
Porcelain cooktop
Features a porcelain-coated cooktop that makes clean-up easy
Chrome drip bowls
Contain spills and remove for easy cleaning
Two oven racks
Feature a durable construction to help accommodate any size or type of cookware
Broiler pan with grid
Convenient broiler pan can be used when broiling for crisping and browning
Porcelain oven door
Offers a scratch-resistant porcelain coating for easy cleaning
Certifications
California Prop 65
Specifications
WEIGHTS & DIMENSIONS
| Oven Interior Dimensions (W x H x D) (in.) | 19 x 14 x 19 |
| Overall Width | 24 in |
| Overall Depth | 24 in |
| Overall Height | 40.5 in |
| Net Weight | 133 lb |
| Depth Without Handle | 24 in |
| Depth with Door Open | 40.25 in |
| Cabinet Width | 24 in |
| Approximate Shipping Weight | 145 lb |
POWER / RATINGS
| KW Rating at 240V | 8.2 |
| KW Rating at 208V | 6.2 |
APPEARANCE
| Oven Door Features | Color-Matched Frameless Lift-off Oven Door |
| Handle | Visor |
| Color Appearance | White |
FEATURES
| Removable One-Piece Drip Bowls | Chrome |
| Broiler Pan and Grid | Yes |
| Oven Control Features | Oven "ON" Light Cycling |
| Cooktop Burner Type | Coil |
| Oven Rack Features | 2 Oven Racks |
| 6" Heating Element(s) | 3 Plug-In |
| Oven Cleaning Type | Standard Clean |
| Style | Coil |
| Heating Element "ON" Indicator Light | Yes |
| Control Location | Upfront |
| 8" Heating Element (s) | 1 Plug-In |
| Leveling System | Easy Level System |
| Cooking Technology | Traditional |
| Cooktop Surface | One-Piece Upswept |
Dimensions & Weight
| Width | 24 in. |
| Height | 40.5 in. |
| Length | 24 in. |
| Weight | 133 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 29 in. |
| Shipping Height | 45.5 in. |
| Shipping Length | 29 in. |
| Shipping Weight | 173 lbs. |
| Total of Shipping Weight | 173 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 13.5 ft³ |
| Dimensional Weight | 167.83 lbs. |
| Total of Cubes | 13.5 ft³ |
| Total of Dimensional Weight | 167.83 lbs. |
Warranty
| Labor (Entire Appliance) | 1 Year |
| Parts (Entire Appliance) | 1 Year |
