6.3 Cu. Ft. Capacity Electric Single Oven Range With Fan Convection - LRE3023SB

This product has been discontinued by the manufacture and is no longer available.

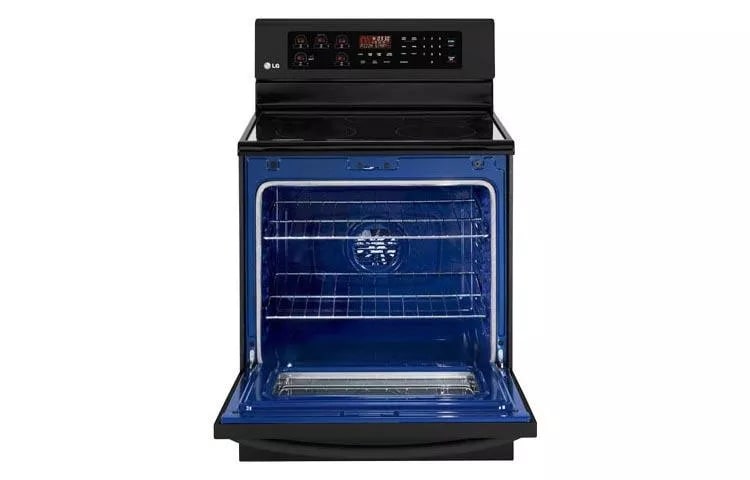

6.3 Cu. Ft. Capacity Electric Single Oven Range With Fan Convection

Model: LRE3023SB

6.3 Cu. Ft. Capacity Electric Single Oven Range With Fan Convection LRE3023SB6.3 Cu. Ft. Capacity Electric Single Oven Range With Fan Convection LRE3023SB6.3 Cu. Ft. Capacity Electric Single Oven Range With Fan Convection LRE3023SB
6.3 Cu. Ft. Capacity Electric Single Oven Range With Fan Convection LRE3023SB
6.3 Cu. Ft. Capacity Electric Single Oven Range With Fan Convection LRE3023SB
6.3 Cu. Ft. Capacity Electric Single Oven Range With Fan Convection LRE3023SB

Color : Smooth Black

6.3 Cu. Ft. Capacity Electric Single Oven Range With Fan Convection LRE3023SB
Smooth Black

Type : Electric

Key Features

  • Without a doubt...one of the finest ovens we've seen.

  • OUR FASTEST BOILING ELEMENT

  • The Largest Electric Oven in the Industry*

  • HEAT WAVE

  • Easy Operation at a touch

  • Less Mess

  • Large Capacity (6.3 cu ft.)

  • Fan convection

Read More

Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.

Features
Specifications

Features

Without a doubt...one of the finest ovens we've seen.

The heat is on and LG's largest capacity oven LRE3023 scores big time... for cooking capacity, temperature control and convection performance.

OUR FASTEST BOILING ELEMENT

LG’s fastest boiling solution offers the most powerful double element in the market at 6400 Watts.* The dual element provides a total 6400W of power while each ring provides 3200W of power.*Among leading brands, non-induction elements.

The Largest Electric Oven in the Industry*

You can handle all of your family’s cooking needs. Whether you’re baking large batches of cookies or a roast for the holidays, this oven can fit it all.*Based on manufacturers’ published specifications of freestanding electric single oven ranges, April 2012.

HEAT WAVE

LG's fan convection system delivers the ideal temperature and airflow for fast preheating and precise cooking.

Easy Operation at a touch

IntuiTouch, with scrolling IntuiScroll™ display, makes operating your electric range a snap. The left side of the panel mirrors the cook top elements, while the right side controls the oven functions.

Less Mess

Conceals the lower oven bake element to eliminate hard-to-reach areas that collect food and spills for easy cleaning.

Large Capacity (6.3 cu ft.)

Fan convection

IntuiTouch controls

5 Cook Top Elements

Brilliantly Lit

A premium range should meet your needs and look beautiful doing it. The Brilliant Blue Interior provides an upscale look with premium interior design.

Specifications

Warranty

Parts1 Year
Labor1 Year

Other

Oven Interior Dimensions (Upper) (in) (W x H x D)24 13/16 x 19 11/16 x 19 1/4"
Drawer Dimensions (in) (W x H x D)22 3/16 x 4 1/2 x 16 3/8"
Carton Dimensions (in) (W x H x D)33 11/16 x 50 7/8 x 30 9/16"

POWER/RATINGS

Amp Rating at 208V120 / 208 VAC
Amp Rating at 240V120 / 240 VAC
KW Rating at 208V11.5 kW
KW Rating at 240V15.3 kW

COOKTOP

Element Size/Wattage - Left Rear6" / 1200W
Element Size/Wattage - Center Rear7"/100W (Warming)
Cooktop Burner TypeRadiant
5th ElementYes
Cooktop FinishGrey Patterned on Black Ceramic Glass
Element Size/Wattage - Right Rear6" / 1200W

OVEN FEATURES

Oven Cooking ModesBake, Broil, Conv Bake, Conv Broil, Warm, Proof, Favorites
Door LockYes
ConfigurationFreestanding Electric Oven with Storage Drawer
Bake Element3400W / 6 Pass (Hidden Bake)
Oven Cleaning FeaturesDelay Bake (up to 12 hours), Delay Clean, Automatic Shut-Off (After 12 hours)
CleaningSelf Clean (3,4,5 hours)
Oven LightYes
Broil ElementSheathed Heater, 4200W / 6 Pass
Oven Cooking TechnologyEventJet™ Fan Convection
Oven Rack2 Standard Racks

SUMMARY

Range TypeSingle Door

CONTROL

Control LocationBacksplash
Control TypeIntuiTouch™ Keypad
Control DisplayScrolling Display / White(Green VFD+Pink Smog)

CAPACITY

Oven Capacity6.3 cu.ft.

APPEARANCE

Available ColorsStainless Steel, Smooth Black, Smooth White
HandleMatching Stainless
Oven Door FeatureLarge WideView™ Plus Window, Full SS Wrap

DIMENSIONS/CLEARANCES/WEIGHT

Cabinet Width (in)30"
Overall Depth (in)25 7/8 (to door) / 28 1/4" (including handle)
Overall Height (in)47 1/8"
Overall Width (in)29 7/8"
Height to Cooking Surface (in)36"
Oven Interior Dimensions (Upper) (in) (W x H x D)24 13/16 x 19 11/16 x 19 1/4"
Product Weight (lbs)157
Drawer Dimensions (in) (W x H x D)22 3/16 x 4 1/2 x 16 3/8"
Carton Dimensions (in) (W x H x D)33 11/16 x 50 7/8 x 30 9/16"
Shipping Weight (lbs)180

Dimensions & Weight

Width30 in.
Height47 in.
Length25 in.
Weight157 lbs.
Height to Cooking Surface (in)36"
Oven Interior Dimensions (Upper) (in) (W x H x D)24 13/16 x 19 11/16 x 19 1/4"
Drawer Dimensions (in) (W x H x D)22 3/16 x 4 1/2 x 16 3/8"
Carton Dimensions (in) (W x H x D)33 11/16 x 50 7/8 x 30 9/16"
Shipping Weight (lbs)180

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width35 in.
Shipping Height52 in.
Shipping Length30 in.
Shipping Weight197 lbs.
Total of Shipping Weight197 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement20.4 ft³
Dimensional Weight253.6 lbs.
Total of Cubes20.4 ft³
Total of Dimensional Weight253.6 lbs.
