27" Drop-In Electric Range - JMP31BLBB
27" Drop-In Electric Range
Model: JMP31BLBB
Product Video
27" Drop-In Electric Range
Model: JMP31BLBB
Color : Black on Black
Replaced By
Key Features
Electronic clock and timer
Coil heating elements
Self-clean oven
Description
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
Electronic clock and timer
Help cooks coordinate meal preparation and cooking
Coil heating elements
Provide even heat and easy cleanup
Self-clean oven
Cleans the oven cavity without the need for scrubbing
Certifications
ADA Compliant
California Prop 65
Specifications

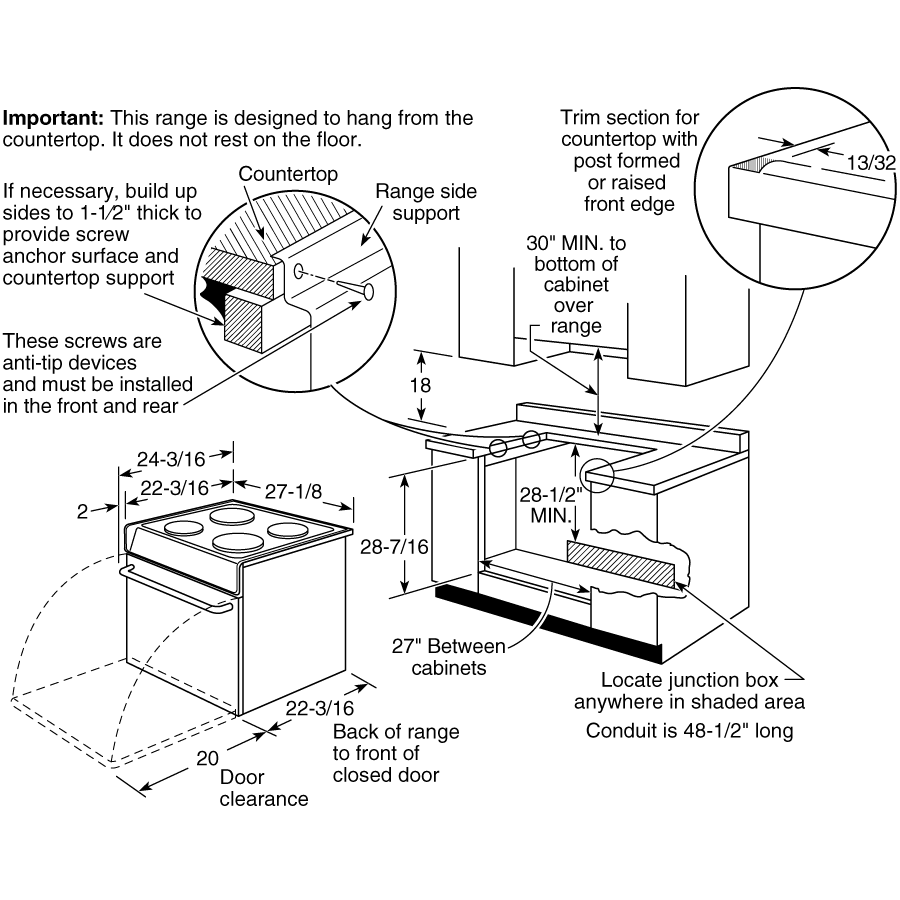

WEIGHTS & DIMENSIONS
| Cabinet Width | 27 in |
| Net Weight | 104 lb |
| Depth Without Handle | 22.1875 in |
| Oven Interior Dimensions (W x H x D) (in.) | 19 x 15 x 18 |
| Depth with Door Open | 42.1875 in |
| Approximate Shipping Weight | 124 lb |
| Overall Depth | 24 3/16 in |
| Overall Height | 28 7/16 in |
| Overall Width | 27 1/8 in |
POWER / RATINGS
| KW Rating at 240V | 9.8 |
| Bake Wattage | 2000W |
| Broiler Wattage | 3400W |
| Amp Rating at 208V | 40 |
| KW Rating at 208V | 7.3 |
| Amp Rating at 240V | 40 |
FEATURES
| Element - Right Front | 6" Plug-In |
| Cleaning Time | Variable |
| Removable One-Piece Drip Bowls | Chrome |
| Oven Interior | Interior Oven Light |

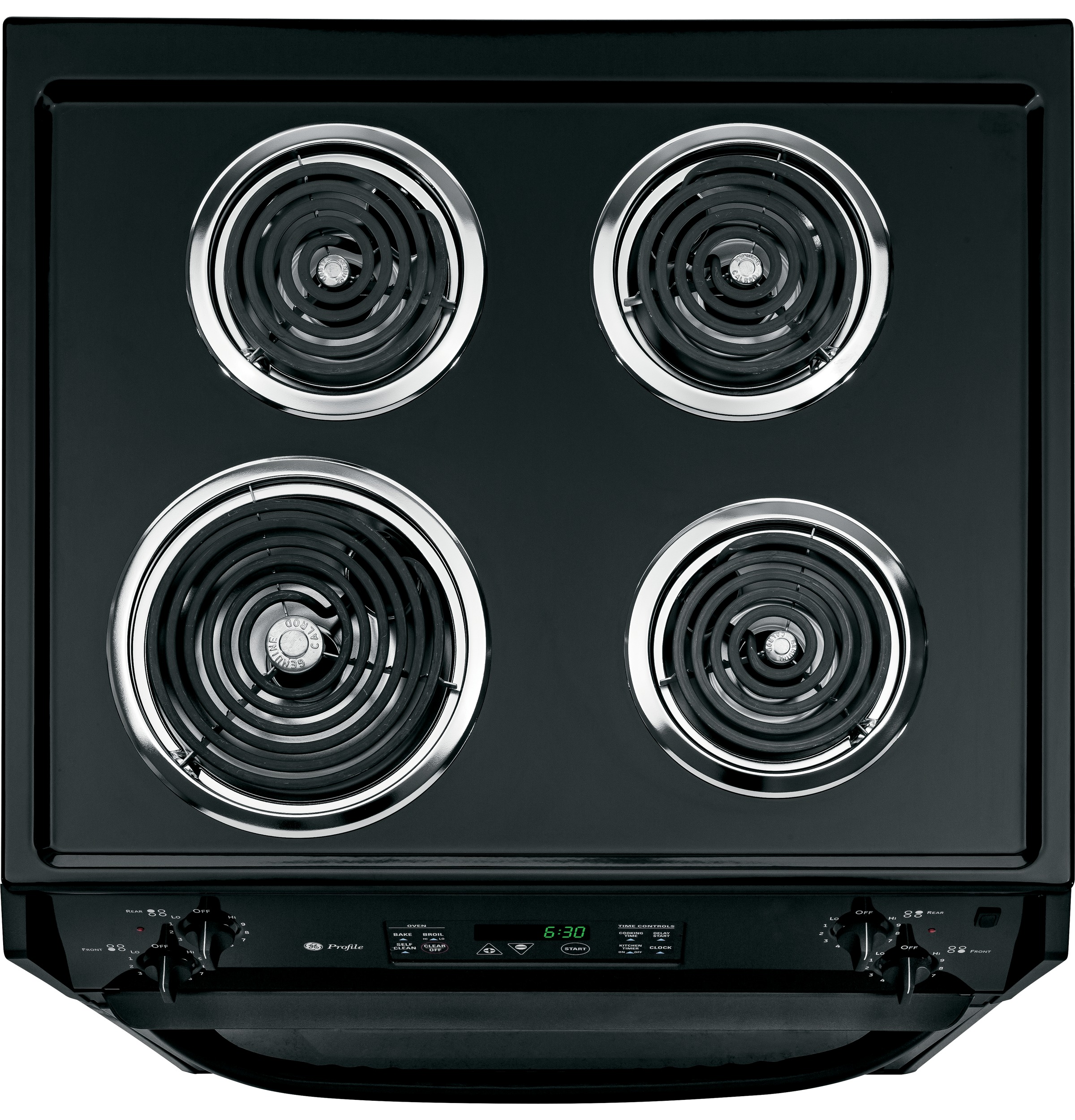

| Cooktop Burner Type | Coil |
| Oven Control Features | Electronic Clock and Timer |
| Oven Rack Features | 2 Oven Racks |
| Element - Left Front | 8" Plug-In |
| Oven Cleaning Type | Self-Clean |
| Infinite Heat Controls | Yes |
| Heating Element "ON" Indicator Light | Yes |
| Element - Left Rear | 6" Plug-In |
| Element - Right Rear | 6" Plug-In |
| Cooktop Surface | Lift-Up Overhanging Cooktop Black Porcelain Enamel |

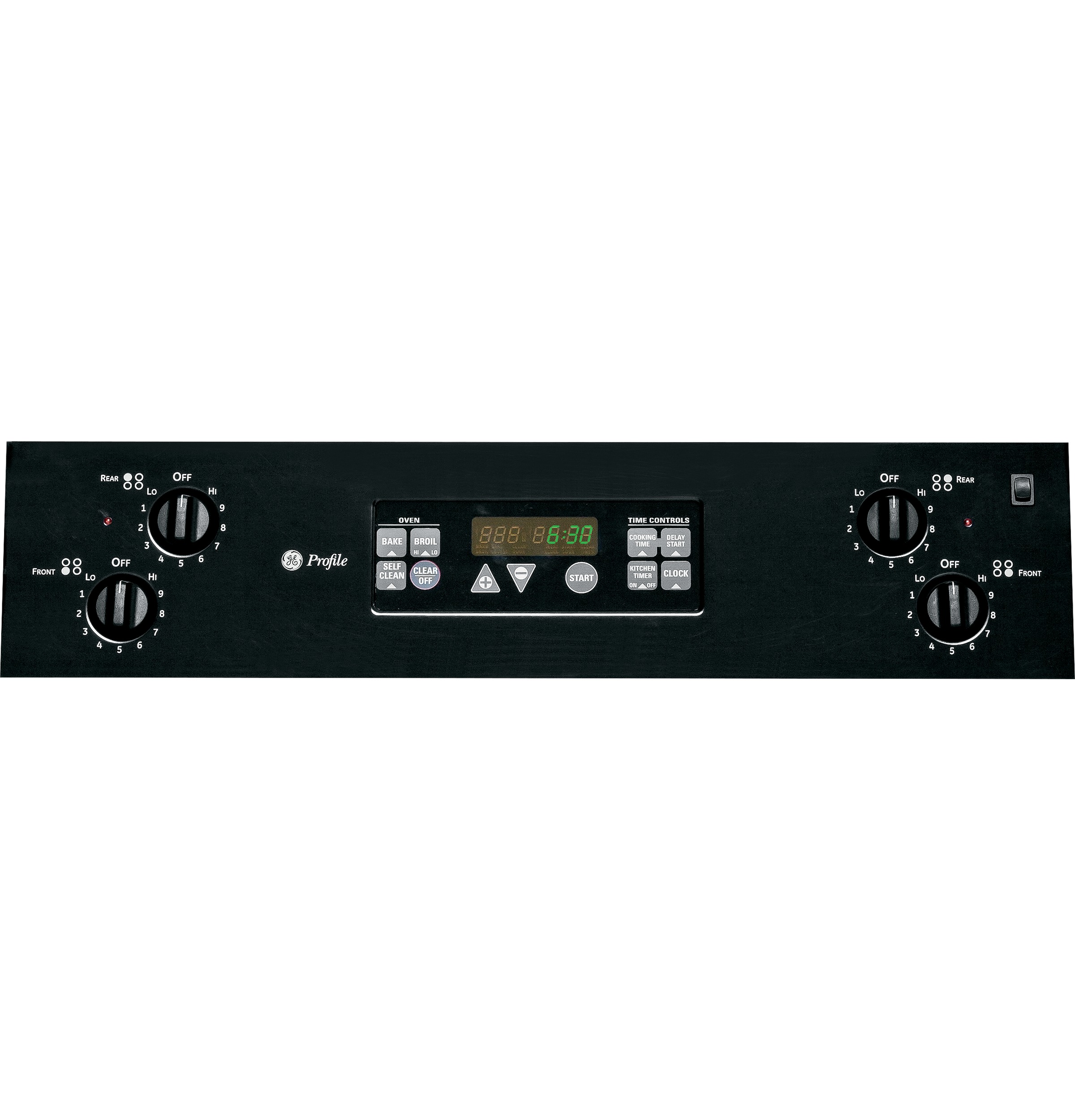

| Control Location | Upfront |
| Control Type | Touchpads |
| Self-Clean Oven Door Lock | Automatic |
| Oven Control Features | Sabbath Mode |
| Control Type | Digital Temperature Display |
| Control Type | EasySet III |
| Cooktop Burner Type | 4 Plug-In Calrod™ |
| Oven Control Features | Auto Oven Shut-Off |
| Oven Control Features | Delay Bake Option (Time Bake) |
APPEARANCE
| Oven Door Features | Black Glass Frameless Lift-off Oven Door |
| Handle Design | D-shaped |
| Handle Color | Color-Matched |
| Color Appearance | Black on Black |
| Oven Door Features | Big View Oven Window |
ACCESSORIES
| Optional Backguard | JX27RBK (Black) |
Other
| Oven Interior Dimensions (W x H x D) (in.) | 19 x 15 x 18 |
Dimensions & Weight
| Width | 27.13 in. |
| Height | 28.44 in. |
| Length | 24.19 in. |
| Weight | 104 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 32.13 in. |
| Shipping Height | 33.44 in. |
| Shipping Length | 29.19 in. |
| Shipping Weight | 144 lbs. |
| Total of Shipping Weight | 144 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 10.8 ft³ |
| Dimensional Weight | 134.23 lbs. |
| Total of Cubes | 10.8 ft³ |
| Total of Dimensional Weight | 134.23 lbs. |
CAPACITY
| Total Capacity (cubic feet) | 3.00 cu ft |
Warranty
| Labor (Entire Appliance) | 1 Year |
| Parts (Entire Appliance) | 1 Year |
