27" Drop-In Electric Range - JM250DFCC
27" Drop-In Electric Range
Model: JM250DFCC
Product Video
27" Drop-In Electric Range
Model: JM250DFCC
Color : Bisque
Replaced By
Key Features
Self-clean oven
Coil heating elements
Chrome drip bowls
Electronic clock and timer
Description
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
Self-clean oven
Cleans the oven cavity without the need for scrubbing

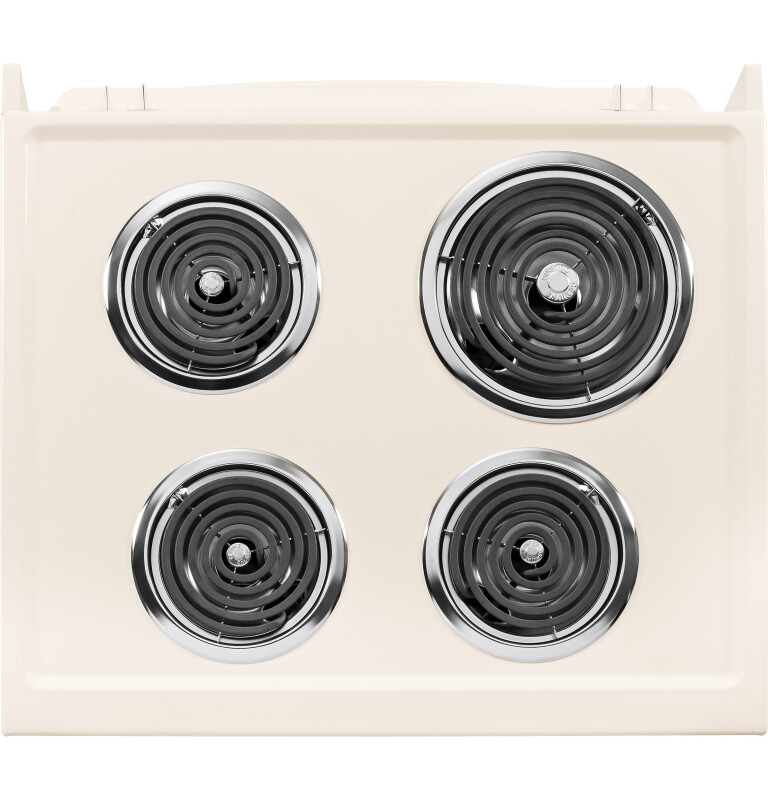

Coil heating elements
Provide even heat and easy cleanup
Chrome drip bowls
Contain spills and remove for easy cleaning
Electronic clock and timer
Help cooks coordinate meal preparation and cooking
Certifications
ADA Compliant
California Prop 65
MADE IN AMERICA: 70 to 90% U.S. Content
UL
Specifications
Warranty
| Parts | 1 Year |
| Labor | 1 Year |
| Labor (Entire Appliance) | 1 Year |
| Parts (Entire Appliance) | 1 Year |
Other
| Oven Interior Dimensions (W x H x D) (in.) | 19 x 15 x 18 |
| Cabinet Opening | 27 in |
Dimensions & Weight
| Width | 27.13 in. |
| Height | 28.44 in. |
| Length | 27.19 in. |
| Weight | 104 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 32.13 in. |
| Shipping Height | 33.44 in. |
| Shipping Length | 32.19 in. |
| Shipping Weight | 144 lbs. |
| Total of Shipping Weight | 144 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 12.14 ft³ |
| Dimensional Weight | 150.87 lbs. |
| Total of Cubes | 12.14 ft³ |
| Total of Dimensional Weight | 150.87 lbs. |

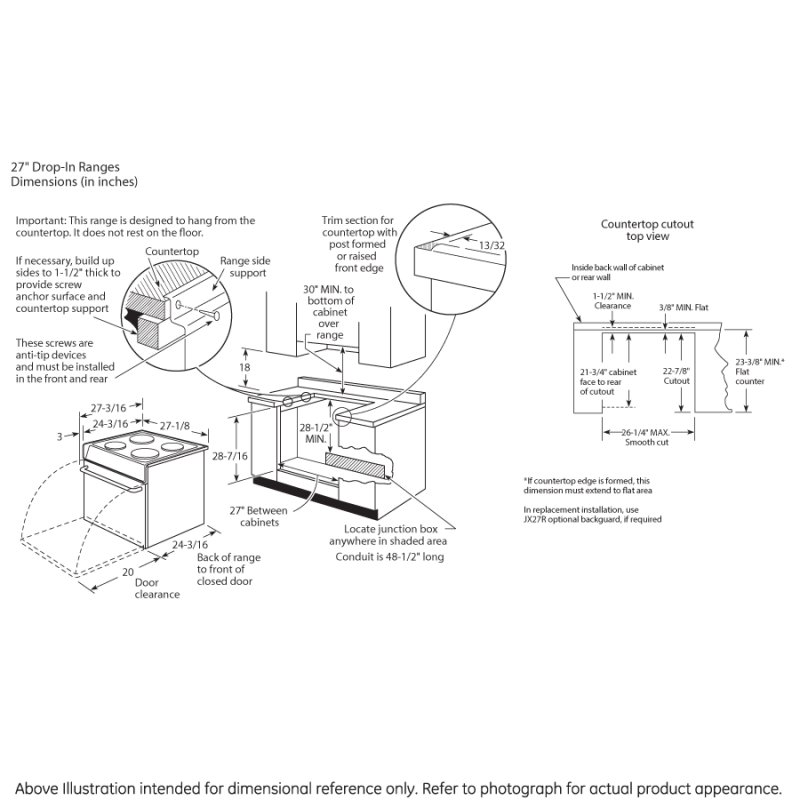

WEIGHTS & DIMENSIONS
| Net Weight | 104 lb |
| Depth Without Handle | 24.1875 in |
| Oven Interior Dimensions (W x H x D) (in.) | 19 x 15 x 18 |
| Cooktop Width | 27.125 in |
| Depth with Door Open | 44.1875 in |
| Cabinet Opening | 27 in |
| Cabinet Width | 27 in |
| Approximate Shipping Weight | 124 lb |
| Overall Depth | 27 3/16 in |
| Overall Height | 28 7/16 in |
| Overall Width | 27 1/8 in |
POWER / RATINGS
| KW Rating at 240V | 10.6 |
| Bake Wattage | 2000W |
| Amp Rating at 208V | 40 |
| Broiler Wattage | 3400W |
| KW Rating at 208V | 8.0 |
| Amp Rating at 240V | 40 |
FEATURES
| Oven Features | 4-Pass Broil Element |
| Element - Right Front | 6" 1500W 4-turn |
| Removable One-Piece Drip Bowls | Chrome |
| Interior Oven Light | 1 Incandescent |
| Oven Interior | Gray |
| Cooktop Burner Type | Coil |
| Oven Rack Features | 2 Oven Racks |
| Element - Left Front | 8" 2600W 5-turn |
| Oven Cleaning Type | Self-Clean |
| Product Type | Drop-In |
| Heating Element "ON" Indicator Light | Yes |
| Element - Left Rear | 6" 1500W 4-turn |
| Element - Right Rear | 6" 1500W 4-turn |
| Cooktop Surface | Lift-Up Overhanging Cooktop Porcelain Enamel |
| Control Location | Front |
| Oven Rack Positions (Single or Upper/Lower) | 4 |
| Self-Clean Oven Door Lock | Automatic |
| Cooking Technology | Traditional |
| Control Type | Electronic |
| Oven Control Features | Auto Oven Shut-Off |
| Oven Control Features | Sabbath Mode |
| Control Type | Touchpads |
| Control Type | Digital Temperature Display |
| Oven Control Features | Audible Preheat Signal |
| Oven Control Features | Delay Bake Option (Time Bake) |
| Oven Control Features | Electronic Clock and Timer |
| Oven Features | 4-Pass Bake Element |
APPEARANCE
| Oven Door Features | Glass Door |
| Handle | Designer Style |
| Installation | Flush Appearance |
| Control Knobs | Color-Matched |
| Handle Design | D-shaped |
| Color Appearance | Bisque |
| Oven Door Features | Big View Oven Window |
CAPACITY
| Total Capacity (cubic feet) | 3.00 cu ft |
