30" Drop-In Electric Range with Standard Clean Oven - JDS28WKWW
30" Drop-In Electric Range with Standard Clean Oven
Model: JDS28WKWW






30" Drop-In Electric Range with Standard Clean Oven
Model: JDS28WKWW
Key Features
Coil heating elements
Electronic clock and timer
Lift-up porcelain cooktop
Dual-element bake
Audible preheat signal
Multiple oven rack positions
Two oven racks
Chrome drip bowls
Description
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
Coil heating elements
Provides consistent and even heat on the cooktop with a plug-in element that is removable for easy cleaning
Electronic clock and timer
Features a convenient digital clock and easy-to-use timer with an audible signal to help coordinate cooking times in the kitchen
Lift-up porcelain cooktop
Makes spills and messes under the cooktop easily accessible and within reach
Dual-element bake
Alternates the upper broiling element and the lower baking element for even heating and optimal baking results
Audible preheat signal
Features an audible signal that activates when the oven has reached the desired cooking temperature
Multiple oven rack positions
Delivers flexibility and allows consumers to make the most of available oven capacity
Two oven racks
Feature a durable construction to help accommodate any size or type of cookware
Chrome drip bowls
Contain spills and remove for easy cleaning
Frameless glass oven door
Offers an easy-to-clean and stylish design that blends seamlessly into existing cabinetry
Certifications
ADA Compliant
California Prop 65
Specifications

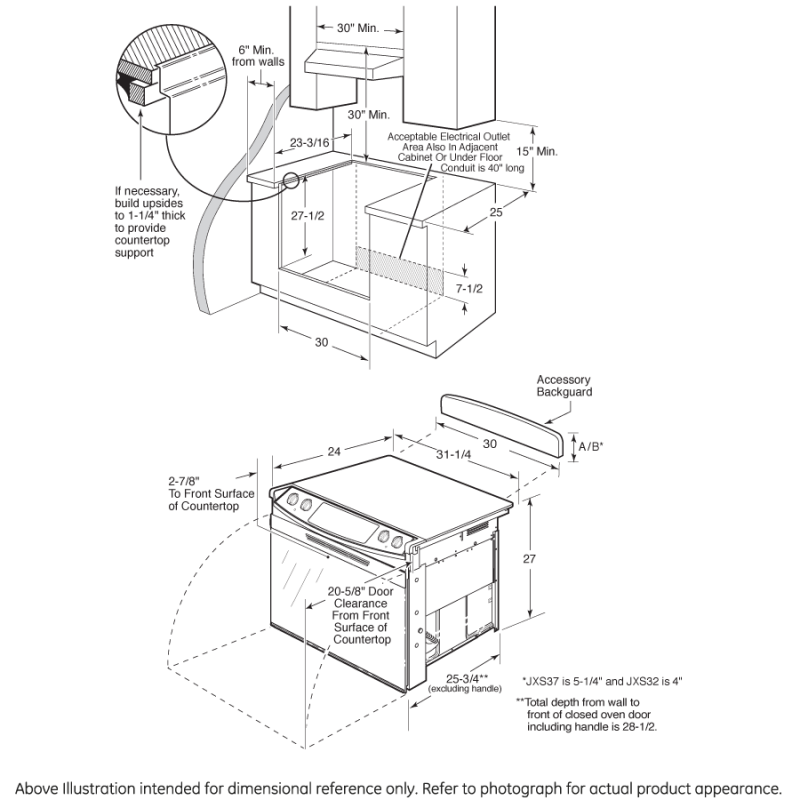

WEIGHTS & DIMENSIONS
| Overall Width | 30 in |
| Overall Height | 27 in |
| Net Weight | 116 lb |
| Depth Without Handle | 26.5 in |
| Cabinet Width | 30 in |
| Approximate Shipping Weight | 126 lb |
| Overall Depth | 28 1/4 in |
Dimensions & Weight
| Width | 30 in. |
| Height | 27 in. |
| Length | 28.25 in. |
| Weight | 116 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 35 in. |
| Shipping Height | 32 in. |
| Shipping Length | 33.25 in. |
| Shipping Weight | 156 lbs. |
| Total of Shipping Weight | 156 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 13.24 ft³ |
| Dimensional Weight | 164.62 lbs. |
| Total of Cubes | 13.24 ft³ |
| Total of Dimensional Weight | 164.62 lbs. |
POWER / RATINGS
| KW Rating at 240V | 10.8 |
| Amp Rating at 208V | 40 |
| KW Rating at 208V | 8.1 |
| Amp Rating at 240V | 40 |
FEATURES
| Oven Features | 6-Pass Broil Element |
| Removable One-Piece Drip Bowls | Chrome |
| Interior Oven Light | Yes |
| Cooktop Burner Type | Coil |
| Oven Rack Features | 2 Oven Racks |
| Infinite Heat Controls | Yes |
| 6" Heating Element(s) | 2 Plug-In |
| Oven Cleaning Type | Standard Clean |
| Style | Coil |
| Heating Element "ON" Indicator Light | Yes |
| Cooktop Surface | Lift-Up Overhanging Cooktop White Porcelain Enamel |
| Control Location | Upfront |
| 8" Heating Element (s) | 2 Plug-In |
| Dishwasher Safe Knobs | Yes |
| Control Type | Touchpads |
| Oven Control Features | Auto Oven Shut-Off with Override |
| Oven Control Features | Start Pad |
| Control Type | SmartSet |
| Cooktop Burner Type | 4 Plug-In Coil |
| Oven Control Features | Audible Preheat Signal |
| Oven Control Features | Electronic Clock & Kitchen Timer |
| Oven Control Features | Electronic Clock and Timer |
| Oven Control Features | Mis-Wire Detection |
ACCESSORIES
| Optional Maintop Filler | JXS66WW (White) |
| Optional Lower Trim Kit | JXS56WW (White) |
| Optional Backguard | JXS32WW (White) |
APPEARANCE
| Oven Door Features | White Glass Frameless Lift-off Oven Door |
| Handle | Color-Matched |
| Color Appearance | White on White |
| Oven Door Features | Big Clear View Oven Window |
WARRANTY
| Labor Warranty | Limited 1-year entire appliance |
| Parts Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
| Warranty Notes | For models produced on or after January 1, 2006 |
