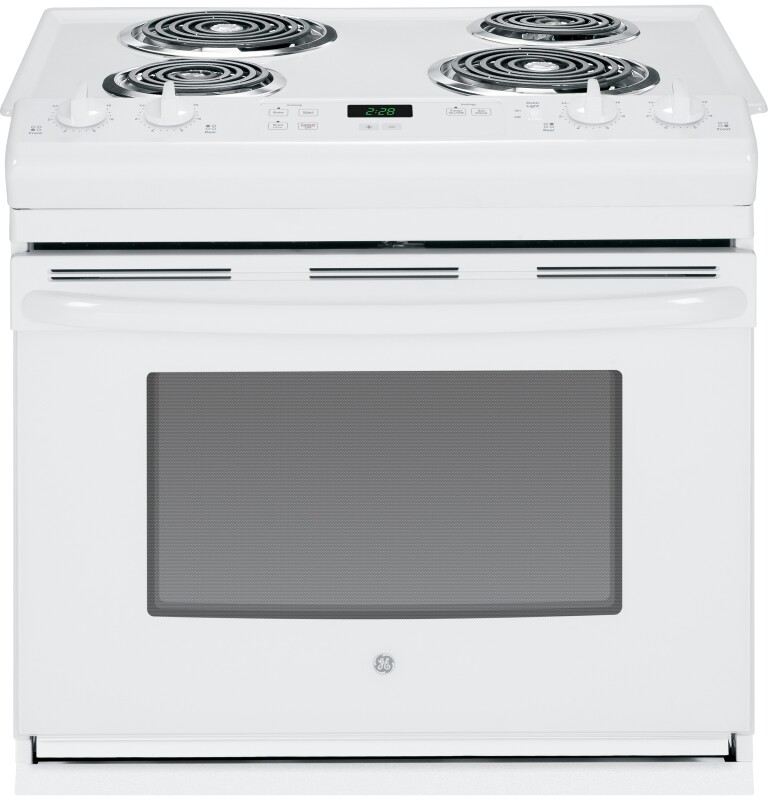

30" Drop-In Electric Range - JDS28DFWW
30" Drop-In Electric Range
Model: JDS28DFWW
30" Drop-In Electric Range
Model: JDS28DFWW
Color : White
Key Features

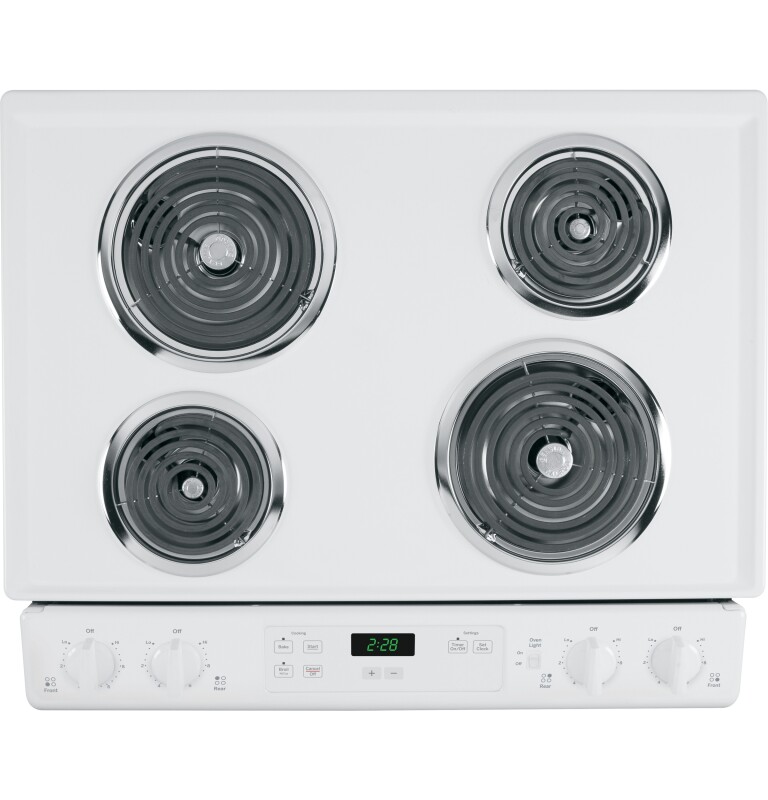

Coil heating elements
Electronic oven controls
4.4 cu. ft. oven capacity
Standard clean oven
Chrome drip bowls
Description
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
Coil heating elements
Provide even heat and easy cleanup

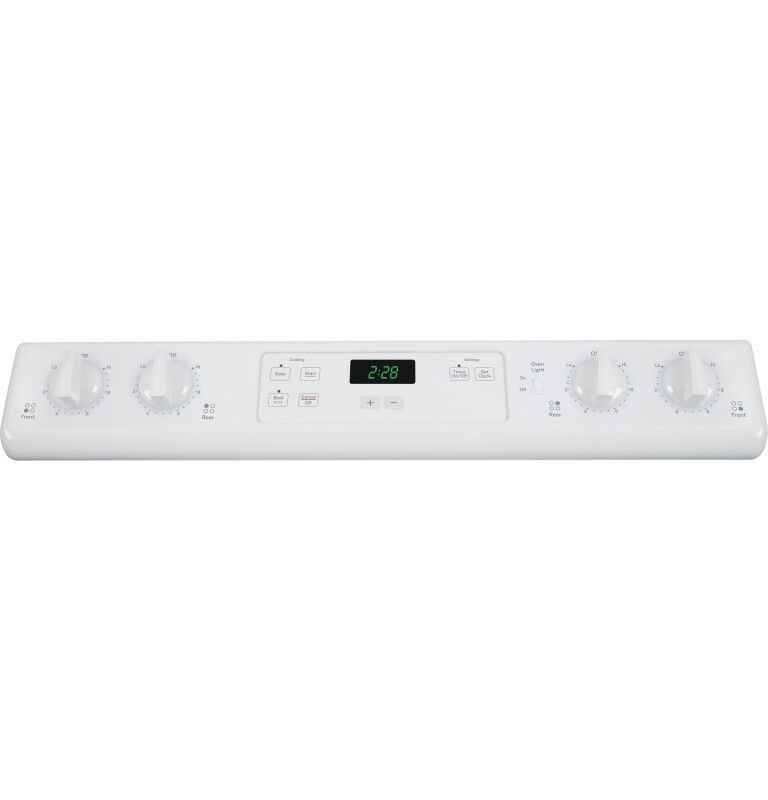

Electronic oven controls
Electronic touch pads are easy to operate

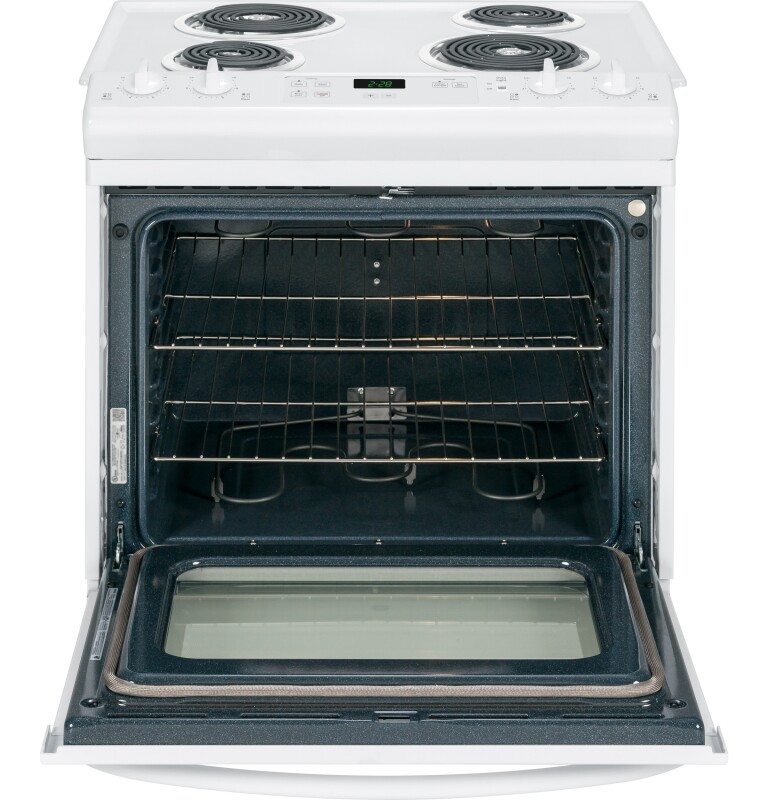

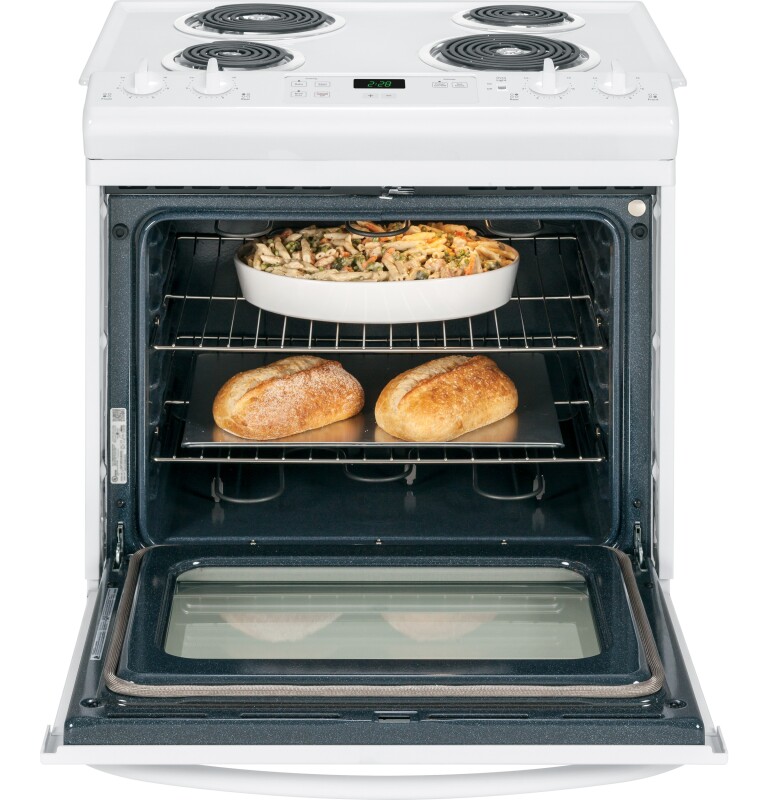

4.4 cu. ft. oven capacity
Enough room to cook an entire meal at once
Standard clean oven
Smooth surface and rounded corners make clean-up quick and easy

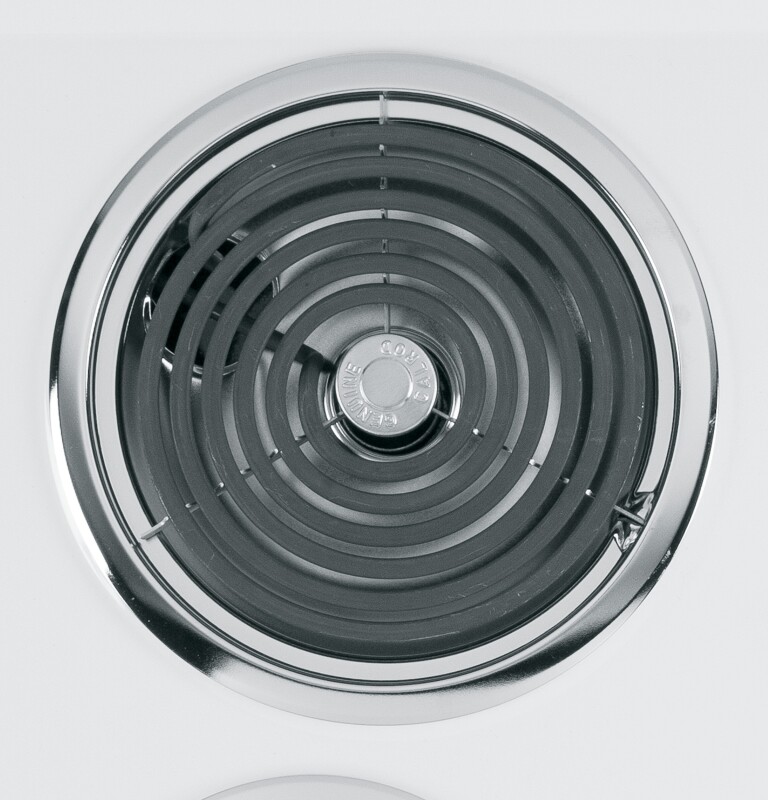

Chrome drip bowls
Contain spills and remove for easy cleaning
Certifications
ADA Compliant
California Prop 65
MADE IN AMERICA: 70 to 90% U.S. Content
Specifications
Warranty
| Parts | 1 Year |
| Labor | 1 Year |
| Labor (Entire Appliance) | 1 Year |
| Parts (Entire Appliance) | 1 Year |

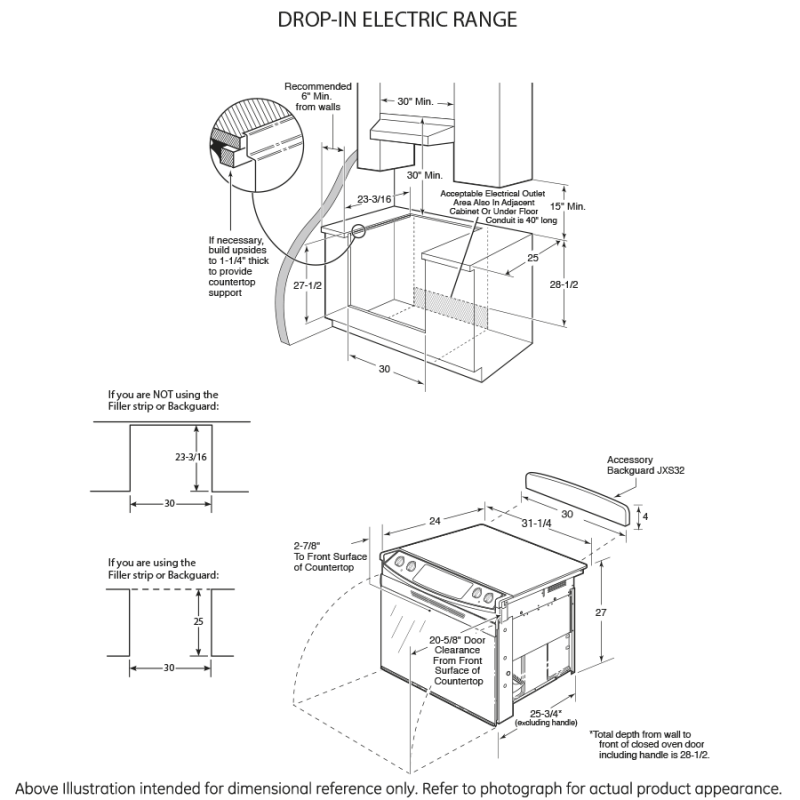

WEIGHTS & DIMENSIONS
| Overall Height | 27 in |
| Net Weight | 116 lb |
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 17-1/2 x 18-1/4 |
| Depth with Door Open | 46.375 in |
| Cabinet Opening | 30 in |
| Cabinet Width | 30 in |
| Approximate Shipping Weight | 136 lb |
| Overall Depth | 28 1/2 in |
| Overall Width | 31 1/4 in |
Other
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 17-1/2 x 18-1/4 |
| Cabinet Opening | 30 in |
Dimensions & Weight
| Width | 31.25 in. |
| Height | 27 in. |
| Length | 28.5 in. |
| Weight | 116 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 36.25 in. |
| Shipping Height | 32 in. |
| Shipping Length | 33.5 in. |
| Shipping Weight | 156 lbs. |
| Total of Shipping Weight | 156 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 13.92 ft³ |
| Dimensional Weight | 173 lbs. |
| Total of Cubes | 13.92 ft³ |
| Total of Dimensional Weight | 173 lbs. |
POWER / RATINGS
| KW Rating at 240V | 10.8 |
| Bake Wattage | 3410W |
| Amp Rating at 208V | 40 |
| Broiler Wattage | 3600W |
| KW Rating at 208V | 8.1 |
| Amp Rating at 240V | 40 |
FEATURES
| Oven Features | 6-Pass Broil Element |
| Element - Right Front | 8" 5-turn 2600W |
| Removable One-Piece Drip Bowls | Chrome |
| Interior Oven Light | 1 Auto Incandescent |
| Cooktop Burner Type | Coil |
| Oven Rack Features | 2 Oven Racks |
| Element - Left Front | 6" 4-turn 1500W |
| Oven Cleaning Type | Standard Clean |
| Product Type | Drop-In |
| Heating Element "ON" Indicator Light | 1 |
| Element - Left Rear | 8" 5-turn 2600W |
| Element - Right Rear | 6" 4-turn 1500W |
| Cooktop Surface | White |
| Control Location | Front |
| Oven Rack Positions (Single or Upper/Lower) | 7 |
| Cooking Technology | Traditional |
| Control Type | Electronic |
| Oven Control Features | Electronic Clock & Kitchen Timer |
| Oven Control Features | Sabbath Mode |
| Control Type | Touchpads |
| Control Type | Digital Temperature Display |
| Cooktop Surface | Lift-Up Overhanging Cooktop Porcelain Enamel |
| Oven Control Features | Auto Oven Shut-Off |
| Oven Features | 6-Pass Bake Element |
APPEARANCE
| Oven Door Features | Glass Door |
| Handle | White |
| Installation | Flush Appearance |
| Control Knobs | White |
| Color Appearance | White |
| Handle | D-shaped |
| Oven Door Features | Big View Oven Window |
ACCESSORIES
| Optional Maintop Filler | JXS66WW (White) |
| Optional Backguard | JXS32WW (White) |
| Optional Backguard | JXS32BB (Black) |
CAPACITY
| Total Capacity (cubic feet) | 4.40 cu ft |
