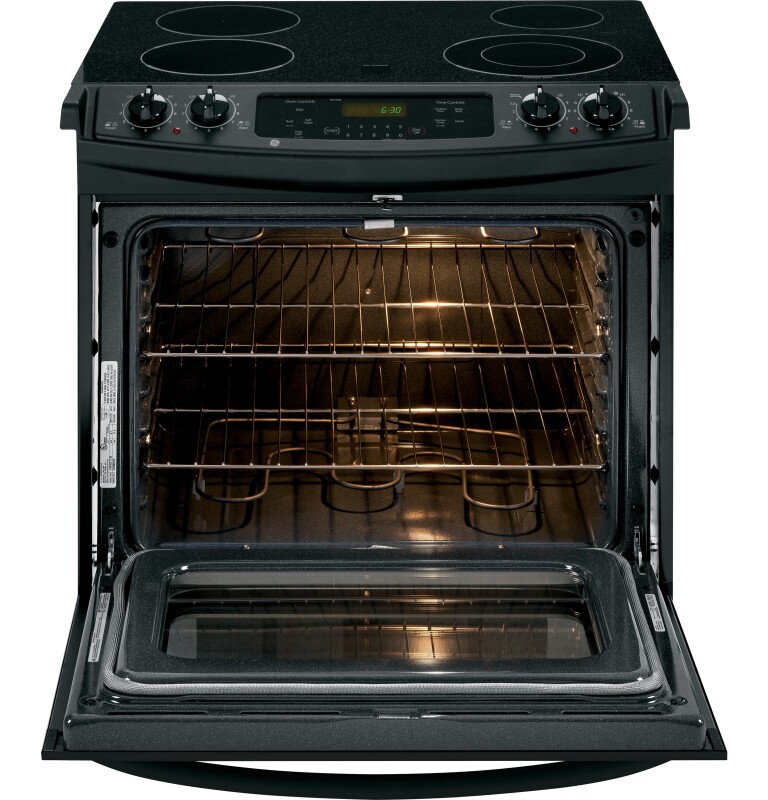

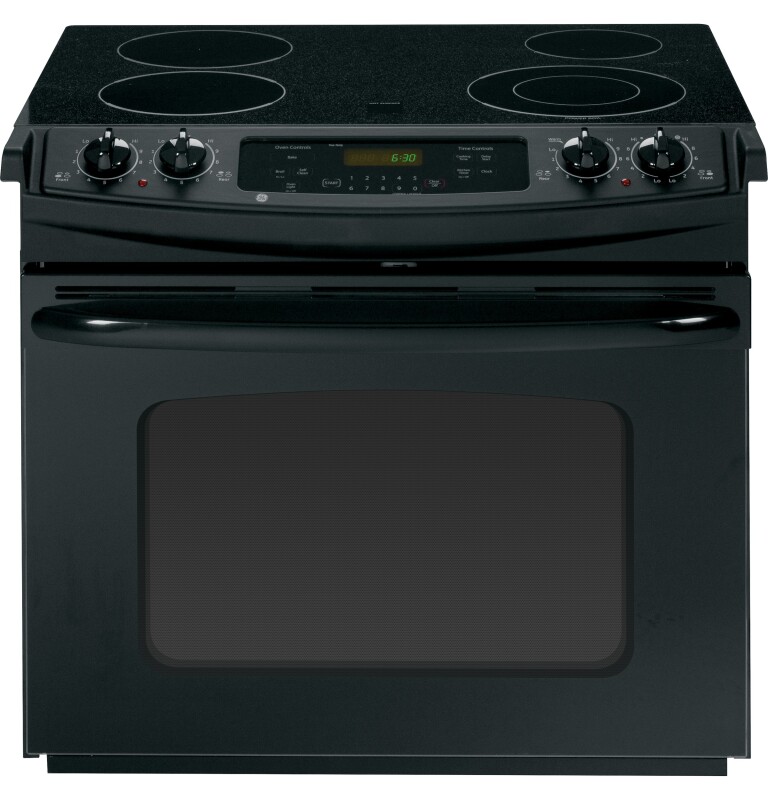

30" Drop-In Electric Range with Self-Cleaning Oven - JDP42DTBB

GEGE brand logo
This product is discontinued and has been replaced by the model below.

30" Drop-In Electric Range with Self-Cleaning Oven

Model: JDP42DTBB

30" Drop-In Electric Range with Self-Cleaning Oven JDP42DTBB30" Drop-In Electric Range with Self-Cleaning Oven JDP42DTBB30" Drop-In Electric Range with Self-Cleaning Oven JDP42DTBB30" Drop-In Electric Range with Self-Cleaning Oven JDP42DTBB30" Drop-In Electric Range with Self-Cleaning Oven JDP42DTBB30" Drop-In Electric Range with Self-Cleaning Oven JDP42DTBB30" Drop-In Electric Range with Self-Cleaning Oven JDP42DTBB30" Drop-In Electric Range with Self-Cleaning Oven JDP42DTBB
30" Drop-In Electric Range with Self-Cleaning Oven JDP42DTBB
30" Drop-In Electric Range with Self-Cleaning Oven JDP42DTBB
30" Drop-In Electric Range with Self-Cleaning Oven JDP42DTBB
30" Drop-In Electric Range with Self-Cleaning Oven JDP42DTBB
30" Drop-In Electric Range with Self-Cleaning Oven JDP42DTBB
+3more

Product Video

GE 30" Drop-In Electric Range with Self-Cleaning Oven Black on Black JDP42DTBB Picture

Color : Black on Black

30" Drop-In Electric Range with Self-Cleaning Oven JDP42DTBB
Black on Black
Replaced By

30" Drop-In Electric Range

Model: JD630DTBB

Product - JD630DTBB

$2,099.00

View Product

Key Features

  • Self-clean oven

  • Electronic oven controls

  • Ribbon heating elements

  • 9"/6" Power Boil element

Description

Electronic touch pads are easy to operate.Consistent heat and glass surface provide fast, even heating.27 H x 31 1/4 W x 28 1/2 D

Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.

Features
Specifications
Certifications

Features

Self-clean oven

Cleans the oven cavity without the need for scrubbing

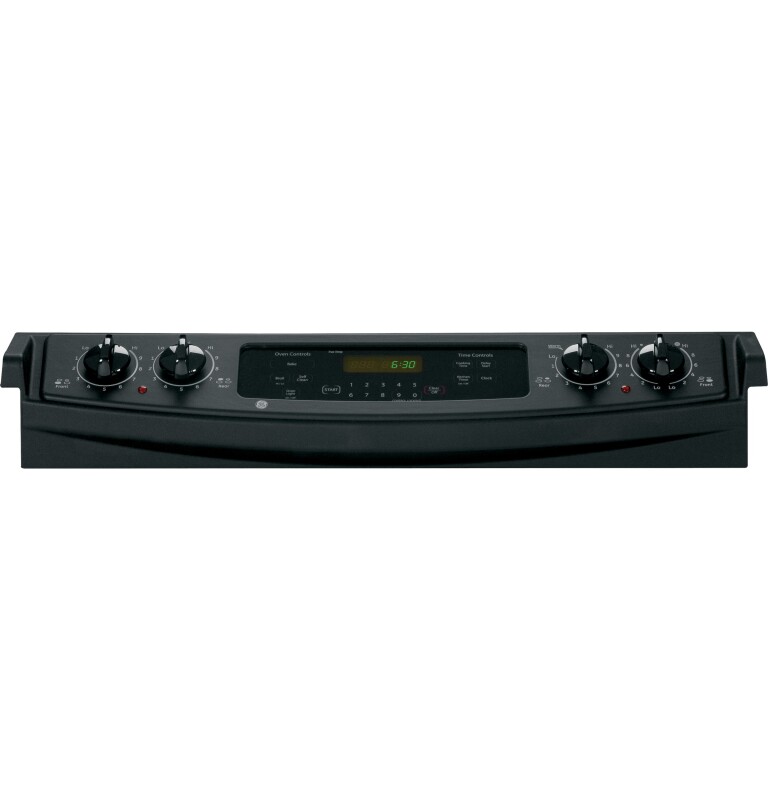

Electronic oven controls

Electronic touch pads are easy to operate

Ribbon heating elements

Consistent heat and glass surface provide fast, even heating

9"/6" Power Boil element

Produces rapid, powerful heat

Certifications

ADA Compliant certification

ADA Compliant

California Prop 65 certification

California Prop 65

Specifications

Warranty

Parts1 Year
Labor1 Year
Labor (Entire Appliance)1 Year
Parts (Entire Appliance)1 Year

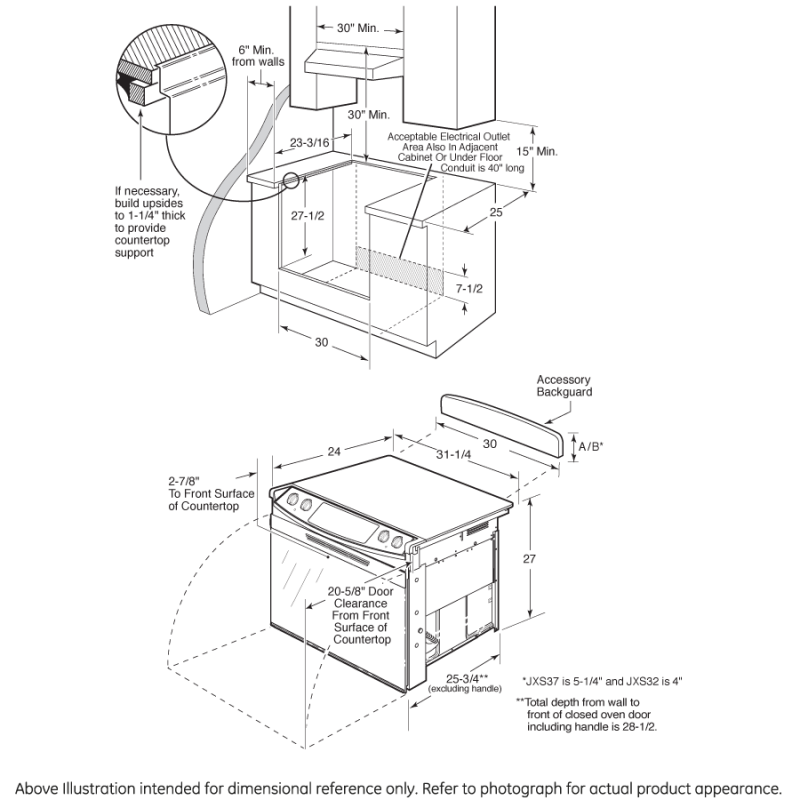

WEIGHTS & DIMENSIONS

Overall Height27 in
Net Weight158 lb
Depth Without Handle25.75 in
Oven Interior Dimensions (W x H x D) (in.)24 x 17-1/2 x 18-1/4
Depth with Door Open 90°47 in
Cooktop Width31.25 in
Cabinet Opening30 in
Cabinet Width30 in
Approximate Shipping Weight179 lb
Overall Depth28 1/2 in
Overall Width31 1/4 in

POWER / RATINGS

KW Rating at 240V11.6
Bake Wattage3400W
Amp Rating at 208V40
Broiler Wattage3600W
KW Rating at 208V8.7
Amp Rating at 240V40

FEATURES

Element - Right Front9"/6" 3000W Power Boil
Oven Features6-Pass Broil Element
Cleaning TimeVariable with Delay Clean Option
Oven InteriorAuto Oven Interior Light
Cooktop Burner TypeSmoothtop
Oven Rack Features2 Oven Racks
Element - Left Front8" 2000W
Infinite Heat ControlsYes
Temperature Management SystemTrue Temp System
Oven Cleaning TypeSelf-Clean
Hot Surface Indicator Lights4
Heating Element "ON" Indicator Light2
Element - Left Rear8" 2000W
Element - Right Rear6" 1500W
Cooktop SurfaceOverhanging Cooktop Patterned Gray
Control LocationUpfront
Dishwasher Safe KnobsYes
Oven Rack Positions (Single or Upper/Lower)7
Control TypeDigital Temperature Display
Self-Clean Oven Door LockAutomatic
Cooking TechnologyTraditional
Oven Control FeaturesAuto Oven Shut-Off with Override
Oven Control FeaturesTemperature Display
Cooktop Burner Type4 Ribbon
Cooktop SurfaceBlack Ceramic Glass
Oven Control FeaturesAudible Preheat Signal
Oven Control FeaturesC° or F° Programmable
Oven Control FeaturesSabbath Mode
Oven Control FeaturesControl Lock Capability
Oven Control FeaturesDelay Bake Option With Cook & Hold
Oven Control FeaturesElectronic Clock & Kitchen Timer
Oven Control FeaturesStart Pad
Oven Features6-Pass Bake Element

ACCESSORIES

Optional Maintop FillerJXS66BB (Black)
Optional BackguardJXS37BB (Black)
Optional BackguardJXS32BB (Black)

APPEARANCE

Oven Door FeaturesFrameless Oven Door
InstallationFlush Appearance
Control KnobsPlastic
Handle DesignD-shaped
Handle ColorColor-Matched
Color AppearanceBlack on Black
Oven Door FeaturesBig Hearth Oven Window

Other

Oven Interior Dimensions (W x H x D) (in.)24 x 17-1/2 x 18-1/4
Cabinet Opening30 in

Dimensions & Weight

Width31.25 in.
Height27 in.
Length28.5 in.
Weight158 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width36.25 in.
Shipping Height32 in.
Shipping Length33.5 in.
Shipping Weight198 lbs.
Total of Shipping Weight198 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement13.92 ft³
Dimensional Weight173 lbs.
Total of Cubes13.92 ft³
Total of Dimensional Weight173 lbs.

CAPACITY

Total Capacity (cubic feet)4.40 cu ft
