30" Drop-In Electric Range - JD630SFSS

GEGE brand logo
This product has been discontinued by the manufacture and is no longer available.

30" Drop-In Electric Range

Model: JD630SFSS

30" Drop-In Electric Range JD630SFSS30" Drop-In Electric Range JD630SFSS30" Drop-In Electric Range JD630SFSS30" Drop-In Electric Range JD630SFSS30" Drop-In Electric Range JD630SFSS30" Drop-In Electric Range JD630SFSS
30" Drop-In Electric Range JD630SFSS
30" Drop-In Electric Range JD630SFSS
30" Drop-In Electric Range JD630SFSS
30" Drop-In Electric Range JD630SFSS
30" Drop-In Electric Range JD630SFSS
+1more

Product Video

GE 30" Drop-In Electric Range Stainless Steel/Gray JD630SFSS Picture
2 Videos

Color : Stainless Steel/Gray

30" Drop-In Electric Range JD630SFSS
Stainless Steel/Gray

Key Features

  • 9"/6" Power Boil element

  • Self-clean oven

  • Ceramic glass cooktop

  • Black gloss oven interior

  • Dual-element Bake

  • Electronic oven controls

Description

Cleans the oven cavity without the need for scrubbing.Smooth cooktop easily wipes clean.27 H x 31 1/4 W x 28 1/2 D

Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.

Features
Specifications
Certifications

Features

9"/6" Power Boil element

Produces rapid, powerful heat

Self-clean oven

Cleans the oven cavity without the need for scrubbing

Ceramic glass cooktop

Smooth cooktop easily wipes clean

Black gloss oven interior

Enjoy a clean and sleek appearance

Dual-element Bake

Upper and lower elements produce even heat and great results

Electronic oven controls

Electronic touch pads are easy to operate

Certifications

ADA Compliant certification

ADA Compliant

California Prop 65 certification

California Prop 65

MADE IN AMERICA: 70 to 90% U.S. Content certification

MADE IN AMERICA: 70 to 90% U.S. Content

UL certification

UL

Specifications

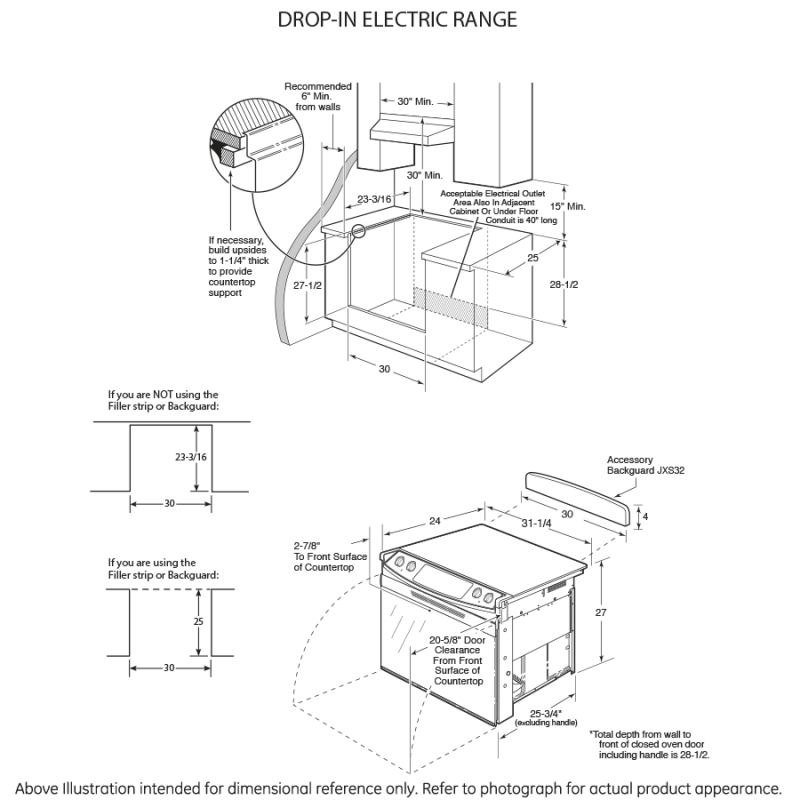

WEIGHTS & DIMENSIONS

Net Weight163 lb
Depth Without Handle25.75 in
Cabinet Width30 in
Approximate Shipping Weight184 lb
Overall Height27 in
Cabinet Opening30 in
Depth with Door Open44.625 in
Oven Interior Dimensions (W x H x D) (in.)24 x 17-1/2 x 18-1/4
Cooktop Width31.25 in
Overall Depth28 1/2 in
Overall Width31 1/4 in

APPEARANCE

HandleDesigner Style
InstallationFlush Appearance
Handle ColorStainless Steel
Control KnobsWeighted Stainless Steel Appearance
Color AppearanceStainless Steel/Gray
Oven Door FeaturesFull-Wrapped Stainless
Oven Door FeaturesGlass Door
Oven Door FeaturesBig View Oven Window

FEATURES

Oven Rack Features2 Oven Racks
Element - Left Front8" 2000W
Oven Cleaning TypeSelf-Clean
Product TypeDrop-In
Heating Element "ON" Indicator Light2
Cooktop TypeRadiant Smoothtop
Fuel TypeElectric
Element - Right Front9"/6" 3000W Power Boil
Interior Oven Light1 Incandescent
Control LocationFront
Hot Surface Indicator Lights4
Sabbath ModeYes
Element - Left Rear8" 2000W
Cooking TechnologyTraditional
Oven Features6-Pass Broil Element
Melt SettingYes
OU CertifiedNo
Cooktop Burner TypeSmoothtop
Element - Right Rear6" 1200W
Cooktop SurfaceOverhanging Cooktop
Oven Rack Positions (Single or Upper/Lower)7
Self-Clean Oven Door LockAutomatic
Control TypeElectronic
Oven Control FeaturesAuto Oven Shut-Off with Override
Oven Control FeaturesElectronic Clock & Kitchen Timer
Control TypeTouchpads
Control TypeDigital Temperature Display
Cooktop Burner TypeRadiant
Cooktop SurfaceGray Patterned Ceramic Glass
Oven Control FeaturesAudible Preheat Signal
Oven Control FeaturesC° or F° Programmable
Oven Control FeaturesSabbath Mode
Oven Control FeaturesControl Lock Capability
Oven Control FeaturesDelay Bake Option With Cook & Hold
Oven Features6-Pass Bake Element

POWER / RATINGS

Amp Rating at 208V40
Broiler Wattage3420W
Amp Rating at 240V40
KW Rating at 240V11.9
Bake Wattage3410W
KW Rating at 208V8.9

Warranty

Parts1 Year
Labor1 Year
Parts (Entire Appliance)1 Year
Labor (Entire Appliance)1 Year

Other

Cabinet Opening30 in
Oven Interior Dimensions (W x H x D) (in.)24 x 17-1/2 x 18-1/4

Dimensions & Weight

Width31.25 in.
Height27 in.
Length28.5 in.
Weight163 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width36.25 in.
Shipping Height32 in.
Shipping Length33.5 in.
Shipping Weight203 lbs.
Total of Shipping Weight203 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement13.92 ft³
Dimensional Weight173 lbs.
Total of Cubes13.92 ft³
Total of Dimensional Weight173 lbs.

ACCESSORIES

Cooktop CleaningIncluded
Cooktop CleaningSponge
Cooktop CleaningCream

CAPACITY

Total Capacity (cubic feet)4.40 cu ft
