GE Monogram® 30" Black Warming Drawer - ZTD910BFBB
GE Monogram® 30" Black Warming Drawer
Model: ZTD910BFBB
GE Monogram® 30" Black Warming Drawer
Model: ZTD910BFBB
Color : Black
Key Features
Variable humidity control
Infinite setting temperature control
Removable half rack
1.9 cu. ft capacity
Accepts 3/4" trimless custom panel and custom handle with trim kit
"On" indicator light
Full extension drawer on ball bearing glides
Accepts optional professional panel kit
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
Variable humidity control
Crisp to moist
Infinite setting temperature control
75 Degrees to 230 Degrees
Removable half rack
1.9 cu. ft capacity
Accepts 3/4" trimless custom panel and custom handle with trim kit
"On" indicator light
Full extension drawer on ball bearing glides
Accepts optional professional panel kit
Removable stainless steel pan
Variable installation options
Hidden controls provide flush installation appearance
On/Off rocker switch
Certifications
ADA Compliant
California Prop 65
Specifications
Warranty
| Parts | 1 Year |
| Labor | 1 Year |

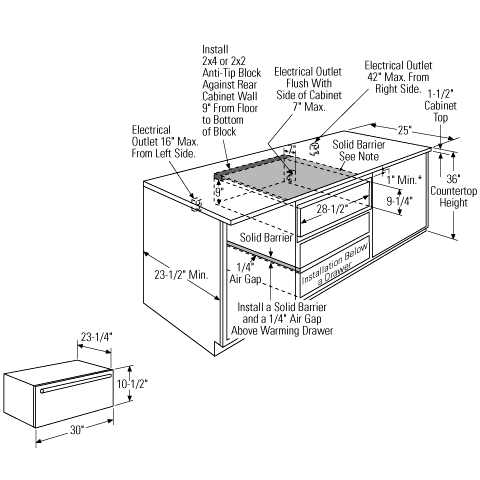

WEIGHTS & DIMENSIONS
| Overall Depth | 23.25 in |
| Net Weight | 57 lb |
| Overall Width | 30 in |
| Overall Height | 10.5 in |
| Approximate Shipping Weight | 63 lb |
| Cabinet Width | 30 in |
| Interior Dimensions (w x h x d) (in.) | 23-7/8 x 6-1/4 x 22-1/16 |
ACCESSORIES
| Additional Pan Set | JXPN2, 2-Pan Set |
APPEARANCE
| Panel Capability | Accepts Wood Panel Kit |
| Handle | Tubular |
| Color Appearance | Black on Black |
| Installation | Under Cooktop |
FEATURES
| Variable Humidity Control | Crisp - Moist |
| Indicator Lights | "ON" |
| Half Rack | Yes |
| Power Cord Length | 4' 8" |
| Pan Set Included | 3-Pan Set |
| Removable Stainless Steel Pan | Yes |
| Variable Temperature Control | Proof(80) / Low(140) / Med(170) / High(210) |
| Receptacle Type | 3-Prong Grounding |
| Control Type | On/Off Rocker Switch |
| Full Extension Ball Bearing Glides | Yes |
WARRANTY
| Warranty Notes | See written warranty for full details |
| Labor Warranty | Limited 1-year entire appliance |
| Parts Warranty | Limited 1-year entire appliance |
POWER / RATINGS
| Heating Element Wattage | 450W |
| Electrical Requirements | 120V/60Hz/15Amps |
CAPACITY
| Total Capacity (cubic feet) | 1.9 cu ft |
Other
| Interior Dimensions (w x h x d) (in.) | 23-7/8 x 6-1/4 x 22-1/16 |
Dimensions & Weight
| Width | 30 in. |
| Height | 10.5 in. |
| Length | 23.25 in. |
| Weight | 57 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 35 in. |
| Shipping Height | 15.5 in. |
| Shipping Length | 28.25 in. |
| Shipping Weight | 97 lbs. |
| Total of Shipping Weight | 97 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 4.24 ft³ |
| Dimensional Weight | 52.69 lbs. |
| Total of Cubes | 4.24 ft³ |
| Total of Dimensional Weight | 52.69 lbs. |
