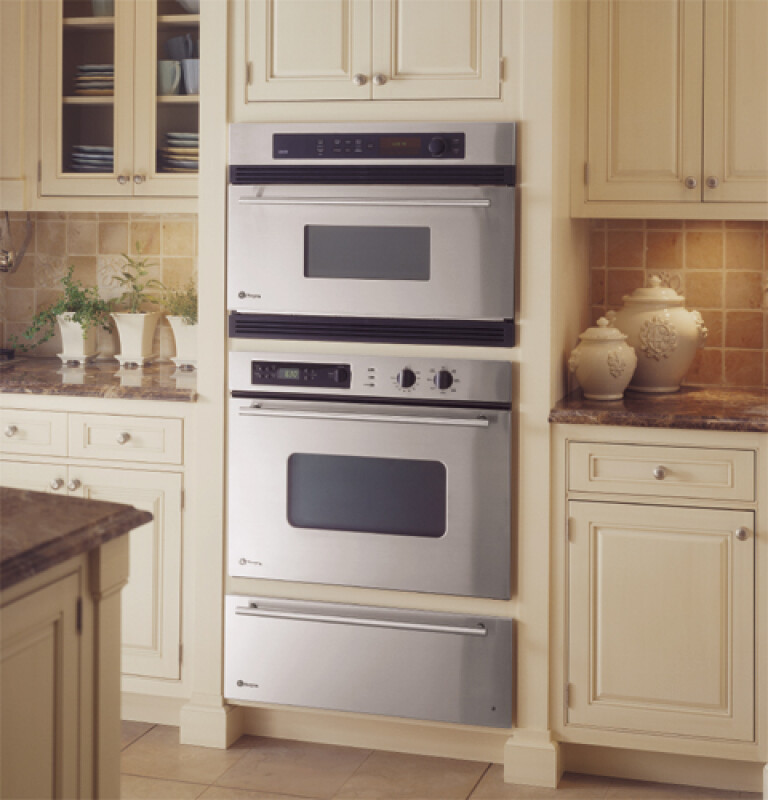

GE Monogram® 27" Stainless Steel Warming Drawer - ZKD910SBSS
GE Monogram® 27" Stainless Steel Warming Drawer
Model: ZKD910SBSS
GE Monogram® 27" Stainless Steel Warming Drawer
Model: ZKD910SBSS
Color : Stainless Steel
Key Features
1.6 cu. ft. capacity
On indicator light
Infinite setting temperature control
Variable humidity control
Removable half rack
"On" indicator light
Accepts 1/4" to 1/2" trimless custom panels and custom handle with trim kit
Stainless steel glass drawer front with tubular handle
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
1.6 cu. ft. capacity
On indicator light
Infinite setting temperature control
75 Degrees to 230 Degrees
Variable humidity control
Crisp to moist
Removable half rack
"On" indicator light
Accepts 1/4" to 1/2" trimless custom panels and custom handle with trim kit
Stainless steel glass drawer front with tubular handle
Full extension drawer on ball bearing glides
Removable stainless steel pan
Variable installation options
Hidden controls provide flush installation appearance
On/Off rocker switch
Certifications
ADA Compliant
California Prop 65
Specifications
WEIGHTS & DIMENSIONS
| Overall Depth | 23.25 in |
| Net Weight | 53 lb |
| Overall Width | 26.75 in |
| Overall Height | 10.5 in |
| Approximate Shipping Weight | 59 lb |
| Cabinet Width | 27 in |
| Cutout Dimensions (w x h x d) (in.) | 25-1/2 x 9-1/4 x 23 |
| Interior Dimensions (w x h x d) (in.) | 20-7/8 x 6-1/4 x 22-1/16 |
FEATURES
| Variable Humidity Control | Crisp - Moist |
| Indicator Lights | "ON" |
| Half Rack | Yes |
| Power Cord Length | 4' 8" |
| Removable Stainless Steel Pan | Yes |
| Variable Temperature Control | Proof(80) / Low(140) / Med(170) / High(210) |
| Receptacle Type | 3-Prong Grounding |
| Full Extension Ball Bearing Glides | Yes |
| Control Type | On/Off Rocker Switch |
APPEARANCE
| Panel Capability | Accepts Wood Panel Kit |
| Color Appearance | Stainless Steel |
| Installation | Under Cooktop |
WARRANTY
| Warranty Notes | See written warranty for full details |
| Labor Warranty | Limited 1-year entire appliance |
| Parts Warranty | Limited 1-year entire appliance |
POWER / RATINGS
| Heating Element Wattage | 450W |
| Electrical Requirements | 120V/60Hz/15Amps |
CAPACITY
| Total Capacity (cubic feet) | 1.6 cu ft |
Other
| Cutout Dimensions (w x h x d) (in.) | 25-1/2 x 9-1/4 x 23 |
| Interior Dimensions (w x h x d) (in.) | 20-7/8 x 6-1/4 x 22-1/16 |
Dimensions & Weight
| Width | 26.75 in. |
| Height | 10.5 in. |
| Length | 23.25 in. |
| Weight | 53 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 31.75 in. |
| Shipping Height | 15.5 in. |
| Shipping Length | 28.25 in. |
| Shipping Weight | 93 lbs. |
| Total of Shipping Weight | 93 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 3.78 ft³ |
| Dimensional Weight | 46.98 lbs. |
| Total of Cubes | 3.78 ft³ |
| Total of Dimensional Weight | 46.98 lbs. |
