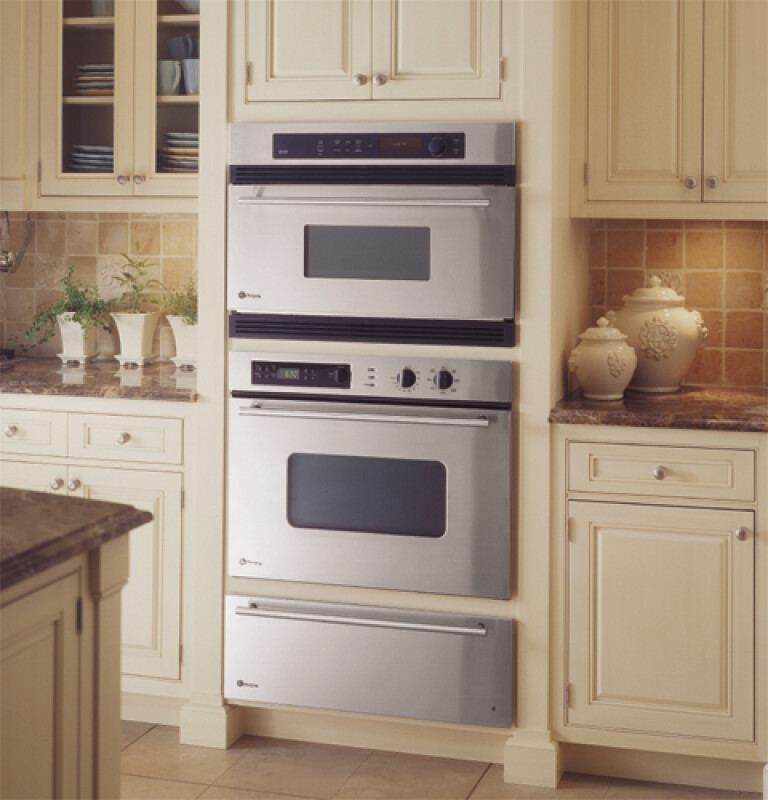

GE Monogram® 27" Black Warming Drawer - ZKD910BBBB
GE Monogram® 27" Black Warming Drawer
Model: ZKD910BBBB
GE Monogram® 27" Black Warming Drawer
Model: ZKD910BBBB
Color : Black
Key Features
1.6 cu. ft. capacity
On indicator light
Infinite setting temperature control
Variable humidity control
Removable half rack
"On" indicator light
Accepts 1/4" to 1/2" trimless custom panels and custom handle with trim kit
Black glass drawer front with tubular handle
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
1.6 cu. ft. capacity
On indicator light
Infinite setting temperature control
75 Degrees to 230 Degrees
Variable humidity control
Crisp to moist
Removable half rack
"On" indicator light
Accepts 1/4" to 1/2" trimless custom panels and custom handle with trim kit
Black glass drawer front with tubular handle
Full extension drawer on ball bearing glides
Variable installation options
Removable stainless steel pan
Hidden controls provide flush installation appearance
On/Off rocker switch
Certifications
ADA Compliant
California Prop 65
Specifications
WEIGHTS & DIMENSIONS
| Overall Depth | 23.25 in |
| Net Weight | 52 lb |
| Overall Width | 26.75 in |
| Overall Height | 10.5 in |
| Approximate Shipping Weight | 57 lb |
| Cabinet Width | 27 in |
| Cutout Dimensions (w x h x d) (in.) | 25-1/2 x 9-1/4 x 23 |
| Interior Dimensions (w x h x d) (in.) | 20-7/8 x 6-1/4 x 22-1/16 |
APPEARANCE
| Panel Capability | Accepts Wood Panel Kit |
| Color Appearance | Black on Black |
| Installation | Under Cooktop |
FEATURES
| Variable Humidity Control | Crisp - Moist |
| Indicator Lights | "ON" |
| Half Rack | Yes |
| Power Cord Length | 4' 8" |
| Removable Stainless Steel Pan | Yes |
| Variable Temperature Control | Proof(80) / Low(140) / Med(170) / High(210) |
| Receptacle Type | 3-Prong Grounding |
| Control Type | On/Off Rocker Switch |
| Full Extension Ball Bearing Glides | Yes |
WARRANTY
| Warranty Notes | See written warranty for full details |
| Labor Warranty | Limited 1-year entire appliance |
| Parts Warranty | Limited 1-year entire appliance |
POWER / RATINGS
| Electrical Requirements | 120V/60Hz/15Amps |
| Heating Element Wattage | 450W |
CAPACITY
| Total Capacity (cubic feet) | 1.6 cu ft |
Other
| Cutout Dimensions (w x h x d) (in.) | 25-1/2 x 9-1/4 x 23 |
| Interior Dimensions (w x h x d) (in.) | 20-7/8 x 6-1/4 x 22-1/16 |
Dimensions & Weight
| Width | 26.75 in. |
| Height | 10.5 in. |
| Length | 23.25 in. |
| Weight | 52 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 31.75 in. |
| Shipping Height | 15.5 in. |
| Shipping Length | 28.25 in. |
| Shipping Weight | 92 lbs. |
| Total of Shipping Weight | 92 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 3.78 ft³ |
| Dimensional Weight | 46.98 lbs. |
| Total of Cubes | 3.78 ft³ |
| Total of Dimensional Weight | 46.98 lbs. |
