30" Warming Drawer - PTW9000SNSS
30" Warming Drawer
Model: PTW9000SNSS
30" Warming Drawer
Model: PTW9000SNSS
Color : Stainless Steel
Replaced By
Key Features
Variable temperature control
Variable humidity control
Frameless drawer front
“On" indicator light
Half rack
“On” indicator light
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
Variable temperature control
Address any heating need with variable temperature control that provides a wide range of temperatures
Variable humidity control
Maintain any food’s desired texture thanks to variable humidity control with customized warming capabilities
Frameless drawer front
Enjoy a modern, seamless look with a frameless drawer front
“On" indicator light
Always know when your drawer is on with an indicator light that illuminates when it’s in operation
Half rack
Warm more items at once thanks to a half rack that maximizes drawer space
“On” indicator light
Always know when your drawer is on with an indicator light that illuminates when it’s in operation
Certifications
ADA Compliant
California Prop 65
UL
Specifications
WEIGHTS & DIMENSIONS
| Overall Depth | 23.25 in |
| Overall Width | 29.75 in |
| Cabinet Width | 30 in |
| Overall Height | 10.5 in |
| Approximate Shipping Weight | 65 lb |
| Net Weight | 59 lb |

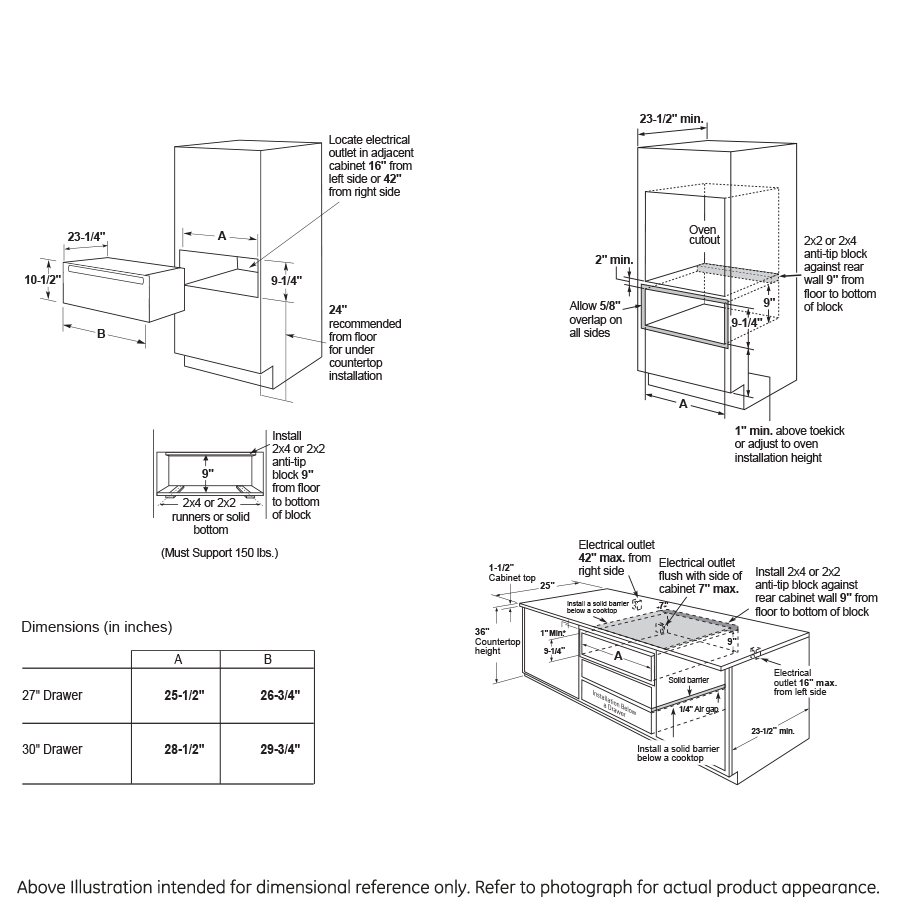

| Cutout Dimensions (w x h x d) (in.) | 28-1/2 x 9-1/4 x 23-1/2 |
| Interior Dimensions (w x h x d) (in.) | 23-7/8 x 6-1/4 x 22-1/16 |
| Cutout Depth (in) | 23.5 |
| Cutout Height (in) | 9.25 |
| Cutout Width (in) | 28.5 |
FEATURES
| Product Type | Warming Drawers |
| Variable Humidity Control | Crisp - Moist |
| Indicator Lights | "ON" |
| Half Rack | Yes |
| One-piece stainless steel drawer | Yes |
| Power Cord Length | 4' 8" |

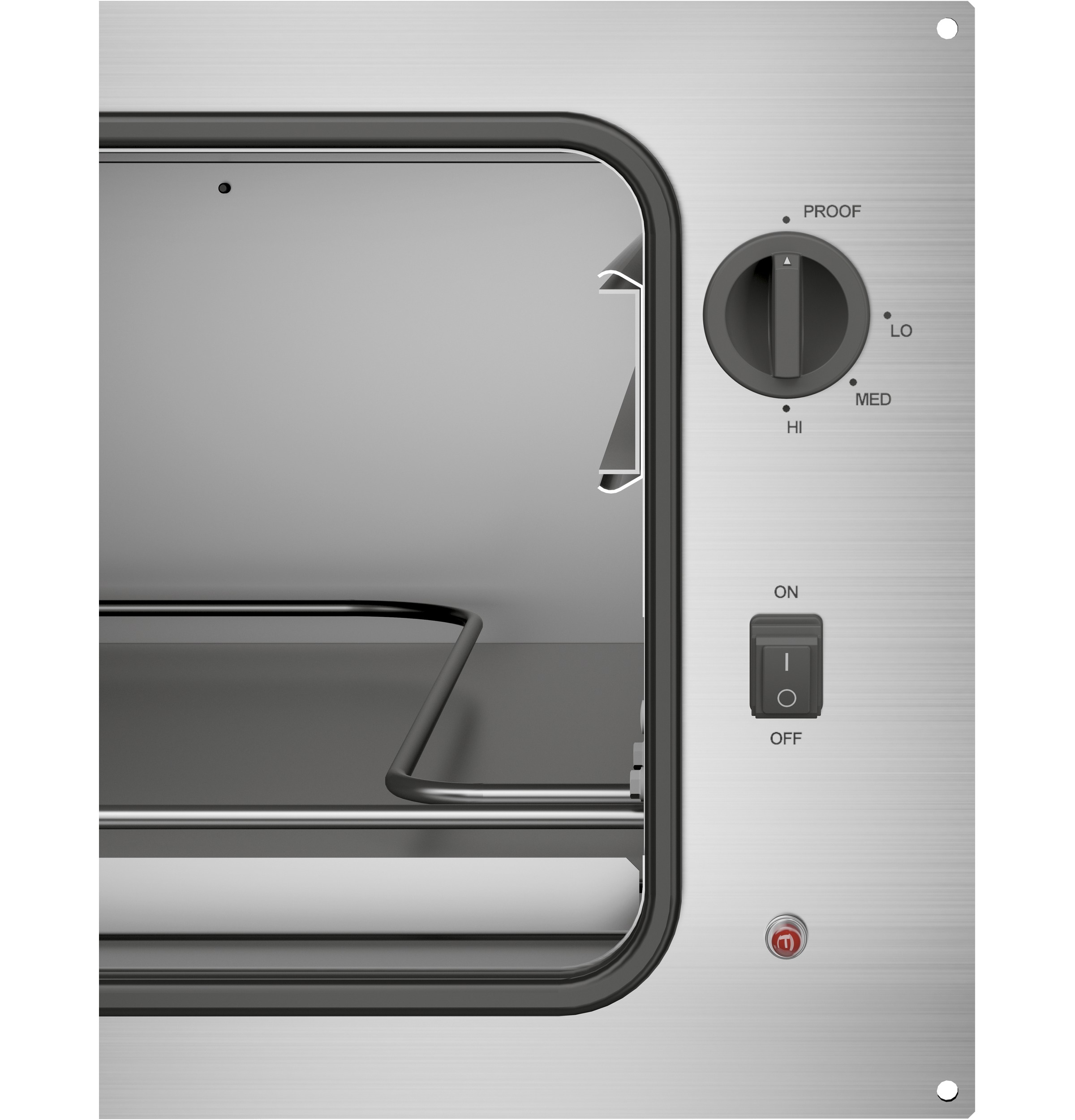

| Variable Temperature Control | Proof(80) / Low(140) / Med(170) / High(210) |
| Receptacle Type | 3-Prong Grounding |
| Control Type | On/Off Rocker Switch |
| Full Extension Ball Bearing Glides | Yes |
APPEARANCE
| Handle Color | Stainless Steel |
| Installation | Under Wall Oven |
| Color Appearance | Stainless Steel |
| Handle Design | Profile Designer Style |
| Installation | Under Cooktop |
| Installation | Flush Appearance with Hidden Controls |
POWER / RATINGS
| Heating Element Wattage | 450W |
| Volts/Hertz/Amps | 120V/60Hz/15Amps |
| Hertz | 60 |
Other
| Cutout Dimensions (w x h x d) (in.) | 28-1/2 x 9-1/4 x 23-1/2 |
| Interior Dimensions (w x h x d) (in.) | 23-7/8 x 6-1/4 x 22-1/16 |
Dimensions & Weight
| Width | 29.75 in. |
| Height | 10.5 in. |
| Length | 23.25 in. |
| Weight | 59 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 34.75 in. |
| Shipping Height | 15.5 in. |
| Shipping Length | 28.25 in. |
| Shipping Weight | 99 lbs. |
| Total of Shipping Weight | 99 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 4.2 ft³ |
| Dimensional Weight | 52.25 lbs. |
| Total of Cubes | 4.2 ft³ |
| Total of Dimensional Weight | 52.25 lbs. |
CAPACITY
| Total Capacity (cubic feet) | 1.90 cu ft |
Warranty
| Labor (Entire Appliance) | 1 Year |
| Parts (Entire Appliance) | 1 Year |
