30" Warming Drawer - PTD915WMWW
30" Warming Drawer
Model: PTD915WMWW
30" Warming Drawer
Model: PTD915WMWW
Color : White on White
Key Features
Flush appearance installation
Variable temperature control
Variable humidity control
Frameless drawer front
"On" indicator light
Half rack
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
Flush appearance installation
Transitions smoothly into the kitchen cabinetry to deliver a clean and sophisticated appearance
Variable temperature control
Set your ideal temperature - from 80º to 210º - for exceptional performance
Variable humidity control
Control the humidity to match your desired results, from crisp to moist
Frameless drawer front
Offers a smooth appearance
"On" indicator light
Enjoy the peace of mind knowing exactly when the warming drawer is active
Half rack
Versatile design allow for multiple foods to occupy the warming drawer at the same time
Certifications
ADA Compliant
California Prop 65
Specifications
WEIGHTS & DIMENSIONS
| Overall Width | 30 in |
| Cabinet Width | 30 in |

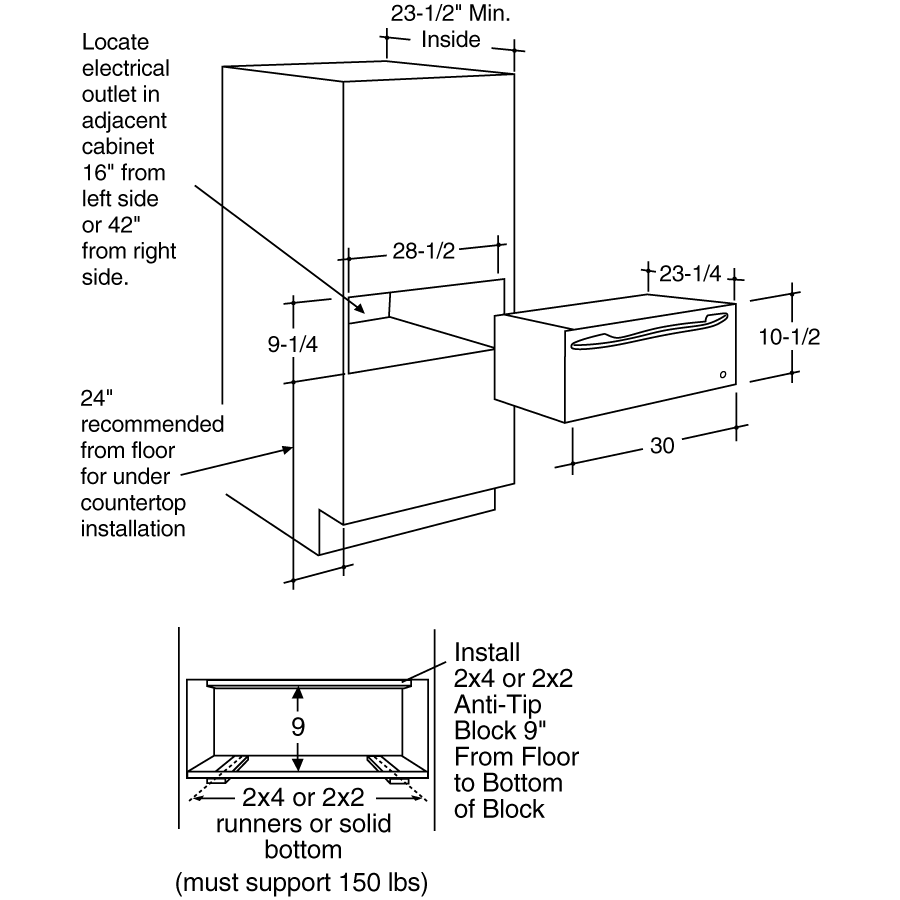

| Cutout Dimensions (w x h x d) (in.) | 28-1/2 x 9-1/4 x 23-1/2 |
| Interior Dimensions (w x h x d) (in.) | 23-7/8 x 6-1/4 x 22-1/16 |
| Overall Depth | 23 3/4 in |
| Overall Height | 10 1/2 in |
ACCESSORIES
| Additional Pan Set | JXPN2, 2-Pan Set |
APPEARANCE
| Panel Capability | Accepts Wood Panel Kit |
| Handle | Sculptured |
| Installation | Under Wall Oven |
| Color Appearance | White on White |
| Installation | Under Cooktop |
| Installation | Flush Appearance with Hidden Controls |
FEATURES
| Variable Humidity Control | Crisp - Moist |
| Indicator Lights | "ON" |
| Half Rack | Yes |
| One-piece stainless steel drawer | Yes |
| Power Cord Length | 4' 8" |
| Variable Temperature Control | Proof(80) / Low(140) / Med(170) / High(210) |
| Receptacle Type | 3-Prong Grounding |
| Control Type | On/Off Rocker Switch |
| Full Extension Ball Bearing Glides | Yes |
POWER / RATINGS
| Heating Element Wattage | 450W |
| Volts/Hertz/Amps | 120V/60Hz/15Amps |
Other
| Cutout Dimensions (w x h x d) (in.) | 28-1/2 x 9-1/4 x 23-1/2 |
| Interior Dimensions (w x h x d) (in.) | 23-7/8 x 6-1/4 x 22-1/16 |
Dimensions & Weight
| Width | 30 in. |
| Height | 10.5 in. |
| Length | 23.75 in. |
| Weight | 57 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 35 in. |
| Shipping Height | 15.5 in. |
| Shipping Length | 28.75 in. |
| Shipping Weight | 97 lbs. |
| Total of Shipping Weight | 97 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 4.33 ft³ |
| Dimensional Weight | 53.82 lbs. |
| Total of Cubes | 4.33 ft³ |
| Total of Dimensional Weight | 53.82 lbs. |
CAPACITY
| Total Capacity (cubic feet) | 1.90 cu ft |
