30" Built-In Single Convection Wall Oven - PT920DPBB

This product is discontinued and has been replaced by the model below.

30" Built-In Single Convection Wall Oven

Model: PT920DPBB

30" Built-In Single Convection Wall Oven PT920DPBB30" Built-In Single Convection Wall Oven PT920DPBB30" Built-In Single Convection Wall Oven PT920DPBB30" Built-In Single Convection Wall Oven PT920DPBB
30" Built-In Single Convection Wall Oven PT920DPBB
30" Built-In Single Convection Wall Oven PT920DPBB
30" Built-In Single Convection Wall Oven PT920DPBB
30" Built-In Single Convection Wall Oven PT920DPBB

Color : Black

30" Built-In Single Convection Wall Oven PT920DPBB
Black
Replaced By

30" Smart Built-In Convection Single Wall Oven with No Preheat Air Fry and Precision Cooking

Model: PTS7000SNSS

Product - PTS7000SNSS

$3,499.00

View Product

Key Features

  • Glass touch LCD controls

  • True European Convection with Precise Air

  • Self-clean roller rack

  • Convection Bake

  • Convection Roast

  • Flat back convection

  • Hidden bake oven interior

  • Self-clean oven

Read More

Description

A reversing fan circulates heat and air for evenly browned and baked foods.This self-clean rack glides on stainless steel ball bearings to simplify loading and unloading.28 1/4 H x 29 3/4 W x 23 1/2 D

Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.

Features
Specifications
Certifications

Features

Glass touch LCD controls

Combine a smooth, easy-to-clean glass design with large, easy-to-read graphics to facilitate easier usage

True European Convection with Precise Air

A reversing fan circulates heat and air for evenly browned and baked foods

Self-clean roller rack

This self-clean rack glides on stainless steel ball bearings to simplify loading and unloading

Convection Bake

This setting is optimal for baking casseroles or lasagnas, yeast breads, pies and pizzas with no need to turn the pan

Convection Roast

Optimal for larger cuts of meat, this setting rotates the heat around all sides, sealing in the juices, producing rotisserie results at up to 25% faster than a conventional oven

Flat back convection

Convection fan system is only 1" deep to provide additional room for cookware

Hidden bake oven interior

Conceals the lower oven bake element to eliminate hard-to-reach areas that collect food and spills for easy cleaning

Self-clean oven

Self-clean allows you to spare yourself from the trouble and effort it takes to scrub the oven interior

Dual interior lighting

Illuminates the oven interior

Self-clean, heavy-duty oven racks

Tough, double-coated racks can stay in the oven during the self-clean cycle to eliminate hand cleaning

Certifications

ADA Compliant certification

ADA Compliant

California Prop 65 certification

California Prop 65

Specifications

WEIGHTS & DIMENSIONS

Cabinet Width30 in
Oven Interior Dimensions (W x H x D) (in.)24 x 17-1/2 x 18-1/4
Net Weight139 lb

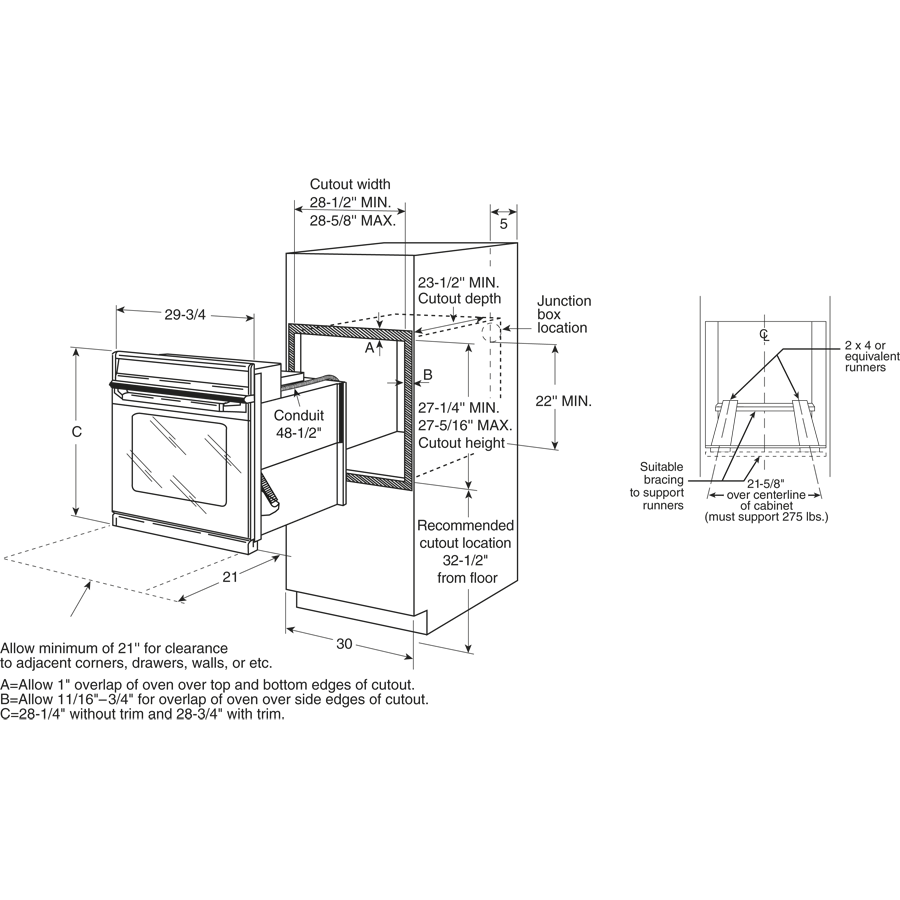

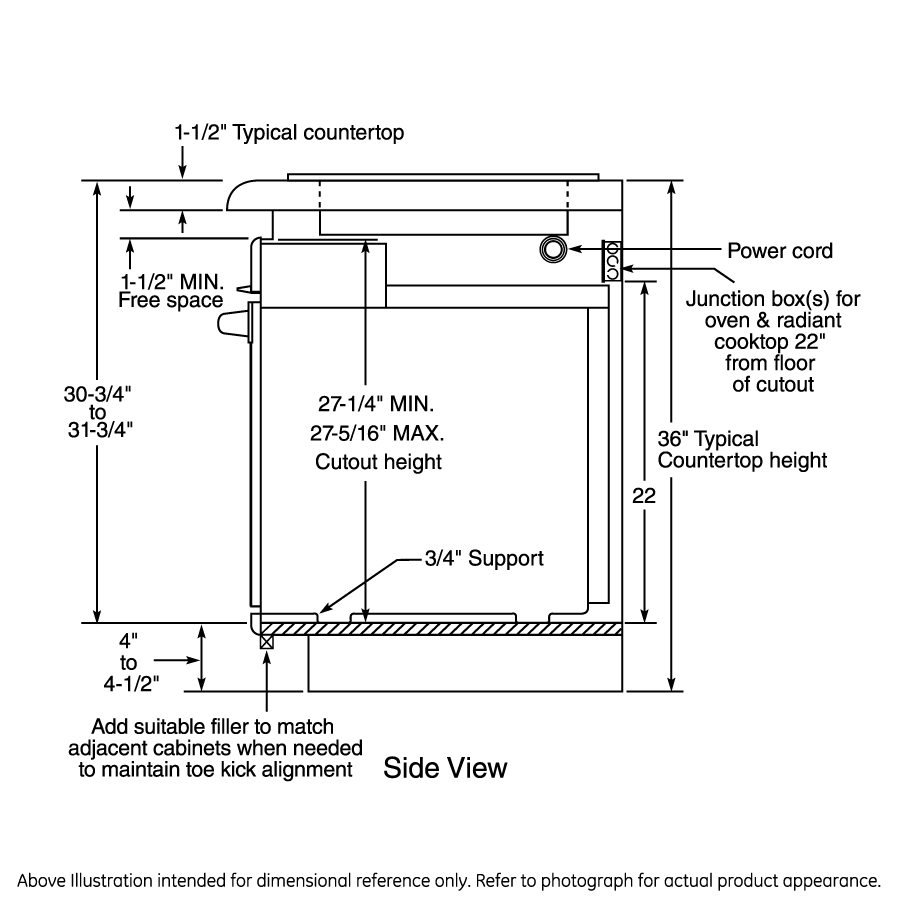

Cutout Dimensions (w x h x d) (in.)28-1/2 x 27-1/4 x 23-1/2
Approximate Shipping Weight156 lb
Overall Depth23 1/2 in
Overall Height28 1/4 in
Overall Width29 3/4 in

POWER / RATINGS

Bake Wattage2100W
Convection Wattage2500W
KW Rating at 240V4.5
Amp Rating at 208V20
Broiler Wattage2400W
Amp Rating at 240V20
KW Rating at 208V3.4

FEATURES

Oven Cooking ModesConvection Roast
Oven InteriorHidden Bake
Cooking TechnologyConvection
Cleaning TimeVariable with Delay Clean Option
ConfigurationSingle Oven
Oven Rack Positions (Single or Upper/Lower)7
Interior Oven LightIncandescent
Oven Control FeaturesWarm Mode
Temperature Management SystemTrue Temp System
Oven Rack FeaturesEmbossed Rack Positions
Self-Clean Oven Door LockAutomatic
Cooking SystemTrue European Convection with Precise Air
Control TypeSmartSet
StyleBuilt-In
Oven Cleaning TypeSelf-Clean
Control TypeGlass Touch
Control TypeLCD with Proximity Sensor
Cooking SystemFlat Back Convection
Interior Oven Light2
Interior Oven LightAuto
Oven Control FeaturesAuto Recipe Conversion
Oven Control FeaturesDigipad Numeric Entry
Oven Control FeaturesMis-Wire Detection
Oven Control FeaturesDehydration
Oven Control FeaturesDehydration Stopper
Oven Control FeaturesDelay Clean Option
Oven Control FeaturesLight Self Clean Mode
Oven Control FeaturesOptional Clock Display
Oven Control FeaturesDelay Bake Option
Oven Control FeaturesProof Mode
Oven Control FeaturesSabbath Mode
Oven Control FeaturesC° or F° Programmable
Oven Control FeaturesAudible Preheat Signal
Oven Control FeaturesControl Lock Capability
Oven Control FeaturesElectronic Clock & Kitchen Timer
Oven Control FeaturesAutomatic Meat Thermometer
Oven Cooking ModesConvection Bake Multi/Single Rack
Oven Rack Features3 Self-Clean Heavy-Duty Oven Racks

APPEARANCE

Frameless Oven Door(s)Black Glass
Oven Door FeaturesBig Clear View Oven Window
Color AppearanceBlack
InstallationUndercounter
HandleColor-Matched High-Gloss
InstallationUnder Cooktop
InstallationAbove Warming Drawer
InstallationSide-by-Side

CAPACITY

Unit CapacitySuper Large Oven
Total Capacity (cubic feet)4.40 cu ft

Other

Oven Interior Dimensions (W x H x D) (in.)24 x 17-1/2 x 18-1/4
Cutout Dimensions (w x h x d) (in.)28-1/2 x 27-1/4 x 23-1/2

Dimensions & Weight

Width29.75 in.
Height28.25 in.
Length23.5 in.
Weight139 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width34.75 in.
Shipping Height33.25 in.
Shipping Length28.5 in.
Shipping Weight179 lbs.
Total of Shipping Weight179 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement11.43 ft³
Dimensional Weight142.09 lbs.
Total of Cubes11.43 ft³
Total of Dimensional Weight142.09 lbs.
