27" Built-In Single Convection Wall Oven - PK916SMSS

This product has been discontinued by the manufacture and is no longer available.

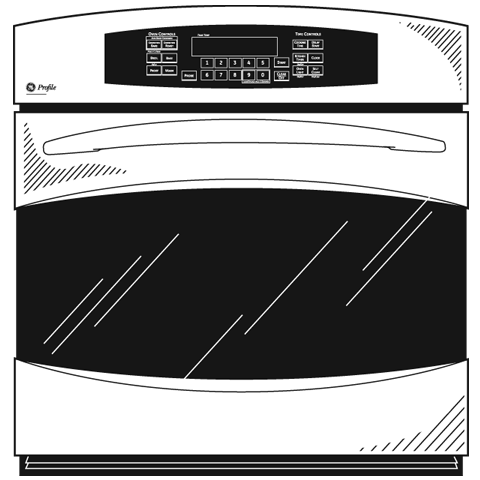

27" Built-In Single Convection Wall Oven

Model: PK916SMSS

27" Built-In Single Convection Wall Oven PK916SMSS27" Built-In Single Convection Wall Oven PK916SMSS27" Built-In Single Convection Wall Oven PK916SMSS
27" Built-In Single Convection Wall Oven PK916SMSS
27" Built-In Single Convection Wall Oven PK916SMSS
27" Built-In Single Convection Wall Oven PK916SMSS

Color : Stainless Steel

27" Built-In Single Convection Wall Oven PK916SMSS
Stainless Steel

Key Features

  • Glass touch controls

  • True European Convection with Precise Air

  • Flat back convection

  • Convection Bake (multi-mode)

  • Four-pass broil element

  • Eight-pass bake element

  • Interior oven light(s)

  • Self-clean, heavy-duty oven racks

Read More

Description

A reversing fan circulates heat and air for evenly browned and baked foods.Convection fan system is only 1" deep to provide additional room for cookware.29 H x 26 5/8 W x 23 5/8 D

Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.

Features
Specifications
Certifications

Features

Glass touch controls

Smooth controls are easy to use and add a sophisticated style to the kitchen

True European Convection with Precise Air

A reversing fan circulates heat and air for evenly browned and baked foods

Flat back convection

Convection fan system is only 1" deep to provide additional room for cookware

Convection Bake (multi-mode)

Offers three specialized modes for different cooking needs: single-rack convection baking, multi-rack convection baking and convection roasting

Four-pass broil element

Provides more even coverage of the food on the broiler pan

Eight-pass bake element

Interior heating element loops eight times to distribute heat quickly and evenly for optimal baking results

Interior oven light(s)

Bright interior light helps you check on the progress of your cooking

Self-clean, heavy-duty oven racks

Tough, double-coated racks can stay in the oven during the self-clean cycle to eliminate hand cleaning

Hidden bake oven interior

Conceals the lower oven bake element to eliminate hard-to-reach areas that collect food and spills for easy cleaning

Convection Roast

Optimal for larger cuts of meat, this setting rotates the heat around all sides, sealing in the juices, producing rotisserie results at up to 25% faster than a conventional oven

Certifications

ADA Compliant certification

ADA Compliant

California Prop 65 certification

California Prop 65

Specifications

WEIGHTS & DIMENSIONS

Cabinet Width27 in
Overall Height29 in
Approximate Shipping Weight120 lb

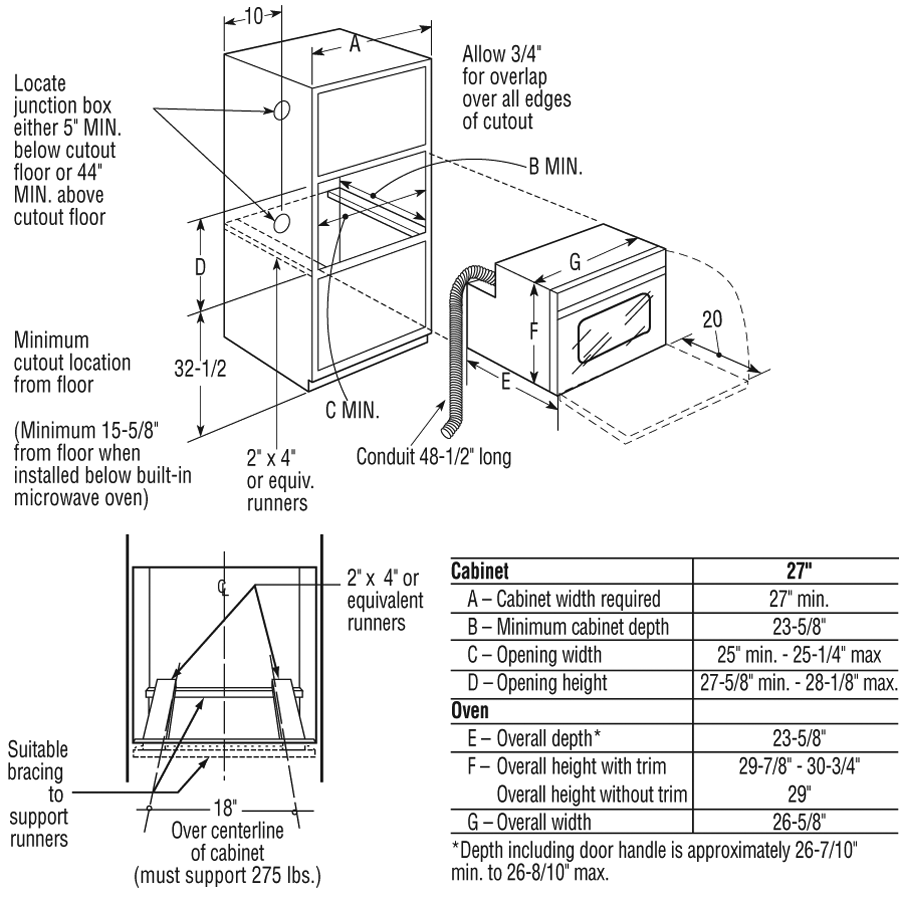

Cutout Dimensions (w x h x d) (in.)25 x 27-5/8 x 23-5/8
Net Weight108 lb
Oven Interior Dimensions (W x H x D) (in.)21-1/2 x 17 x 18-1/4
Overall Depth23 5/8 in
Overall Width26 5/8 in

FEATURES

Cleaning TimeVariable with Delay Clean Option
ConfigurationSingle Oven
Oven Cooking ModesThermal Bake / Thermal Roast
Cooking SystemTrue European Convection with Precise Air
Temperature Management SystemTrue Temp System
Oven InteriorHidden Bake
StyleBuilt-In
Oven Control FeaturesWarm Mode
Self-Clean Oven Door LockAutomatic
Control TypeSmartSet
Oven Rack Positions (Single or Upper/Lower)4
Oven Cleaning TypeSelf-Clean
Cooking TechnologyConvection
Oven FeaturesClosed Door Broiling
Oven Rack FeaturesEmbossed Rack Positions
Interior Oven LightYes
Control TypeGlass Touch
Oven Control FeaturesAuto Recipe Conversion
Oven Control FeaturesProof Mode
Oven Control FeaturesTemperature Probe
Oven Control FeaturesDelay Bake Option With Cook & Hold
Oven Control FeaturesC° or F° Programmable
Oven Control FeaturesAudible Preheat Signal
Oven Control FeaturesAuto Oven Shut-Off with Override
Oven Control FeaturesElectronic Clock & Kitchen Timer
Oven Control FeaturesOven Light Pad
Oven Control FeaturesStart Pad
Oven Control FeaturesLight Self Clean Mode
Oven Control FeaturesSabbath Mode
Oven Control FeaturesControl Lock Capability
Oven Control FeaturesDigipad Numeric Entry
Oven Control FeaturesVariable Broil
Oven Control FeaturesOptional Clock Display
Oven Control FeaturesTemperature Display
Oven Cooking ModesConvection Bake Multi/Single Rack
Oven Cooking ModesConvection Roast
Oven Features4-Pass Broil Element
Oven Features8-Pass Bake Element
Oven Rack Features3 Self-Clean, Heavy-Duty Oven Racks

APPEARANCE

Frameless Oven Door(s)Color-Matched
HandleStainless Steel Sculptured
Oven Door FeaturesBig Clear View Oven Window
InstallationUndercounter
Color AppearanceStainless Steel
InstallationUnder Cooktop
InstallationFlush Appearance

POWER / RATINGS

Broiler Wattage3400W
Amp Rating at 208V20
Convection Wattage2500W
KW Rating at 208V2.6
Amp Rating at 240V20
Bake Wattage2100W
KW Rating at 240V3.4

Other

Cutout Dimensions (w x h x d) (in.)25 x 27-5/8 x 23-5/8
Oven Interior Dimensions (W x H x D) (in.)21-1/2 x 17 x 18-1/4

Dimensions & Weight

Width26.63 in.
Height29 in.
Length23.63 in.
Weight108 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width31.63 in.
Shipping Height34 in.
Shipping Length28.63 in.
Shipping Weight148 lbs.
Total of Shipping Weight148 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement10.56 ft³
Dimensional Weight131.23 lbs.
Total of Cubes10.56 ft³
Total of Dimensional Weight131.23 lbs.

CAPACITY

Total Capacity (cubic feet)3.90 cu ft
