30" Combination Wall Oven with Even-Heat True Convection (Lower Oven) - KOCE500EWH
30" Combination Wall Oven with Even-Heat True Convection (Lower Oven)
Model: KOCE500EWH

















30" Combination Wall Oven with Even-Heat True Convection (Lower Oven)
Model: KOCE500EWH
Key Features
Even-Heat True Convection Oven (lower oven)
Microwave Convection Cooking (upper oven)
Temperature Probe
EasyConvect Conversion System
5.0 Cu. Ft. Total Capacity (lower oven)
1.4 Cu. Ft. Capacity (upper oven)
Crispwave Microwave Technology and Crisper Pan (upper oven)
SatinGlide Roll-Out Extension Rack (lower oven)
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
Even-Heat True Convection Oven (lower oven)
Features a unique bow-tie design with heating element and fan that circulates hot air throughout the entire oven, providing optimal temperatures crisp, flaky baked goods, juicy, well-browned roasts and carmerlized vegetables.
Microwave Convection Cooking (upper oven)
Increases the speed of cooking and provides a secondary convection cooking option.
Temperature Probe
Allows accurate measurement of internal temperatures of meats, poultry, and casseroles without having to open the oven so that food can be cooked perfectly.
EasyConvect Conversion System
automatically adjusts conventional baking temperatures to their convection equivalents, making it effortless to use convection with recipes of all kinds.
5.0 Cu. Ft. Total Capacity (lower oven)
Gives you an extra-large capacity for holding your largest turkeys and roasts. It also lets you prepare multiple dishes at the same time.
1.4 Cu. Ft. Capacity (upper oven)
The upper microwave oven gives you family-size capacity that complements the lower convection oven.

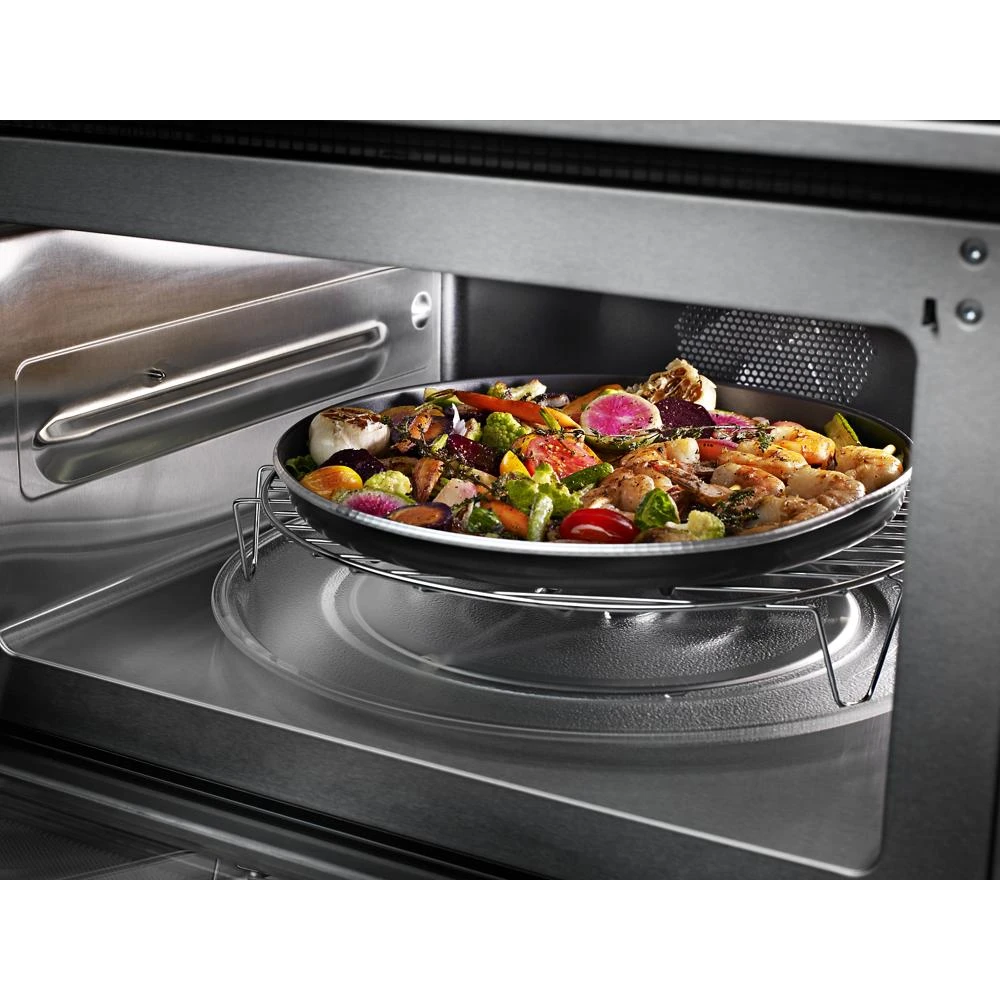

Crispwave Microwave Technology and Crisper Pan (upper oven)
Allows the microwave oven to be used for grilling, frying, and convection cooking. The specially designed crisper pan can be used to brown, crisp, and pan-fry foods.
SatinGlide Roll-Out Extension Rack (lower oven)
Allows easy loading and features an easy-grip handle, giving you the confidence when cooking with large or heavy dishes.
Specifications
Description
| Fuel Type | Electric |
| Oven Type | Combination |
| Size (in.) | 30 |
Exterior
| Door Lock | Yes |
| Door Removable | Yes |
| Door Type | Metal & Glass |
| Flush Installation Approved | Yes |
| Handle Color | Stainless Steel |
| Handle Material | Metal |
| Oven Window Size | Extra Large |
| Door Release | Handle |
Controls
| Control Type | Glass Touch Digital Display |
| Display Color | White |
| Electronic Display Type | Digital |
Features
| Sensor Cooking | Yes - Microwave |
| Language Conversion | English/French |
| Oven Selections | Clock, Control Lock, Delay Start, Proofing, Sabbath Mode, Temperature Conversion, Temperature Probe, Time Bake, Timer |
Microwave
| Microwave Selections | Add A Minute, Cook Power, Cook Time, Crisp, Defrost, Easy Convect, Popcorn, Reheat, Soften/Melt, Steam, Steam Accessory |
Microwave Details
| Microwave Capacity (cu. ft.) | 1.4 |
| Cooking Power (watts) | 900 |
| Convection | Yes |
| Convection Power (watts) | 1200 |
| Grill | Yes |
| Grill Power (watts) | 1600 |
| Microwave Door Swing | Drop Down |
| Microwave Interior Light | Halogen |
| Number of Microwave Racks | 1 |
| Turntable | Yes |
| Turntable Diameter Size (in.) | 14.125 |
Details
| Oven Capacity (cu.ft) | 5.0 |
| Oven Automatic Shut-Off | Yes |
| Bake Element Power | 2, 800 W |
| Hidden Bake Element | Yes |
| Broiler Element Power | 4, 000 W |
| Broiler Location | Top of Oven |
| Door Broil Position | Closed |
| Convection Element Type | True - Oven |
| Convection Element Power (watts) | 3, 200 |
| Convection Functions | Bake, Broil, Roast |
| Oven Light Type | Halogen |
| Number of Oven Lights | 2 |
| Number of Oven Racks | 3 |
| Number of Rack Guides | 6 |
| Oven Rack 1 Type | Standard |
| Oven Rack 2 Type | Standard |
| Oven Rack 3 Type | Gliding Roll-Out |
| Rack Guide Type | Molded |
| Interior Color | Blue |
| Oven Cleaning Type | Adjustable Self Cleaning |
| Oven Interior Depth(IN,inches) | 19.000 |
| Oven Interior Height(IN,inches) | 18.000 |
| Oven Interior Width(IN,inches) | 25.000 |
| Self-Cleaning Oven Racks | No |
| Oven Cooking System | Convection |
| Style | Wall Ovens |
Certifications
| CUL | Yes |
| Prop 65 | Standard |
| UL | Yes |
| ADA Compliant | No |
| Energy Rating (kWh/year) | 356 |
Specifications
| Width Doors Open 90 Degrees | 46.750 |
| Accessory Relationships | Yes |
| EasyConvect™ Conversion | EasyConvect™ Conversion |
| Even-Heat™ True Convection | Even-Heat™ True Convection |
| SatinGlide™ Roll Out Extension Rack | SatinGlide™ Roll Out Extension Rack |
| Self Clean | Self Clean |
Electrical
| Amps | 40 |
| Hz | 60 |
| Power Cord Included | No |
| Volts | 240 |
Configuration
| Oven Configuration | Microwave Combination |
Refinement KAD
| Temperature Probe | Temperature Probe |
Other
| Capacity (Cu Ft) | 6.40 |
Dimensions & Weight
| Width | 30 in. |
| Height | 42.5 in. |
| Length | 27.13 in. |
| Weight | 220 lbs. |
| Carton Depth | 30 13/16 |
| Carton Height | 45 |
| Carton Width | 34 13/16 |
| Cutout Height (in) | 41 5/16 |
| Cutout Width (in) | 28 1/2 |
| Depth Closed Excluding Handles | 24 1/2 |
| Depth With Door Open 90 Degree | 46 3/4 |
| Gross Weight | 220 |
| Net Weight | 200.0 |
| Cutout Depth(IN,inches) | 24.0000 |
| Cutout Height(IN,inches) | 41.3125 |
| Cutout Width(IN,inches) | 28.5000 |
| Depth Closed Excluding Handles(IN,inches) | 24.5000 |
| Depth With Door Open 90 Degree(IN,inches) | 46.7500 |
| Net Weight(LB,pounds) | 200 |
| Carton Depth(IN,inches) | 30.8125 |
| Carton Height(IN,inches) | 45.0000 |
| Carton Width(IN,inches) | 34.8125 |
| Cutout Depth Max(IN,inches) | 24.0000 |
| Cutout Height Min(IN,inches) | 41.3125 |
| Gross Weight(LB,pounds) | 220 |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 35 in. |
| Shipping Height | 47.5 in. |
| Shipping Length | 32.13 in. |
| Shipping Weight | 260 lbs. |
| Total of Shipping Weight | 260 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 20.01 ft³ |
| Dimensional Weight | 248.81 lbs. |
| Total of Cubes | 20.01 ft³ |
| Total of Dimensional Weight | 248.81 lbs. |
