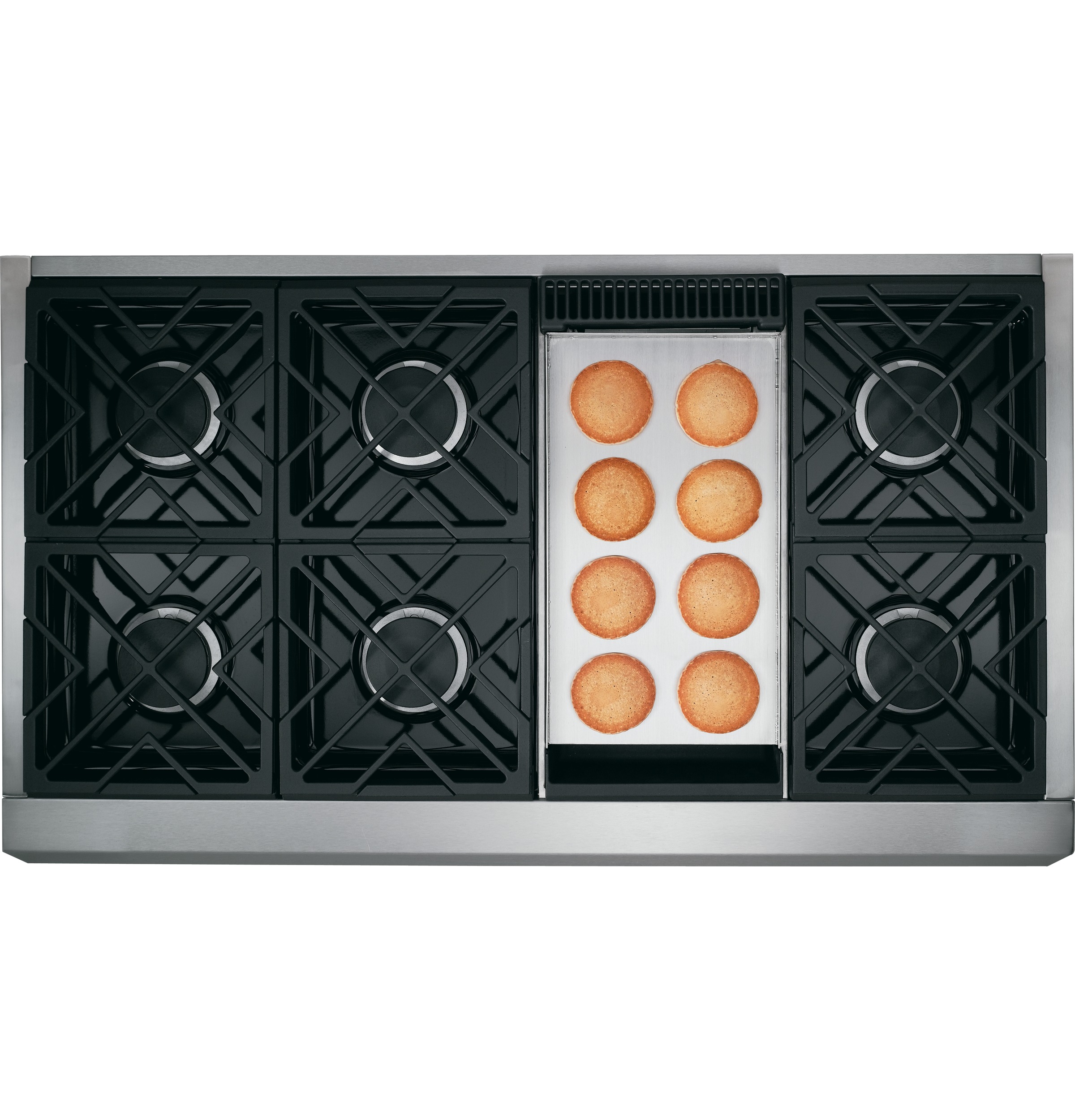

Monogram GE Monogram® 48" Professional Gas Rangetop with 6 Burners and Griddle (Liquid Propane)
Model: ZGU486LDPSS
Product Video
Color : Stainless Steel
Key Features
Authentic professional appearance
Sealed, dual-flame stacked burners
Electronic ignition with automatic reignition
Reversible burner grates
Stainless steel griddle cover
A bamboo cutting board
Stainless steel and aluminum-clad griddle
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
Authentic professional appearance
Stainless steel with smoothly finished edges and large electronic control knobs

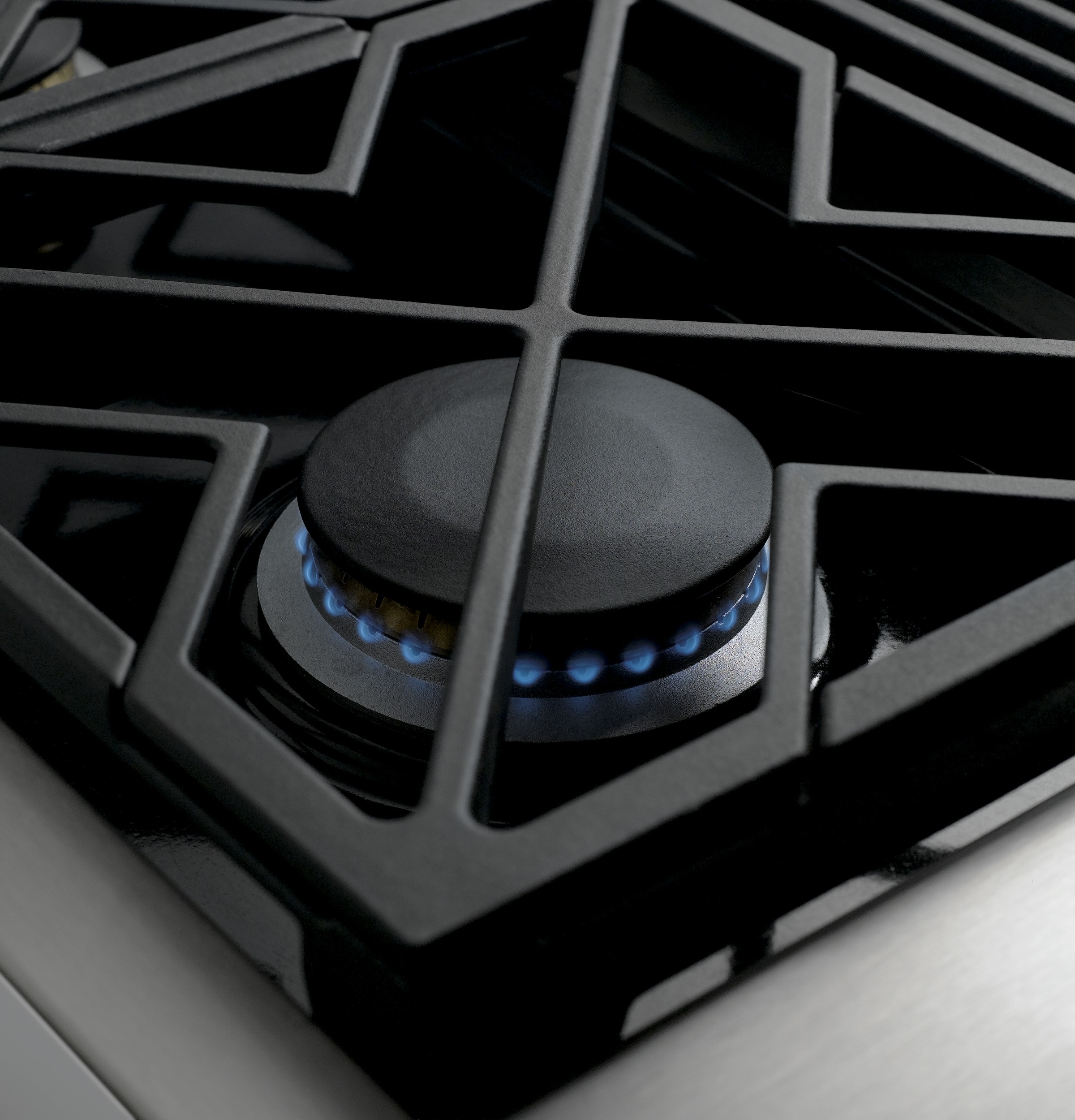

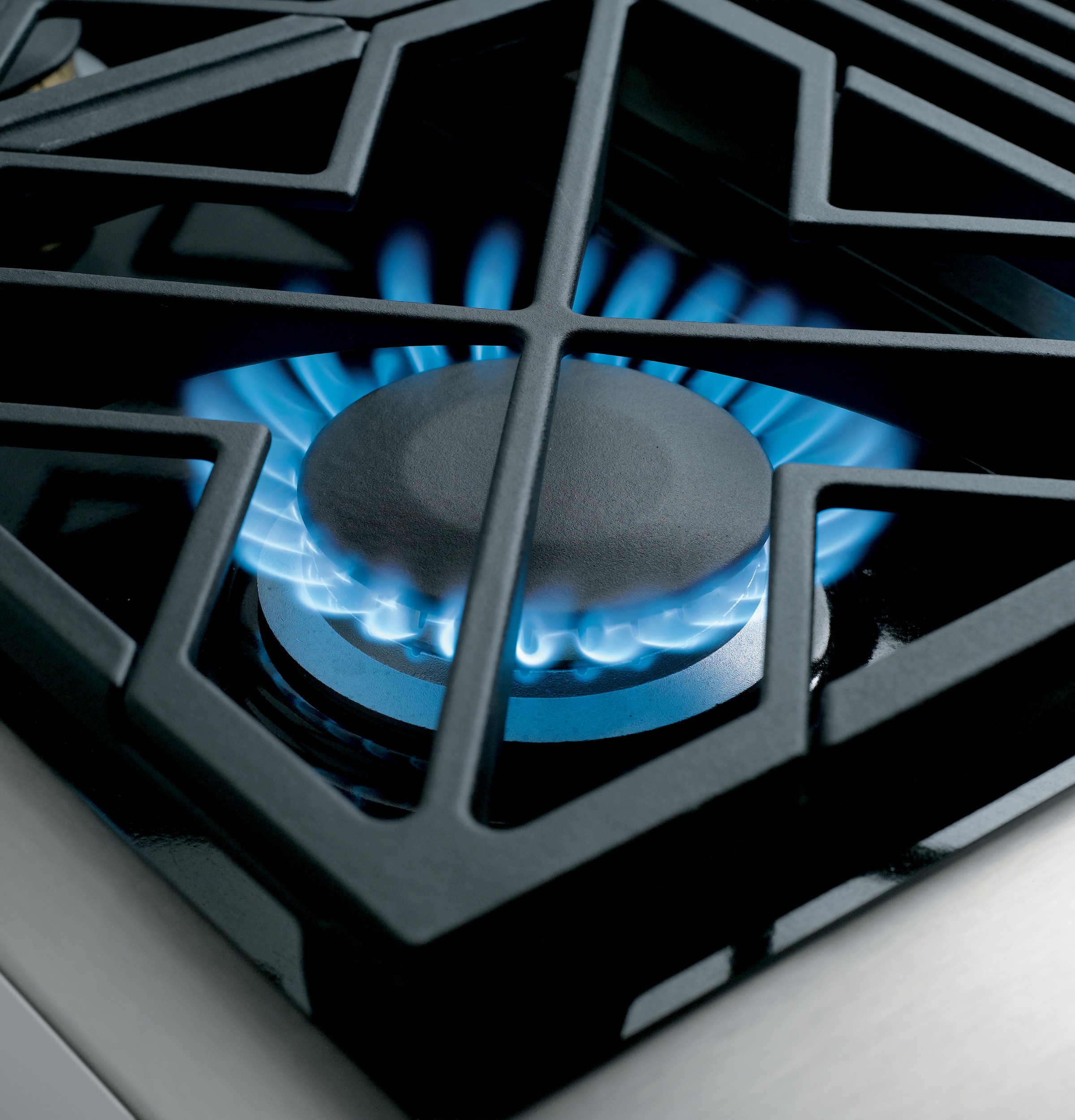

Sealed, dual-flame stacked burners
Deliver a full spectrum of heat settings, from an ultra-low 140° F simmer to an intense 18,000 BTU
Electronic ignition with automatic reignition
Ensures a continuous flame and reignites automatically if accidentally extinguished
Reversible burner grates
Flat on one side and uniquely contoured on the other to accommodate round-bottom woks
Stainless steel griddle cover
Included with the range
A bamboo cutting board
Included with the range
Stainless steel and aluminum-clad griddle
Offers 18,000 BTUs* of cooking power, allowing fast and consistent heating across the entire cooking surface
Certifications
California Prop 65
Specifications
Warranty
| Parts | 2 Year |
| Labor | 2 Year |

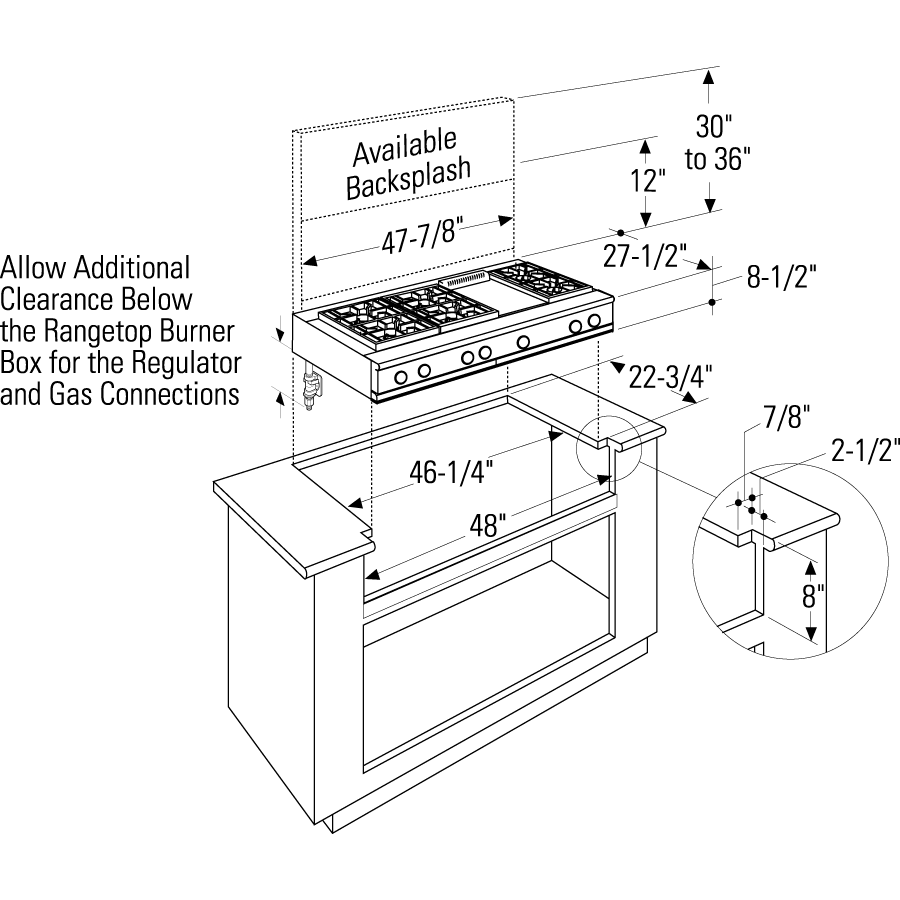

WEIGHTS & DIMENSIONS
| Overall Height | 8.5 in |
| Overall Width | 47.875 in |
| Net Weight | 171 lb |
| Overall Depth | 27.5 in |
| Cabinet Width | 48 in |
| Approximate Shipping Weight | 227 lb |
FEATURES
| Cooktop Burner Type | 6 Sealed, Dual Flame Stacked |
| Stainless Steel Grill / Griddle Covers | 1 |
| Fuel Type | Liquid Propane Gas |
| Control Location | Upfront |
| Ignition System | Electronic |
| Lighting | LED Bullnose Task Lighting |
| Extra Low Simmer | All Burners - Adjustable |
| Burner Indicator Light | Yes |
| Automatic Re-Ignition | Yes |
| Cooktop Burner Grate Features | Porcelainized Cast Iron 3-Piece Reversible (Flat/Wok) Grates |
| 140 Deg. Simmer Burner | All Burners - Adjustable |
| Configuration | 6 Burners; Griddle |
| Griddle | Stainless Steel and Aluminum Clad |
POWER / RATINGS
| Burner BTU Ratings (000's/BTU) - LP Gas | (6) 15.0; 140 Degree simmer |
| Griddle BTU Rating (000's/BTU) - LP Gas | 16.0 |
| Burner BTU Ratings (000's/BTU) - Natural Gas | (6) 18.0; 140 Degree simmer |
| Electrical Requirements | 120v; 60Hz; 15A |
| Griddle BTU Rating (000's/BTU) - Natural Gas | 18.0 |
APPEARANCE
| Design Style | Professional Stainless Steel |
| Color Appearance | Stainless Steel |
| Installation | Flush Installation Capable |
| Control Knobs | Diecast Metallic (Included) |
WARRANTY
| Parts Warranty | Limited 5-year gas surface burners |
| Warranty Notes | See written warranty for full details |
| Labor Warranty | Limited 2-year entire appliance |
ACCESSORIES
| High Altitude Kit | WB28K10553 |
| Conversion Kit | Included - LP to Nat. Gas |
| Factory-installed island backguard | Yes |
| Optional Backguard | 30"-36" adjustable stainless steel backsplash with warming shelf (ZXADJB48PSS) |
Dimensions & Weight
| Width | 47.88 in. |
| Height | 8.5 in. |
| Length | 27.5 in. |
| Weight | 171 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 52.88 in. |
| Shipping Height | 13.5 in. |
| Shipping Length | 32.5 in. |
| Shipping Weight | 211 lbs. |
| Total of Shipping Weight | 211 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 6.48 ft³ |
| Dimensional Weight | 80.51 lbs. |
| Total of Cubes | 6.48 ft³ |
| Total of Dimensional Weight | 80.51 lbs. |
