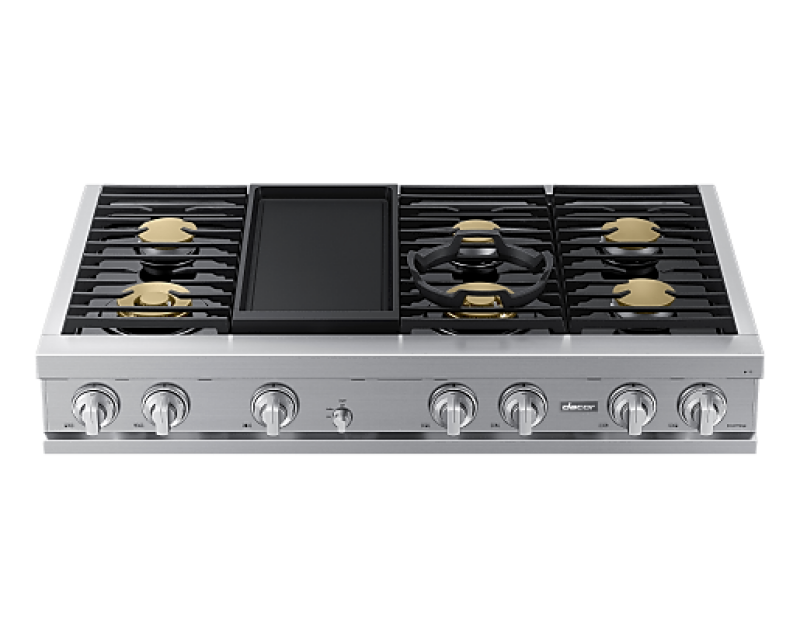

48-inch Gas Rangetop With Built-in Griddle - DTT48T963GSDA
48-inch Gas Rangetop With Built-in Griddle
Model: DTT48T963GSDA













48-inch Gas Rangetop With Built-in Griddle
Model: DTT48T963GSDA
Key Features
Simmersear™ Burners
Built-in Griddle
Illumina™ Knobs
Auto-connected Hood
Luxurious Finishes
Smartthings Integration
Description
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features

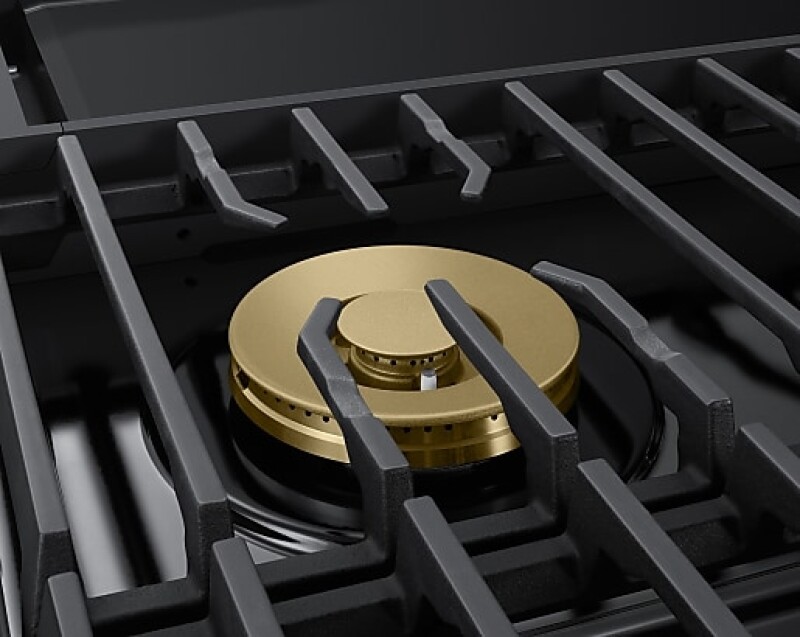

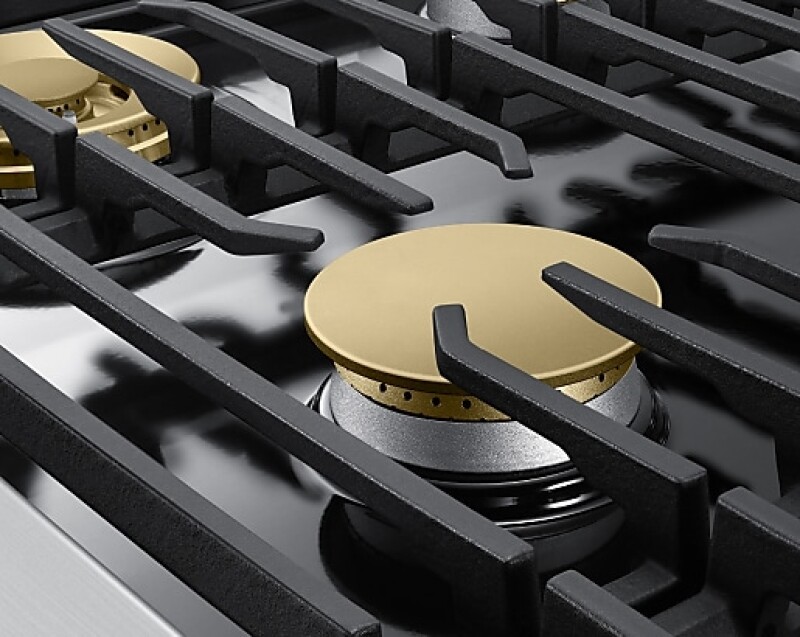

Simmersear™ Burners
Cook delicious meals with ease and precision. Quickly boil water with 22,000 BTU of power or maintain a gentle simmer at 750 BTU with the all-brass, Dual Valve, Dual Ring Burner.
Built-in Griddle
A 6 Pass, built-in 1,400W Griddle provides even heat distribution. And the scratch-resistant, cast-aluminum griddle is coated with a non-stick ceramic surface to keep your kitchen pristine.

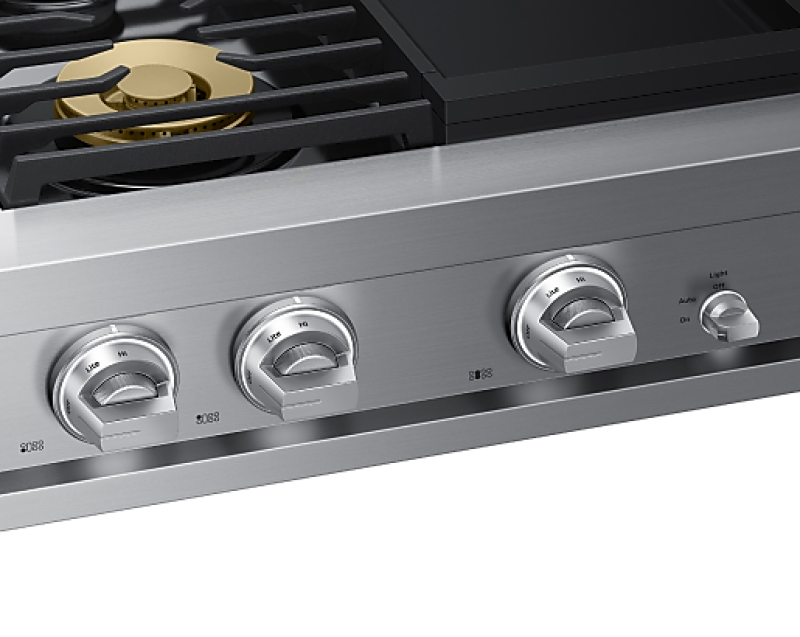

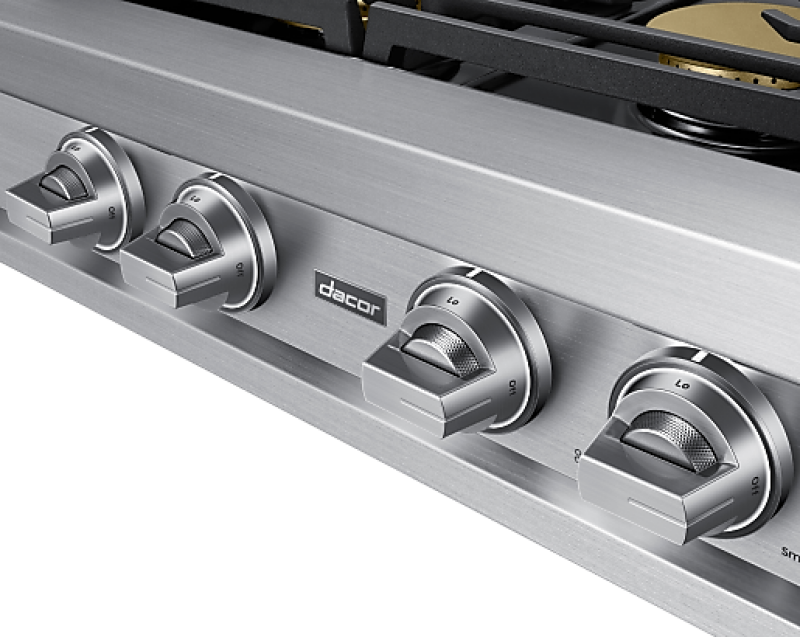

Illumina™ Knobs
Elegance meets function with a Dacor rangetop, and no detail is overlooked. Glowing Illumina™ knobs shine and add a warm, welcoming glow to your kitchen.
Auto-connected Hood
Bluetooth and ConnectOn auto-responsive technology turns on the ventilation in conjunction with the cooktop. And with the use of a temperature sensor, ramps up the ventilation speed as necessary.
Luxurious Finishes
Dacor exclusive Graphite and Silver Stainless Steel finishes bring beauty and style to match any kitchen design or concept.
Smartthings Integration
The SmartThings connected platform provides an exceptional foundation for an ever-growing ecosystem of smart connectivity. Preheat and check the oven temperature, the cooking status and the remaining time – all from the comfort of your smartphone.
Specifications
Dimensions & Weight
| Width | 47.88 in. |
| Height | 8 in. |
| Length | 27.88 in. |
| Weight | - |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 52.88 in. |
| Shipping Height | 13 in. |
| Shipping Length | 32.88 in. |
| Shipping Weight | - |
| Total of Shipping Weight | - |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 6.18 ft³ |
| Dimensional Weight | 76.81 lbs. |
| Total of Cubes | 6.18 ft³ |
| Total of Dimensional Weight | 76.81 lbs. |
Overall Dimensions
| Width | 47-7/8" |
| Height | 8" |
| Depth | 27-7/8" |

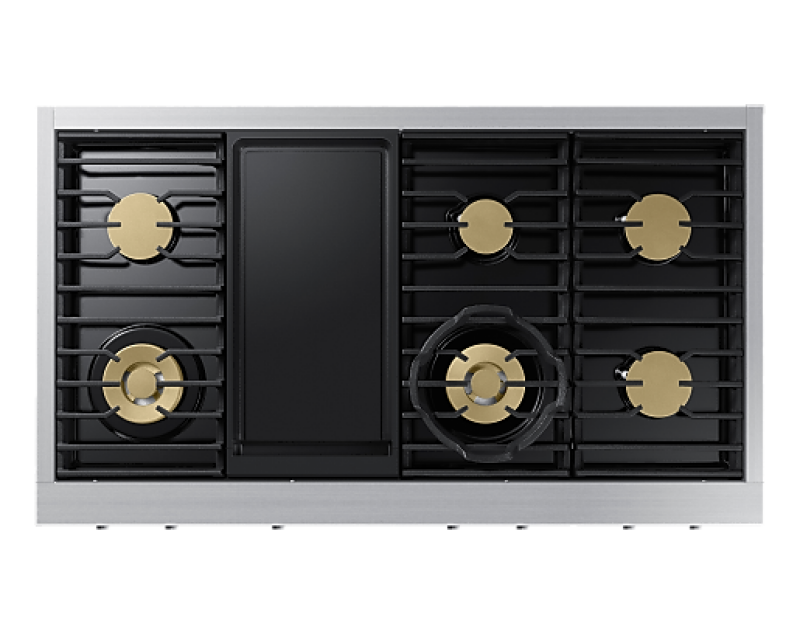

Burner Configuration
| Left Front | 18,000 BTU |
| Left Rear | 16,000 BTU |
| Center Front | 22,000 BTU |
| Center Rear | 9,000 BTU |
| Right Front | 16,000 BTU |
| Right Rear | 16,000 BTU |
Requirements
| Electrical | 120V, 60Hz, 15A |
Accessories
| Burner Caps, Black | Yes |
| Burner Caps, Brass | Yes |
| Wok Ring | Yes |
