48-inch Gas Rangetop With Built-in Griddle - DTT48T963GMDA

This product has been discontinued by the manufacture and is no longer available.

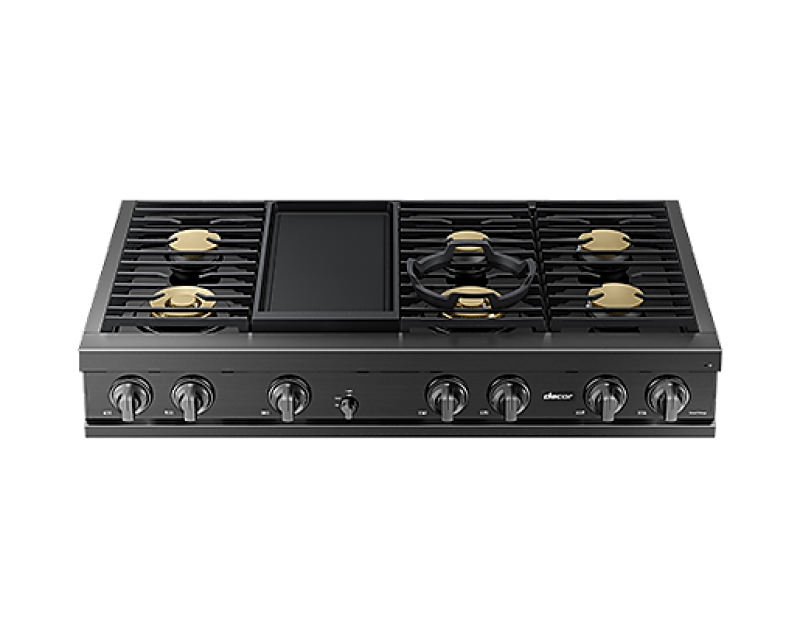

48-inch Gas Rangetop With Built-in Griddle

Model: DTT48T963GMDA

48-inch Gas Rangetop With Built-in Griddle DTT48T963GMDA48-inch Gas Rangetop With Built-in Griddle DTT48T963GMDA48-inch Gas Rangetop With Built-in Griddle DTT48T963GMDA48-inch Gas Rangetop With Built-in Griddle DTT48T963GMDA48-inch Gas Rangetop With Built-in Griddle DTT48T963GMDA48-inch Gas Rangetop With Built-in Griddle DTT48T963GMDA48-inch Gas Rangetop With Built-in Griddle DTT48T963GMDA48-inch Gas Rangetop With Built-in Griddle DTT48T963GMDA
48-inch Gas Rangetop With Built-in Griddle DTT48T963GMDA
48-inch Gas Rangetop With Built-in Griddle DTT48T963GMDA
48-inch Gas Rangetop With Built-in Griddle DTT48T963GMDA
48-inch Gas Rangetop With Built-in Griddle DTT48T963GMDA
48-inch Gas Rangetop With Built-in Griddle DTT48T963GMDA
+3more

Color : Graphite Stainless

48-inch Gas Rangetop With Built-in Griddle DTT48T963GMDA
Graphite Stainless

Key Features

  • Simmersear™ Burners

  • Built-in Griddle

  • Illumina™ Knobs

  • Auto-connected Hood

  • Luxurious Finishes

  • Smartthings Integration

Description

Dacor rangetops offer refined looks and a visionary performance that come together perfectly with a lineup of features that ignite the imagination – turn up the heat on what’s possible.

Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.

Features
Specifications

Features

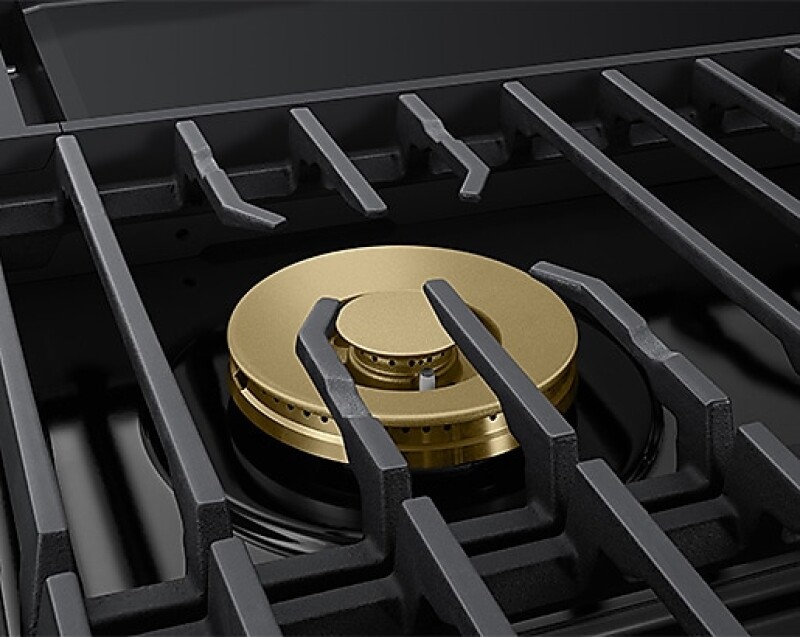

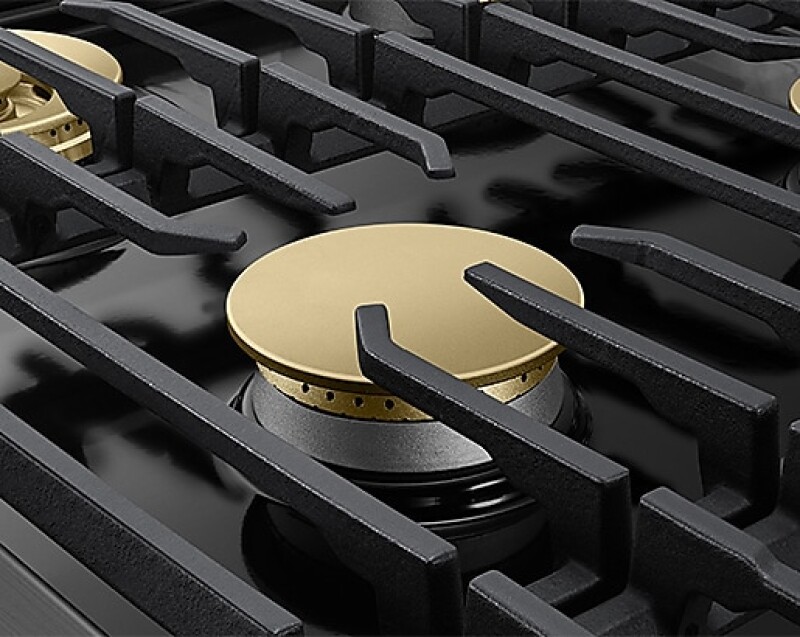

Simmersear™ Burners

Cook delicious meals with ease and precision. Quickly boil water with 22,000 BTU of power or maintain a gentle simmer at 750 BTU with the all-brass, Dual Valve, Dual Ring Burner.

Built-in Griddle

A 6 Pass, built-in 1,400W Griddle provides even heat distribution. And the scratch-resistant, cast-aluminum griddle is coated with a non-stick ceramic surface to keep your kitchen pristine.

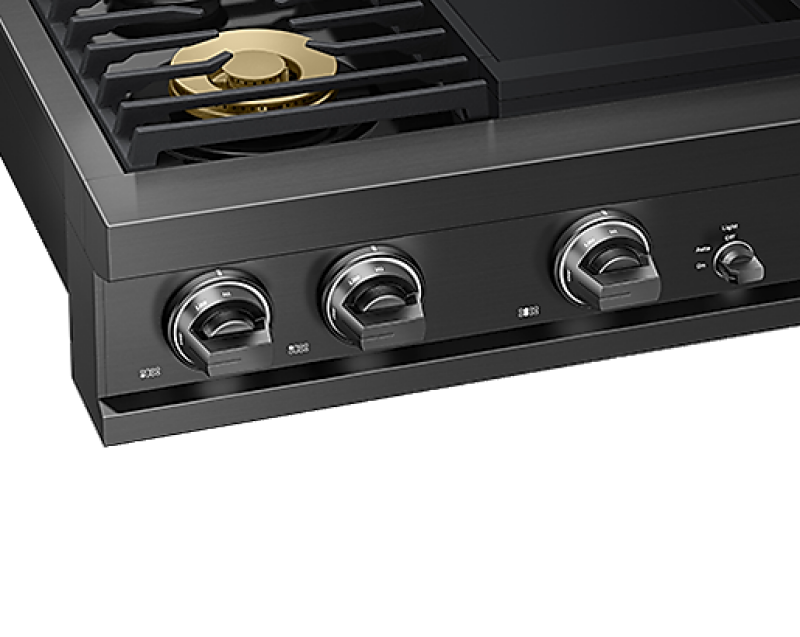

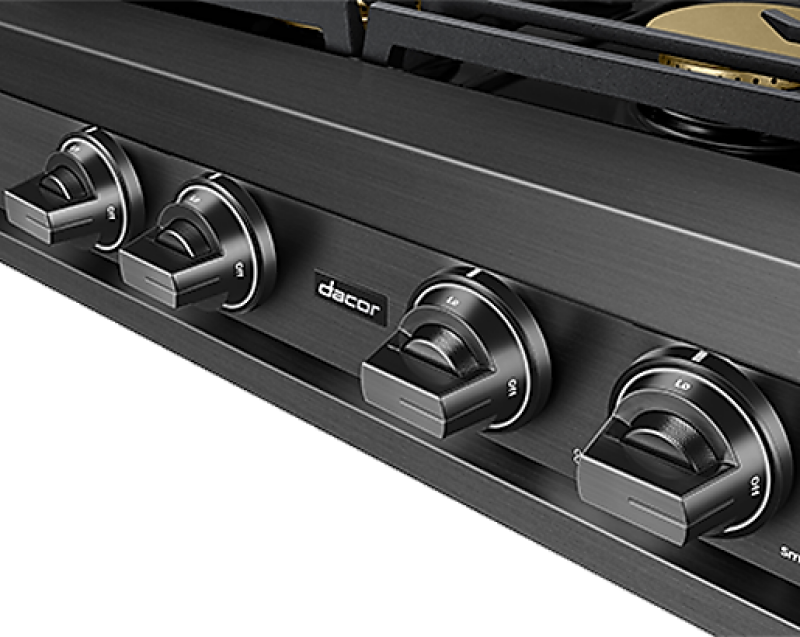

Illumina™ Knobs

Elegance meets function with a Dacor rangetop, and no detail is overlooked. Glowing Illumina™ knobs shine and add a warm, welcoming glow to your kitchen.

Auto-connected Hood

Bluetooth and ConnectOn auto-responsive technology turns on the ventilation in conjunction with the cooktop. And with the use of a temperature sensor, ramps up the ventilation speed as necessary.

Luxurious Finishes

Dacor exclusive Graphite and Silver Stainless Steel finishes bring beauty and style to match any kitchen design or concept.

Smartthings Integration

The SmartThings connected platform provides an exceptional foundation for an ever-growing ecosystem of smart connectivity. Preheat and check the oven temperature, the cooking status and the remaining time – all from the comfort of your smartphone.

Specifications

Dimensions & Weight

Width47.88 in.
Height8 in.
Length27.88 in.
Weight-

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width52.88 in.
Shipping Height13 in.
Shipping Length32.88 in.
Shipping Weight-
Total of Shipping Weight-
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement6.18 ft³
Dimensional Weight76.81 lbs.
Total of Cubes6.18 ft³
Total of Dimensional Weight76.81 lbs.

Overall Dimensions

Width47-7/8"
Height8"
Depth27-7/8"

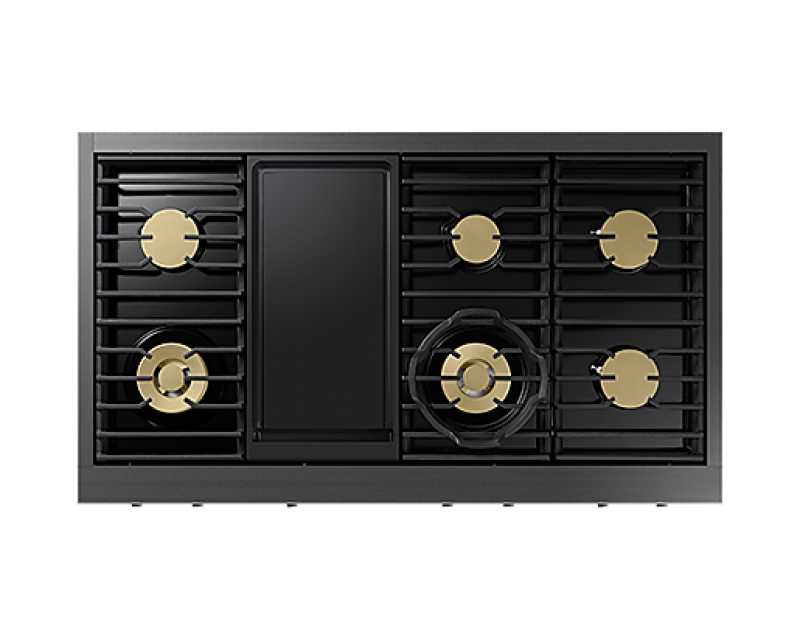

Burner Configuration

Left Front18,000 BTU
Left Rear16,000 BTU
Center Front22,000 BTU
Center Rear9,000 BTU
Right Front16,000 BTU
Right Rear16,000 BTU

Requirements

Electrical120V, 60Hz, 15A

Accessories

Burner Caps, BlackYes
Burner Caps, BrassYes
Wok RingYes
