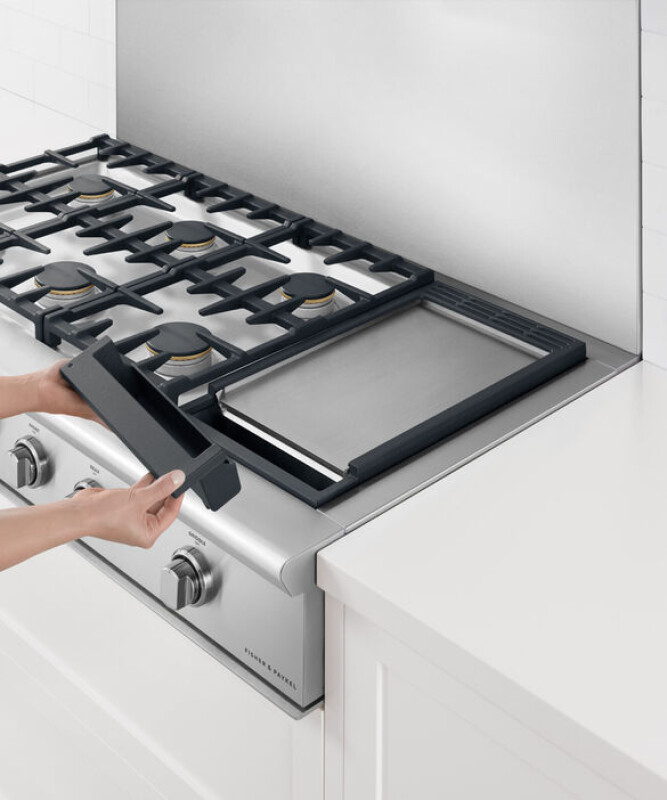

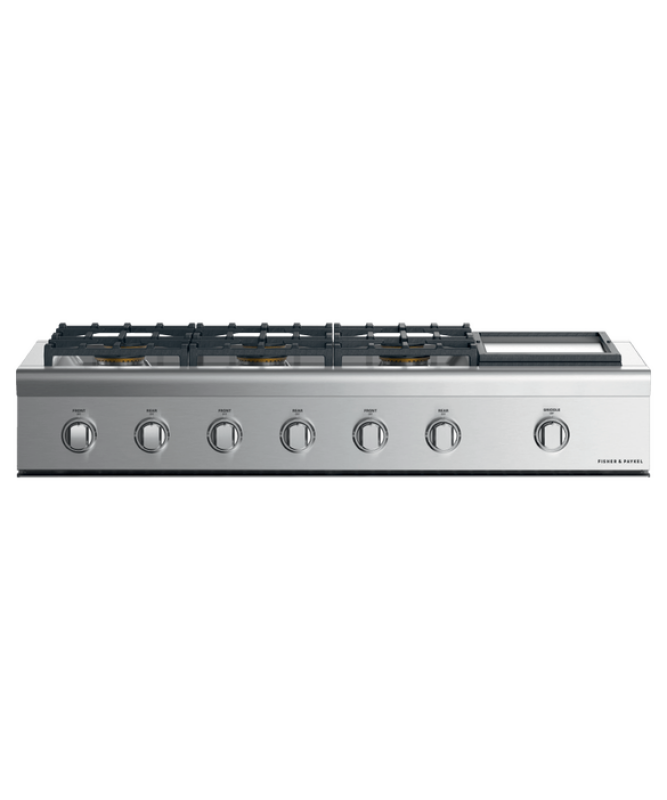

Gas Rangetop, 48", Griddle, LPG - CPV2486GDLN
This product is discontinued and has been replaced by the model below.
Gas Rangetop, 48", Griddle, LPG
Model: CPV2486GDLN
This product is discontinued and has been replaced by the model below.
Gas Rangetop, 48", Griddle, LPG
Model: CPV2486GDLN
Rebate AvailableColor : Other
Replaced By
Current Rebates
Fisher And Paykel 15% And Warranty Extension Rebate
Expires: December 31, 2026
Key Features
Precise control
Perfect heat
Cooking flexibility
Easy cleaning
Information at a glance
Complementary Design
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
Specifications
Features
Precise control
Perfect heat
Cooking flexibility
Easy cleaning
Information at a glance
Complementary Design
Specifications
Burner ratings
| Max burner power | 23500BTU |
| Power back left | 18500BTU |
| Power back centre | 18500BTU |
| Power front centre | 18500BTU |
| Power back right | 18500BTU |
| Power front right | 18500BTU |
| Power front left | 23500BTU |
| Power griddle | 18000BTU |
Performance
| Simmer on all burners | 140°F |
| Sealed Dual Flow Burners™ | 6 |
Power requirements
| Supply frequency | 60Hz |
| Amperage | 15A |
| Supply voltage | 120V |
Recommended back guards and ventilation
| Pro hood | VS48 |
| Minimum CFM | 1200 |
Warranty
| Parts and labor | Limited 2 Years Parts & Labor |
| Parts | 2 Year |
| Labor | 2 Year |
Other
| Max burner power | 23500BTU |
| Power back centre | 18500BTU |
| Power griddle | 18000BTU |
| Sealed Dual Flow Burners™ | 6 |
| Simmer on all burners | 140°F |
| Amperage | 15A |
| Supply frequency | 60Hz |
| Supply voltage | 120V |
| Minimum CFM | 1200 |
| Pro hood | VS48 |
| Parts and labor | Limited 2 Years Parts & Labor |
Dimensions & Weight
| Width | 47 in. |
| Height | 8 in. |
| Length | 28 in. |
| Weight | - |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 52 in. |
| Shipping Height | 13 in. |
| Shipping Length | 33 in. |
| Shipping Weight | - |
| Total of Shipping Weight | - |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 6.09 ft³ |
| Dimensional Weight | 75.74 lbs. |
| Total of Cubes | 6.09 ft³ |
| Total of Dimensional Weight | 75.74 lbs. |
