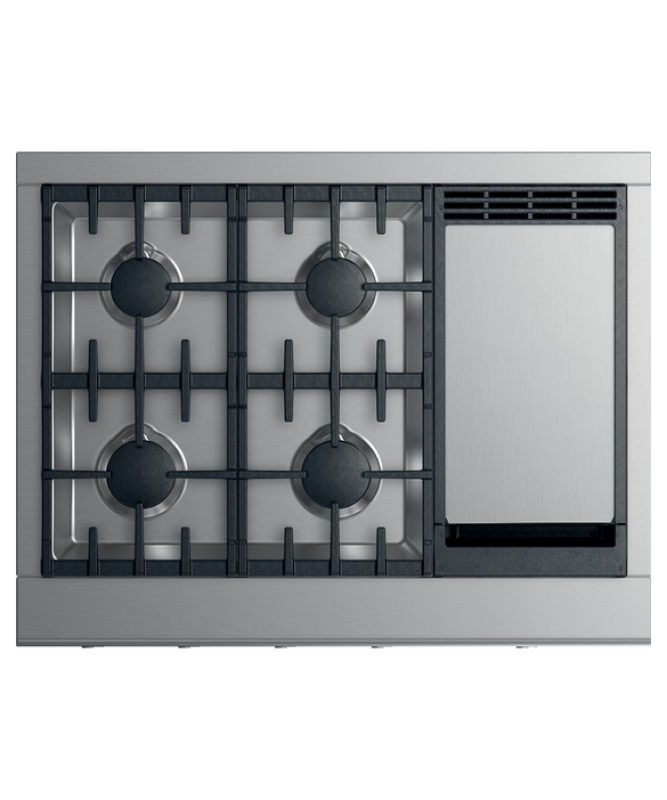

Gas Rangetop, 36", Griddle - CPV2364GDNN
This product is discontinued and has been replaced by the model below.
Gas Rangetop, 36", Griddle
Model: CPV2364GDNN
This product is discontinued and has been replaced by the model below.
Gas Rangetop, 36", Griddle
Model: CPV2364GDNN
Rebate AvailableColor : Other
Replaced By
Current Rebates
Fisher And Paykel 15% And Warranty Extension Rebate
Expires: December 31, 2026
Key Features
Perfect heat
Precise control
Cooking flexibility
Easy cleaning
Information at a glance
Complementary Design
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
Specifications
Features
Perfect heat
Precise control
Cooking flexibility
Easy cleaning
Information at a glance
Complementary Design
Specifications
Burner ratings
| Power front left | 23,500 BTU |
| Power griddle | 18,000 BTU |
| Power front right | 18,500 BTU |
| Max burner power | 23,500 BTU |
| Total Power | 97,000 BTU |
| Power back left | 18,500 BTU |
| Power back right | 18,500 BTU |
Gas requirements
| Fitting and pipe | ½ NPT, min. â…" ∅ flex line |
| Supply Pressure (natural gas) | 6" to 9" W.C |
Performance
| Simmer on all burners | 140°F |
| Sealed Dual Flow Burners™ | 4 |
Power requirements
| Amperage | 15A |
| Supply frequency | 60Hz |
| Supply voltage | 120V |
Recommended back guards and ventilation
| Combustible situation | BGCV2-3036H |
| Minimum CFM | 600-1,200 |
| Non combustible situation | BGCV2-3036 / BGCV2-1236 |
| Traditional hood | ES36 |
| Pro hood | VS36 / VS1236 |
Warranty
| Parts and labor | Limited 2 years |
| Parts | 2 Year |
| Labor | 2 Year |
Other
| Max burner power | 23,500 BTU |
| Power back left | 18,500 BTU |
| Power griddle | 18,000 BTU |
| Total Power | 97,000 BTU |
| Fitting and pipe | ½ NPT, min. â…" ∅ flex line |
| Supply Pressure (natural gas) | 6" to 9" W.C |
| Sealed Dual Flow Burners™ | 4 |
| Simmer on all burners | 140°F |
| Amperage | 15A |
| Supply frequency | 60Hz |
| Supply voltage | 120V |
| Combustible situation | BGCV2-3036H |
| Minimum CFM | 600-1,200 |
| Non combustible situation | BGCV2-3036 / BGCV2-1236 |
| Pro hood | VS36 / VS1236 |
| Traditional hood | ES36 |
| Parts and labor | Limited 2 years |
Dimensions & Weight
| Width | 35 in. |
| Height | 8 in. |
| Length | 28 in. |
| Weight | - |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 40 in. |
| Shipping Height | 13 in. |
| Shipping Length | 33 in. |
| Shipping Weight | - |
| Total of Shipping Weight | - |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 4.54 ft³ |
| Dimensional Weight | 56.4 lbs. |
| Total of Cubes | 4.54 ft³ |
| Total of Dimensional Weight | 56.4 lbs. |
