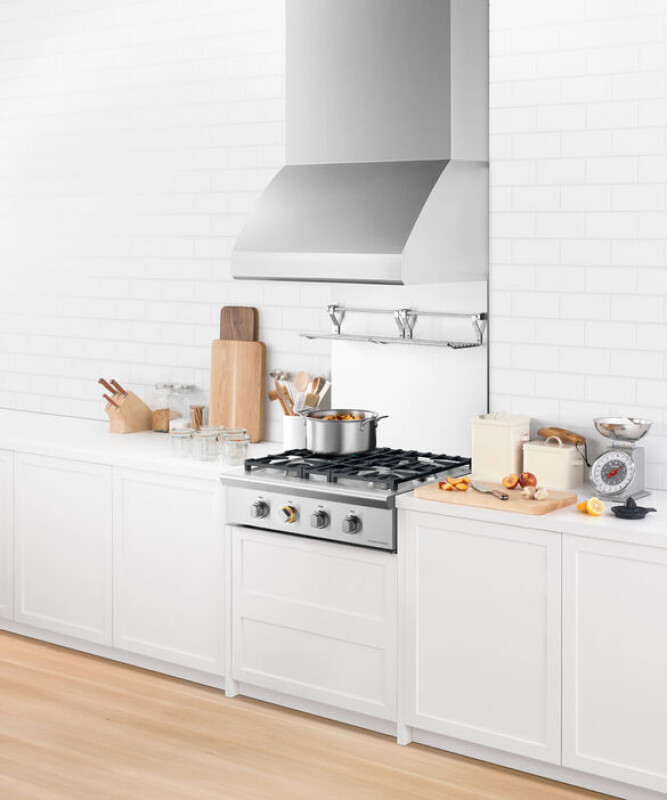

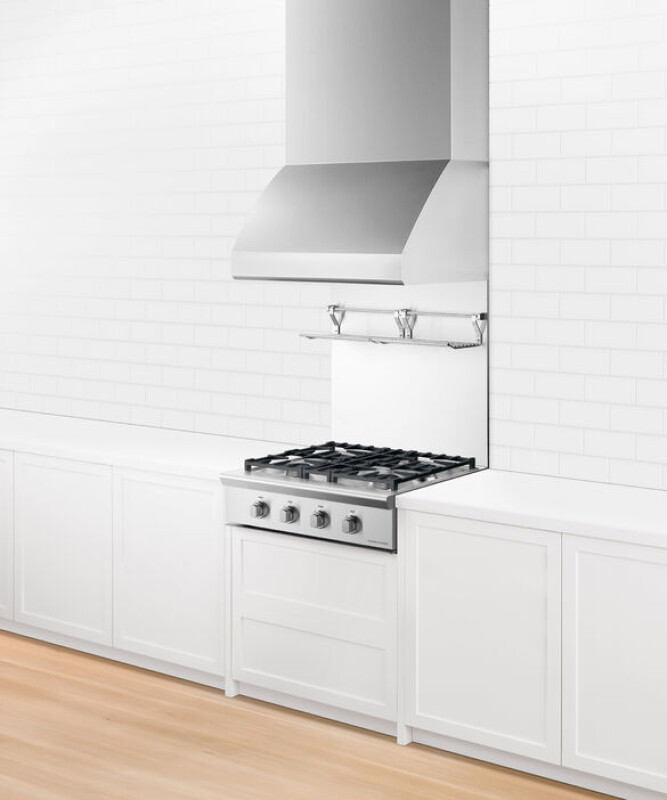

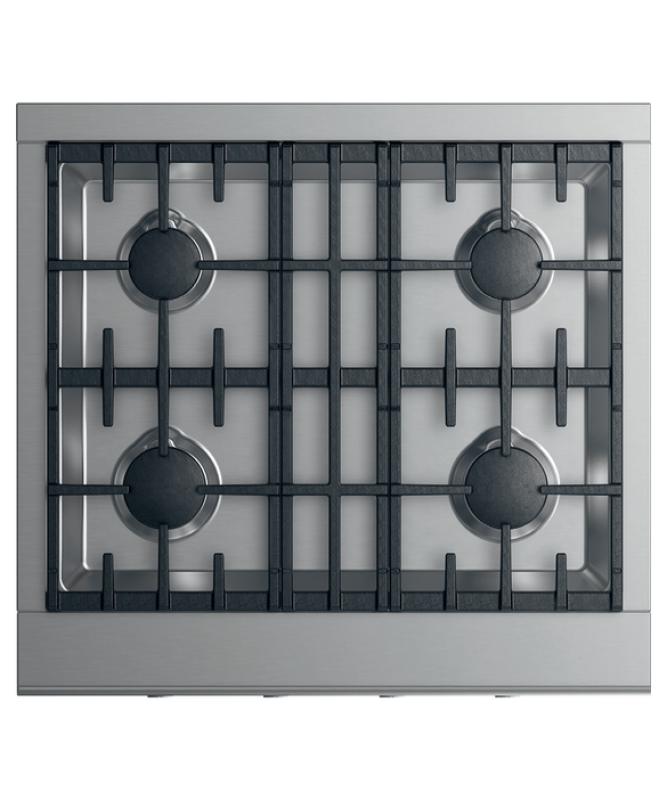

Gas Rangetop, 30" - CPV2304NN
This product is discontinued and has been replaced by the model below.
Gas Rangetop, 30"
Model: CPV2304NN
This product is discontinued and has been replaced by the model below.
Gas Rangetop, 30"
Model: CPV2304NN
Rebate AvailableColor : Other
Replaced By
Current Rebates
Fisher And Paykel 15% And Warranty Extension Rebate
Expires: December 31, 2026
Key Features
Perfect heat
Precise Control
Easy cleaning
Information at a glance
Complementary design
Cooking flexibility
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
Specifications
Features
Perfect heat
Precise Control
Easy cleaning
Information at a glance
Complementary design
Cooking flexibility
Specifications
Burner ratings
| Power front right | 18500BTU |
| Power front left | 22500BTU |
| Power back left | 18500BTU |
| Max burner power | 22500BTU |
| Power back right | 18500BTU |
Performance
| Sealed Dual Flow Burners™ | 4 |
| Simmer on all burners | 140°F |
Power requirements
| Amperage | 15A |
| Supply frequency | 60Hz |
| Supply voltage | 120V |
Recommended back guards and ventilation
| Minimum CFM | 600 |
| Pro hood | VS30 |
Warranty
| Parts and labor | Limited 2 Years Parts & Labor |
Other
| Max burner power | 22500BTU |
| Power back left | 18500BTU |
| Sealed Dual Flow Burners™ | 4 |
| Simmer on all burners | 140°F |
| Amperage | 15A |
| Supply frequency | 60Hz |
| Supply voltage | 120V |
| Minimum CFM | 600 |
| Pro hood | VS30 |
| Parts and labor | Limited 2 Years Parts & Labor |
Dimensions & Weight
| Width | 29 in. |
| Height | 8 in. |
| Length | 28 in. |
| Weight | - |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 34 in. |
| Shipping Height | 13 in. |
| Shipping Length | 33 in. |
| Shipping Weight | - |
| Total of Shipping Weight | - |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 3.76 ft³ |
| Dimensional Weight | 46.73 lbs. |
| Total of Cubes | 3.76 ft³ |
| Total of Dimensional Weight | 46.73 lbs. |
