Oblivion 30" Induction Flex Cooktop - JIC4730HB

JennAirJennAir brand logo
This product has been discontinued by the manufacture and is no longer available.

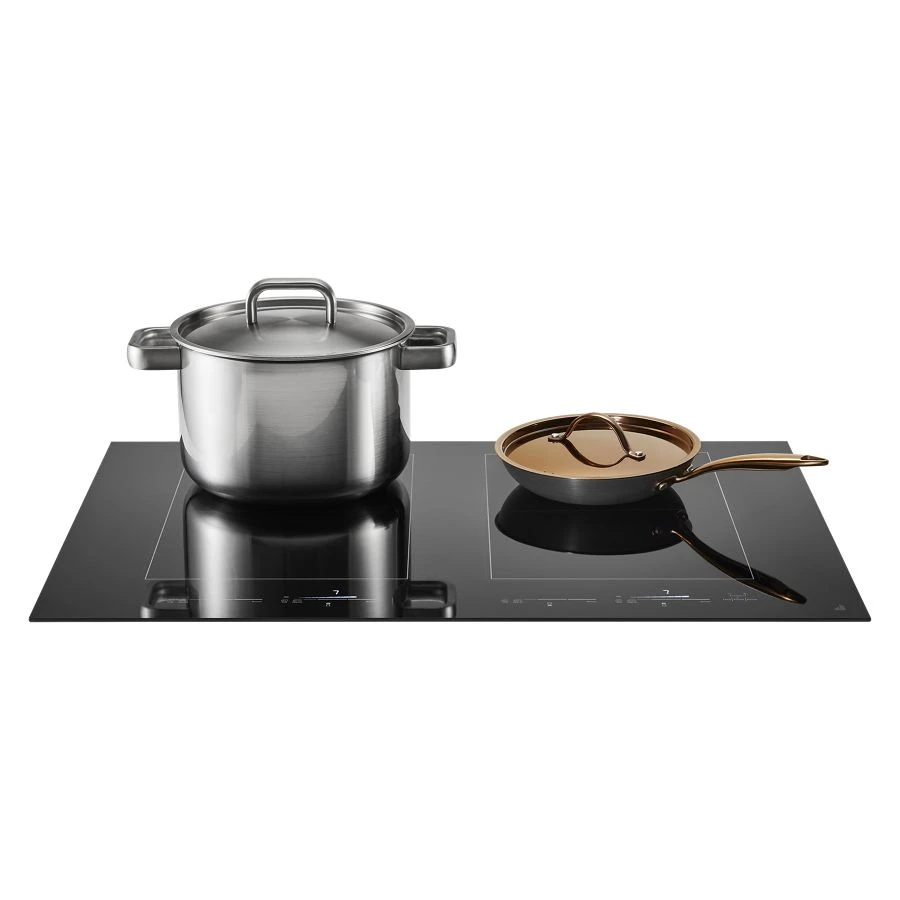

Oblivion 30" Induction Flex Cooktop

Model: JIC4730HB

Oblivion 30" Induction Flex Cooktop JIC4730HBOblivion 30" Induction Flex Cooktop JIC4730HBOblivion 30" Induction Flex Cooktop JIC4730HBOblivion 30" Induction Flex Cooktop JIC4730HBOblivion 30" Induction Flex Cooktop JIC4730HBOblivion 30" Induction Flex Cooktop JIC4730HBOblivion 30" Induction Flex Cooktop JIC4730HBOblivion 30" Induction Flex Cooktop JIC4730HB
Oblivion 30" Induction Flex Cooktop JIC4730HB
Oblivion 30" Induction Flex Cooktop JIC4730HB
Oblivion 30" Induction Flex Cooktop JIC4730HB
Oblivion 30" Induction Flex Cooktop JIC4730HB
Oblivion 30" Induction Flex Cooktop JIC4730HB
+3more

Color : Floating Glass Black

Oblivion 30" Induction Flex Cooktop JIC4730HB
Floating Glass Black

Key Features

  • Emotive Controls

  • Oblivion Glass Design

  • Bridge Function

  • Magnetic Induction

  • Versatile Installation

Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.

Features
Specifications

Features

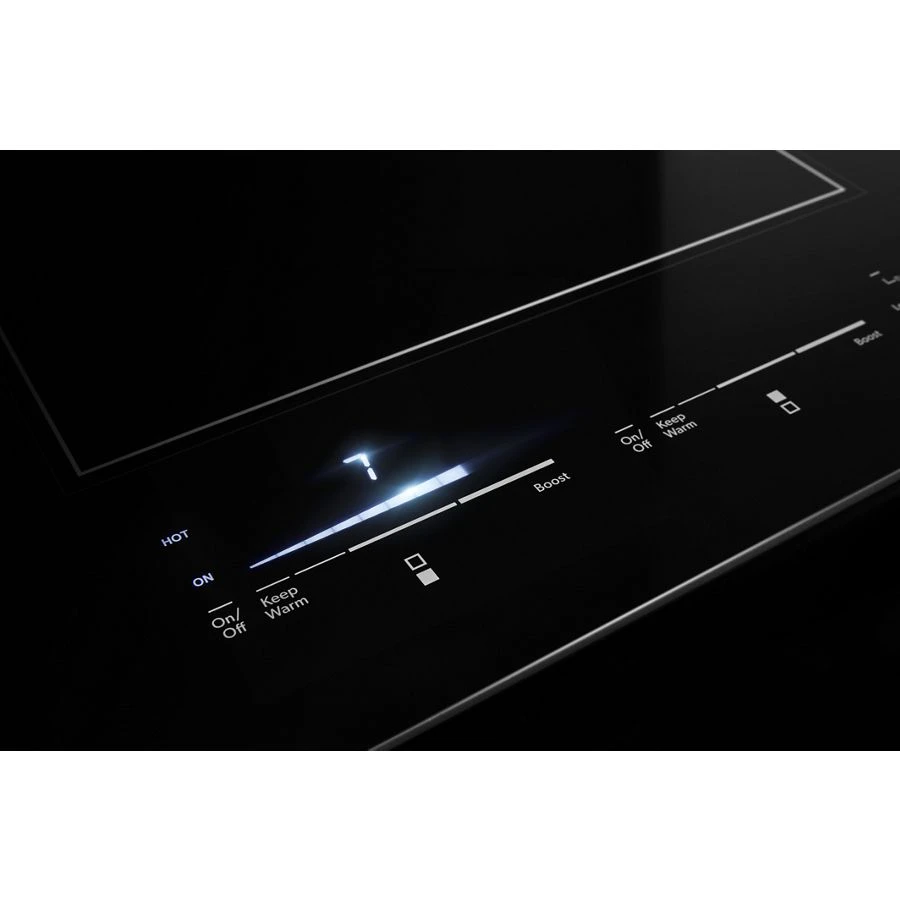

Emotive Controls

Striking, intuitive and inviting controls with clear, white LEDs unleash performance at your touch.

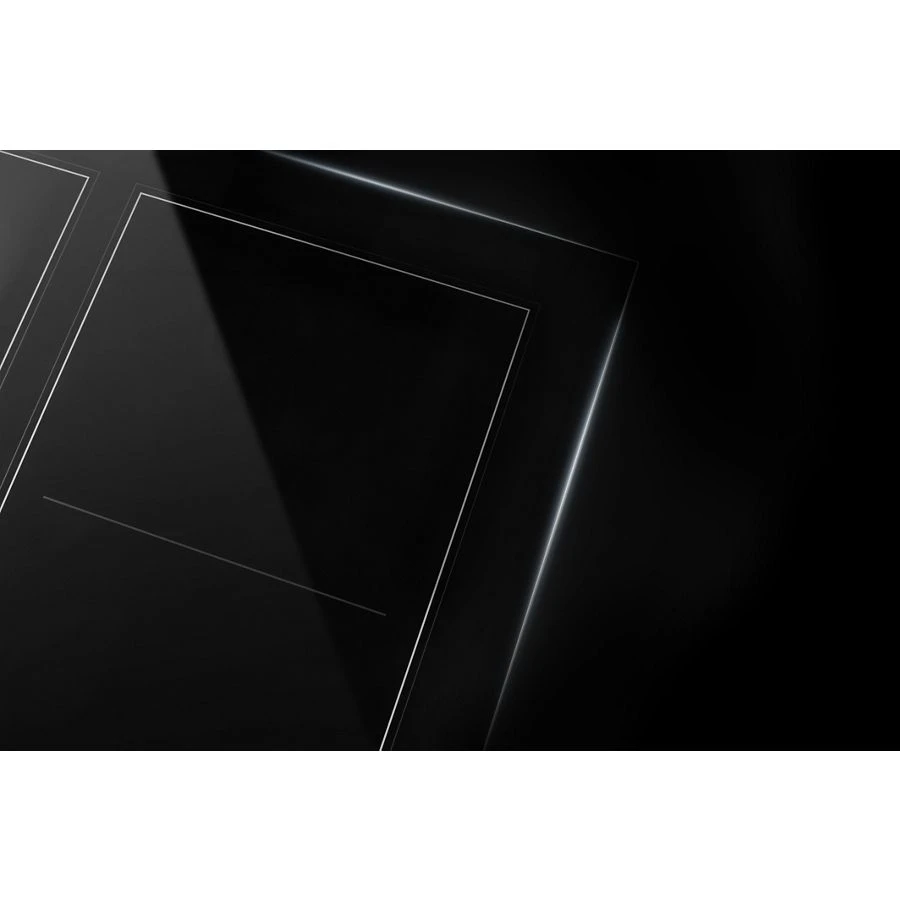

Oblivion Glass Design

Sleek black glass that seizes its surroundings. Lose yourself in the depths of infinite possibilities that dare you to explore your limits.

Bridge Function

Invoke the heat. Let it course through your cookware with two induction elements that fuse into one, a grand altar for cookware like griddles or braisers.

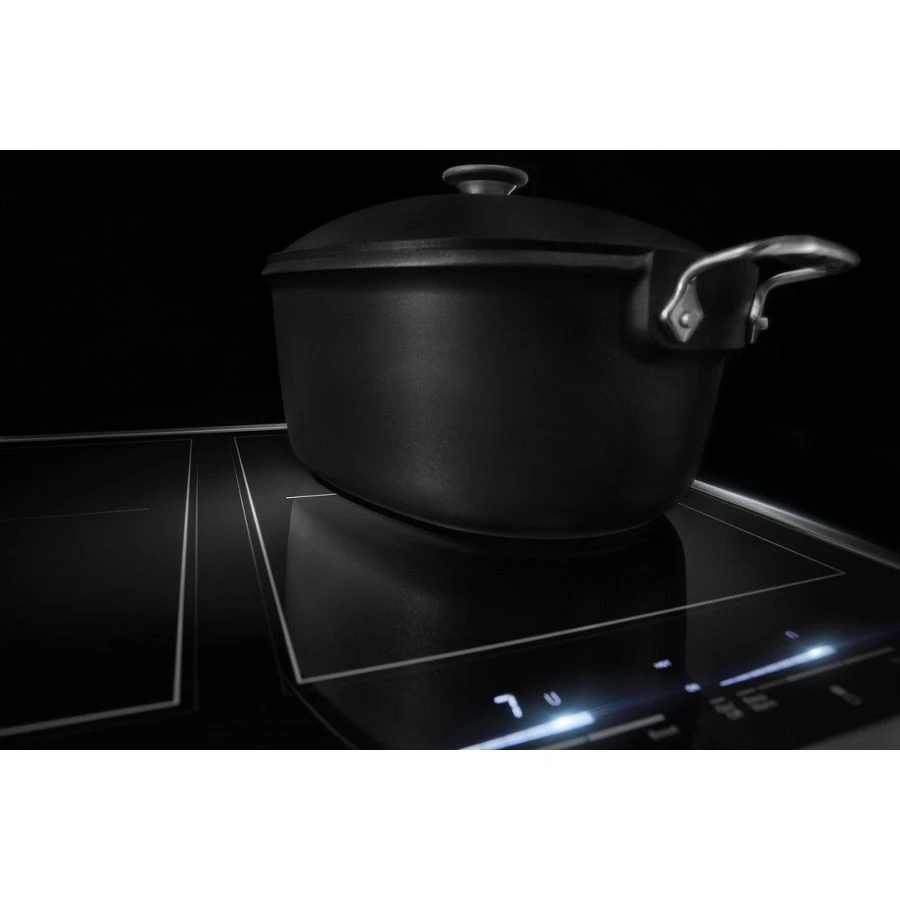

Magnetic Induction

Magnetism with a pulse. A surface that heats only the cookware for fierce, flexible power.

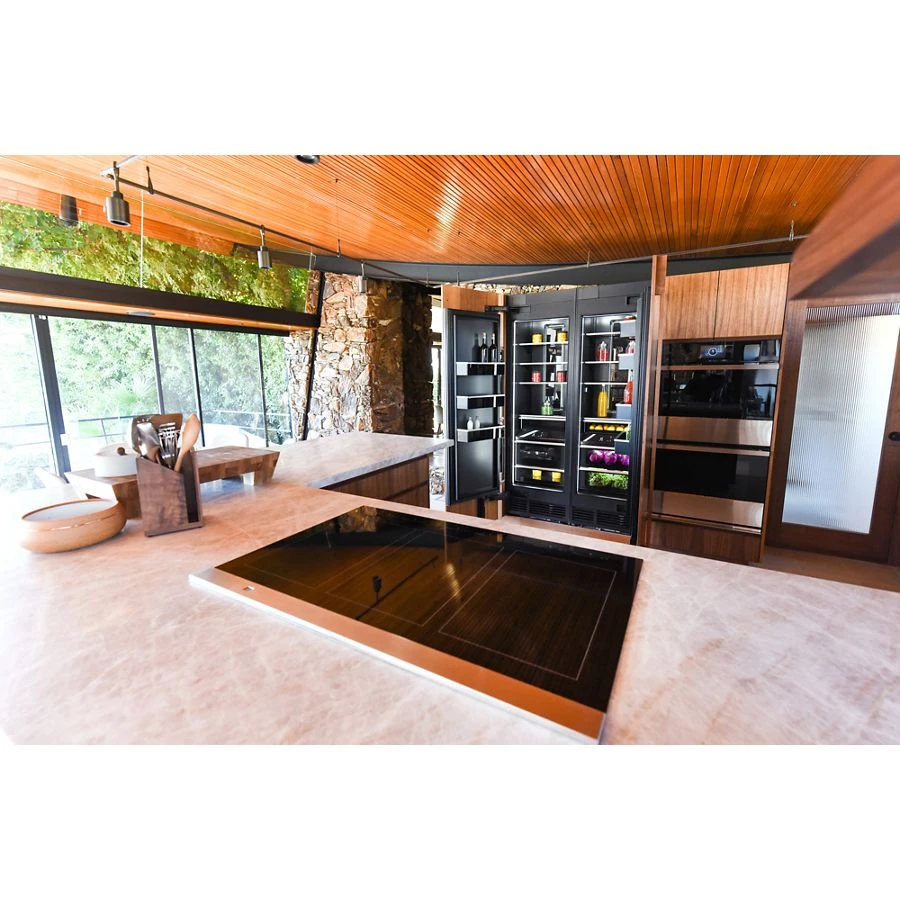

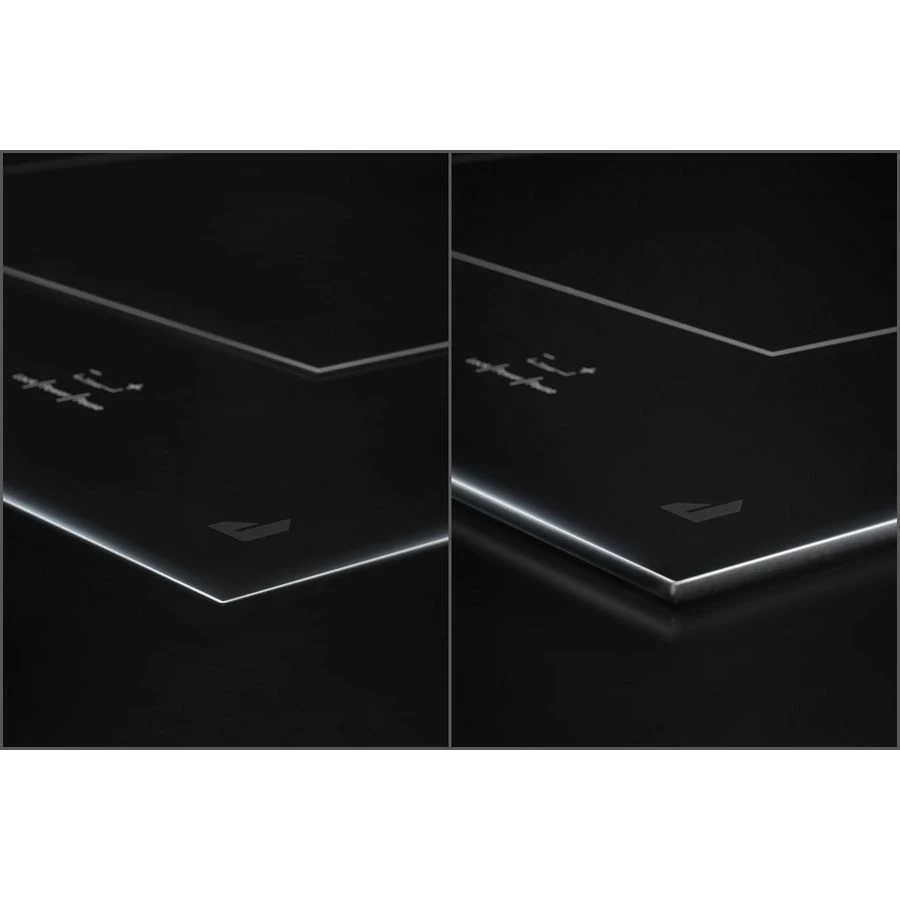

Versatile Installation

Install without limits. This JennAir® cooktop can be installed true flush or semi-flush at 3mm above any level countertop, including an island or peninsula.

Specifications

Warranty

Parts2 Year
Labor2 Year

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement4.35 ft³
Dimensional Weight54.07 lbs.
Total of Cubes4.35 ft³
Total of Dimensional Weight54.07 lbs.

Dimensions & Weight

Width32.5 in.
Height9.25 in.
Length25 in.
Weight47 lbs.
Carton Depth25
Carton Height9 1/4
Carton Width32 1/2
Cutout Depth (in)20 7/16
Cutout Width (in)29
Gross Weight47
Net Weight38.0
Cutout Depth Min(IN,inches)20.4375
Cutout Depth(IN,inches)20.4375
Cutout Width Min(IN,inches)29.0000
Cutout Width(IN,inches)29.0000
Depth(IN,inches)21.0000
Net Weight(LB,pounds)38
Carton Depth(IN,inches)25.0000
Carton Height(IN,inches)9.2500
Carton Width(IN,inches)32.5000
Gross Weight(LB,pounds)47
Cutout Depth20.438
Cutout Depth Min20.438
Cutout Width29
Cutout Width Min29
carton depth25
carton height9.25
carton width32.5
gross weight47
net weight38

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width32.5 in.
Shipping Height9.25 in.
Shipping Length30 in.
Shipping Weight87 lbs.
Total of Shipping Weight87 lbs.
SourceCalculation

Cooktop Details

Cooktop Surface ColorBlack
Cooktop Surface MaterialGlass
Digital DisplayYes
Heating Element On Indicator LightYes
Hot Surface Indicator LightYes
Installs Over Built-In OvenYes
Combination Match with OvenJjw2424, Jjw2427, Jjw2430, Jjw3430, Jjw6024
Griddle IncludedN/a

Details

Cooktop ConfigurationAll Burners
Fuel TypeElectric Induction
Digital DisplayYes
LP ConvertibleNo
Installation ConfigurationTrue Flush
Installs Over Built-In OvenYes
Power Outage CompatibleNo
Design ExpressionOblivion Glass

Element/Burner Details

Cooktop Element StyleInduction
Automatic Pan DetectionYes
Left Front Element-Burner Size8in.
Cooktop TypeTraditional
Left Rear Element-Burner Size8in.
Left Front Element-Burner TypeBridge
Power BoostYes
Left Rear Element-Burner TypeBridge
Number of Cooking Element-Burners4
Right Front Element-Burner TypeBridge
Right Front Element-Burner Size8in.
Right Rear Element-Burner TypeBridge
Right Rear Element-Burner Size8in.
Left Front Element-Burner Power3,700w
Left Rear Element-Burner Power3,700w
Right Front Element-Burner Power3,700w
Right Rear Element-Burner Power3,700w

Smart Compatibility

ConnectivityNo
Works WithNo

Controls

Control LocationFront
Control TypeElectronic Tap Touch

Ventilation Details

Downdraft VentNo
Ventilation TypeUpdraft

Electrical

208V CompatibleYes
Amps40
Hz60
Power Cord IncludedYes
Volts240
Watts7

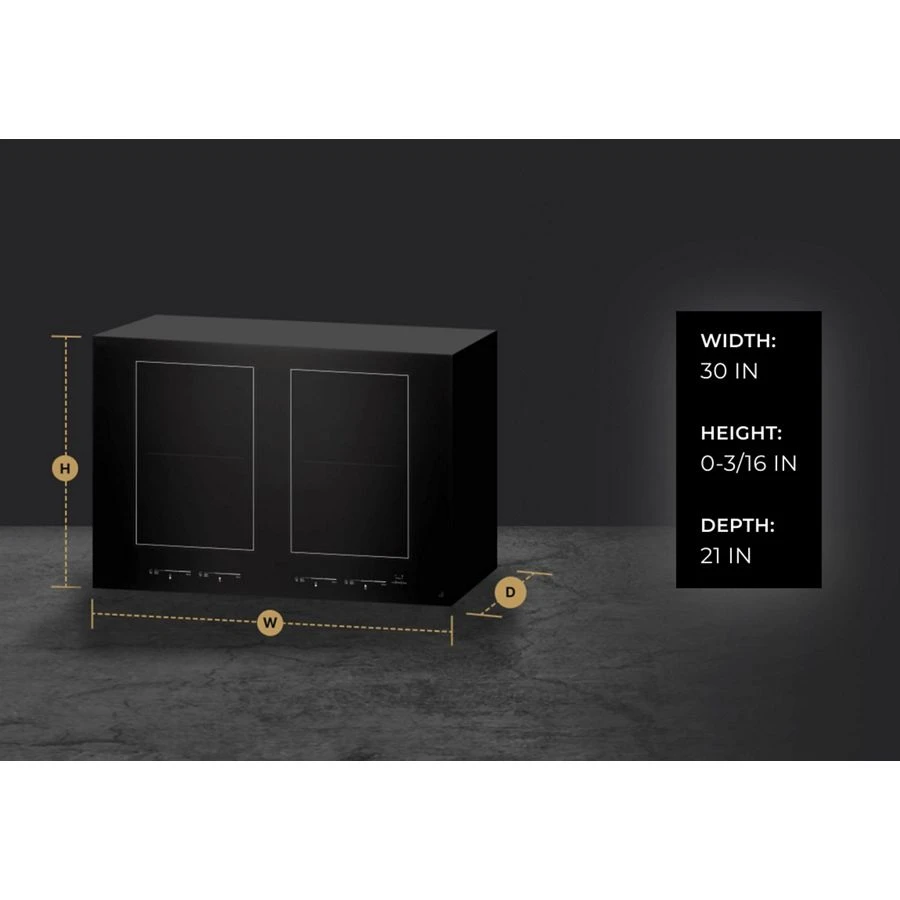

Dimensions

Common Size30 In
Cutout Width29 In
Depth21 In
Gross Weight47 Lbs
Net Weight38 Lbs
Width30 In
Cutout Depth20.438 In
Cutout Depth Min20.438 In
Height0.1875 In

Certifications

Prop 65California Residents Only - Warning: Cancer And Reproductive Harm - Www.p65warnings.ca.gov.
