800 Series Gas Cooktop Black - NGM8648UC
800 Series Gas Cooktop Black
Model: NGM8648UC











Product Video

360 View
800 Series Gas Cooktop Black
Model: NGM8648UC
Key Features
Sleek Knobs with LED Indicators
Simmer delicate sauces with the OptiSim Burner
Boil water quickly with a Dual-Flame Power Burner
Eliminate the guesswork of cooking with FlameSelect
Easy clean-up with dishwasher-safe grates
Easily slide your pans from burner to burner
LED Burner Indicator: displays a red light line to indicate if a burner is on and pulses as a safety residual heat indicatorClose
OptiSim Burner: the wide & thick burner design diffuses heat evenly and reduces hot spots -- perfect for simmering delicate sauces or melting chocolate.Close
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features

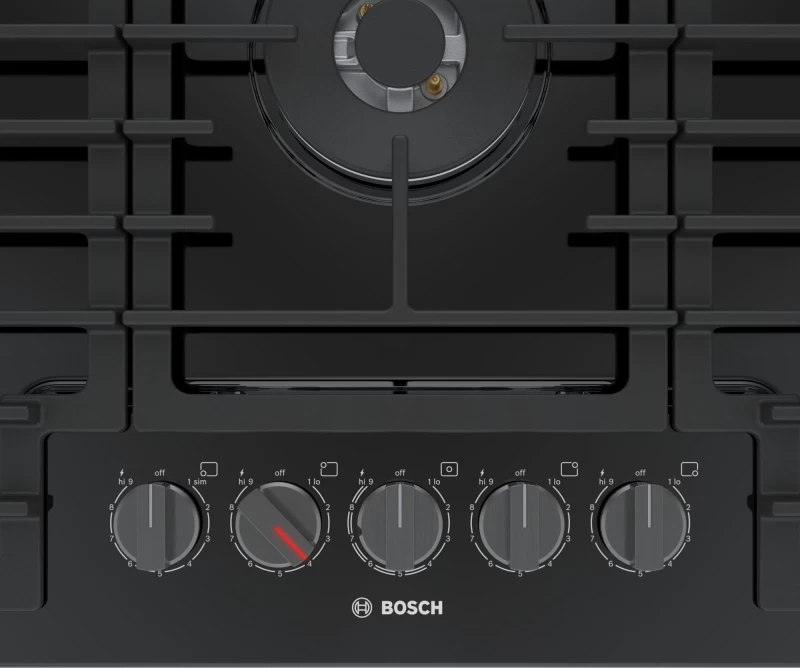

Sleek Knobs with LED Indicators
Control knobs with an embedded red LED light line indicate if the burner is on or if there is residual heat.

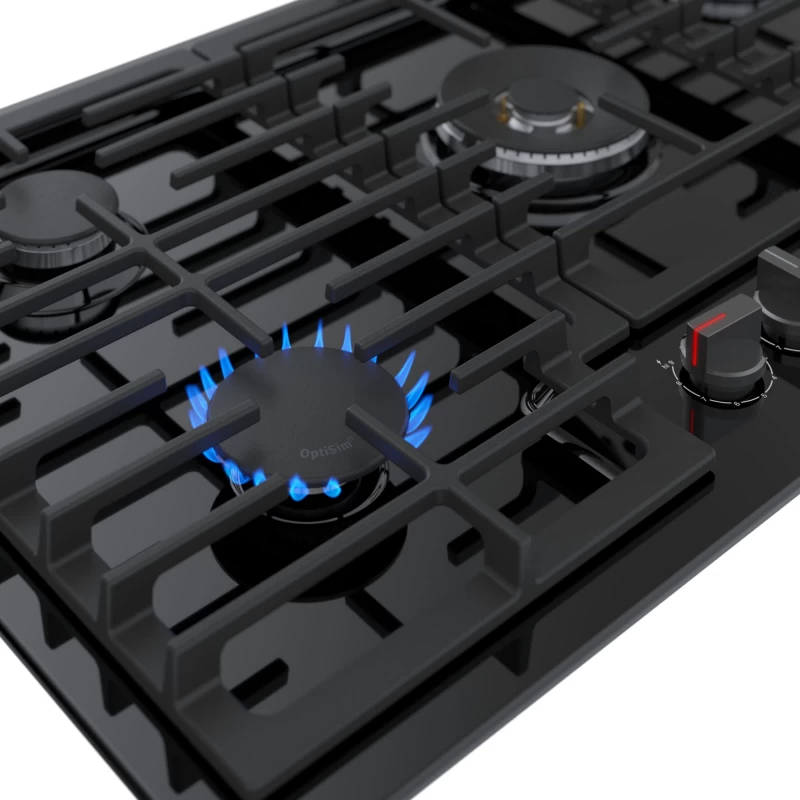

Simmer delicate sauces with the OptiSim Burner
The OptiSim burner design is wider and thicker which diffuses heat evenly for better flame control when simmering delicate sauces.

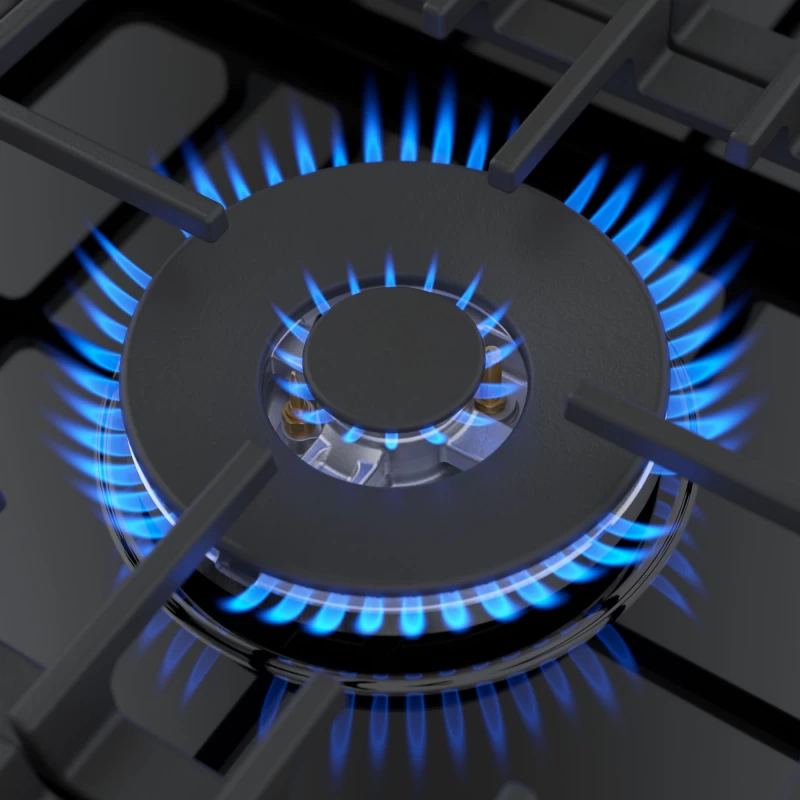

Boil water quickly with a Dual-Flame Power Burner
The dual flame ring power burner has two rings for low and high flame settings so you can go from simmer to sear with ease. Heat level 1-3 uses the inner ring, and 4-9 uses both rings for maximum heat.
Eliminate the guesswork of cooking with FlameSelect
Introducing FlameSelect on Bosch cooktops, an entirely new and better way to cook with gas. 9 preset power levels let you easily adjust flame level for more precise, controlled heating. Whether you’re rapidly bringing water to an intense boil or delicately melting chocolate, the numbered flame levels deliver the exact temperature every time. There’s no more hot or cold spots, just precision heating for perfect results.
Easy clean-up with dishwasher-safe grates
A special enameling process allows the grates to be washed directly in the dishwasher instead of by hand for easier clean up.
Easily slide your pans from burner to burner
The full-width continuous cast iron grate design makes sliding heavy pots easier around the cooking surface.
LED Burner Indicator: displays a red light line to indicate if a burner is on and pulses as a safety residual heat indicatorClose
Control knobs with an embedded red LED light line indicate if the burner is on or if there is residual heat.
OptiSim Burner: the wide & thick burner design diffuses heat evenly and reduces hot spots -- perfect for simmering delicate sauces or melting chocolate.Close
The OptiSim burner design is wider and thicker which diffuses heat evenly for better flame control when simmering delicate sauces.
Dual-Flame Power Burner: 2 rings of heat let you go from simmer to a high powered boil with ease.Close
The dual flame ring power burner has two rings for low and high flame settings so you can go from simmer to sear with ease. Heat level 1-3 uses the inner ring, and 4-9 uses both rings for maximum heat.
FlameSelect: delivers a new and better way to cook with gas with 9 pre-defined power levels for precise heat.Close
Dishwasher-Safe Grates: conveniently place your grates in the dishwasher for easy clean-up.Close
A special enameling process allows the grates to be washed directly in the dishwasher instead of by hand for easier clean up.
LED Burner Indicator:
displays a red light line to indicate if a burner is on and pulses as a safety residual heat indicator
OptiSim Burner:
the wide & thick burner design diffuses heat evenly and reduces hot spots -- perfect for simmering delicate sauces or melting chocolate.
Dual-Flame Power Burner:
2 rings of heat let you go from simmer to a high powered boil with ease.
FlameSelect:
delivers a new and better way to cook with gas with 9 pre-defined power levels for precise heat.
Dishwasher-Safe Grates:
conveniently place your grates in the dishwasher for easy clean-up.
OptiSim® Burner:
the wide & thick burner design diffuses heat evenly and reduces hot spots -- perfect for simmering delicate sauces or melting chocolate.
FlameSelect®:
delivers a new and better way to cook with gas with 9 pre-defined power levels for precise heat.
Specifications
Construction type
| Flushmount | No |
| Basic surface material | Porcelain, steel |
| Color | Black |
| Frame type | Frameless |
| Material of pan supports | Cast iron with rubber feet |
| Flat burner | No |
Burners and power
| Total number of cooktop burners | 5 |
| Dual wok burner | No |
| Power of the heating elements | 1 x 1.0 KW, 1 x 3.0 KW, 1 x 5.0 KW, 2 x 1.75 KW |
Comfort
| Flame select | Yes |
| dishwasher safe pan support | Yes |
| Location of control panel | Cooktop front |
| Hob ignition | Knob ignition |
| One piece burner | No |
Connectivity
| Home Connect™ | no |
Safety
| Safety Features | SMARTFLAME |
| Residual heat indicator | Separate |
| Main on/off switch | No |
| Safety | SMARTFLAME |
Accessories
| Included accessories | 1 x nozzle set for liquid gas, 1 x cast iron pan support |
General
| Total NG BTUs | 41700 Btu |
| Total LP BTUs | 41700 Btu |
| ExtraLow® Burners | no |
Design
| Surface Materials | Porcelain, Steel |
| Grate Materials | Cast Iron with Rubber Feet |
| Location of Control Panel | Front |
Comfort and Convenience
| Number of Gas Burners | 5 |
| Pedestal Star® Burners | no |
| Sealed Burners | yes |
| ExtraLow® Burners | no |
| Griddle | no |
| ADA Compliant (When Installed to ADA requirements) | no |
| Special Features | Simmer Cap |
| OptiSim® Burner | no |
Dimensions & Weight
| Width | 90 in. |
| Height | 3.81 in. |
| Length | 21.25 in. |
| Weight | - |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 95 in. |
| Shipping Height | 8.81 in. |
| Shipping Length | 26.25 in. |
| Shipping Weight | - |
| Total of Shipping Weight | - |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 4.22 ft³ |
| Dimensional Weight | 52.46 lbs. |
| Total of Cubes | 4.22 ft³ |
| Total of Dimensional Weight | 52.46 lbs. |
