800 Series Gas Cooktop 30" - NGM8056UC
800 Series Gas Cooktop 30"
Model: NGM8056UC










800 Series Gas Cooktop 30"
Model: NGM8056UC
Key Features
Simmer delicate sauces with the OptiSim Burner
Automatic re-ignition
Easy to clean, low-profile design
LED indicator light safety feature
Powerful 19,000 BTU burner for boiling, searing and stir-frying.
OptiSim Burner: the wide & thick burner design diffuses heat evenly and reduces hot spots -- perfect for simmering delicate sauces or melting chocolate.Close
Electronic re-ignition will automatically re-ignite the burner in case the flame goes out.Close

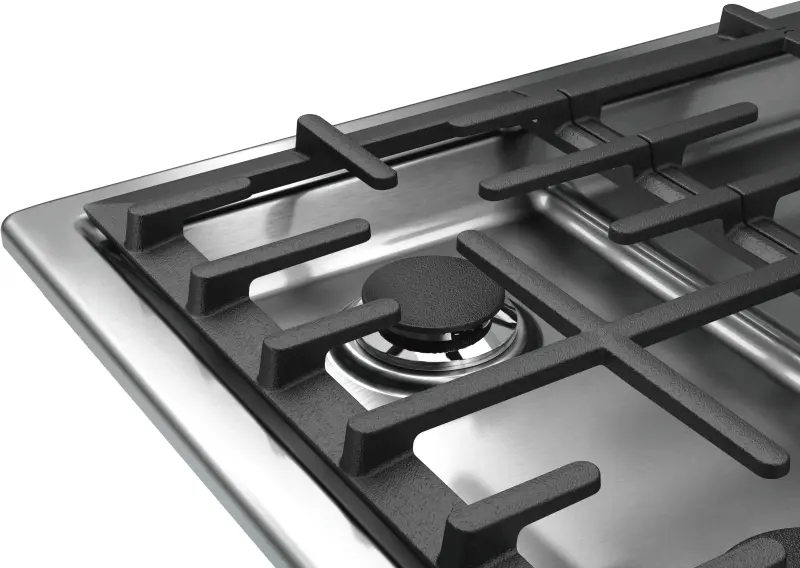

Easy-to-Clean: a one-piece stainless steel design makes clean-up easy.
Description
Documents
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
Simmer delicate sauces with the OptiSim Burner
The OptiSim burner design is wider and thicker which diffuses heat evenly for better flame control when simmering delicate sauces.
Automatic re-ignition
The electronic re-ignition feature will automatically re-ignite the burner in case the flame goes out during use.
Easy to clean, low-profile design
The low-profile cooking surface provides a timeless, streamlined look while keeping spills contained and makes clean-up easier than ever
LED indicator light safety feature
A burner indicator light on the cooktop illuminates when at least one burner is on.
Powerful 19,000 BTU burner for boiling, searing and stir-frying.
OptiSim Burner: the wide & thick burner design diffuses heat evenly and reduces hot spots -- perfect for simmering delicate sauces or melting chocolate.Close
The OptiSim burner design is wider and thicker which diffuses heat evenly for better flame control when simmering delicate sauces.
Electronic re-ignition will automatically re-ignite the burner in case the flame goes out.Close
The electronic re-ignition feature will automatically re-ignite the burner in case the flame goes out during use.
Easy-to-Clean: a one-piece stainless steel design makes clean-up easy.
Distinctive red LED light indicates burners are on.Close
A burner indicator light on the cooktop illuminates when at least one burner is on.
OptiSim Burner:
the wide & thick burner design diffuses heat evenly and reduces hot spots -- perfect for simmering delicate sauces or melting chocolate.
Electronic re-ignition will automatically re-ignite the burner in case the flame goes out.
Easy-to-Clean:
a one-piece stainless steel design makes clean-up easy.
Distinctive red LED light indicates burners are on.
OptiSim® Burner:
the wide & thick burner design diffuses heat evenly and reduces hot spots -- perfect for simmering delicate sauces or melting chocolate.
Specifications
General
| Energy source | Gas |
| Type of Control | sword knobs |
| Safety | Without Safety |
| Total NG BTUs | 50000 Btu |
| Total LP BTUs | 43200 Btu |
| ExtraLow® Burners | no |
Construction type
| Design | Built-in |
| Color of Surface | Stainless steel |
| Number of electric elements | 0 |
| Number of electric cooking zones | 0 |
| Number of halogen elements | 0 |
| Installation Type | Built-in |
| Type of grate | Cast iron |
| Total Number of Heating Elements | 5 |
| Number of radiant elements | 0 |
| Number of electric warming zones | 0 |
Cooking zone 1
| Location of heating element | front left |
| Power of heating element (kW) | 2.93 kW |
| Type of heating element | Gas |
Cooking zone 3
| Location of 3rd heating element | back left |
| Power of 3rd heating element (kW) | 1.61 kW |
| Type of 3rd heating element | Gas |
Cooking zone 4
| Location of 4th heating element | middle back |
Cooking zone 5
| Location of 5th heating element | back right |
| Power of 5th heating element (kW) | 2.93 kW |
| Type of 5th heating element | Gas |
Cooking zone 6
| Location of 6th heating element | center right |
Cooking zone 7
| Location of 7th heating element | front right |
| Power of 7th heating element (kW) | 1.61 kW |
| Type of 7th heating element | Gas |
Cooking zone 8
| Location of 8th heating element | front middle / central |
Cooking zone 9
| Location of 9th heating element | front centre/cent |
Safety
| Residual Heat Indicator | Without |
| Type of safety device for gas | Without |
| Safety | Without Safety |
Connection
| Total connected gas load | 14,650 W |
| Location of gas connection | Bottom, Rear, Right |
| Frequency | 60 Hz |
| Energy source | Gas |
| Power Cord Length | 60'' |
| Watts | 360 W |
Accessories
| Included Accessories | 1 x nozzle set for liquid gas, 1 x cast iron pan support |
Design
| Surface Materials | Stainless Steel |
| Grate Materials | Cast Iron with Rubber Feet |
| Location of Control Panel | Front |
Comfort and Convenience
| Number of Gas Burners | 5 |
| Pedestal Star® Burners | no |
| ExtraLow® Burners | no |
| Sealed Burners | yes |
| Special Features | Reignition, Simmer Cap |
| Griddle | no |
| ADA Compliant (When Installed to ADA requirements) | no |
| OptiSim® Burner | no |
Connectivity
| Home Connect™ | no |

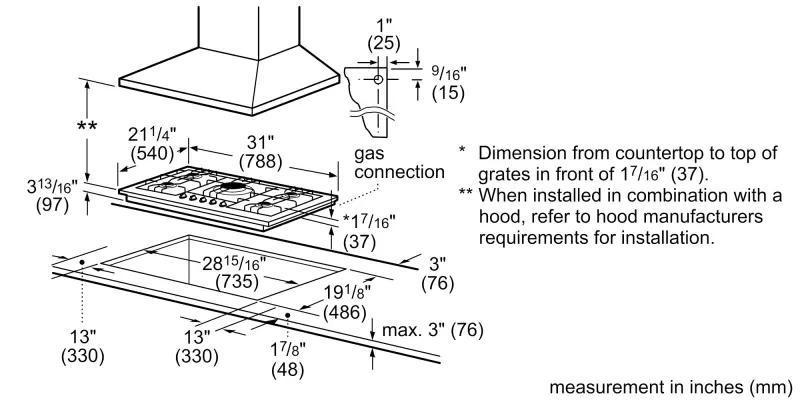

Dimensions & Weight
| Width | 31 in. |
| Height | 3.81 in. |
| Length | 21.25 in. |
| Weight | 41 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 36 in. |
| Shipping Height | 8.81 in. |
| Shipping Length | 26.25 in. |
| Shipping Weight | 81 lbs. |
| Total of Shipping Weight | 81 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 1.45 ft³ |
| Dimensional Weight | 18.07 lbs. |
| Total of Cubes | 1.45 ft³ |
| Total of Dimensional Weight | 18.07 lbs. |
