800 Series Gas Cooktop - NGM8048UC
800 Series Gas Cooktop
Model: NGM8048UC













Product Video

360 View
800 Series Gas Cooktop
Model: NGM8048UC
Key Features
Sleek Knobs with LED Indicators
Simmer delicate sauces with the OptiSim Burner
Easy to clean, low-profile design
Eliminate the guesswork of cooking with FlameSelect
Dishwasher-safe grates
Slide your pans from burner to burner
LED Burner Indicator: displays a red light line to indicate if a burner is on and pulses as a safety residual heat indicatorClose
OptiSim Burner: the wide & thick burner design diffuses heat evenly and reduces hot spots -- perfect for simmering delicate sauces or melting chocolate.Close
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features

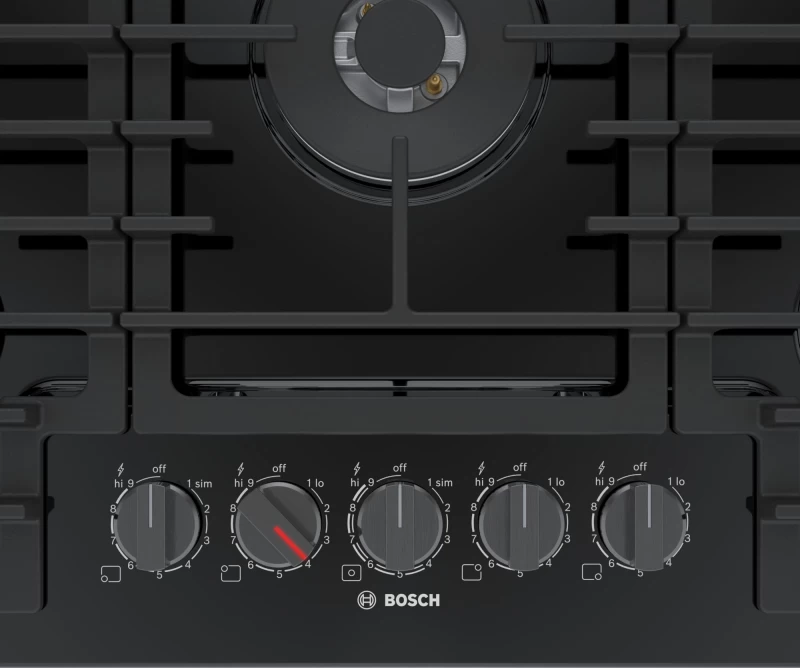

Sleek Knobs with LED Indicators
Control knobs with an embedded red LED light line indicate if the burner is on or if there is residual heat.

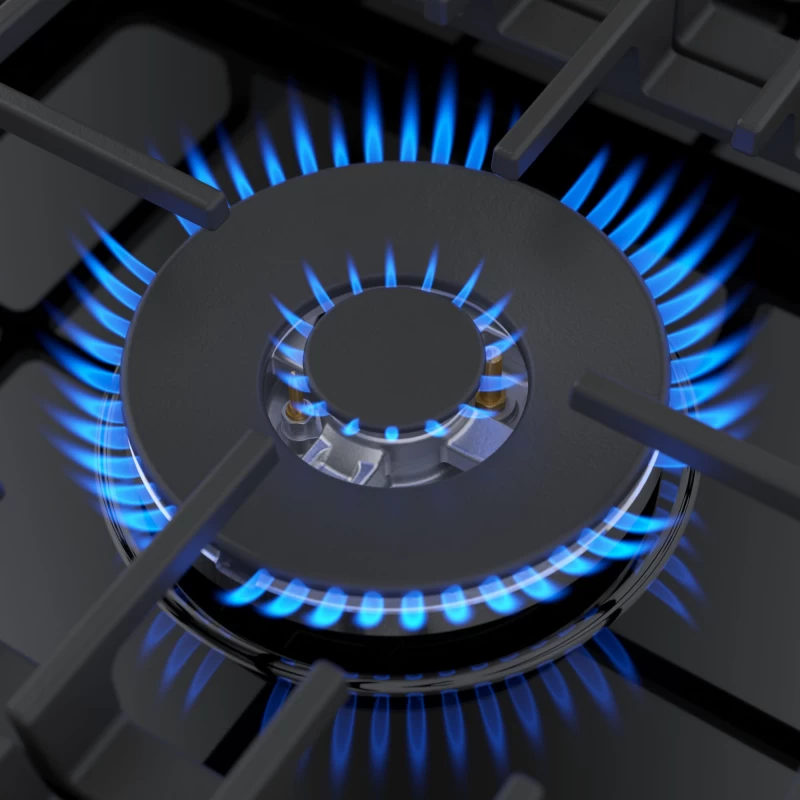

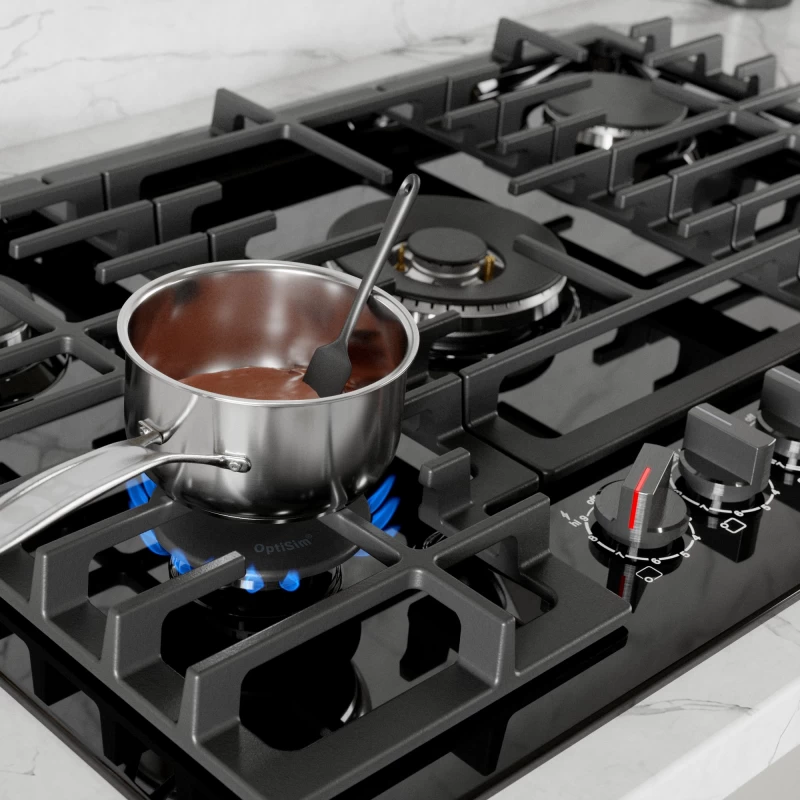

Simmer delicate sauces with the OptiSim Burner
The OptiSim burner design is wider and thicker which diffuses heat evenly for better flame control when simmering delicate sauces.
Easy to clean, low-profile design
The low-profile cooking surface provides a timeless, streamlined look while keeping spills contained and makes clean-up easier than ever
Eliminate the guesswork of cooking with FlameSelect
Introducing FlameSelect on Bosch cooktops, an entirely new and better way to cook with gas. 9 preset power levels let you easily adjust flame level for more precise, controlled heating. Whether you’re rapidly bringing water to an intense boil or delicately melting chocolate, the numbered flame levels deliver the exact temperature every time. There’s no more hot or cold spots, just precision heating for perfect results.
Dishwasher-safe grates
A special enameling process allows the grates to be washed directly in the dishwasher instead of by hand for easier clean up.
Slide your pans from burner to burner
The full-width continuous cast iron grate design makes sliding heavy pots easier around the cooking surface.
LED Burner Indicator: displays a red light line to indicate if a burner is on and pulses as a safety residual heat indicatorClose
Control knobs with an embedded red LED light line indicate if the burner is on or if there is residual heat.
OptiSim Burner: the wide & thick burner design diffuses heat evenly and reduces hot spots -- perfect for simmering delicate sauces or melting chocolate.Close
The OptiSim burner design is wider and thicker which diffuses heat evenly for better flame control when simmering delicate sauces.
Easy-to-Clean: a one-piece stainless steel design makes clean-up easy.
FlameSelect: delivers a new and better way to cook with gas with 9 pre-defined power levels for precise heat.Close
Dishwasher-Safe Grates: conveniently place your grates in the dishwasher for easy clean-up.Close
A special enameling process allows the grates to be washed directly in the dishwasher instead of by hand for easier clean up.
LED Burner Indicator:
displays a red light line to indicate if a burner is on and pulses as a safety residual heat indicator
OptiSim Burner:
the wide & thick burner design diffuses heat evenly and reduces hot spots -- perfect for simmering delicate sauces or melting chocolate.
Tilt u0026 Stay legs for easy cleaning of cooktop
- 1st in India
FlameSelect:
delivers a new and better way to cook with gas with 9 pre-defined power levels for precise heat.
Dishwasher-Safe Grates:
conveniently place your grates in the dishwasher for easy clean-up.
Tilt & Stay legs for easy cleaning of cooktop
- 1st in India
OptiSim® Burner:
the wide & thick burner design diffuses heat evenly and reduces hot spots -- perfect for simmering delicate sauces or melting chocolate.
Easy to clean:
low-profile cooking surface keeps spills contained and makes clean-up easier than ever.
FlameSelect®:
delivers a new and better way to cook with gas with 9 pre-defined power levels for precise heat.
Specifications
General
| Energy source | Gas |
| Type of Control | Front, Illuminated, sword knobs |
| Safety | SMARTFLAME |
| Features | Flame select, Wok burner |
| Total NG BTUs | 41700 Btu |
| ExtraLow® Burners | no |
| Total LP BTUs | 41700 Btu |
Construction type
| Color of frame | Black |
| Color of Surface | Black |
| Design | Built-in |
| Number of electric elements | 0 |
| Number of electric cooking zones | 0 |
| Number of halogen elements | 0 |
| Installation Type | Built-in |
| Type of grate | Cast iron |
| Total Number of Heating Elements | 5 |
| Number of radiant elements | 0 |
| Number of electric warming zones | 0 |
Cooking zone 1
| Location of heating element | front left |
| Power of heating element (kW) | 1 kW |
| Type of heating element | Gas |
Cooking zone 2
| Location of 2nd heating element | center left |
Cooking zone 3
| Location of 3rd heating element | back left |
| Power of 3rd heating element (kW) | 1.45 kW |
| Type of 3rd heating element | Gas |
Cooking zone 4
| Location of 4th heating element | middle back |
Cooking zone 5
| Location of 5th heating element | back right |
| Power of 5th heating element (kW) | 3 kW |
| Type of 5th heating element | Gas |
Cooking zone 6
| Location of 6th heating element | center right |
Cooking zone 7
| Location of 7th heating element | front right |
| Power of 7th heating element (kW) | 1.75 kW |
| Type of 7th heating element | Gas |
Cooking zone 8
| Location of 8th heating element | front middle / central |
Cooking zone 9
| Location of 9th heating element | front centre/cent |
Safety
| Residual Heat Indicator | Separate |
| Type of safety device for gas | Electromagnetic for each burner |
| Safety | SMARTFLAME |
Connection
| Total connected gas load | 10 W |
| Location of gas connection | Bottom, Rear, Right |
| Frequency | 60 Hz |
| Energy source | Gas |
| Power Cord Length | 40'' |
| Watts | 360 W |
Accessories
| Included Accessories | 1 x nozzle set for liquid gas, 3 x cast iron pan support |
Design
| Surface Materials | Porcelain, Steel |
| Grate Materials | Cast Iron with Rubber Feet |
| Location of Control Panel | Front |
Comfort and Convenience
| Number of Gas Burners | 5 |
| Pedestal Star® Burners | no |
| Sealed Burners | yes |
| ExtraLow® Burners | no |
| Griddle | no |
| ADA Compliant (When Installed to ADA requirements) | no |
| Special Features | Simmer Cap |
Connectivity
| Home Connect™ | no |
Dimensions & Weight
| Width | 31 in. |
| Height | 3.81 in. |
| Length | 21.25 in. |
| Weight | 24 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 36 in. |
| Shipping Height | 8.81 in. |
| Shipping Length | 26.25 in. |
| Shipping Weight | 64 lbs. |
| Total of Shipping Weight | 64 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 1.45 ft³ |
| Dimensional Weight | 18.07 lbs. |
| Total of Cubes | 1.45 ft³ |
| Total of Dimensional Weight | 18.07 lbs. |
