500 Series Gas Cooktop - NGM5658UC

This product has been discontinued by the manufacture and is no longer available.

500 Series Gas Cooktop

Model: NGM5658UC

500 Series Gas Cooktop NGM5658UC500 Series Gas Cooktop NGM5658UC500 Series Gas Cooktop NGM5658UC500 Series Gas Cooktop NGM5658UC500 Series Gas Cooktop NGM5658UC500 Series Gas Cooktop NGM5658UC500 Series Gas Cooktop NGM5658UC500 Series Gas Cooktop NGM5658UC
500 Series Gas Cooktop NGM5658UC
500 Series Gas Cooktop NGM5658UC
500 Series Gas Cooktop NGM5658UC
500 Series Gas Cooktop NGM5658UC
500 Series Gas Cooktop NGM5658UC
+3more

360 View

360 icon

Color : Stainless Steel

500 Series Gas Cooktop NGM5658UC
Stainless Steel

Key Features

  • Fit multiple pans and cook with 5 burners

  • Simmer delicate sauces with the OptiSim Burner

  • Easy to clean, low-profile design

  • Slide your pans from burner to burner

  • 5 Burners: 5 high-efficiency gas burners allow you to cook multiple dishes at once

  • OptiSim Burner: the wide & thick burner design diffuses heat evenly and reduces hot spots -- perfect for simmering delicate sauces or melting chocolate.Close

  • Easy-to-Clean: a one-piece stainless steel design makes clean-up easy.

  • Continuous Cast Iron Grates: makes it easy to slide pots & pans from burner to burner.

Read More

Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.

Features
Specifications

Features

Fit multiple pans and cook with 5 burners

5 powerful high-efficiency gas burners allow you to cook multiple dishes with a full range of BTU performance.

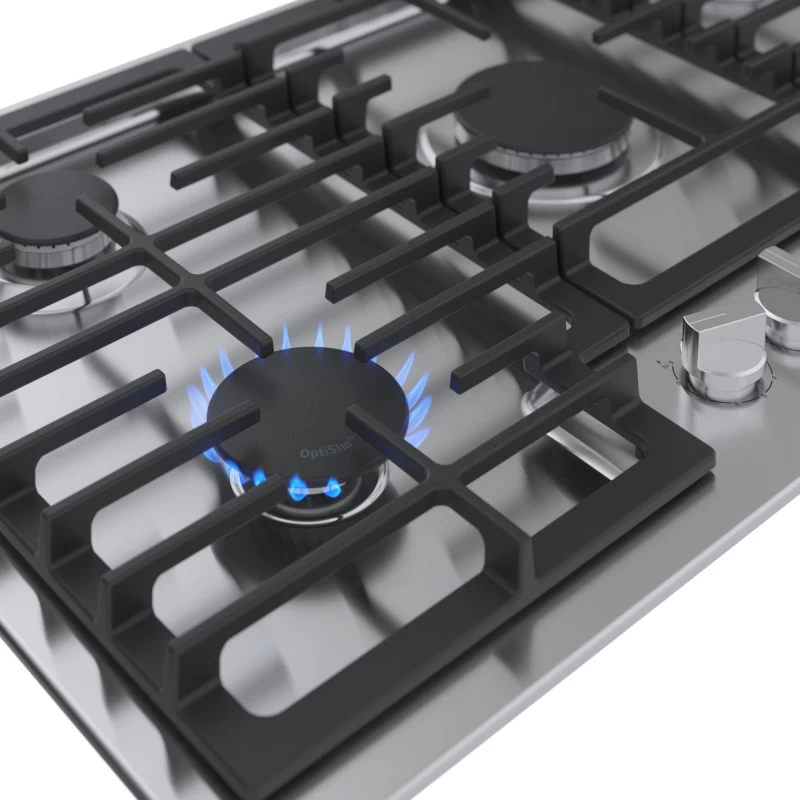

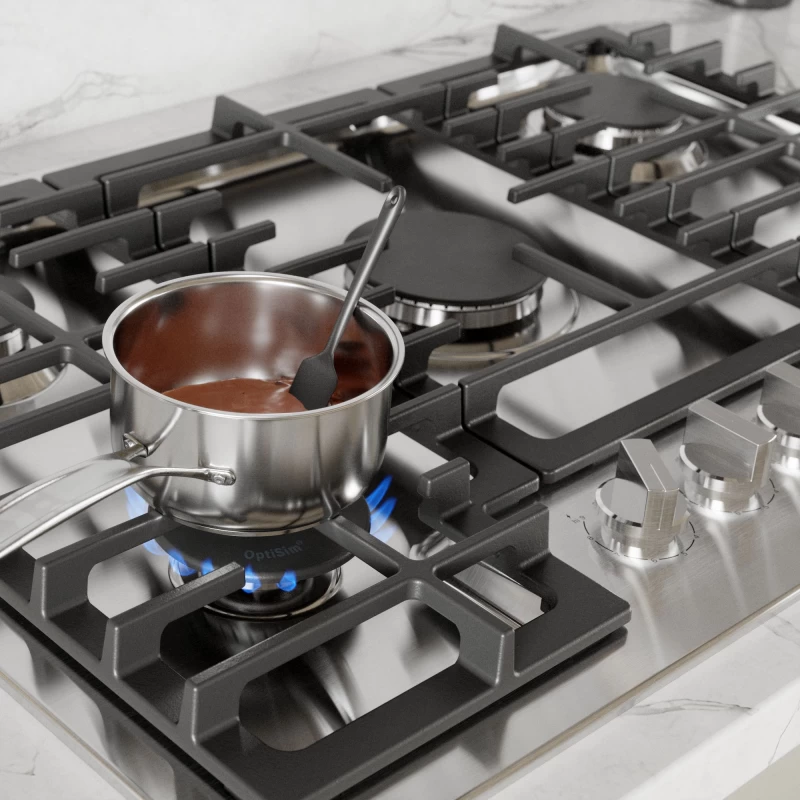

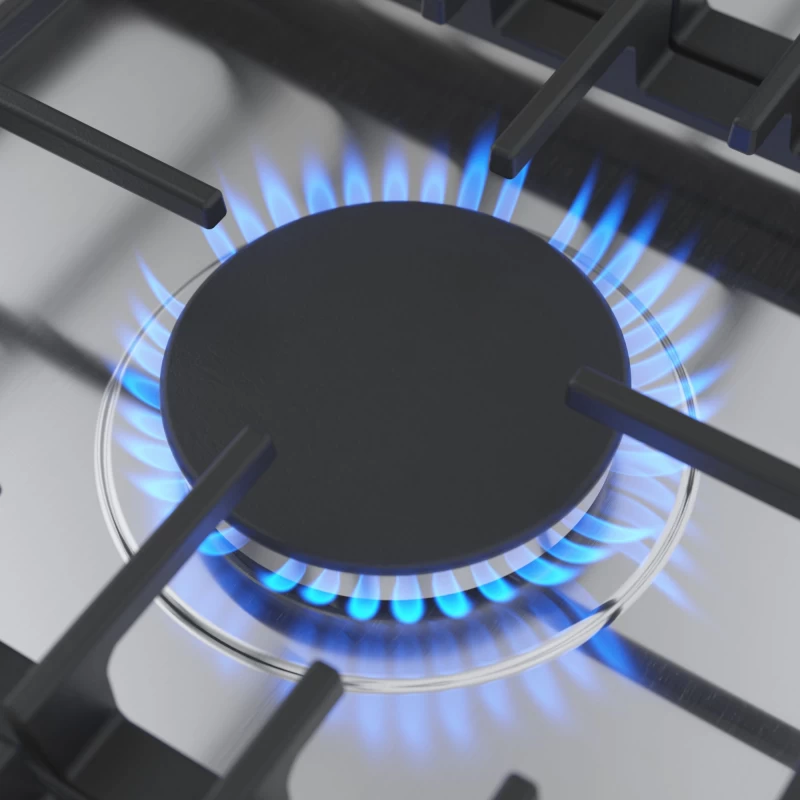

Simmer delicate sauces with the OptiSim Burner

The OptiSim burner design is wider and thicker which diffuses heat evenly for better flame control when simmering delicate sauces.

Easy to clean, low-profile design

The low-profile cooking surface provides a timeless, streamlined look while keeping spills contained and makes clean-up easier than ever

Slide your pans from burner to burner

The full-width continuous cast iron grate design makes sliding heavy pots easier around the cooking surface.

5 Burners: 5 high-efficiency gas burners allow you to cook multiple dishes at once

OptiSim Burner: the wide & thick burner design diffuses heat evenly and reduces hot spots -- perfect for simmering delicate sauces or melting chocolate.Close

The OptiSim burner design is wider and thicker which diffuses heat evenly for better flame control when simmering delicate sauces.

Easy-to-Clean: a one-piece stainless steel design makes clean-up easy.

Continuous Cast Iron Grates: makes it easy to slide pots & pans from burner to burner.

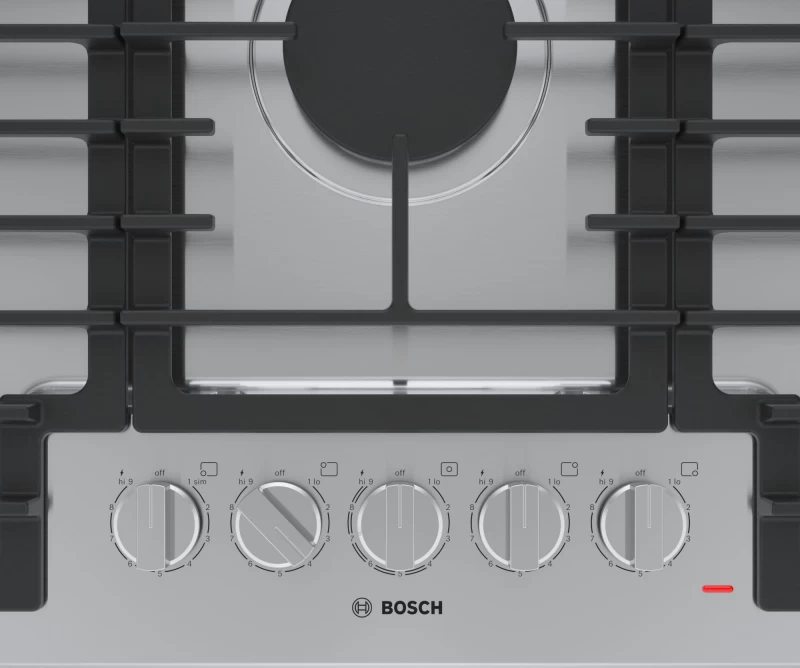

Heavy-Duty Metal Knobs: for a premium look and feel.

5 Burners:

5 high-efficiency gas burners allow you to cook multiple dishes at once

OptiSim Burner:

the wide & thick burner design diffuses heat evenly and reduces hot spots -- perfect for simmering delicate sauces or melting chocolate.

Tilt u0026 Stay legs for easy cleaning of cooktop

- 1st in India

Continuous Cast Iron Grates:

makes it easy to slide pots & pans from burner to burner.

Tilt & Stay legs for easy cleaning of cooktop

- 1st in India

OptiSim® Burner:

the wide & thick burner design diffuses heat evenly and reduces hot spots -- perfect for simmering delicate sauces or melting chocolate.

Easy to clean:

low-profile cooking surface keeps spills contained and makes clean-up easier than ever.

Specifications

General

Energy sourceGas
Type of ControlFront, Illuminated, sword knobs
SafetySMARTFLAME
FeaturesWok burner
Total NG BTUs41400 Btu
Total LP BTUs41400 Btu
ExtraLow® Burnersno

Construction type

Color of frameStainless Steel
Color of SurfaceStainless steel, Stainless Steel
DesignBuilt-in
Number of electric elements0
Number of electric cooking zones0
Number of halogen elements0
Installation TypeBuilt-in
Type of grateCast iron
Total Number of Heating Elements5
Number of radiant elements0
Number of electric warming zones0

Cooking zone 1

Location of heating elementfront left
Power of heating element (kW)1 kW
Type of heating elementGas

Cooking zone 2

Location of 2nd heating elementcenter left

Cooking zone 3

Location of 3rd heating elementback left
Power of 3rd heating element (kW)1.75 kW
Type of 3rd heating elementGas

Cooking zone 4

Location of 4th heating elementmiddle back

Cooking zone 5

Location of 5th heating elementback right
Power of 5th heating element (kW)3 kW
Type of 5th heating elementGas

Cooking zone 6

Location of 6th heating elementcenter right

Cooking zone 7

Location of 7th heating elementfront right
Power of 7th heating element (kW)1.75 kW
Type of 7th heating elementGas

Cooking zone 8

Location of 8th heating elementfront middle / central

Cooking zone 9

Location of 9th heating elementfront centre/cent

Safety

Residual Heat IndicatorWithout
Type of safety device for gasElectromagnetic for each burner
SafetySMARTFLAME

Connection

Total connected gas load12,100 W
Location of gas connectionBottom, Rear, Right
Frequency60 Hz
Energy sourceGas
Power Cord Length40''
Watts360 W

Accessories

Included Accessories1 x nozzle set for liquid gas, 3 x cast iron pan support

Design

Surface MaterialsStainless Steel
Grate MaterialsCast Iron with Rubber Feet
Location of Control PanelFront

Comfort and Convenience

Number of Gas Burners5
Pedestal Star® Burnersno
Sealed Burnersyes
ExtraLow® Burnersno
Griddleno
ADA Compliant (When Installed to ADA requirements)no
Special FeaturesSimmer Cap

Connectivity

Home Connect™no

Dimensions & Weight

Width37 in.
Height3.81 in.
Length21.25 in.
Weight7 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width42 in.
Shipping Height8.81 in.
Shipping Length26.25 in.
Shipping Weight47 lbs.
Total of Shipping Weight47 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement1.73 ft³
Dimensional Weight21.57 lbs.
Total of Cubes1.73 ft³
Total of Dimensional Weight21.57 lbs.
