This product is discontinued and has been replaced by the model below.

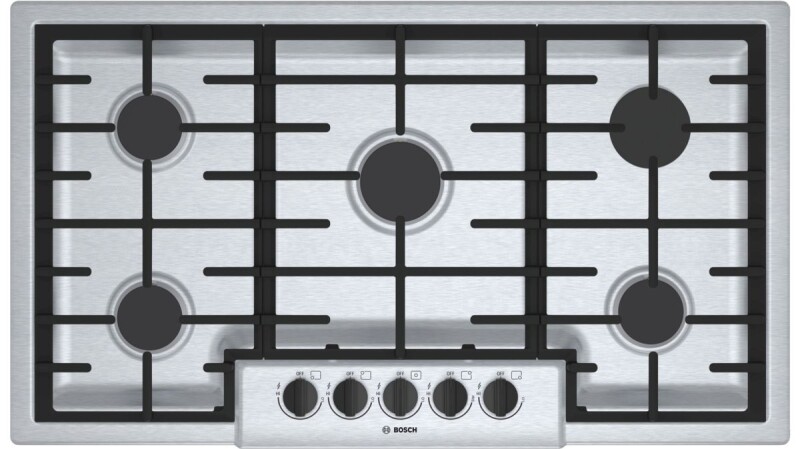

Bosch 500 Series Gas Cooktop

Model: NGM5656UC

500 Series Gas Cooktop NGM5656UC, product image 1 of 4500 Series Gas Cooktop NGM5656UC, product image 2 of 4500 Series Gas Cooktop NGM5656UC, product image 3 of 4500 Series Gas Cooktop NGM5656UC, product image 4 of 4
500 Series Gas Cooktop NGM5656UC, thumbnail image 1 of 4
500 Series Gas Cooktop NGM5656UC, thumbnail image 2 of 4
500 Series Gas Cooktop NGM5656UC, thumbnail image 3 of 4
500 Series Gas Cooktop NGM5656UC, thumbnail image 4 of 4

Color : Stainless Steel

500 Series Gas Cooktop NGM5656UC
Stainless Steel
Replaced By

500 Series Gas Cooktop 36''

Model: NGM5659UC

Product - NGM5659UC

$1,599.00

View Product

Key Features

  • 16,000 BTU Burner

  • Simmer delicate sauces with the OptiSim Burner

  • Automatic re-ignition

  • Easy to clean, low-profile design

  • Slide your pans from burner to burner

  • 16,000 BTU Burner: for boiling, searing, and stir-frying.Close

  • OptiSim Burner: the wide & thick burner design diffuses heat evenly and reduces hot spots -- perfect for simmering delicate sauces or melting chocolate.Close

  • Electronic Re-Ignition: automatically re-ignites the burner in case the flame goes out.Close

Read More

Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.

Features
Specifications

Features

16,000 BTU Burner

Powerful 16,000 BTU burner for boiling, searing and stir-frying.

Simmer delicate sauces with the OptiSim Burner

The OptiSim burner design is wider and thicker which diffuses heat evenly for better flame control when simmering delicate sauces.

Automatic re-ignition

The electronic re-ignition feature will automatically re-ignite the burner in case the flame goes out during use.

Easy to clean, low-profile design

The low-profile cooking surface provides a timeless, streamlined look while keeping spills contained and makes clean-up easier than ever

Slide your pans from burner to burner

The full-width continuous cast iron grate design makes sliding heavy pots easier around the cooking surface.

16,000 BTU Burner: for boiling, searing, and stir-frying.Close

Powerful 16,000 BTU burner for boiling, searing and stir-frying.

OptiSim Burner: the wide & thick burner design diffuses heat evenly and reduces hot spots -- perfect for simmering delicate sauces or melting chocolate.Close

The OptiSim burner design is wider and thicker which diffuses heat evenly for better flame control when simmering delicate sauces.

Electronic Re-Ignition: automatically re-ignites the burner in case the flame goes out.Close

The electronic re-ignition feature will automatically re-ignite the burner in case the flame goes out during use.

Easy-to-Clean: a one-piece stainless steel design makes clean-up easy.

Continuous Cast Iron Grates: makes it easy to slide pots & pans from burner to burner.

16,000 BTU Burner:

for boiling, searing, and stir-frying.

OptiSim Burner:

the wide & thick burner design diffuses heat evenly and reduces hot spots -- perfect for simmering delicate sauces or melting chocolate.

Electronic Re-Ignition:

automatically re-ignites the burner in case the flame goes out.

Easy-to-Clean:

a one-piece stainless steel design makes clean-up easy.

Continuous Cast Iron Grates:

makes it easy to slide pots & pans from burner to burner.

OptiSim® Burner:

the wide & thick burner design diffuses heat evenly and reduces hot spots -- perfect for simmering delicate sauces or melting chocolate.

Specifications

General

Energy sourceGas
Type of ControlFront, sword knobs
SafetyWithout Safety
ExtraLow® Burnersno
Total NG BTUs51500 Btu
Total LP BTUs47300 Btu

Construction type

Color of SurfaceStainless steel, Stainless Steel
DesignBuilt-in
Color of frameStainless Steel
Number of electric elements0
Number of electric cooking zones0
Number of halogen elements0
Installation TypeBuilt-in
Type of grateCast iron
Total Number of Heating Elements5
Number of radiant elements0
Number of electric warming zones0

Cooking zone 1

Location of heating elementfront left
Power of heating element (kW)2.93 kW
Type of heating elementGas

Cooking zone 2

Location of 2nd heating elementcenter left

Cooking zone 3

Location of 3rd heating elementback left
Power of 3rd heating element (kW)2.93 kW
Type of 3rd heating elementGas

Cooking zone 4

Location of 4th heating elementmiddle back

Cooking zone 5

Location of 5th heating elementback right
Power of 5th heating element (kW)1.61 kW
Type of 5th heating elementGas

Cooking zone 6

Location of 6th heating elementcenter right

Cooking zone 7

Location of 7th heating elementfront right
Power of 7th heating element (kW)2.93 kW
Type of 7th heating elementGas

Cooking zone 8

Location of 8th heating elementfront middle / central

Cooking zone 9

Location of 9th heating elementfront centre/cent

Safety

Residual Heat IndicatorWithout
Type of safety device for gasWithout
SafetyWithout Safety

Connection

Total connected gas load15,100 W
Location of gas connectionBottom, Rear, Right
Frequency60 Hz
Energy sourceGas
Power Cord Length60''
Watts360 W

Accessories

Included Accessories1 x nozzle set for liquid gas, 1 x cast iron pan support

Design

Surface MaterialsStainless Steel
Grate MaterialsCast Iron with Rubber Feet
Location of Control PanelFront

Comfort and Convenience

Number of Gas Burners5
Pedestal Star® Burnersno
Sealed Burnersyes
Special FeaturesReignition, Simmer Cap
ExtraLow® Burnersno
Griddleno
ADA Compliant (When Installed to ADA requirements)no
OptiSim® Burnerno

Connectivity

Home Connect™no

Dimensions & Weight

Width37 in.
Height3.81 in.
Length21.25 in.
Weight42 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width42 in.
Shipping Height8.81 in.
Shipping Length26.25 in.
Shipping Weight82 lbs.
Total of Shipping Weight82 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement1.73 ft³
Dimensional Weight21.57 lbs.
Total of Cubes1.73 ft³
Total of Dimensional Weight21.57 lbs.
