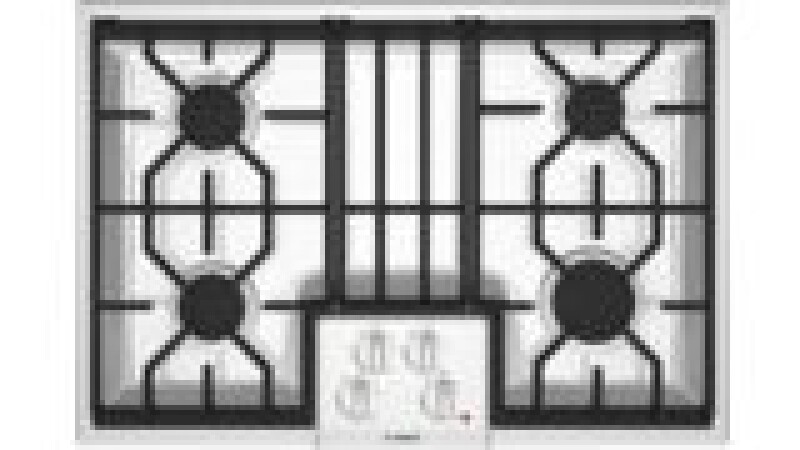

Gas Cooktop 30'' White - NGM5024UC
Gas Cooktop 30'' White
Model: NGM5024UC
Gas Cooktop 30'' White
Model: NGM5024UC
Color : White
Replaced By
Key Features
OptiSim – Simmer Delicate Sauces without Scorching
Centralized Controls for Easy Use and More Intuitive Operation of Cooktop.
High Quality Color Matched Knobs with a Stainless Bezel
Cooktop Design Coordinates with Bosch Wall Ovens
OptiSim
Low-Profile Design for a More Integrated Appearance
OptiSim®
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
OptiSim – Simmer Delicate Sauces without Scorching
Centralized Controls for Easy Use and More Intuitive Operation of Cooktop.
High Quality Color Matched Knobs with a Stainless Bezel
Cooktop Design Coordinates with Bosch Wall Ovens
OptiSim
– Simmer Delicate Sauces without Scorching
Low-Profile Design for a More Integrated Appearance
OptiSim®
– Simmer Delicate Sauces without Scorching
Specifications
Safety
| Safety | Without Safety |
Accessories
| Included Accessories | 3 x cast iron pan support |
General
| Total NG BTUs | 41500 Btu |
| Total LP BTUs | 38700 Btu |
Installation

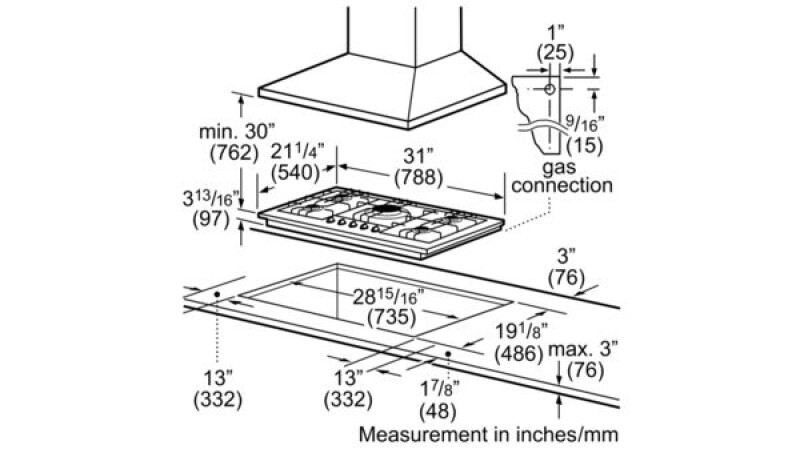

| Required Cutout Size (HxWxD) (in) | 3 13/16'' x 28 15/16'' x 19 1/8'' |
| Overall Appliance Dimensions (HxWxD) (in) | 3 13/16'' x 31'' x 21 1/4'' |
| Alternative Gas Type (Nozzle Set Included) | Liquid gas 27,5 mbar (USA) |
| Plug Type | 120V-3 prong |
| Power Cord Length | 60'' |
| Fuse protection | 15 A |
| Volts | 120 V |
| Product Packaging Dimensions (HxWxD) | 8 3/8'' x 37 1/8'' x 24 3/4'' |
| Gas type preset | Natural gas 15 mbar (USA) |
Design
| Surface Materials | Porcelain, Steel |
| Grate Materials | Cast Iron with Rubber Feet |
| Location of Control Panel | Front |
Comfort and Convenience
| Number of Gas Burners | 0 |
| Sealed Burners | yes |
| Special Features | Reignition |
| Griddle | no |
| ADA Compliant (When Installed to ADA requirements) | no |
| OptiSim® Burner | no |
Dimensions & Weight
| Width | 31 in. |
| Height | 3.81 in. |
| Length | 21.25 in. |
| Weight | 41 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 36 in. |
| Shipping Height | 8.81 in. |
| Shipping Length | 26.25 in. |
| Shipping Weight | 81 lbs. |
| Total of Shipping Weight | 81 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 1.45 ft³ |
| Dimensional Weight | 18.07 lbs. |
| Total of Cubes | 1.45 ft³ |
| Total of Dimensional Weight | 18.07 lbs. |
