30-Inch 4 Burner Gas Cooktop, Architect Series II - KGCC506RBL
30-Inch 4 Burner Gas Cooktop, Architect Series II
Model: KGCC506RBL
30-Inch 4 Burner Gas Cooktop, Architect Series II
Model: KGCC506RBL
Color : Black
Replaced By
Key Features
Gas-on-Glass Surface
17K BTU Professional Burner
6K BTU Simmer Burner
Electronic Ignition
Full-Width Cast-Iron Grates
LP Conversion Kit Included
LP Conversion Kit (not included)
LP Conversion Kit
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
Gas-on-Glass Surface
17K BTU Professional Burner
6K BTU Simmer Burner
Electronic Ignition
Full-Width Cast-Iron Grates
LP Conversion Kit Included
LP Conversion Kit (not included)
LP Conversion Kit
Gas-on-Glass Surface-cKAD2012
6K BTU Simmer Burner-cKAD2012
Electronic Ignition-cKAD2012
LP Conversion Kit (not Included)-cKAD2012
17K BTU Professional Burner-cKAD2012
Full-Width Cast-Iron Grates-cKAD2012
Specifications
Configuration and Overview
| Size | 30 in |
| Cooktop Type | Standard |
| Fuel Type | Gas |
| LP Convertible | Yes - Kit Included |
| Installs Over Built-In Oven | Yes |
| Power Boost | No |
Controls
| Knob Color | Color Coordinated |
| Infinite Heat Controls | Yes |
| Knob Type | Dishwasher-Safe Plastic |
| Location of Controls | Front |
| Control Location | Front |
| Control Type | Knobs |
Cooktop Details
| Automatic Pan Detection | No |
| Downdraft Vent | No |
| Heating Element On Indicator Light | No |
| Hot Surface Indicator Light | No |
| Cooktop Element Style | Sealed Burner |
| Cooktop Surface Color | Color Coordinated |
| Ignition Type | Direct Spark Ignition |
| Number of Cooking Element-Burners | 4 |
| Number of Grates | 3 |
| Grate Details | Cast Iron Grates,Continuous,Matte Finish |
| Left Rear Element-Burner Type | Burner |
| Right Front Element-Burner Type | Simmer |
| Left Rear Element-Burner Power | 9000 BTU |
| Left Front Element-Burner Power | 17,000 BTU |
| Left Front Element-Burner Type | Professional Burner |
| Right Rear Element-Burner Power | 12,500 BTU |
| Right Rear Element-Burner Type | Burner |
| Right Front Element-Burner Power | 6000 BTU |
Appearance
| Digital Display | No |
Certifications
| Prop 65 | Standard |
| ADA Compliant | No |
| UL | Yes |
Electrical
| Power Cord Included | Yes |
| Amps | 15 |
| Hz | 60 |
| Volts | 120 |
Features
| Power Outage Compatible | Yes |
| Automatic Pan Detection | No |
| Digital Display | No |
| Griddle | Optional Accessory |
| Heating Element On Indicator Light | No |
| Hot Surface Indicator Light | No |
| Installs Over Built-In Oven | Yes |
| Downdraft Vent | No |
| LP Convertible | Yes - Kit Included |
| Power Boost | No |
GDS
| isBaseUnit | true |
| GPC Code | 10001951 |
| isConsumerUnit | true |
| IsInvoiceUnit | true |
| IsOrderableUnit | true |
| Product Type | EA |
| UDEX | 1100400623 |
Details
| Cooktop Surface Material | Ceramic Glass |
Description
| Combinations with Oven | KOSC504,KOSE500,KOSE507,KOSE900,KOST100,KOST107 |
| Cooktop Type | Standard |
| Fuel Type | Gas |
| Size (in.) | 30 |
Specifications
| Accessory Relationships | Yes |
| GPC Code | 10001951 |
| isBaseUnit | true |
| isConsumerUnit | true |
| IsDispatchUnit | . |
| IsInvoiceUnit | true |
| IsOrderableUnit | true |
| Product Type | EA |
| UDEX | 1100400623 |
| Home Delivery | Yes |
| Will Call | Yes |
EndecaProps
| ProductOutletCategories | Cooking |
Refinement
| Style | Cooktops |

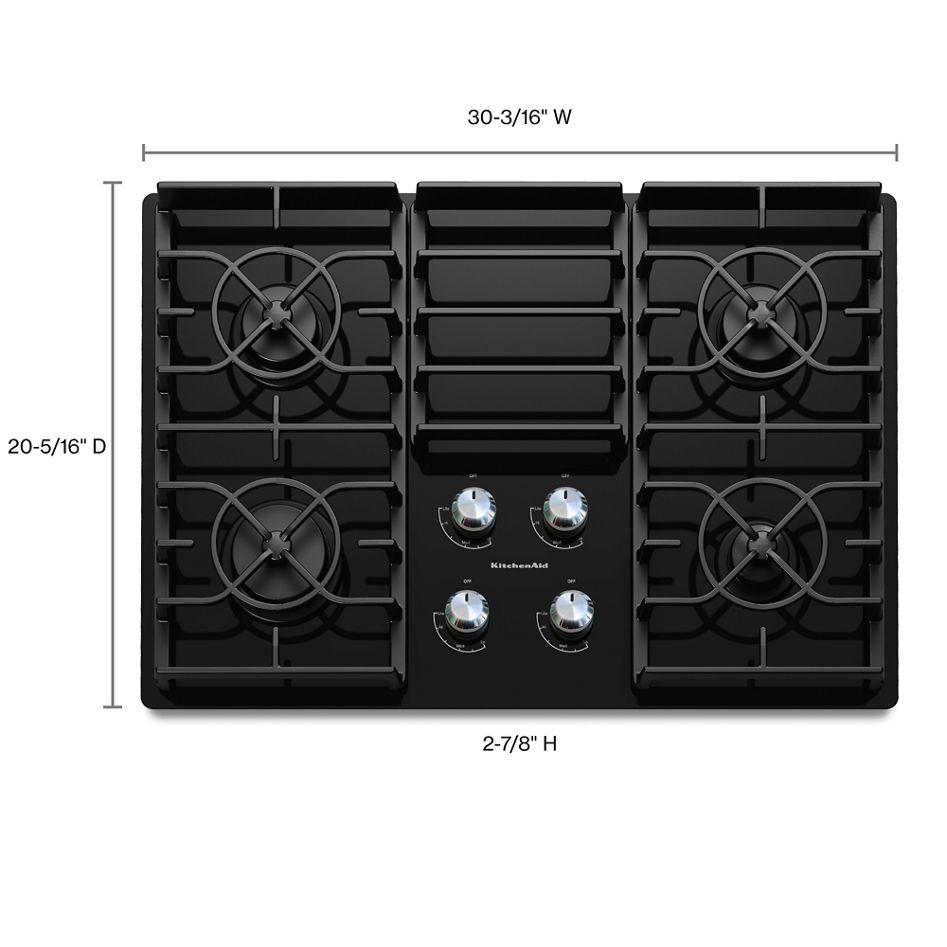

Dimensions & Weight
| Width | 30.19 in. |
| Height | 2.88 in. |
| Length | 20.31 in. |
| Weight | 55 lbs. |
| Carton Depth | 24 1/2 |
| Carton Height | 8 1/2 |
| Carton Width | 35 |
| Cutout Depth (in) | 19 |
| Cutout Height (in) | 2 7/8 |
| Cutout Width (in) | 29 |
| Gross Weight | 55 |
| Cutout Depth | 19.0 in |
| Cutout Height | 2-7/8 in |
| Cutout Width | 29.0 in |
| Cutout Depth(IN,inches) | 19 |
| Cutout Width(IN,inches) | 29 |
| Cutout Height(IN,inches) | 2 7/8 |
| Gross Weight(LB,pounds) | 55 |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 35.19 in. |
| Shipping Height | 7.88 in. |
| Shipping Length | 25.31 in. |
| Shipping Weight | 95 lbs. |
| Total of Shipping Weight | 95 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 1.02 ft³ |
| Dimensional Weight | 12.71 lbs. |
| Total of Cubes | 1.02 ft³ |
| Total of Dimensional Weight | 12.71 lbs. |
