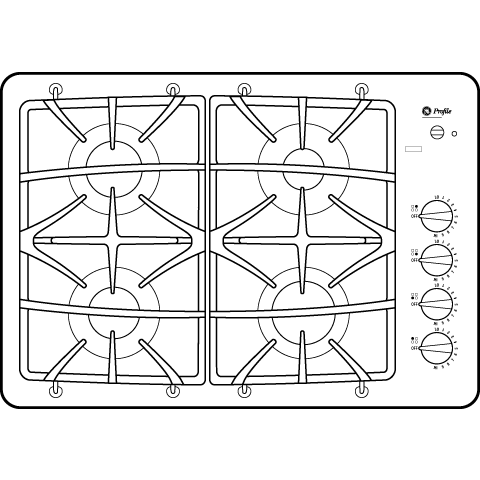

30" Built-In Gas Cooktop - JGP945CEKCC

GE ProfileGE Profile brand logo
This product has been discontinued by the manufacture and is no longer available.

30" Built-In Gas Cooktop

Model: JGP945CEKCC

30" Built-In Gas Cooktop JGP945CEKCC30" Built-In Gas Cooktop JGP945CEKCC30" Built-In Gas Cooktop JGP945CEKCC
30" Built-In Gas Cooktop JGP945CEKCC
30" Built-In Gas Cooktop JGP945CEKCC
30" Built-In Gas Cooktop JGP945CEKCC

Color : Bisque on Bisque

30" Built-In Gas Cooktop JGP945CEKCC
Bisque on Bisque

Key Features

  • Sealed cooktop burners

  • Dual-flame stacked burner

  • Precise Simmer burner

  • Control lock capability

  • Continuous grates

  • Heavy-duty knobs

  • Electronic pilotless ignition

  • Dishwasher-safe grates and knobs

Description

Features a unique two-in-one burner design for 18,000 BTU boiling or gentle 140 degree simmering.Delivers a low setting of 140 degrees, ideal for delicate foods and sauces.3 3/16 H x 30 W x 21 D

Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.

Features
Specifications
Certifications

Features

Sealed cooktop burners

Eliminate the space between the burners and the cooktop to help contain spills and boil over liquids, ensuring easy cleanup

Dual-flame stacked burner

Features a unique two-in-one burner design for 18,000 BTU boiling or gentle 140 degree simmering

Precise Simmer burner

Delivers a low setting of 140 degrees, ideal for delicate foods and sauces

Control lock capability

Shuts off gas to prevent unintended activation

Continuous grates

Provide a flat, sturdy surface allowing easy movement of pans between burners

Heavy-duty knobs

Add durability and brushed chrome for enhanced style and performance

Electronic pilotless ignition

Provides reliable burner ignition operation, eliminating the need for a standing pilot

Dishwasher-safe grates and knobs

Feature durable construction for worry-free, effortless cleaning and maintenance

Certifications

California Prop 65 certification

California Prop 65

Specifications

WEIGHTS & DIMENSIONS

Cabinet Width30 in
Overall Width30 in
Overall Depth21 in
Overall Height3 3/16 in

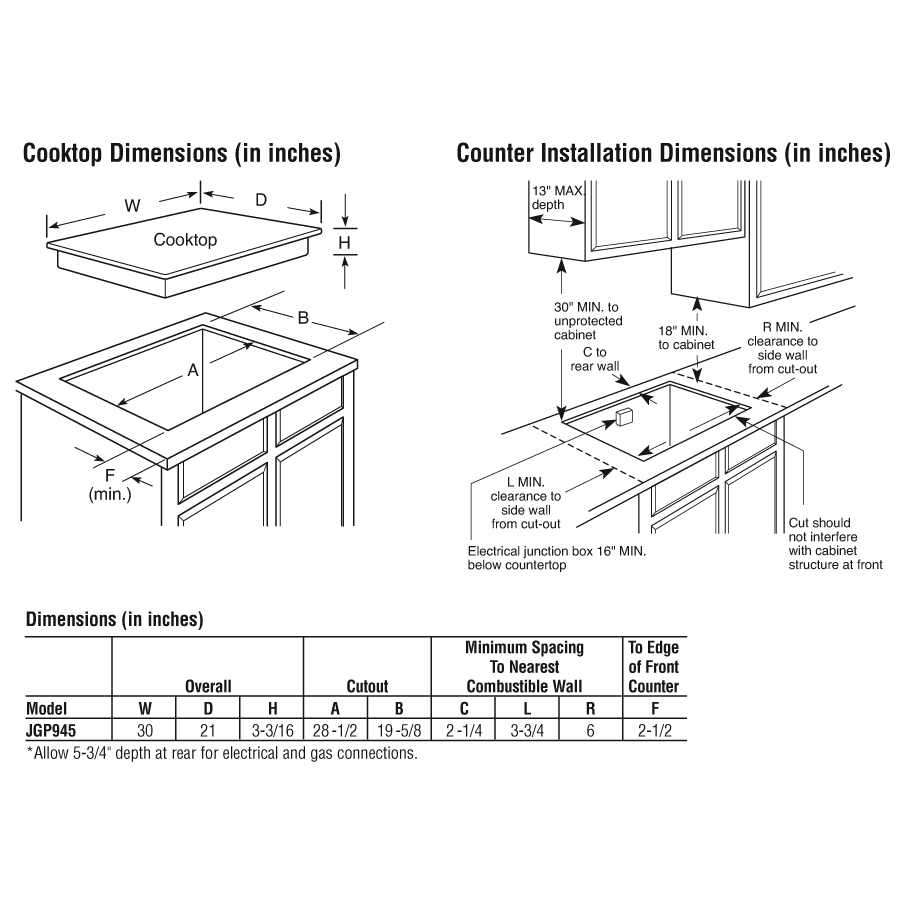

Cutout Width (in)28.5
Cutout Depth (in)19.625

FEATURES

Dishwasher Safe KnobsYes
Cooktop Burner Type4 Sealed
All-Purpose Burners(1) 9,500 BTU/150F degree simmer
Valves (Degree of Turn)270
Fuel TypeNatural Gas
Control LocationRight Side
Ignition SystemElectronic
Cooktop SurfaceDeep Porcelain-Enamel
Cooktop Control FeaturesChild Lock
High Output Burner(1) 11,000 BTU/150F degree simmer
Cooktop Burner Grate MaterialDeluxe Cast
Cooktop Burner Grate FeaturesDishwasher Safe
Precise Simmer Burner(1) 5,000 BTU/140F degree simmer
Dual Flame Stacked Burners(1) 18,000 BTU/140F degree simmer
Cooktop Burner Grate FeaturesContinuous Grates

POWER / RATINGS

Burner BTU Ratings (000's/BTU) - LP Gas(1) 15.0; (1) 10.0; (1) 9.1; (1) 5.0
Burner BTU Ratings (000's/BTU) - Natural Gas(1) 18.0; (1) 11.0; (1) 9.5; (1) 5.0
Volts/Hertz/Amps120V; 60Hz; 5A

ACCESSORIES

LP Conversion KitIncluded
Cooktop CleaningCream (WB64X5027)

APPEARANCE

Color AppearanceBisque on Bisque

Dimensions & Weight

Width30 in.
Height3.19 in.
Length21 in.
Weight39 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width35 in.
Shipping Height8.19 in.
Shipping Length26 in.
Shipping Weight79 lbs.
Total of Shipping Weight79 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement1.16 ft³
Dimensional Weight14.45 lbs.
Total of Cubes1.16 ft³
Total of Dimensional Weight14.45 lbs.
